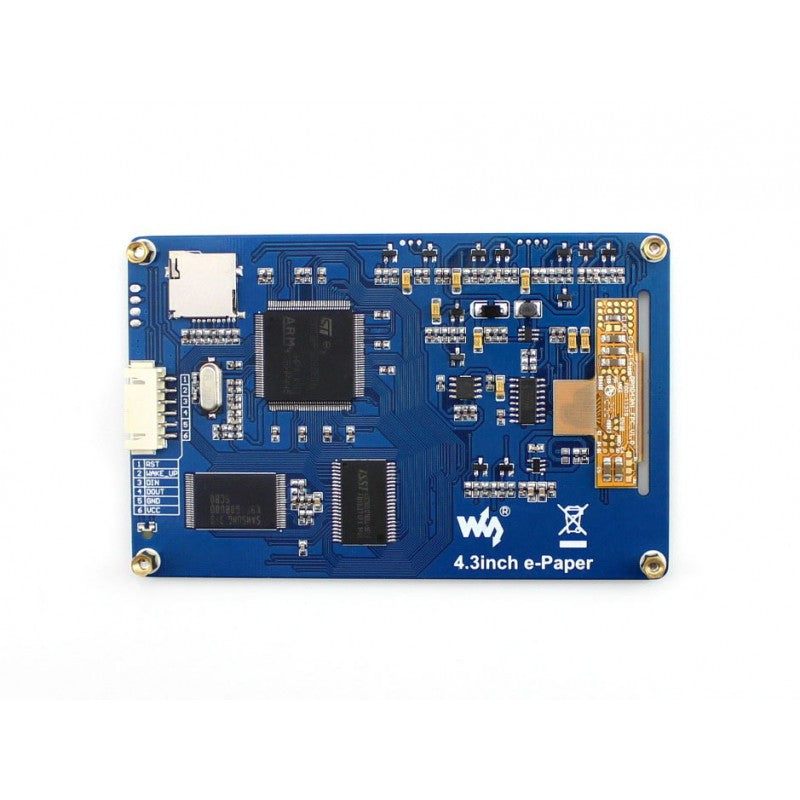

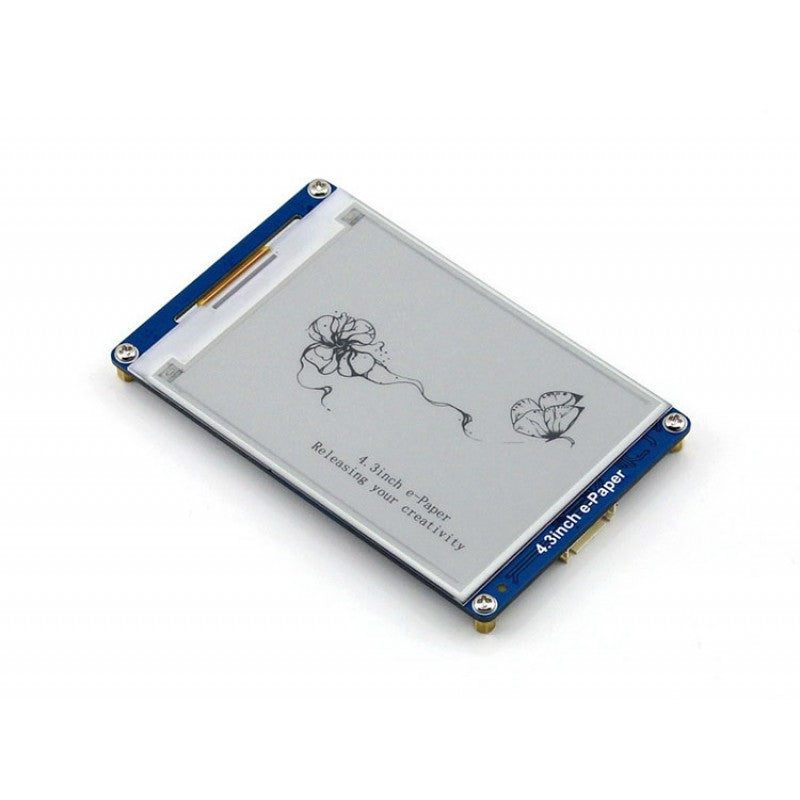

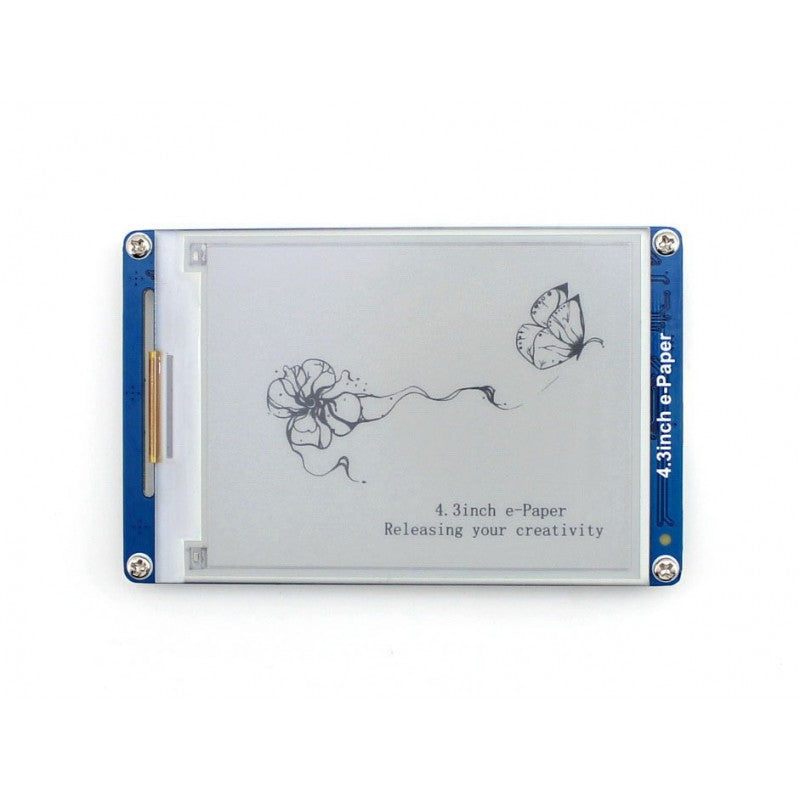

4.3in Serial Interface Electronic Paper Display

This E-Ink display module, 4.3inch, 800×600 resolution, with serial interface and embedded font libraries, is far more user friendly than its competitors. You don’t need to understand the intricate underlying details of e-Paper or the specific algorithms for displaying graphics, texts, and images. All it requires is a serial interface, and all that matters is your imagination.

Features:

• Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
• Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
• Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
• 4 grey level displaying, 800×600 resolution
• Adjustable serial interface baud rate, 115200 by default when power up
• Powered from 3.3V to 5V, compatible with logic level
• Ultra low power consumption, sleeping current lower than 5mA
• Comes with host computer software, control it directly on your computer

Applications:

• e book
• Shopping mall POS
• Price label
• Industry instrument
