Anchor STM8 Mini Development Board with STM8S003F3 MCU -7 Semi

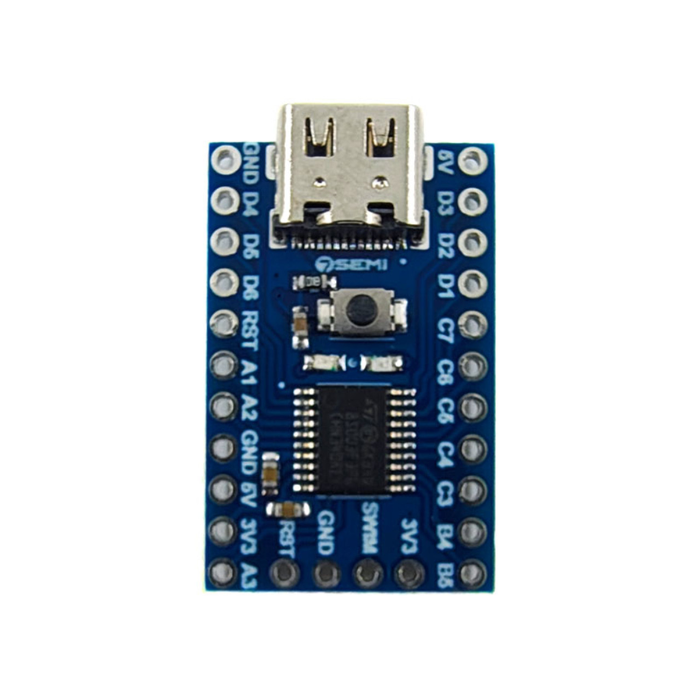

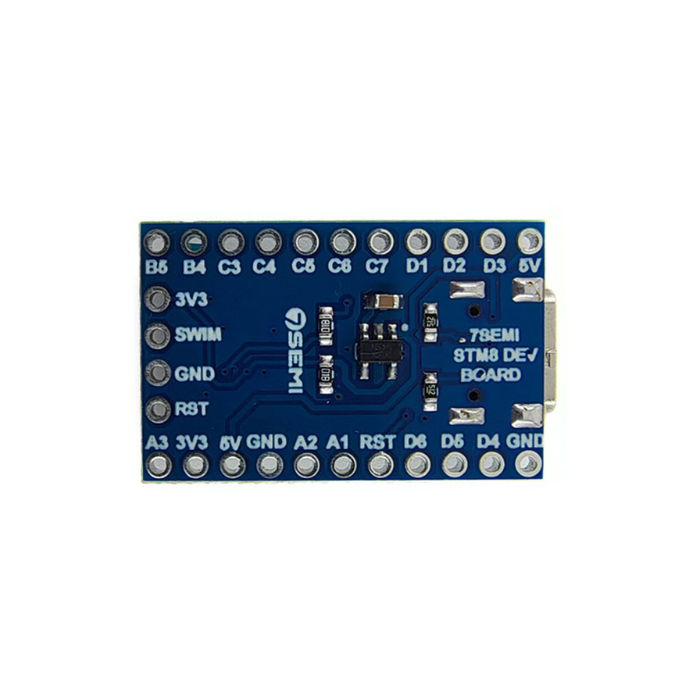

The Anchor STM8 Mini Development Board by 7Semi is a compact and affordable development platform built around the STM8S003F3P6 microcontroller.

Equipped with 8 KB of Flash memory and a 16 MHz CPU, this board provides efficient processing power suitable for a wide range of embedded projects. It also includes integrated EEPROM for reliable non-volatile data storage.

The board features a modern USB Type-C connector for convenient power supply and a SWIM interface that simplifies programming and debugging tasks. Its compact design and robust feature set make it ideal for developers working on various embedded system applications.

Features:

• High-Performance 8-bit Microcontroller: Powered by STM8S003F3P6 with 8 Kbytes of Flash memory and a 16 MHz CPU for rapid and efficient processing.
• Integrated EEPROM: Supports up to 100,000 write/erase cycles, increasing data storage reliability.
• Compact and Versatile Design: Space-saving, with numerous connecting choices including as ports, headers, and a USB Type-C connector.
• On-board Debugging Support: Includes a SWIM connector for simple programming and debugging.
• Robust scheme Security: Includes independent watchdogs with distinct clock sources and a clock security scheme to improve device reliability.
• Cost-Effective Solutions: Ideal for a wide range of applications, with a high level of system integration and lower total development costs.
