Cytron 10Amp 7V-30V Switch Control Potentiometer with DC Motor Driver

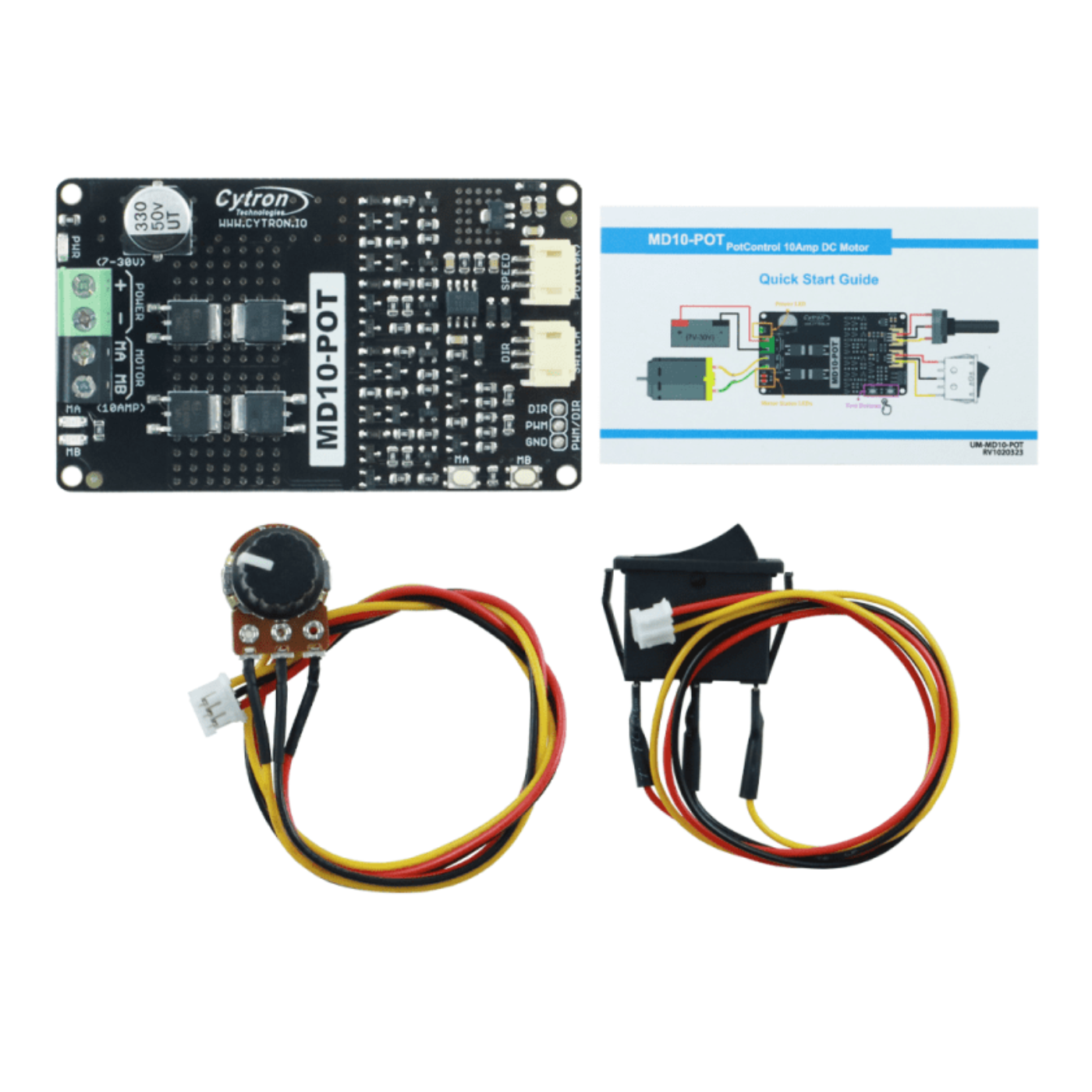

The Cytron MD10-POT 10A DC motor driver is a user-friendly motor speed controller designed for hassle-free operation without any microcontroller or programming.

Operating within a voltage range of 7V to 30V, this 10A motor driver allows direct control of a brushed DC motor using the onboard switches for activation and direction, along with a potentiometer to adjust speed.

Whether you’re building a basic automation setup or experimenting with DIY robotics, the Cytron 10A DC motor controller simplifies the process with its plug-and-play functionality. It’s an excellent choice for applications that demand reliable switch control motor driver performance without the complexity of coding.

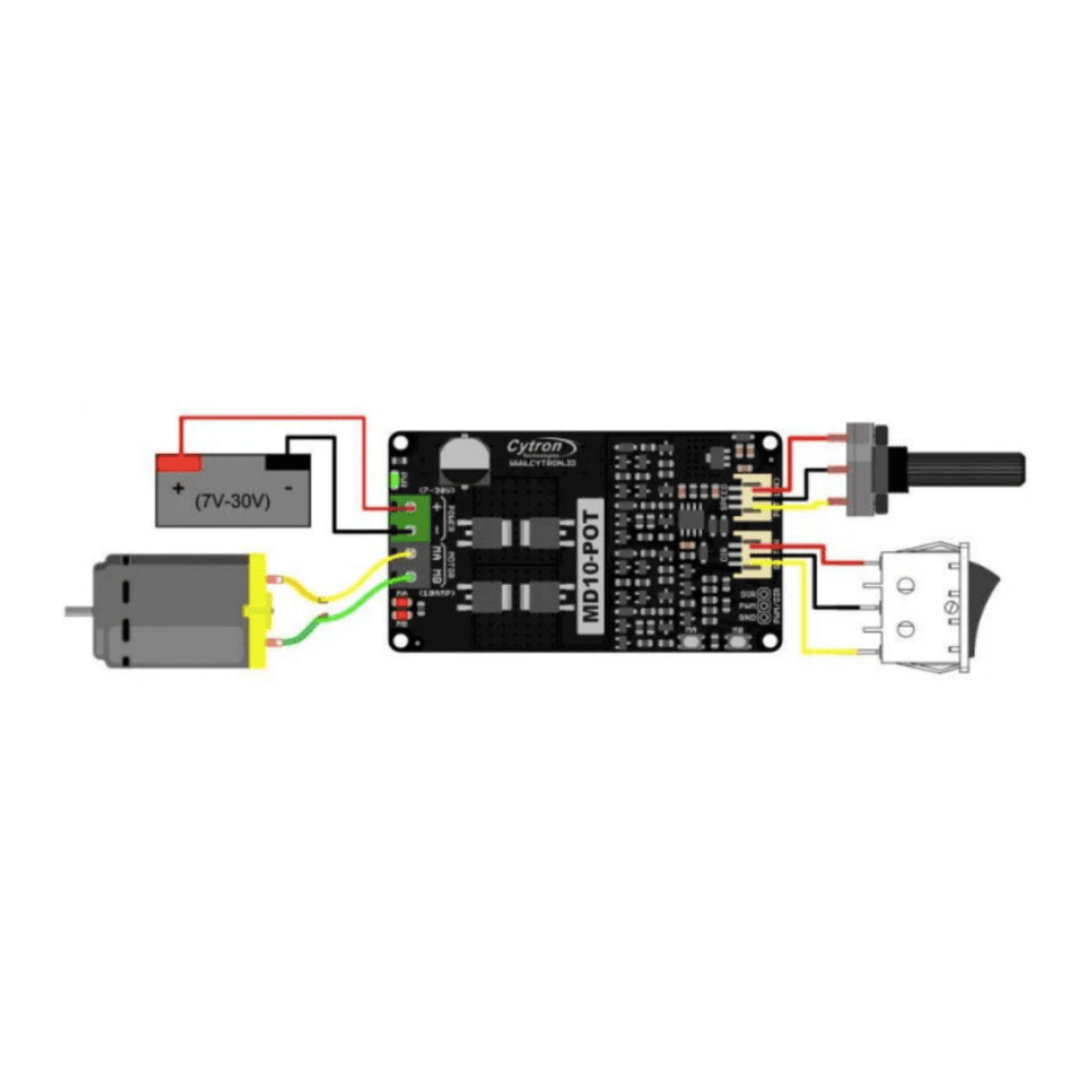

Pinout Diagram:

Features:

• Bidirectional control for a single brushed DC motor.

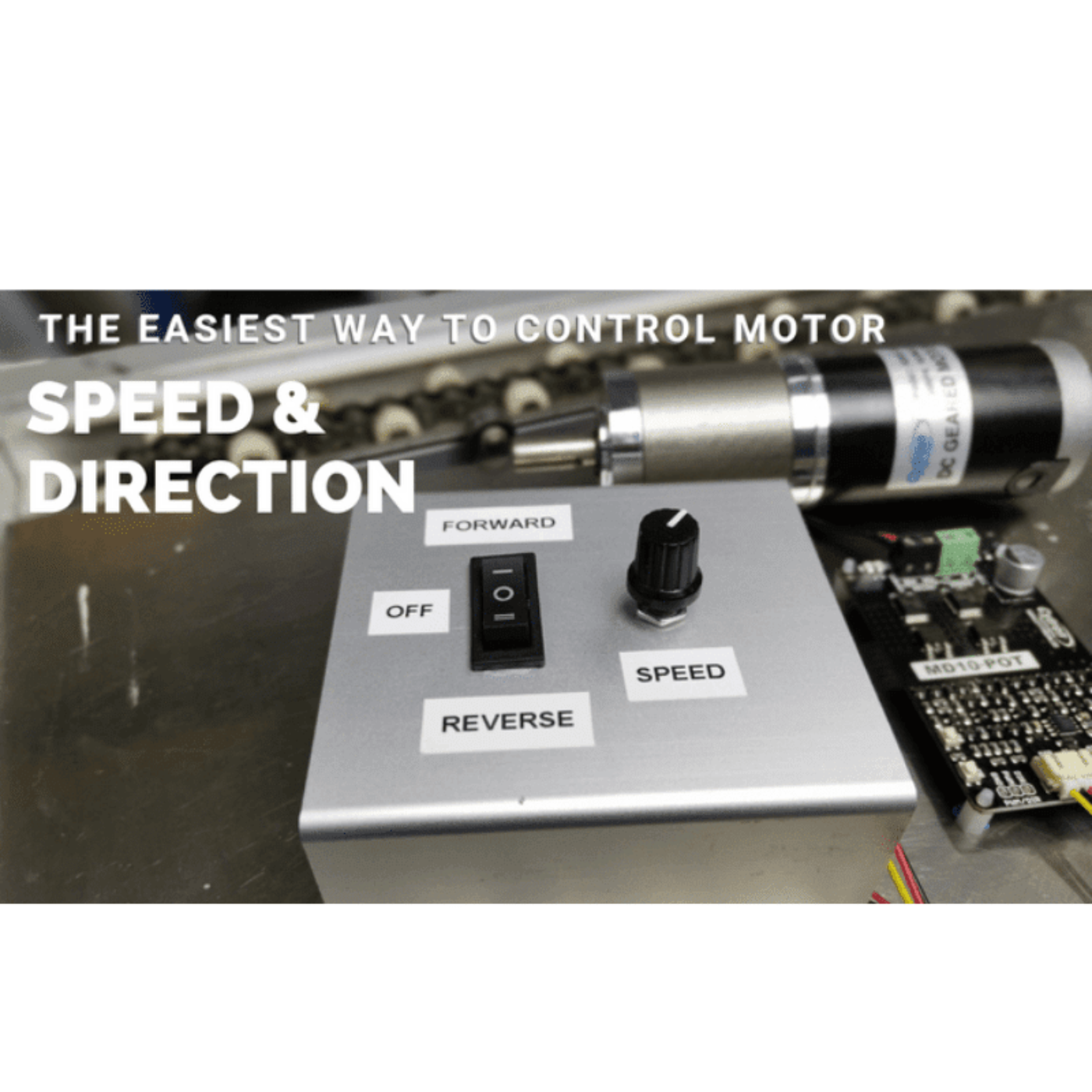

• A three-way rocker switch (included in the package) controls the motor’s run/brake and direction.
• A potentiometer (included in the package) controls the speed of the motor’s spinning.
• Operating voltage: DC. 7V to 30V
• Maximum motor current: 10A continuous; 30A peak.
• Buttons allow for quick testing.
• LEDs indicate the motor output state.

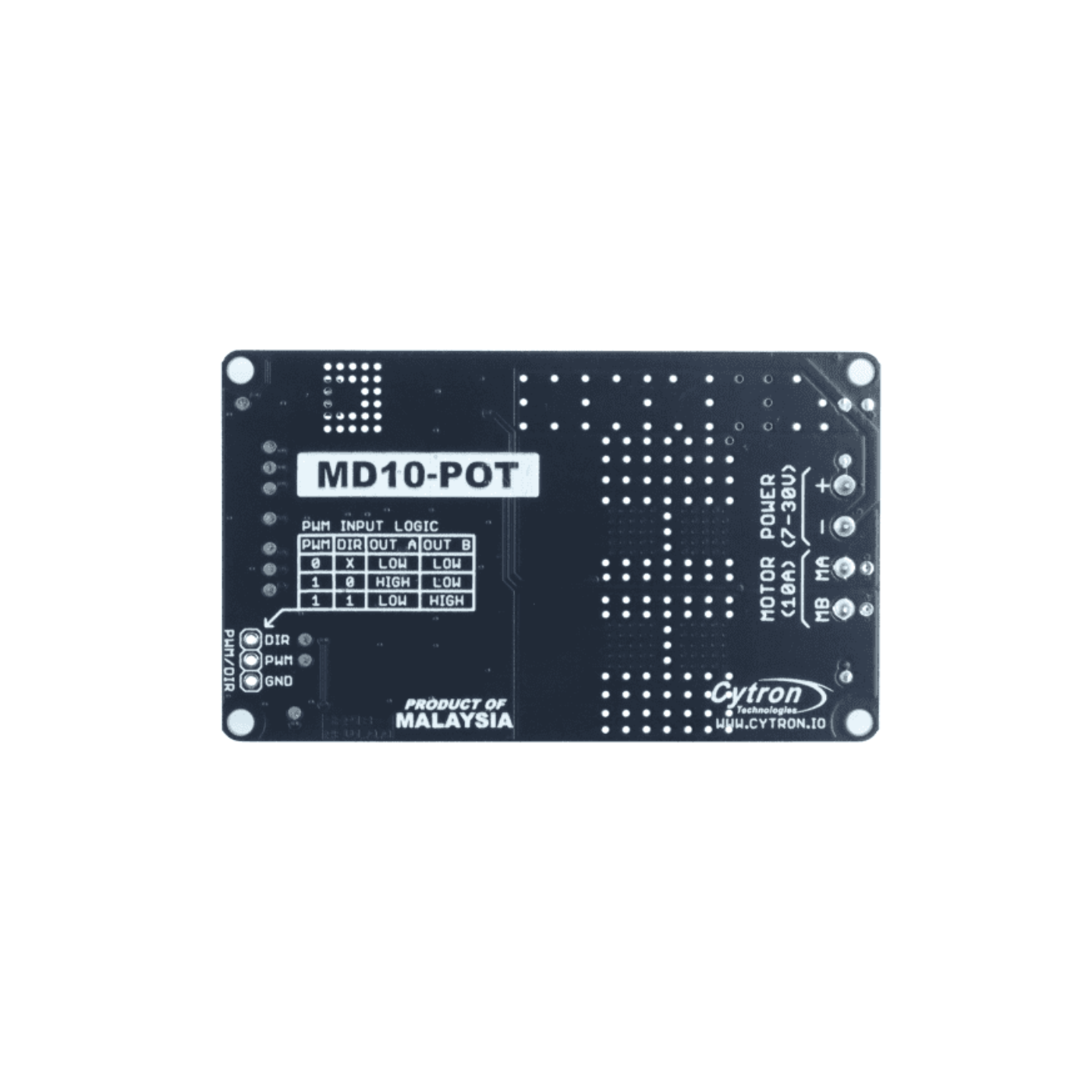

• PWM and DIR inputs.
• Compatible with sign-magnitude and locked-antiphase PWM operation.
• Regenerative braking.
• No reverse polarity protection.
