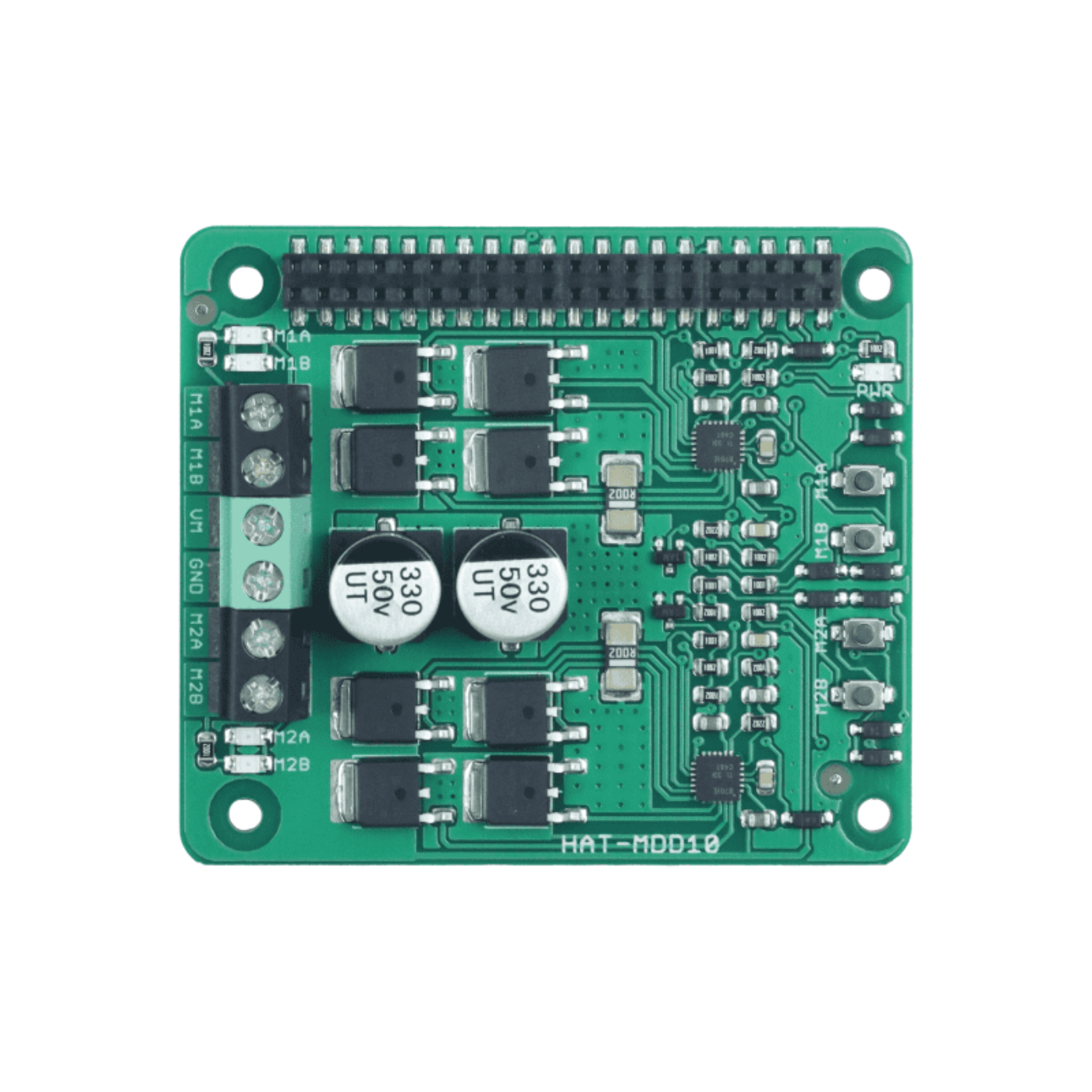

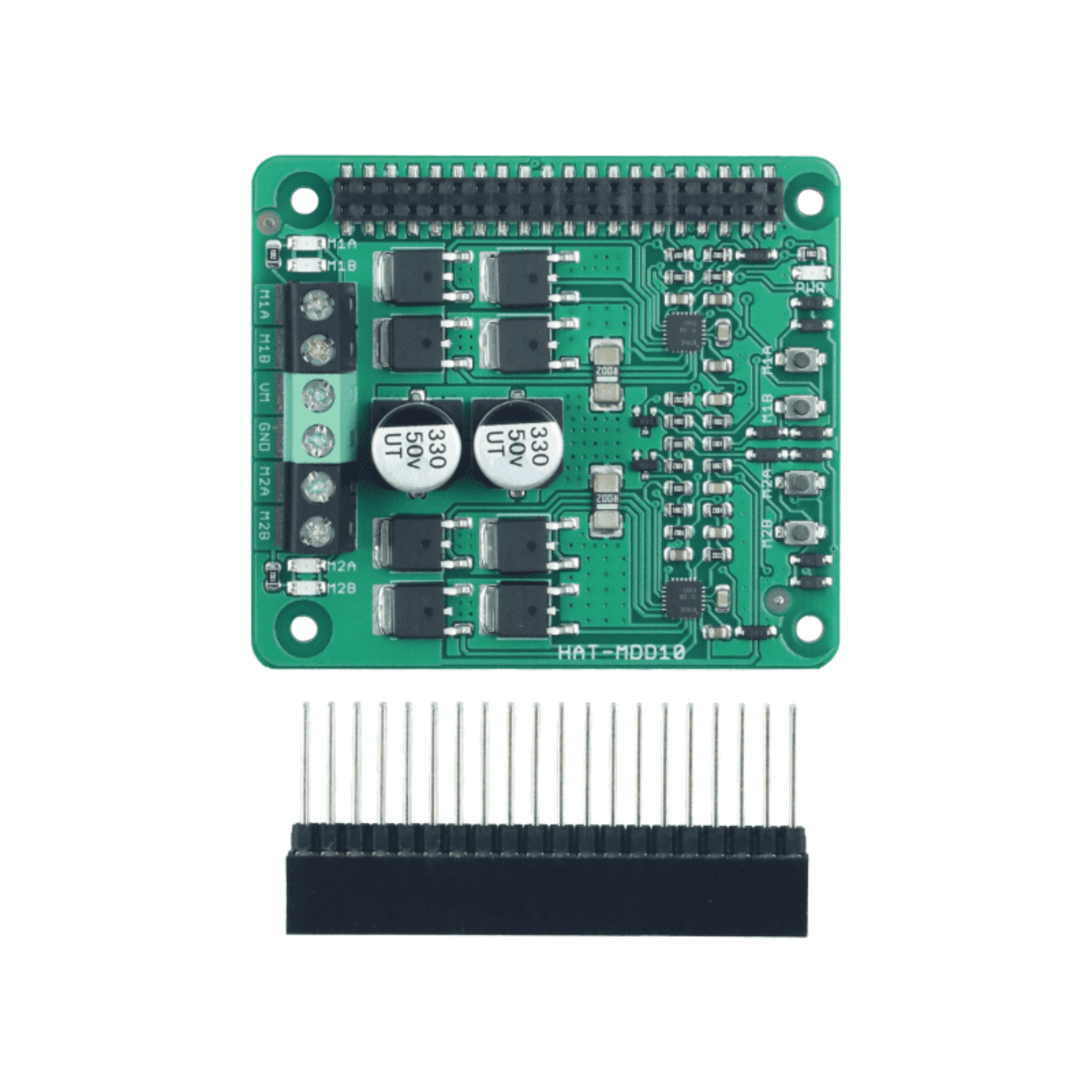

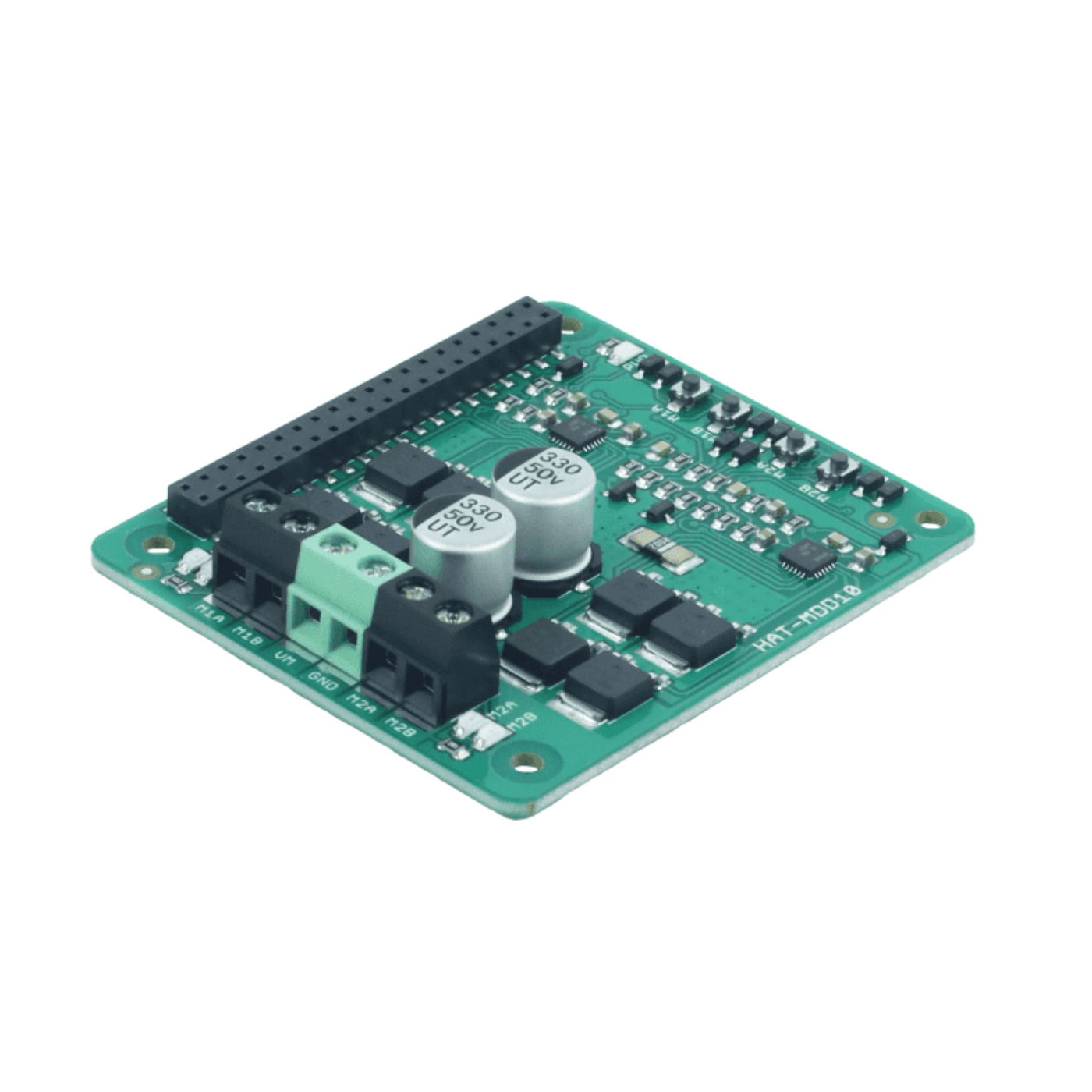

Cytron HAT-MDD10 – 10A Dual-Channel 6V–24V DC Motor Driver HAT for Raspberry Pi

The Cytron HAT-MDD10 is a powerful, Raspberry Pi–compatible dual-channel DC motor driver designed for high-current robotics, automation, and DIY engineering projects. Supporting 6V–24V motors and delivering up to 10A continuous current per channel, this HAT is perfect for makers who want reliable, high-performance motor control directly from their Raspberry Pi.

With built-in bi-directional control and support for sign-magnitude PWM, it ensures smooth speed and direction management for brushed DC motors without additional hardware.

Engineered using fully solid-state components for faster response and improved durability, the Cytron HAT-MDD10 includes onboard test buttons, LED indicators, regenerative braking, and a 30A current-limiting safety feature to protect your motors and controller.

Whether you’re building a heavy-duty robot, a smart mobility system, or a powerful automation setup, this Raspberry Pi motor driver HAT delivers dependable performance, high efficiency, and seamless plug-and-play integration.

Features:

• Supports bi-directional control for two brushed DC motors with smooth and responsive performance.
• Operates within a wide motor voltage range of 6VDC to 24VDC for versatile applications.
• Supports up to 10A continuous current per channel and 30A peak for short bursts.
• Includes onboard test buttons and LED indicators for quick manual testing and diagnostics.
• Built with fully NMOS H-Bridge technology for higher efficiency and low heat output.
• Features built-in current limiting at 30A to protect both the driver and motors.
• Compatible with Raspberry Pi via standard HAT connector for seamless integration.
• Supports sign-magnitude PWM control with PWM frequency up to 20kHz.
• Regenerative braking ensures smooth stopping and improved motor control.
• Uses solid-state components for fast response and better long-term reliability.
