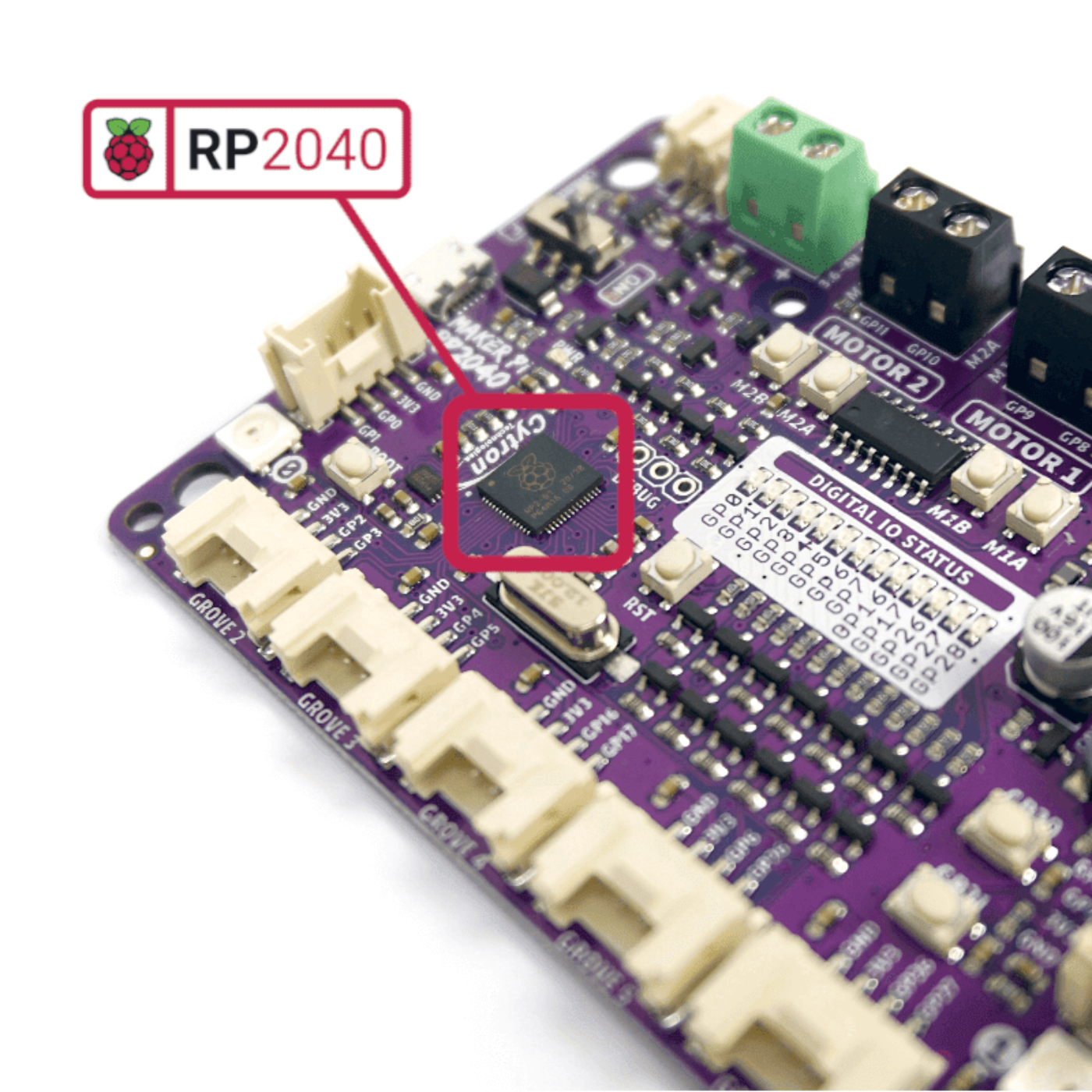

Cytron Maker Pi RP2040 – Robotics Controller Board with Raspberry Pi

The Cytron Maker Pi RP2040 is a compact, beginner-friendly robotics controller board powered by the Raspberry Pi RP2040 microcontroller. Designed for DIY robotics, automation, and motion-control projects, this board integrates a dual-channel DC motor driver, four servo ports, and seven Grove connectors – giving makers everything they need to build robots without complex wiring.

With compatibility across CircuitPython, MicroPython, C/C++, and even the Arduino ecosystem, this board ranks among the best RP2040 robotics controllers for students, hobbyists, and educators.

Built for convenience, the Maker Pi RP2040 supports multiple power input options (USB, LiPo battery, or VIN), includes onboard functional test buttons, and features status LEDs for easy debugging. The preloaded demo code lets you start controlling motors, playing melodies, and testing GPIOs right out of the box.

Whether you are exploring Raspberry Pi’s RP2040 ecosystem or building an advanced robot, the Cytron Maker Pi RP2040 robot controller offers exceptional versatility, ease of use, and reliable motor-driving performance.

Features:

• Powered by the Raspberry Pi RP2040 dual-core Arm Cortex-M0+ processor.
• Includes dual-channel DC motor driver and four servo motor ports for robotics.
• Seven Grove ports support digital, analog, I2C, SPI, and UART expansion.
• Preloaded with CircuitPython for easy plug-and-play coding.
• Supports USB 5V, LiPo 1-cell battery, or 3.6–6V VIN input with automatic switching.
• Built-in LiPo charging circuit with safety protections.
• Onboard piezo buzzer, RGB LEDs, GPIO test LEDs, and push buttons.
• Quick-test buttons and motor output LEDs for immediate motor testing.
• Fully compatible with the Raspberry Pi Pico ecosystem, MicroPython, C/C++, and Arduino cores.
• Includes LEGO-compatible mounting holes and M3 mounting points.

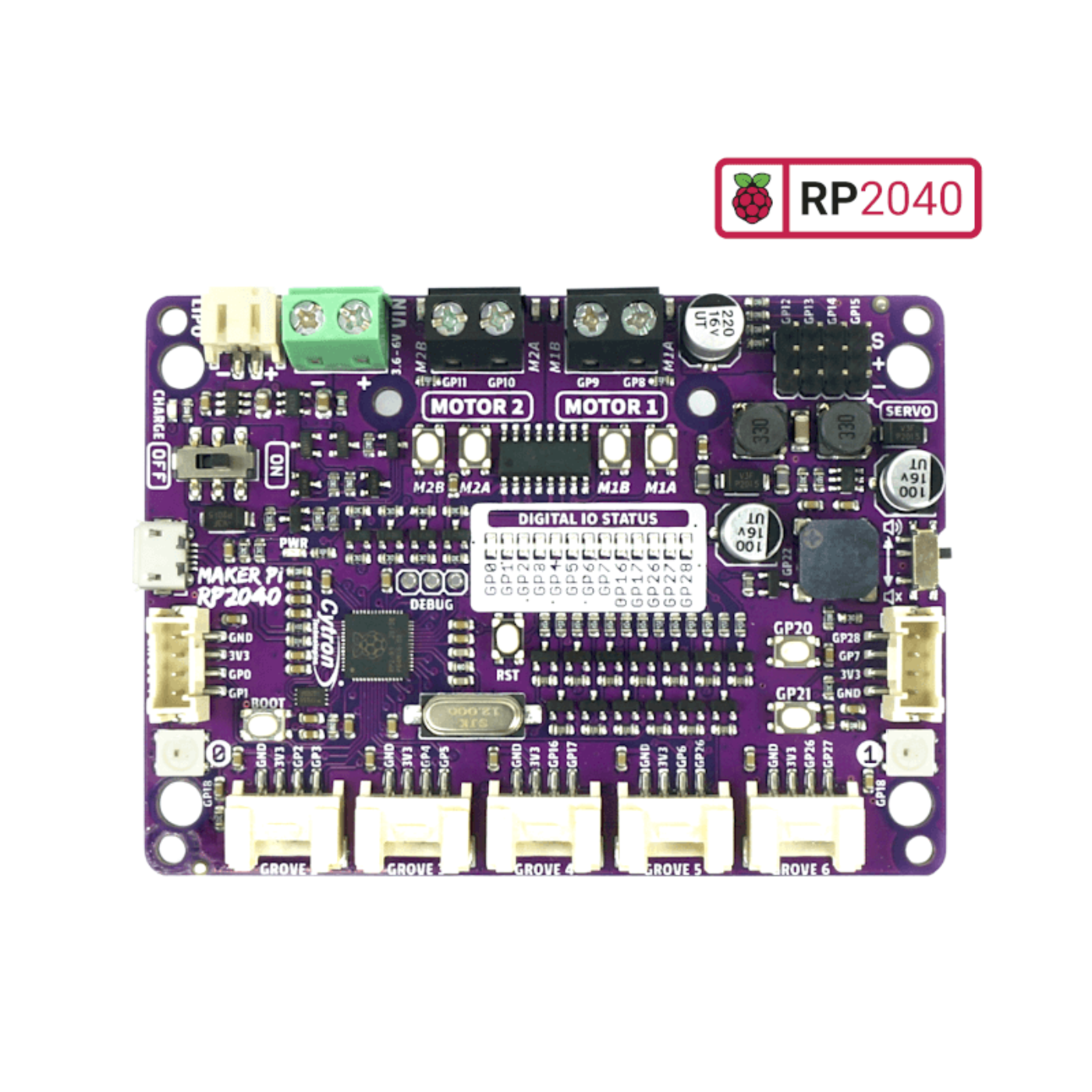

Board Layout:

Dimension:
