Cytron Maker Uno RP2040 Development Board

The Cytron Maker Uno RP2040 Development Board combines the familiar Arduino Uno form factor with the powerful Raspberry Pi RP2040 dual-core processor, making it an ideal choice for students, hobbyists, and makers. With 264KB internal RAM, 2MB onboard flash, and support for Arduino IDE, MicroPython, and CircuitPython, it delivers the perfect balance of performance and ease of learning.

Whether you’re building robotics projects, automation systems, or STEM learning modules, the Maker Uno RP2040 provides a smooth development experience with plug-and-play convenience.

Designed for effortless prototyping, the Cytron Maker Uno RP2040 comes with Grove ports, Maker ports, onboard LEDs, user buttons, a programmable buzzer, RGB LEDs, and dedicated servo ports for connecting multiple actuators with zero wiring hassle.

The board supports USB-C or LiPo battery power, complete with built-in charging and safety circuitry. From classroom teaching to rapid prototyping and hobby projects, the Cytron Maker Uno RP2040 Development Board ensures hands-on creativity with reliable performance and simplicity.

Features:

• Powered by Raspberry Pi RP2040 dual-core Arm Cortex-M0+ processor
• Arduino/Maker Uno form factor for broad project compatibility
• Supports Arduino IDE, MicroPython, and CircuitPython
• Includes 6 Grove ports, 1 Maker port, and 4 dedicated servo ports
• Equipped with 16 GPIO status LEDs, RGB LEDs, piezo buzzer, reset/user/boot buttons
• Dual power options: USB-C or single-cell LiPo battery
• Built-in LiPo charging circuit with overcharge and discharge protection
• Ideal for coding education, robotics, IoT, and STEM learning

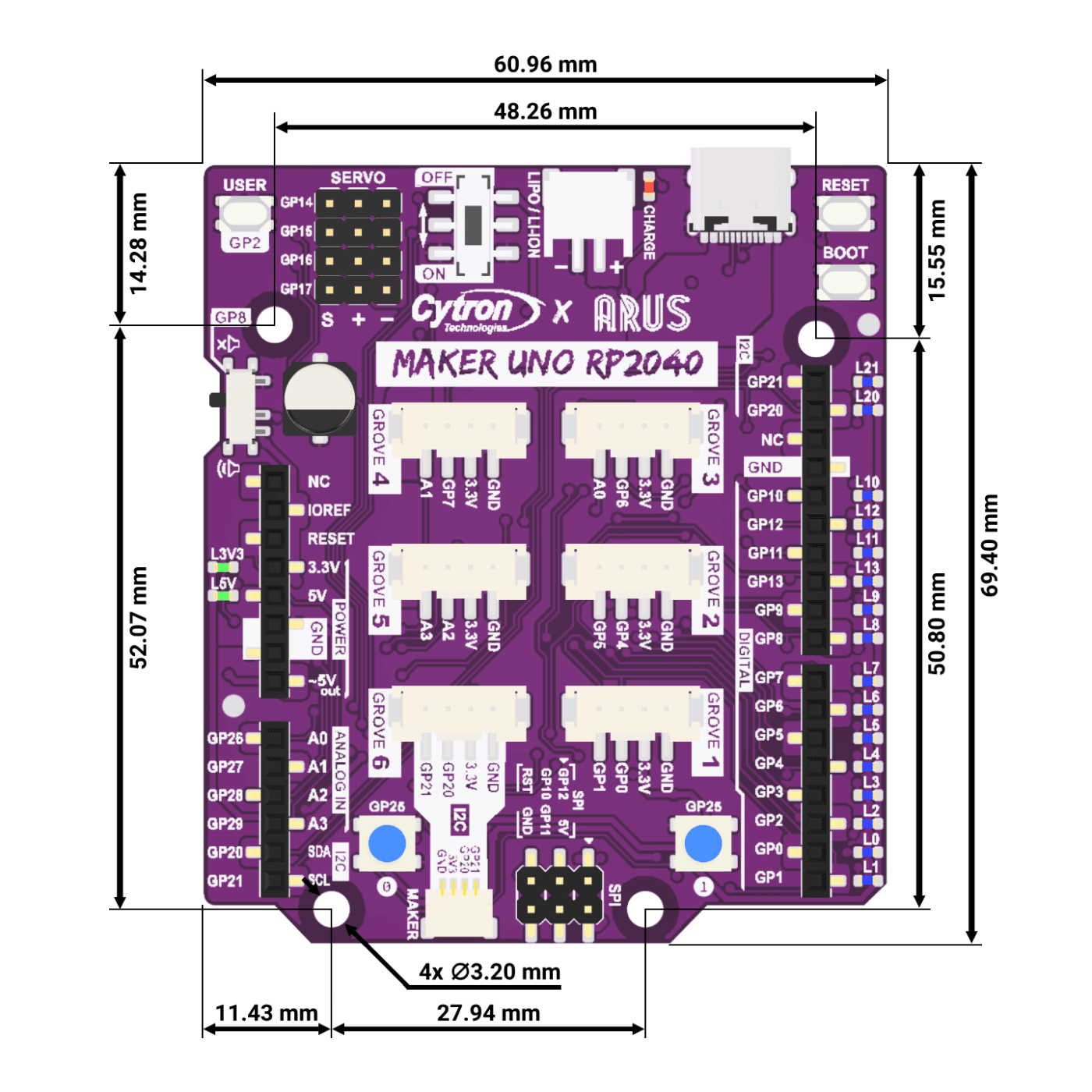

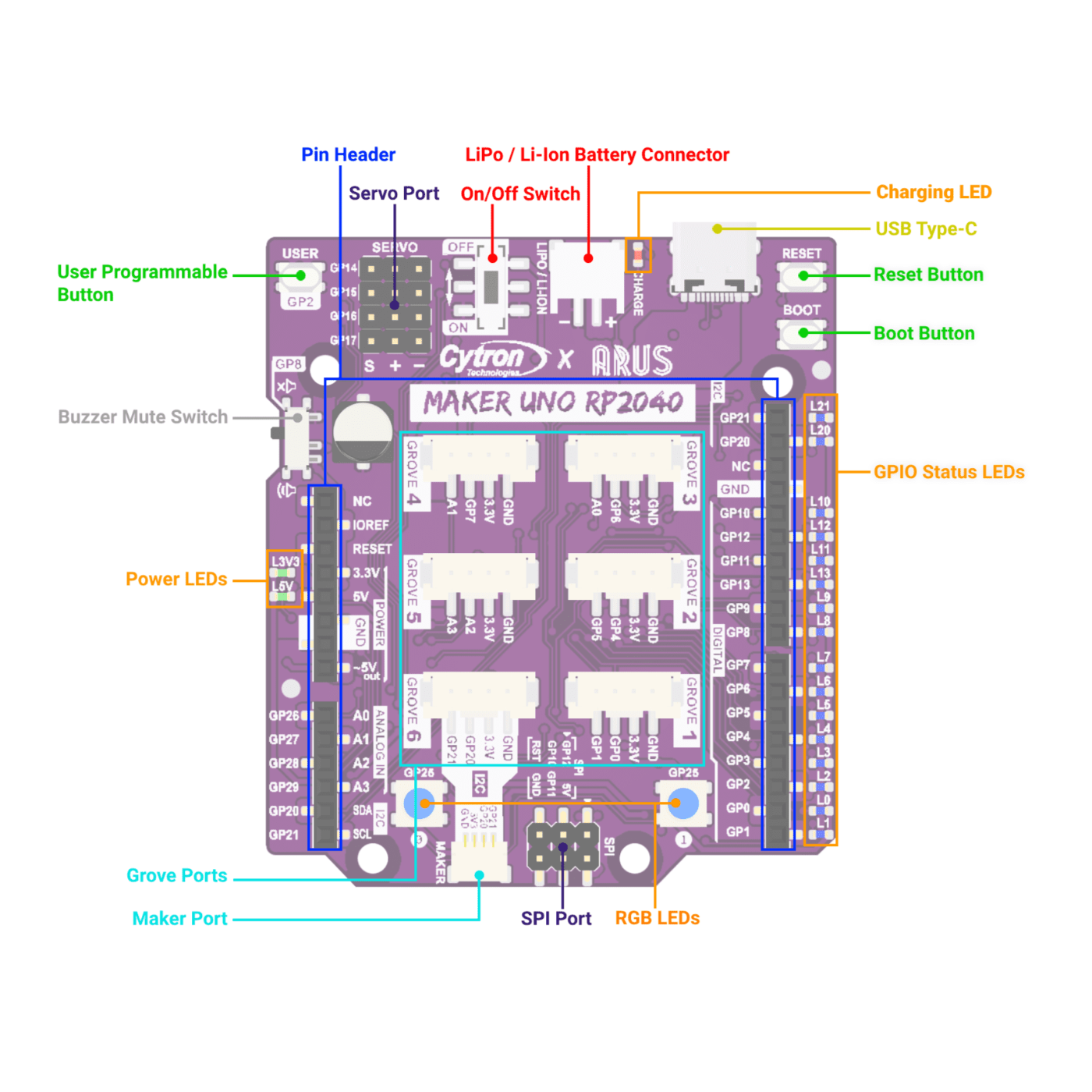

Pinout Diagram:
