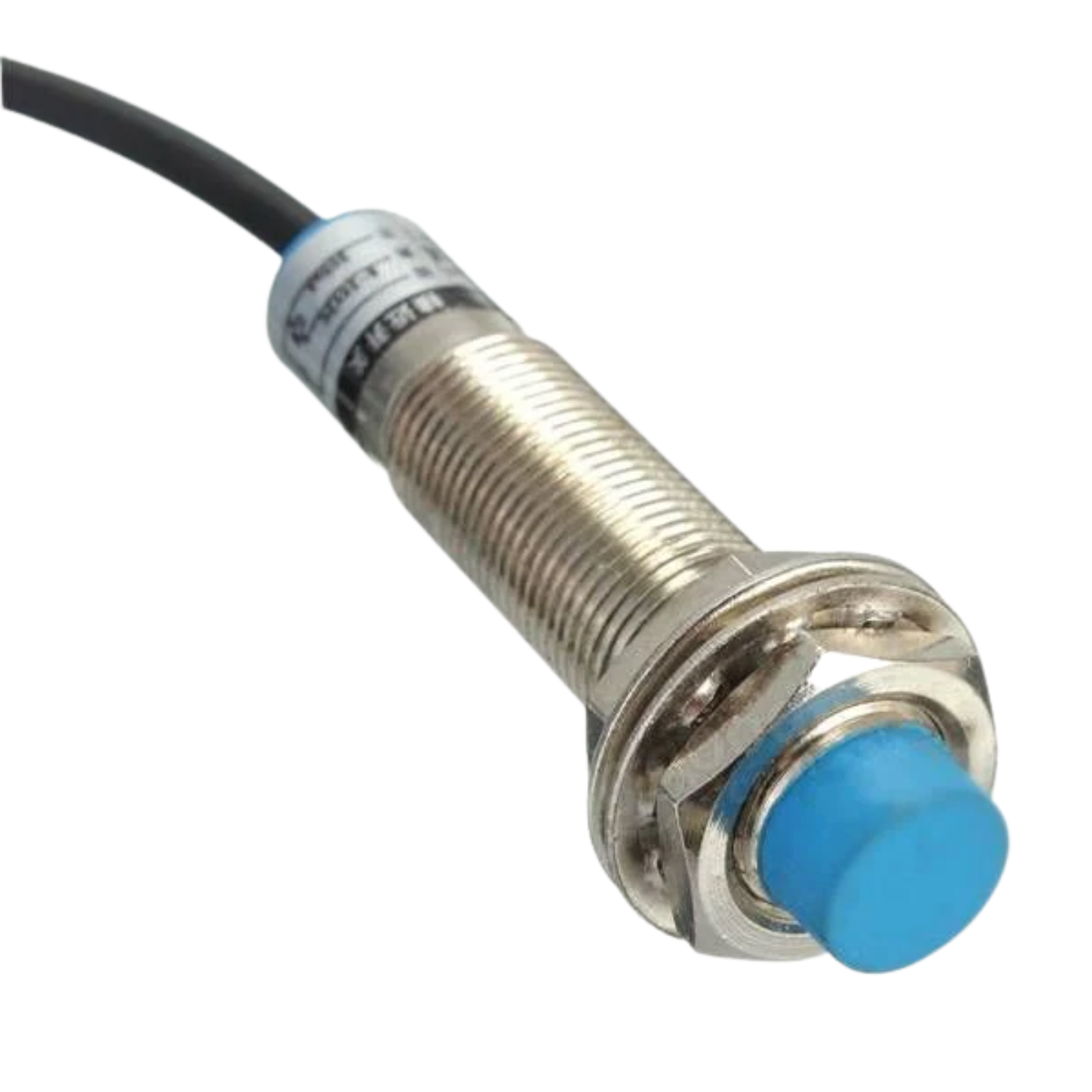

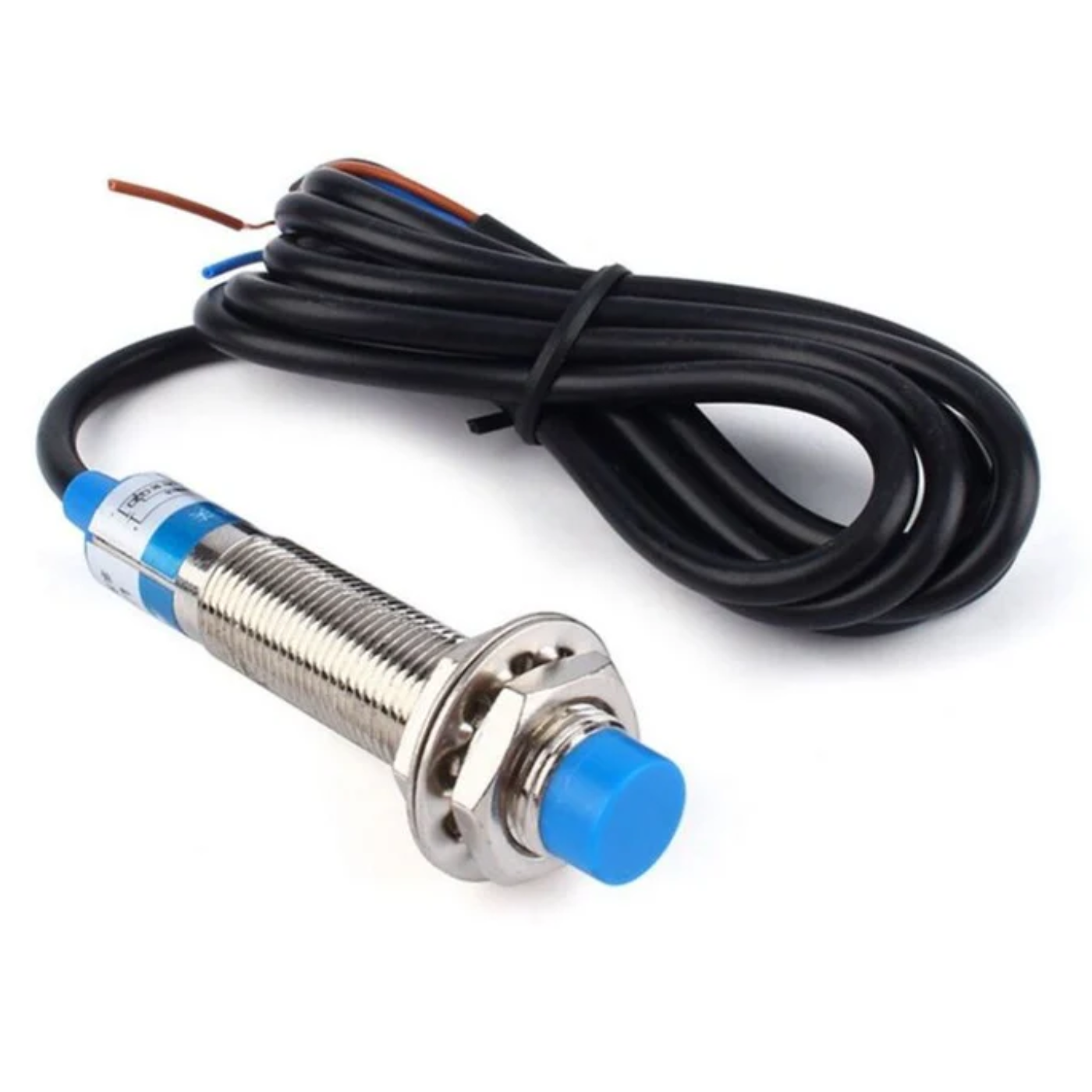

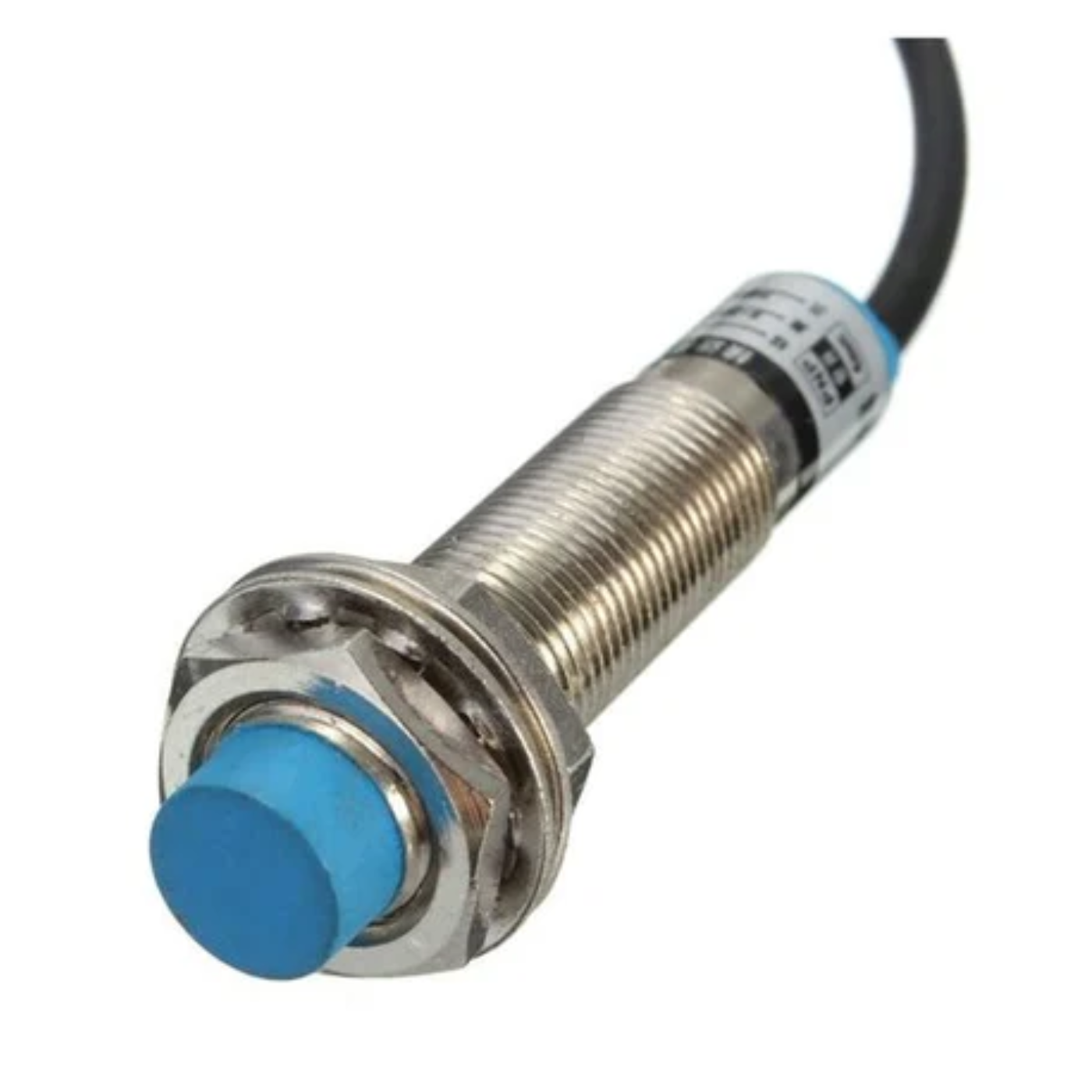

LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch

The LJ12A3-4-Z/BY inductive proximity sensor is a reliable and compact component designed for precise non-contact detection of metallic objects.

Operating on a DC 6-36V PNP configuration, this 4mm tube-type sensor provides accurate positioning and fast response, making it ideal for industrial automation applications.

When a metal object enters the sensing area, the inductive proximity sensor generates an Eddy Current that alters its magnetic field, allowing it to issue a quick electrical command without physical contact.

With features such as long service life, excellent anti-interference capability, and easy installation, the LJ12A3-4-Z/BY is well-suited for use in molds, precision machine tools, robotics, and other demanding environments where reliability and durability are crucial.

Features:

• A red LED indicates the proximity sensor’s status.
• High repeatable positioning precision.
• High switching frequency.
• Wide voltage range.
• The whole length of the cylinder is 62mm.
• Thread length: 40mm.
• Outer (thread) diameter: M12.
• Antivibration, dust, water, and oil protection
• Reverse power protection, short circuit protection, and direct connection with PLC.
• Can replace tiny and limit switches.
