M5GO IoT Starter Kit V2.6

The M5GO IoT Starter Kit V2.6 is a cost-effective IoT development kit designed for beginners and professionals alike. It includes a Core Controller M5GO and 6 expansion units with various sensors, actuators, and splitters. The core controller is powered by the Espressif ESP32 chip, featuring dual low-power Xtensa® 32-bit LX6 microprocessors running at 240MHz. With 16MB FLASH memory, Wi-Fi, and Bluetooth dual-mode support, this kit is ideal for developing smart wearable devices, smart homes, and IoT-based applications.

M5GO IoT Controller

Low Code Development:

• Supports UIFlow graphical programming platform with scripting-free, cloud push integration.
• Fully compatible with Arduino, ESP32-IDF, and other mainstream development environments.
• Supports FreeRTOS for dual-core and multitasking operations, enabling efficient program execution and optimization.

High Integration:

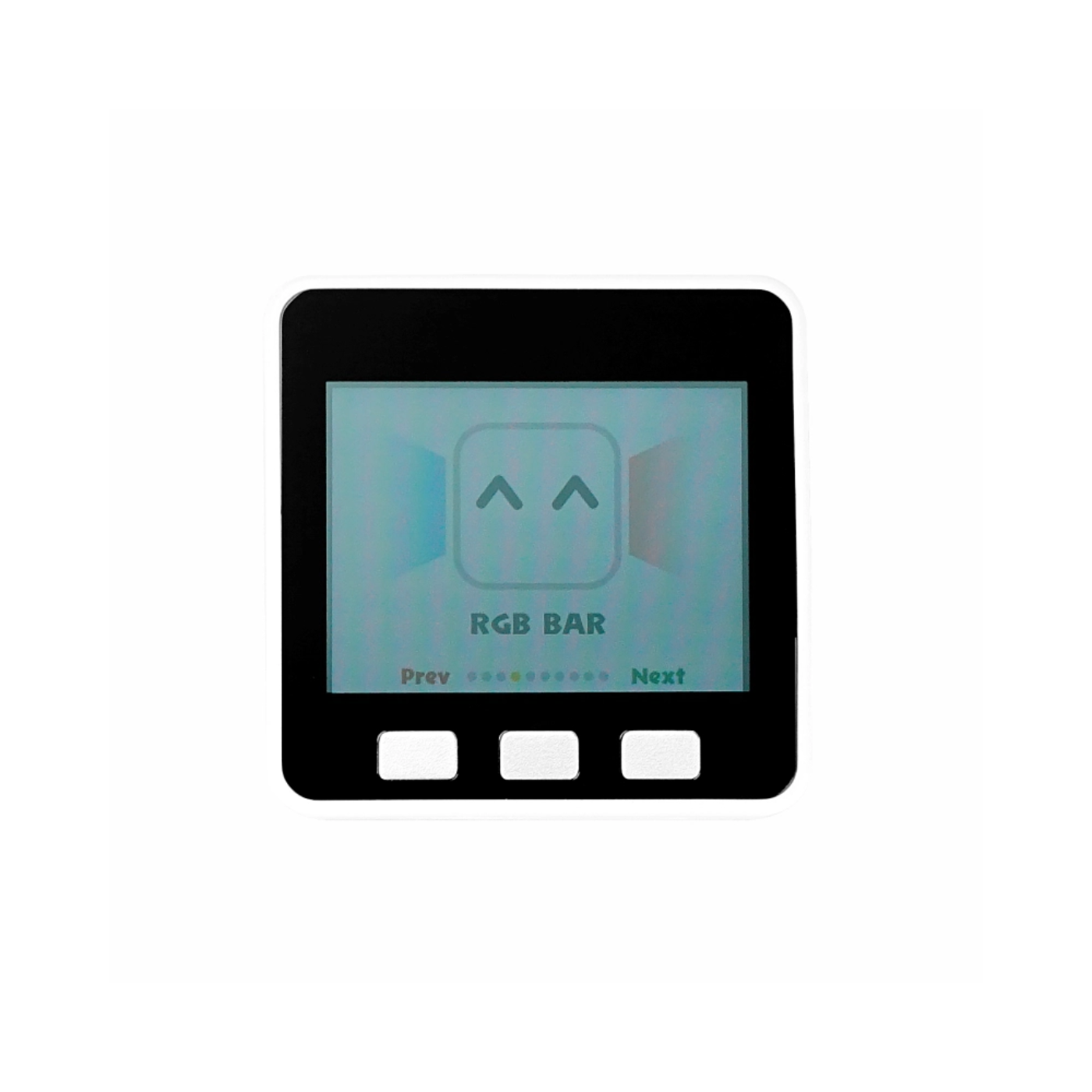

• Features a 2.0-inch IPS display, 6-axis IMU, 10 programmable RGB LEDs, microphone, speaker, and 3 custom buttons.

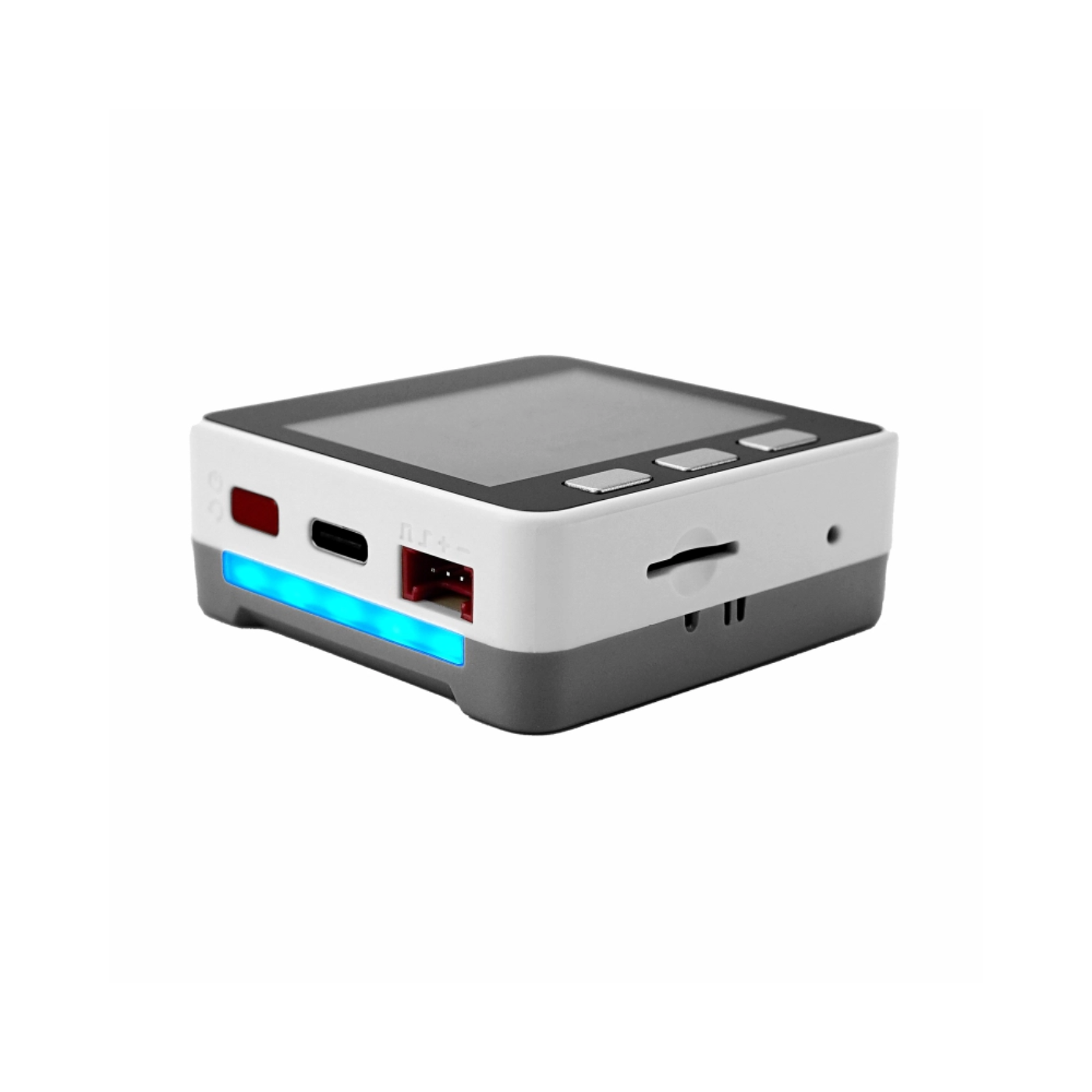

• Includes a built-in Li-ion battery with integrated power management and supports Type-C and POGO PIN interfaces for power supply.
• Optimized RF design ensures stable and reliable wireless communication.

Strong Expandability:

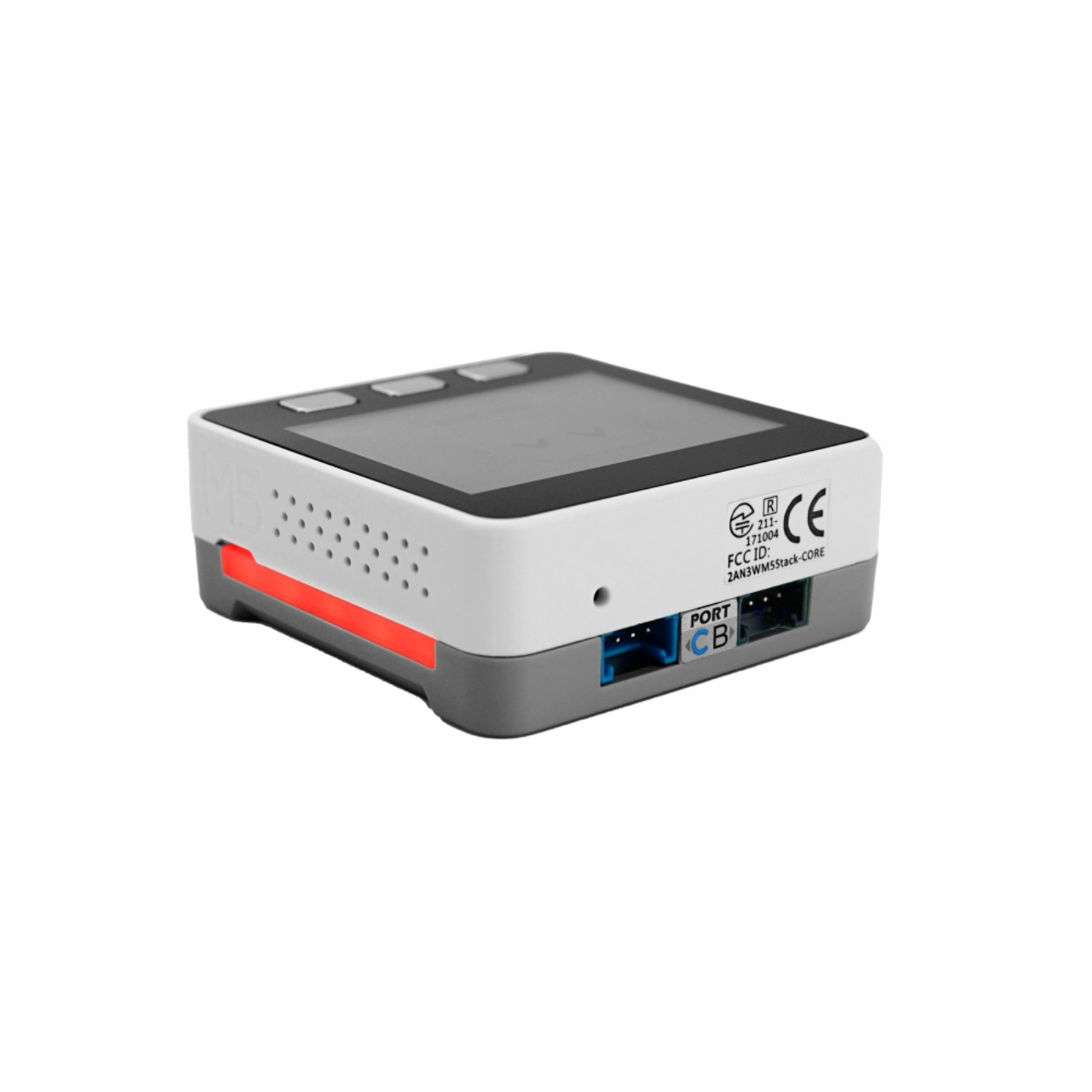

• Comes with 3 GROVE expansion ports (I2C, GPIO, UART).
• Supports easy integration with M5Stack hardware and software ecosystem.
• Stackable module design allows plug-and-play sensor expansion.

6x Expansion Units Included

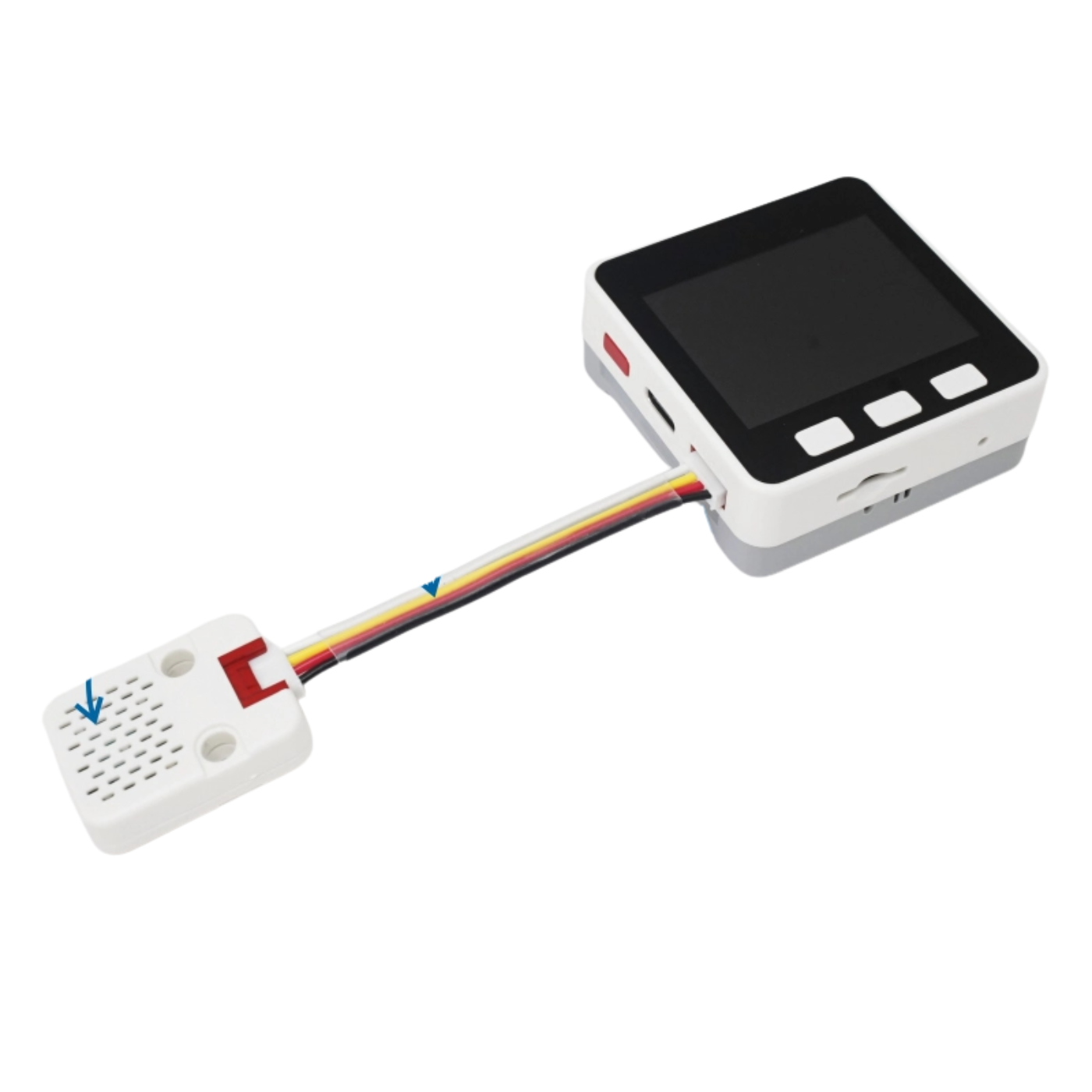

• ENV UNIT III: Temperature, humidity, and atmospheric pressure sensor with I2C communication for environmental data collection.
• PIR UNIT: Passive infrared motion sensor for human body detection with digital output.
• ANGLE UNIT: Knob potentiometer for analog signal input, ideal for adjusting parameters like volume or brightness.
• IR UNIT: Integrated infrared transmitter and receiver for wireless infrared communication.

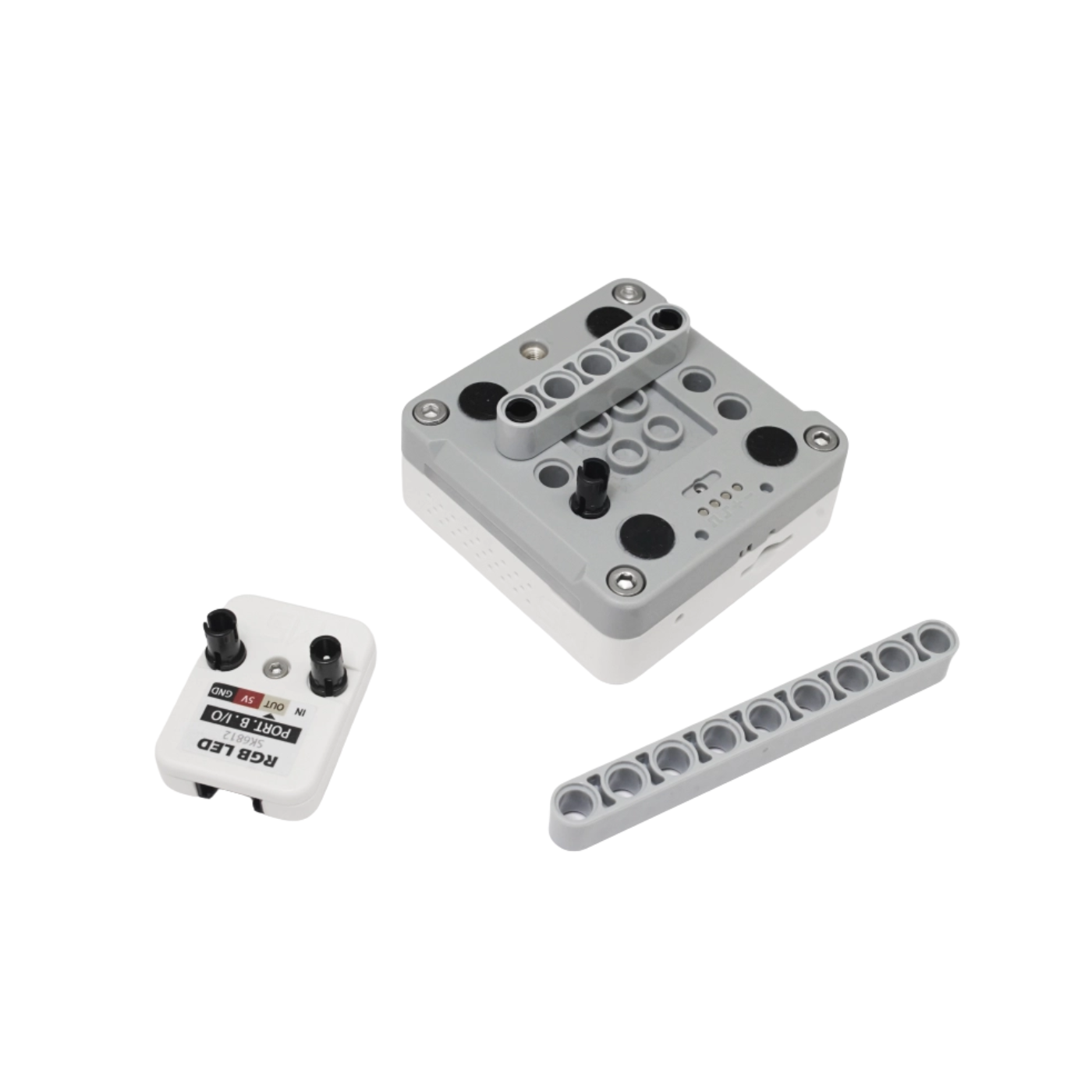

• RGB UNIT: 3 programmable RGB LEDs that support any color display through coding.
• HUB UNIT: I2C splitter that expands a single I2C bus into 3 channels for multiple device connections.

Switch On/Off Operation:

• Power On: Click the left red button once.
• Power Off: Double-click the left red button quickly.
• USB Power: The device cannot be turned off when connected to USB power by default.

Applications:

• STEM Education
• IoT Controller
• Smart Home
• Smart Weather Station
