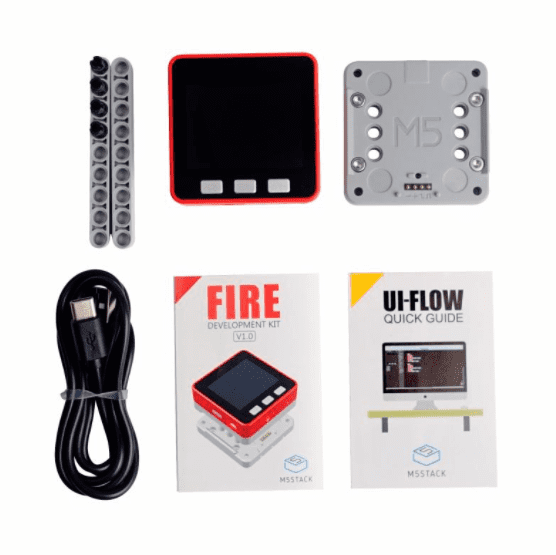

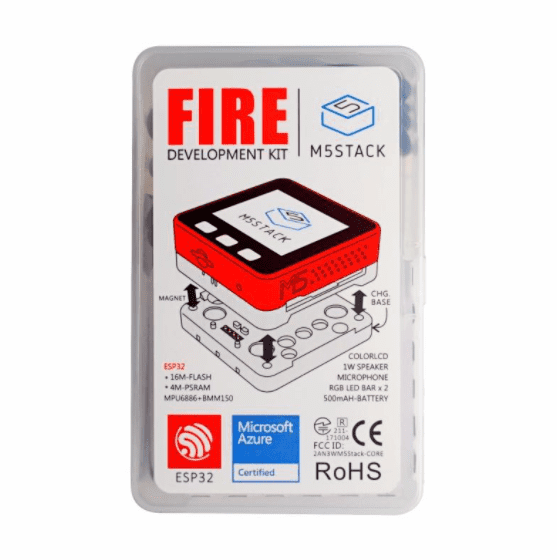

M5Stack FIRE IoT Development Kit (PSRAM) V2.6

M5Stack FIRE It‘ a cost-effective Wi-Fi & Bluetooth dual-mode IoT controller that adopts Espressif ESP32 main control chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, with the main frequency of up to 240MHz. With 8M PSRAM + 16M FLASH memory, 2.0-inch full-color HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot, and other peripherals. The full-coverage case ensures circuit stability even in complex industrial applications. The internal offers a wide range of common interface resources (ADC/DAC/I2C/UART/SPI, etc.) which is highly expandable. This functional and powerful IoT controller is very applicable to various product prototyping, industrial control, and smart building applications.

High productization:

• Exquisite designs, Prototyping right into products
• Product-grade full-coverage cover for more stable circuit operation

Low code development:

• Support UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
• Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.

High integration:

• 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3
• Built-in Li-ion power, integrated power management chip, supports TypeC and POGO PIN
• Finely tuned RF circuit for stable and reliable wireless communication

Strong expandability:

• GROVE expansion ports x3 (I2C, GPIO, UART)
• Easy access to M5Stack software and hardware system, stackable module design, plug-and-play sensor expansion

Note: GPIO 16 / 17 of FIRE are connected to PSRAM by default, so when you connect or stack other modules, you need to pay attention to avoid conflicts with these two pins to prevent the device from not working properly and generating instability..

Switching operations:

Power on: Click the red button on the left
Power off: Quickly double-click the red button on the left
USB power: By default, It can not be shut down when USB power is on

Applications:

• IoT Controller
• DIY creator works
• Smart Home Control
