Microswitch KW10-Z1P Limit Switch 1A 125V AC

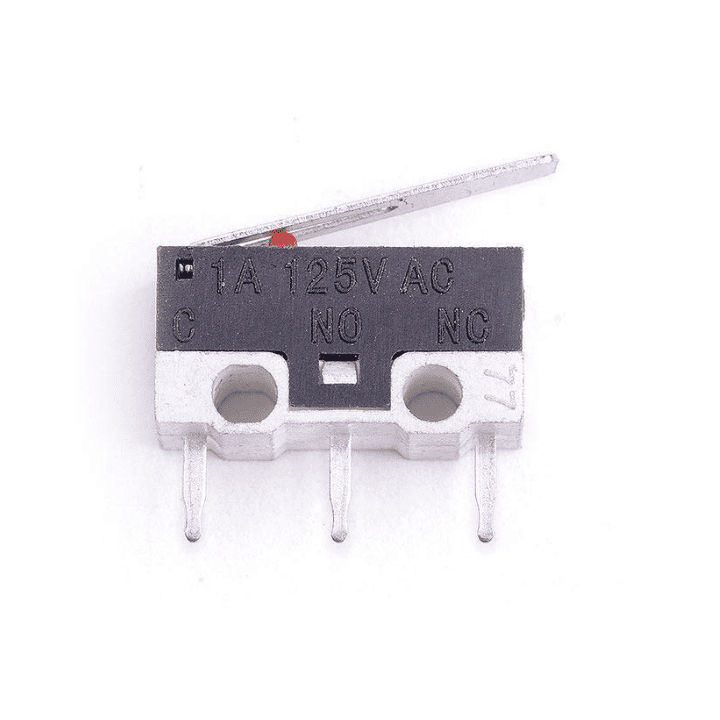

The Subminiature PCB micro switch with 3 pins, SPDT design (1NO + 1NC) momentary. The actuator forms are middle hinge lever. The rating is 1A 125VAC. The subminiature PCB micro switch is made of nylon 66 and metal. The terminal is brass with silver plated. The housing color is black.The pin is a PCB terminal. Operating in all types of electronic equipment such as telephone, audio instruments, TV set, VCR, Automatic machine, communication equipment, car electric, apparatus and, electro motion tool, etc
