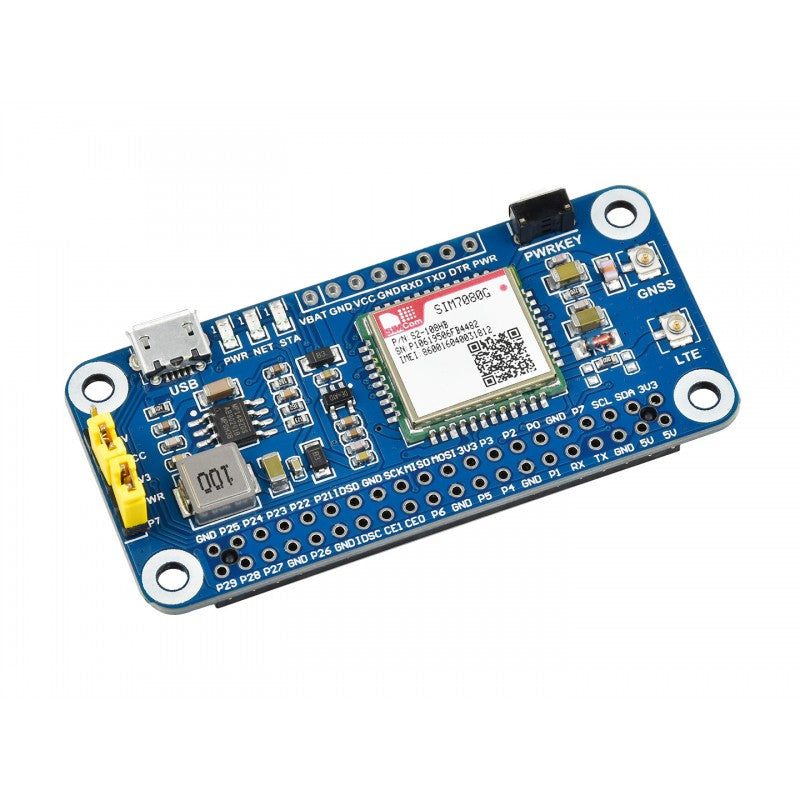

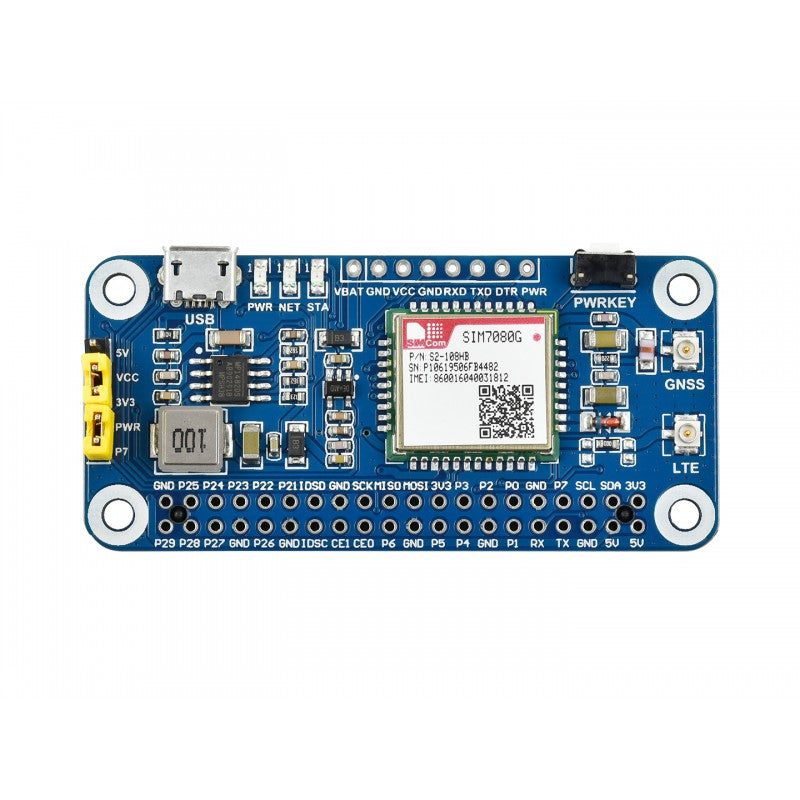

NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi

Introducing the Telecommunication HAT, a versatile device offering a range of communication functionalities. This HAT incorporates three key features: NB-IoT (NarrowBand-Internet of Things), Cat-M (also known as eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System).

With the rapid advancements in telecommunication technology, traditional 2G/3G networks are gradually fading away. The future landscape will be dominated by IoT technologies, combining low bandwidth options like NB-IoT/Cat-M with high bandwidth standards such as 4G/5G.

Designed to operate globally, this HAT supports NB-IoT and Cat-M bands, while also providing positioning capabilities through GNSS. Its compact size, minimal latency, and extensive coverage make it the perfect choice for a wide range of IoT applications, including intelligent instruments, asset tracking, remote monitoring, e-health, and more.

Features:

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
• Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

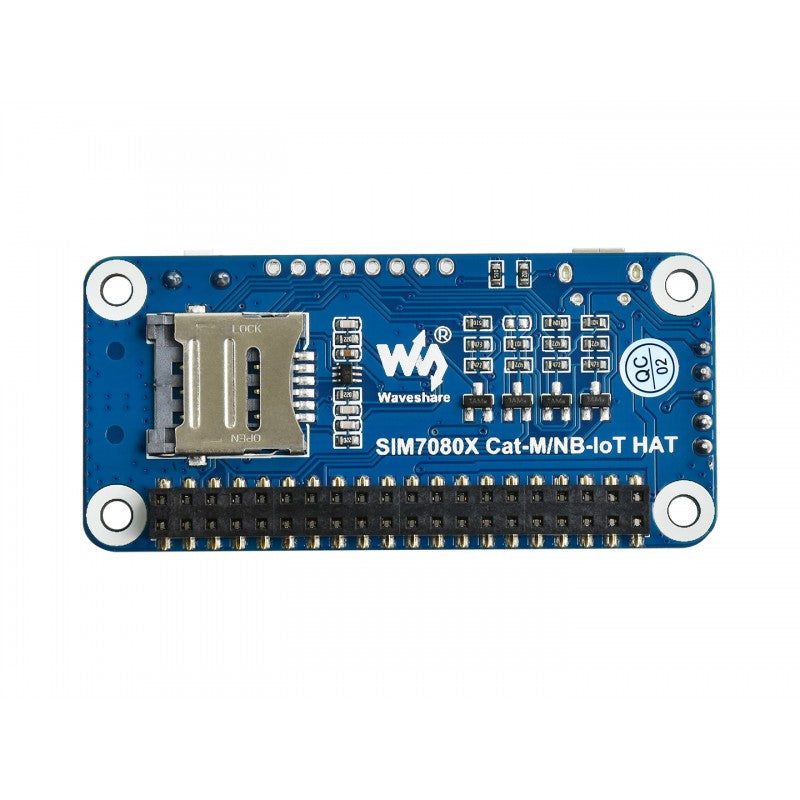

• SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
• 3x LED indicators, easy to monitor the working status
• Baudrate: 300~3686400 bps
• Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
