Description
Official Raspberry Pi Camera Module V2 – 8 Megapixel,1080p

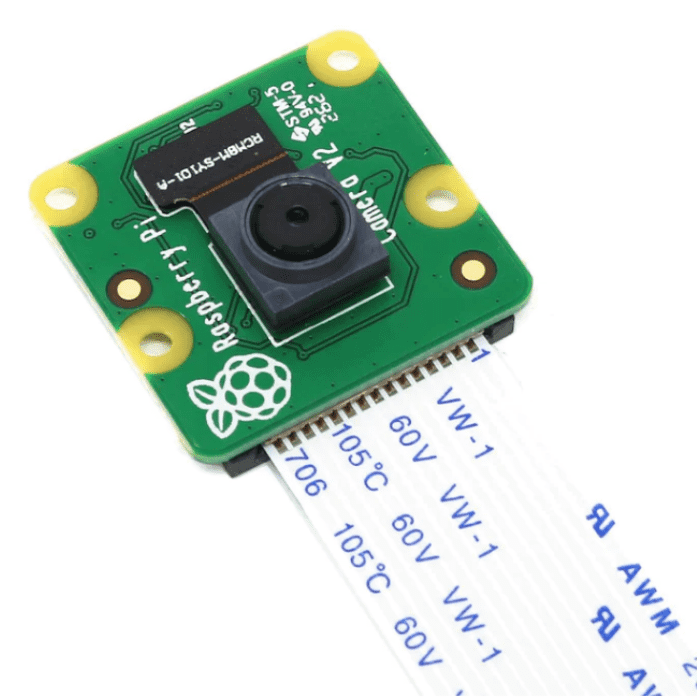

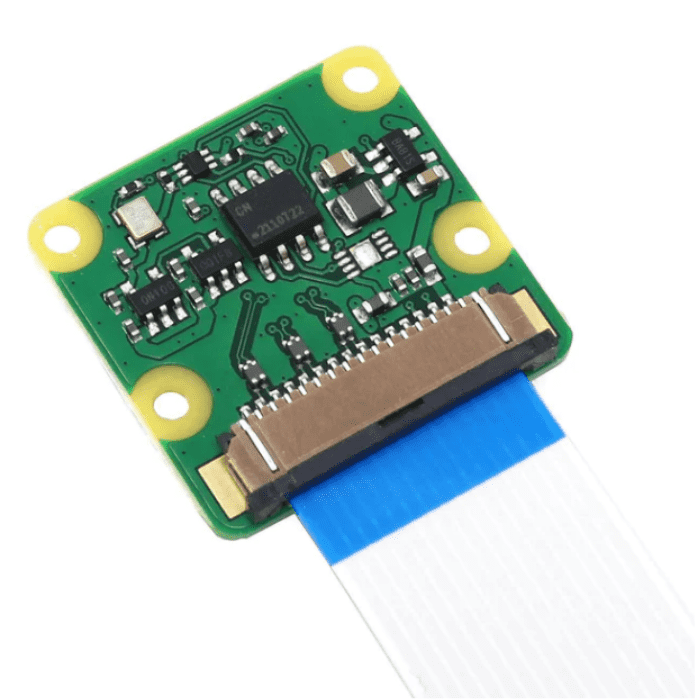

The Raspberry Pi Camera Module V2 is an excellent little camera developed for Raspberry Pi boards. It contains an 8-megapixel Sony IMX219 image sensor for capturing clear and vibrant photographs. You can also capture films in several resolutions, including 1080p30, 720p60, and 640x480p90.
It’s easy to connect to your Raspberry Pi using the CSI interface. This Raspberry Pi camera is small, about 25mm x 23mm x 9mm, and weighs just over 3 grams, making it perfect for projects where space and weight matter.
Whether you want to set up a security camera, try motion detection, or make time-lapse videos, this camera for Raspberry Pi boards is a flexible choice. It works with the latest software on the Raspbian Operating System, so it’s simple to use!
Setup Guide: Connecting the Raspberry Pi Camera Module V2
- Step 1 – Power Down: Turn off your Raspberry Pi and disconnect it from power before connecting the camera.
- Step 2 – Locate CSI Port: Find the Camera Serial Interface (CSI) connector located near the HDMI port on your Raspberry Pi board.
- Step 3 – Insert Ribbon Cable: Gently lift the latch on the CSI port, insert the camera’s ribbon cable with the metal contacts facing the HDMI port, and close the latch securely.
- Step 4 – Enable Camera Interface: Power on your Raspberry Pi, open the terminal, and enable the camera interface from the configuration menu. Reboot once the setting is saved.
- Step 5 – Test Camera Connection: After rebooting, open a terminal and run a simple camera preview command to check if the camera is detected and functional.
- Step 6 – Capture a Photo: Use a still image capture command to take a test photo and verify that the image is saved successfully.
- Step 7 – Record a Video: Use a video recording command to capture a short clip and check for smooth video playback.
- Step 8 – Mount Securely: Attach the camera firmly inside your case or project enclosure, ensuring the ribbon cable is not twisted or strained.
Key Features:
- 8MP Sony IMX219 sensor
- 3280 x 2464 resolution
- Records 1080p30, 720p60, 640x480p60/90 videos
- Connects easily via CSI interface
- Compact: 25mm x 23mm x 9mm
- Weighs over 3g
Capture the world in incredible detail with the Raspberry Pi Camera Module V2. Order yours today and unlock a world of possibilities for your Raspberry Pi projects.
Note: Robocraze is the authorized seller of Raspberry Pi products in India. Therefore even if you are in Bangalore, Hyderabad, Kerala, Mumbai, or Pune, you can get a Raspberry Pi camera V2 online from Robocraze.
Comparison: Raspberry Pi Camera Module V2 vs Camera Module 3 vs HQ Camera
| Feature | Camera Module V2 | Camera Module 3 | HQ Camera |
|---|---|---|---|
| Sensor | Sony IMX219 (8 MP) | Sony IMX708 (12 MP, with autofocus) | Sony IMX477 (12.3 MP, larger sensor) |
| Autofocus / Lens | Fixed focus | Autofocus (and variant wide-angle) | Manual focus, interchangeable lenses (C/CS or M12 mount) |
| Best Use Case | General purpose projects, standard imaging | Improved image quality, autofocus projects, tighter spaces | Professional photography/vision, interchangeable optics, low-light/high-quality use |
| Advanced Features | Basic capture, 1080p video | HDR, autofocus, improved resolution and field of view options | Large sensor, RAW output, support for high-end lenses and custom optics |
Applications:
- CCTV security camera
- Motion detection
- Time-lapse photography
- Webcam
- Streaming
