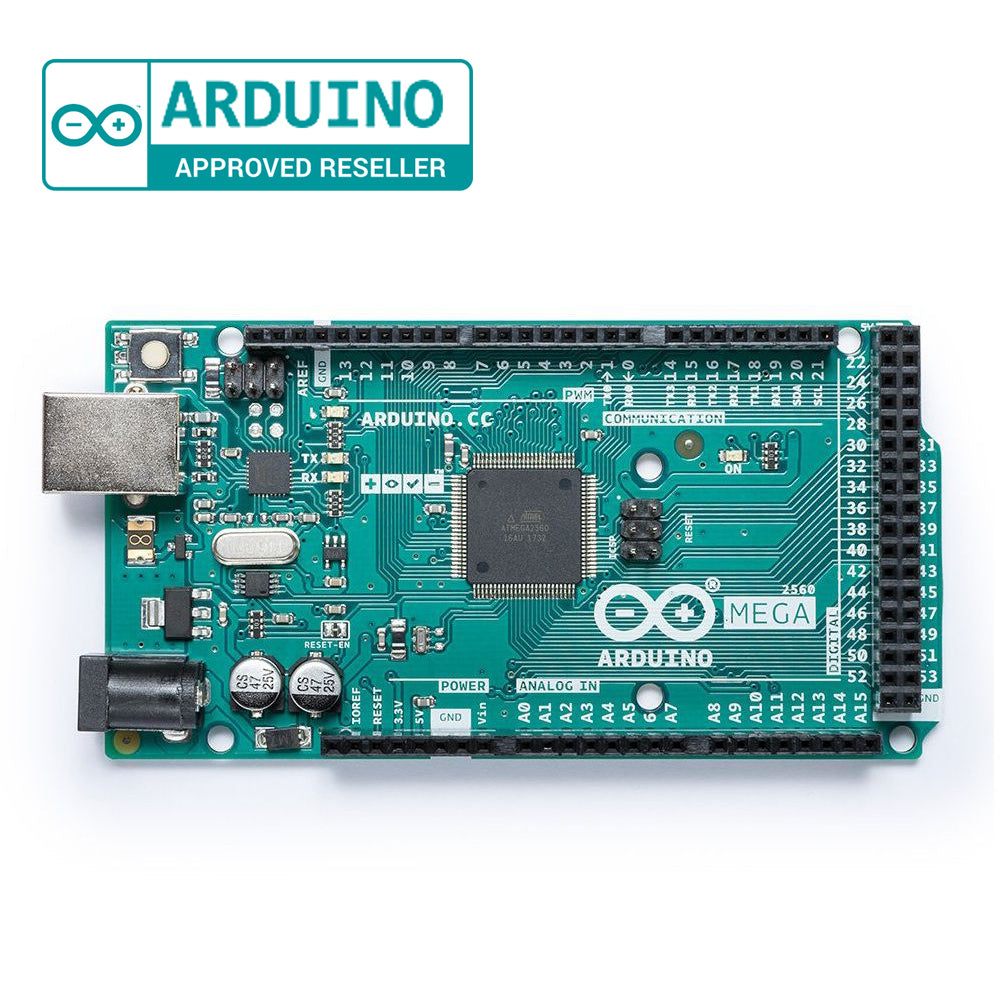

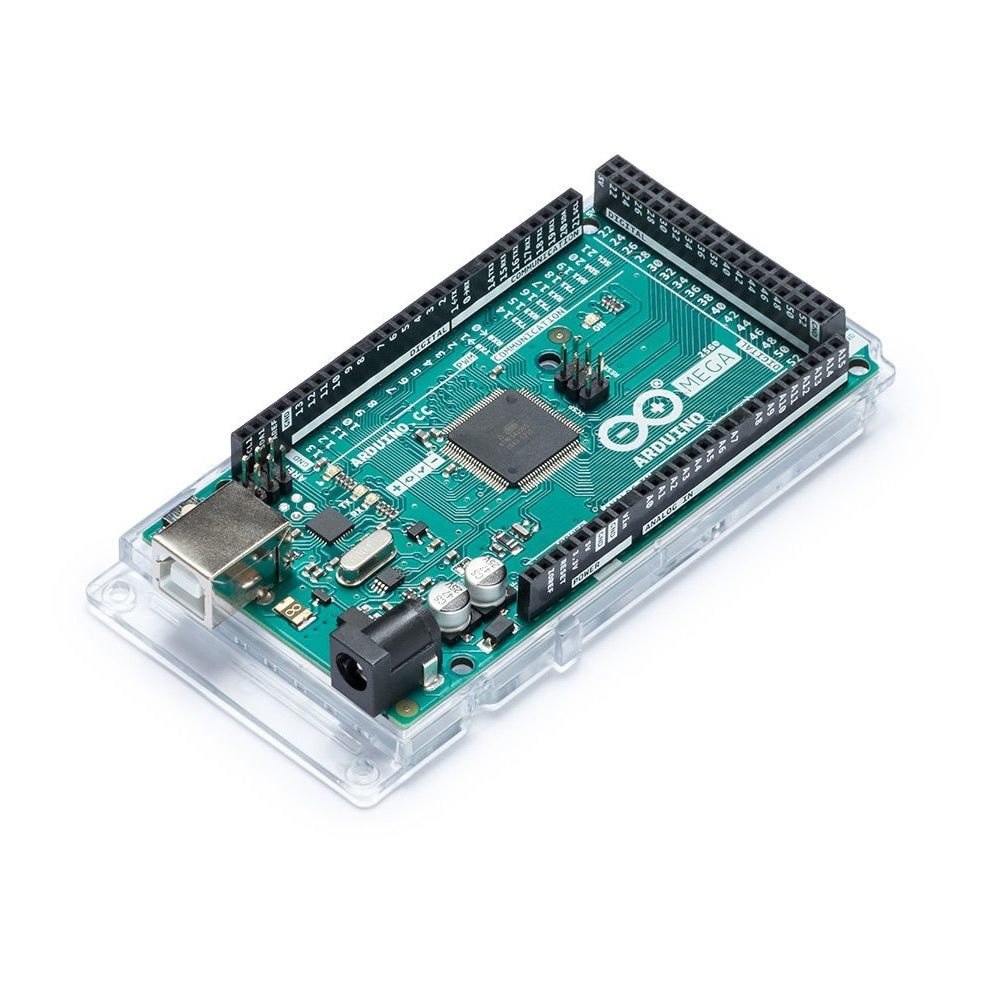

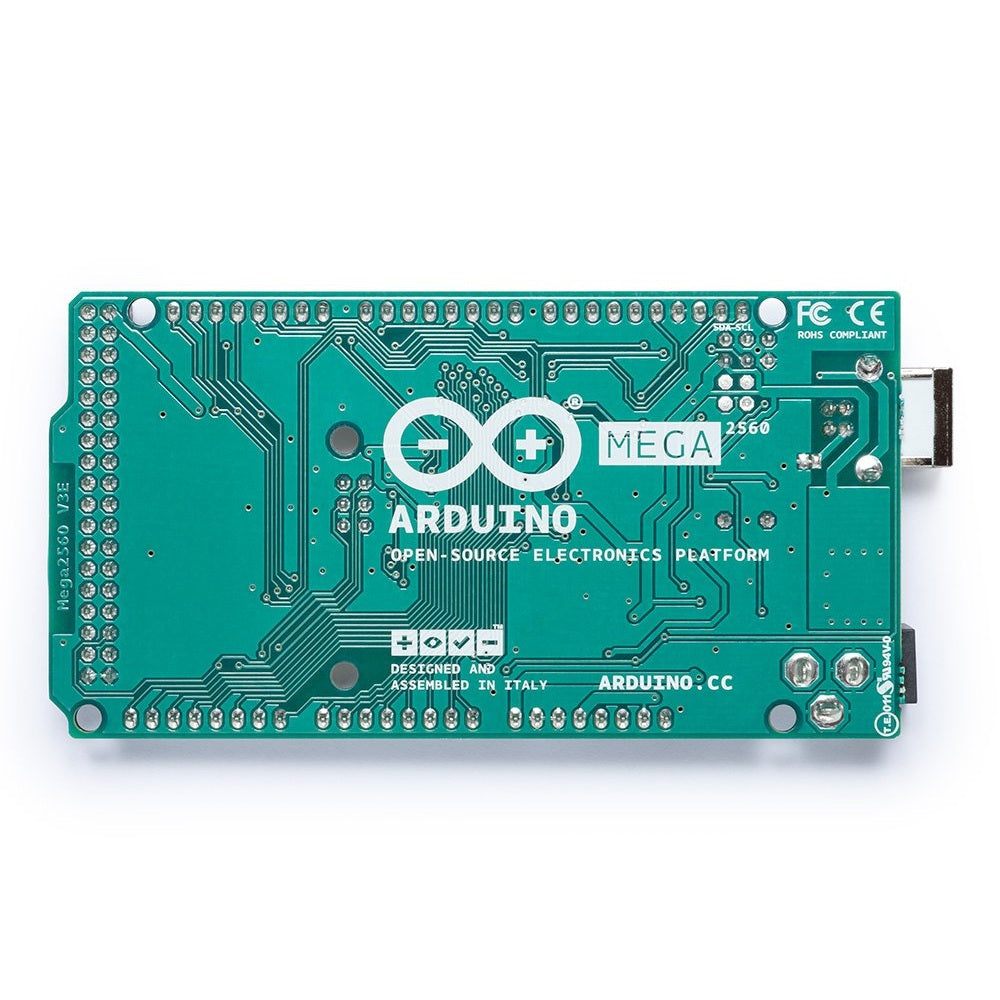

Original Arduino Mega 2560 ATmega2560 Rev3

This is an Original Arduino Mega board from Arduino Officials based on ATmega16U2.  This Arduino development board is based on the ATmega2560 microcontroller.

The Arduino Mega has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the Arduino microcontroller, simply connect it to a computer with a USB cable or power it with an AC to DC adaptor or battery to get started.

The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove, or Diecimila. It can be powered via a USB connection or with an external power supply.

The power source is selected automatically. The Arduino Mega2560 has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers.

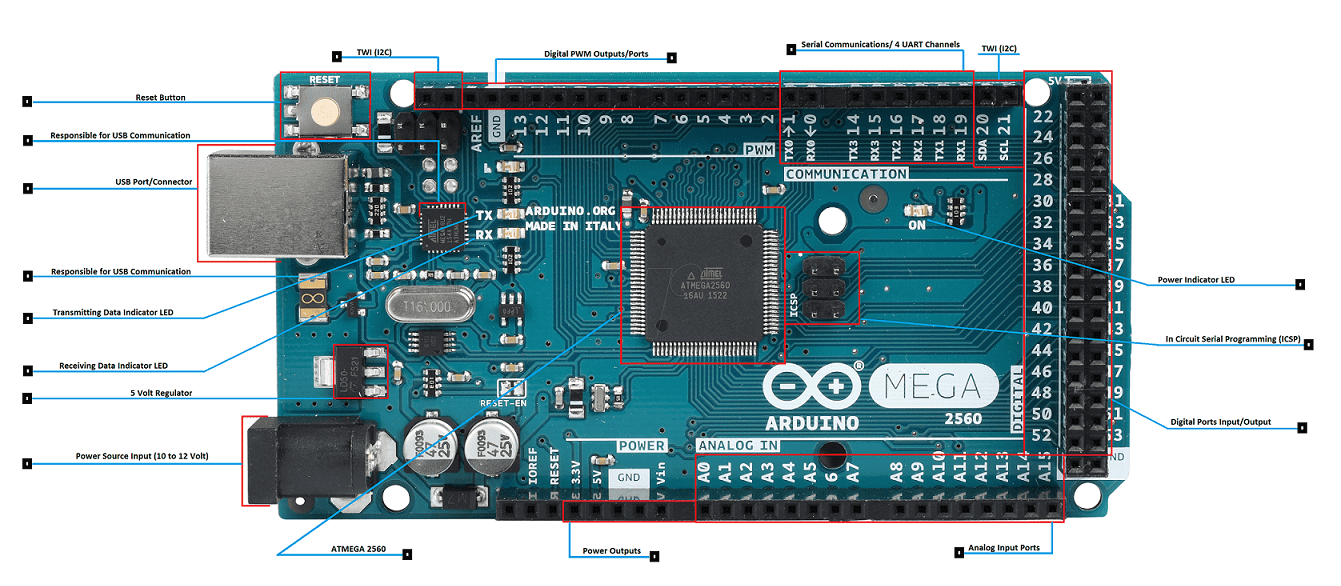

Pin Diagram

Applications:

• Embedded Design & Development
• Industrial, Communications & Networking
• Sensing & Instrumentation
• Automation & Process Control

Also check Arduino Leonardo with Headers. The Arduino Leonardo is a microcontroller board that can be used for a variety of projects. It has 20 digital input/output pins, 7 of which can be used as PWM outputs and 12 as analog inputs.
