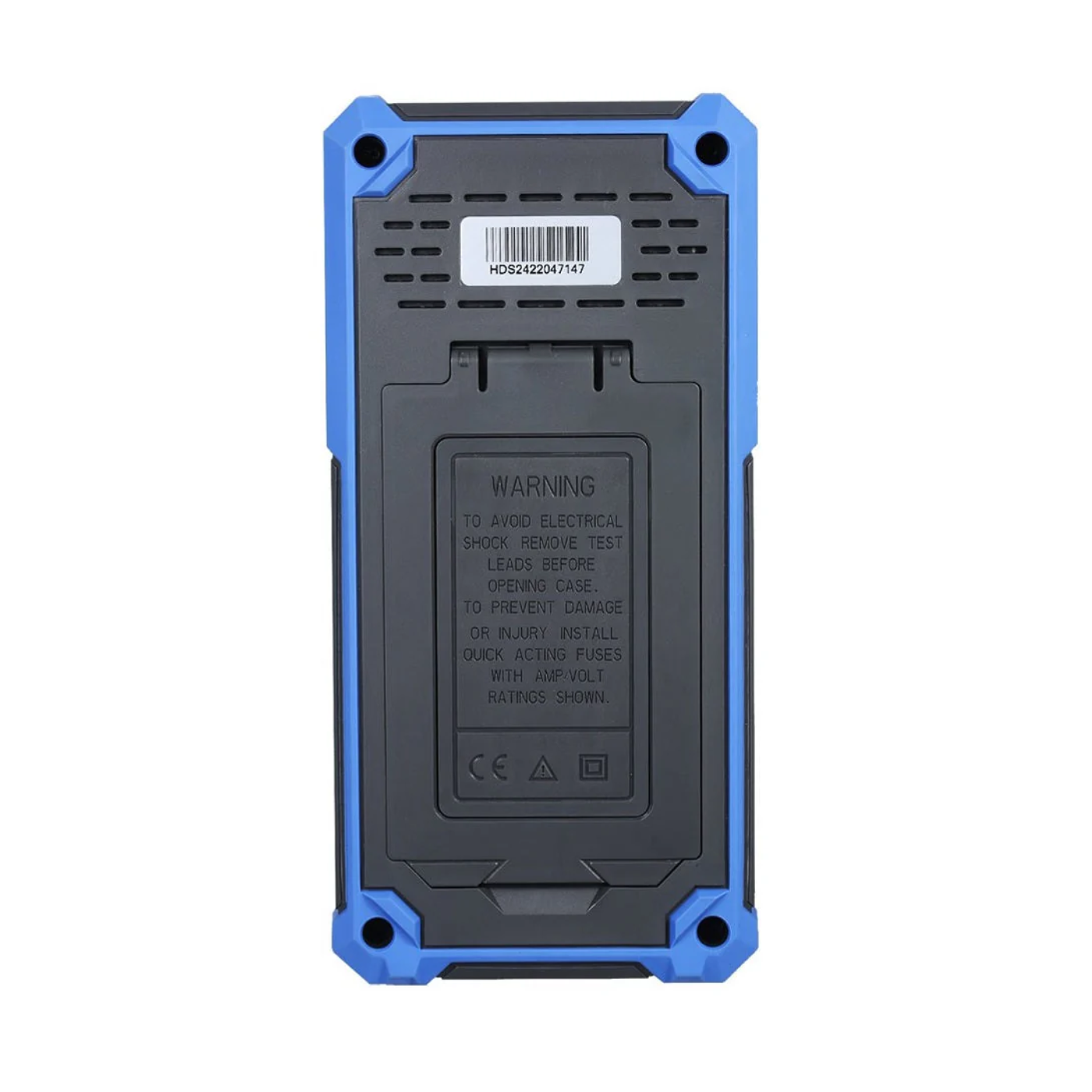

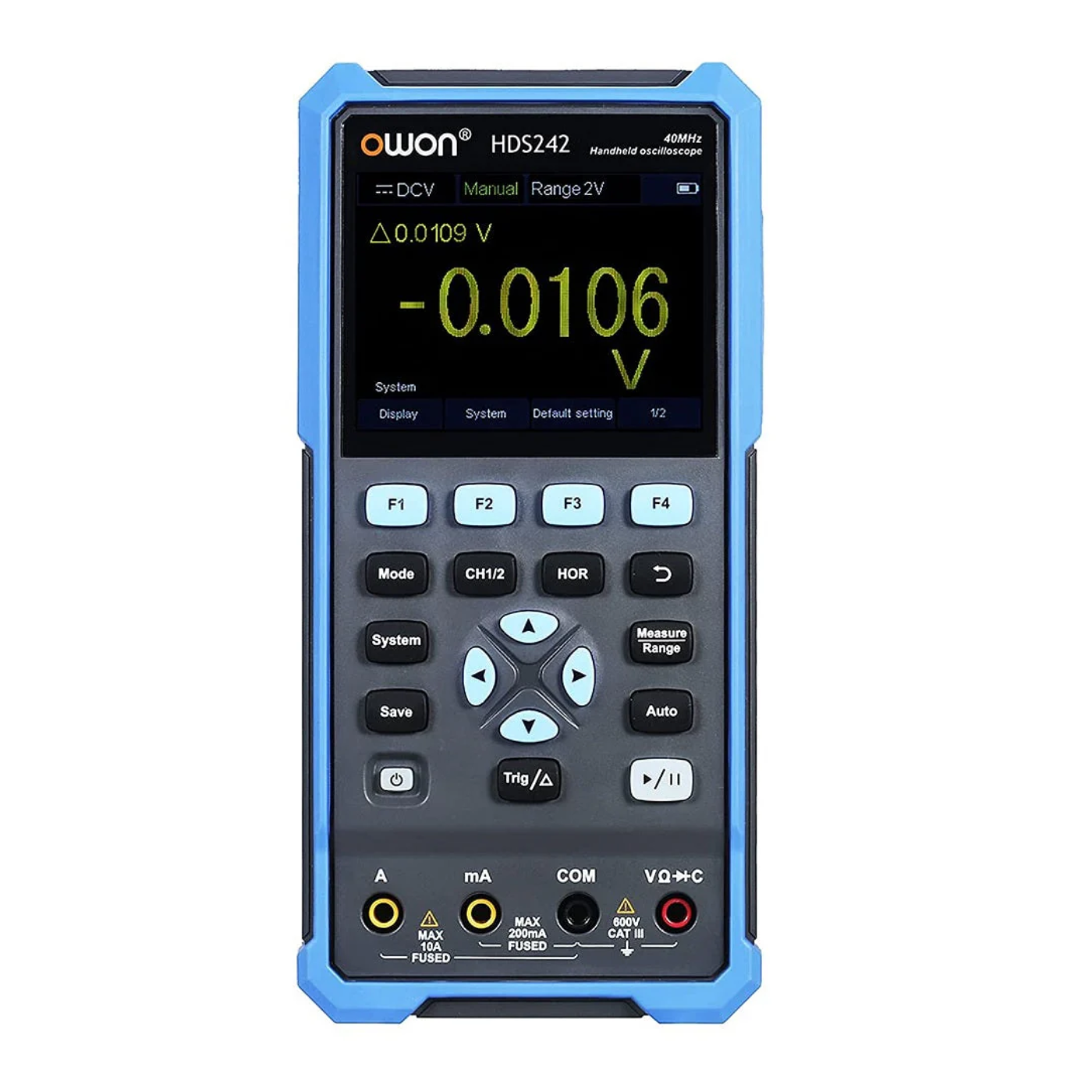

Owon HDS242 40 MHz Handheld Digital Multimeter

The HDS242 is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5″ high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon’s desktop software, control it via SCPI or to use it with a power bank.

Besides being an oscilloscope, it independently acts as a fully featured 20,000 count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display.

check out : Owon HDS272S 70 MHz Handheld Digital Multimeter

Features

• 40 MHz dual-channel bandwidth with up to 250 MS/s sample rate for detailed waveform capture.
• Combines oscilloscope and true-RMS multimeter functions with USB-C detachable power and PC interface.
• 3.5″ high-contrast color LCD display designed for outdoor use; powered by 18650 lithium batteries for approximately 6 hours of operation.
• Memory depth of 8 kpts (single channel) / 4 kpts (dual channel); waveform refresh rate up to 10,000 wfm/s.
• Multi-mode trigger (Edge Auto/Normal/Single) and full multimeter readings including DC/AC voltage, current, resistance, continuity, and diode test.
• USB-C interface with SCPI support for secondary development, PC connectivity, and firmware upgrades

Application

• Field service & troubleshooting: Ideal for on-site electronics repair, signal tracing, and maintenance work.
• Education & training: Perfect for labs and students learning signal analysis, circuit testing, and debugging.
• Embedded system development: Great for monitoring microcontroller outputs, sensor signals, and communication lines.
• Industrial applications: Suitable for factory diagnostics, control board testing, and automation system checks.
• Hobby electronics & DIY: Excellent tool for makers working with Arduino, Raspberry Pi, or robotics projects.
