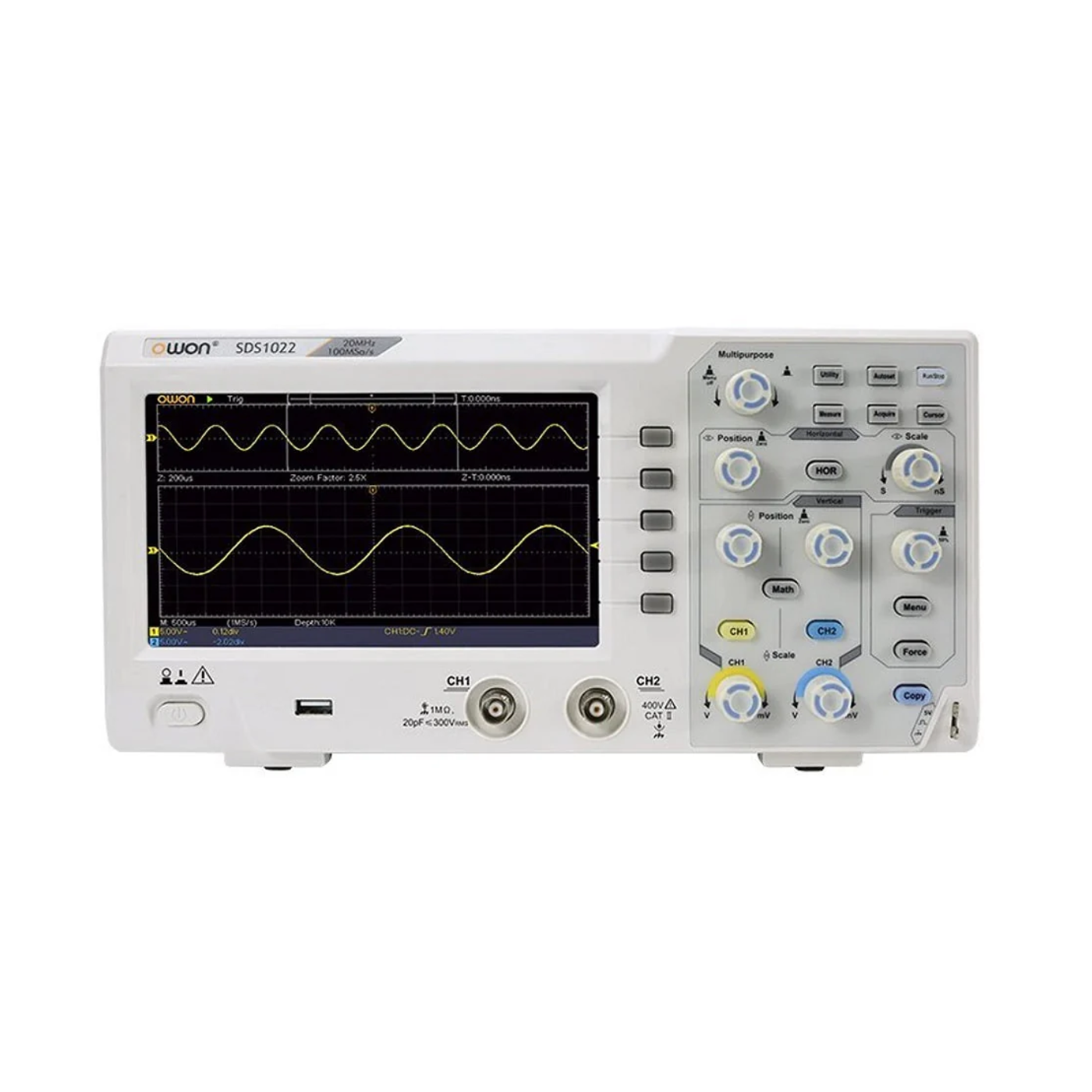

Owon SDS 1022 20 MHz Digital Storage Oscilloscope

The Owon SDS1022 Digital Storage Oscilloscope features 2 channels, up to 100MS/s real-time sample rates, maximum 20MHz bandwidth. The SDS1022 offers a 7-inch color LCD screen with 800×600 resolution. The SDS1022 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory.

Also, Shop the SPE3102 Owon DC Power Supply for stable performance.

Features:

• Large display 7’’ high resolution LCD brings more waveform data-fulfilling better visual effect.
• Friendly UI interaction Easy-accessible operation menu gets you to the result conveniently.
• Windows extension The function facilitates the observation of abnormal signal from full waveform.
• Snapshot One click, all measurement value comes from 30 auto-measurement options.

Application

• Circuit Design & Debugging: Ideal for analyzing and troubleshooting analog and digital waveforms in microcontroller, amplifier, and sensor circuits.
• Education & Lab Work: Perfect for classroom environments and beginner labs, providing hands-on training in waveform measurement and signal behavior.
• Embedded System Development: Useful for monitoring MCU outputs, serial communications (UART, I²C, SPI), and power-supply waveforms during prototyping.
• Industrial Maintenance: Suitable for field technicians diagnosing control systems, power electronics, and automation interfaces.
• Hobbyist Projects: Compact and affordable-great for makers working on Arduino/Raspberry Pi projects, robotics, and DIY gadgets requiring waveform capture.
