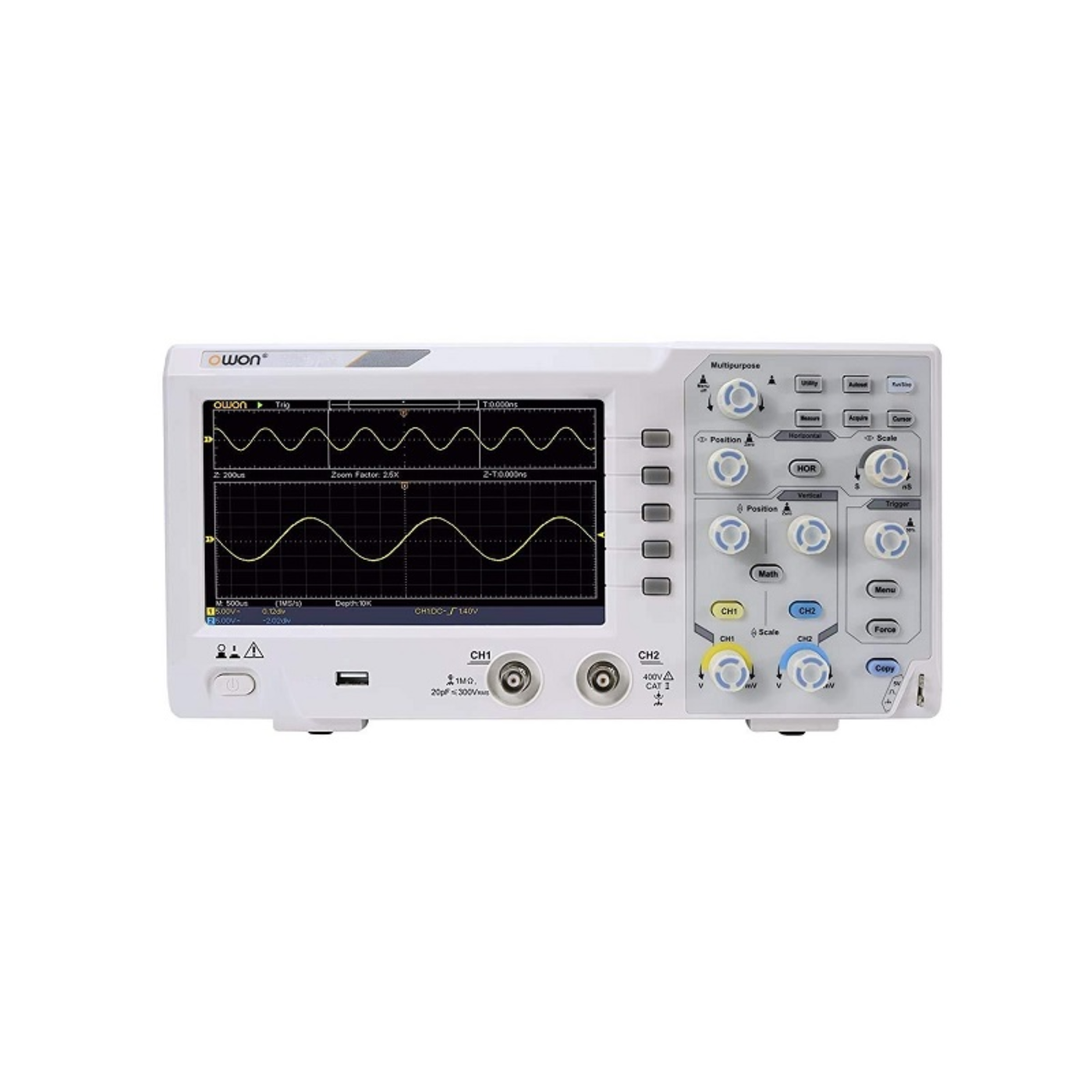

Owon SDS 1102 100 MHz Digital Storage Oscilloscope

The Owon SDS1102 Digital Storage Oscilloscope 100 MHz offers a 7-inch color LCD screen with 800×600 resolution. The SDS1052 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory.

Also, order the SPE3102 Owon DC Power Supply – Perfect for testing!

Features:

• 100 MHz Dual-Channel Bandwidth: Captures signals up to 100 MHz with a 1 GS/s sample rate per channel for accurate waveform analysis.
• Large 7-inch High-Resolution LCD Display: Features an 800 × 480 color screen for clear, detailed waveform visualization.
• Compact and Lightweight Design: Portable and slim build, ideal for both lab and field applications.
• Advanced Measurement and Math Functions: Supports over 30 automatic measurements with math operations like addition, subtraction, multiplication, division, and FFT.
• USB Connectivity: Includes USB-A and USB-B ports for easy data transfer and remote control.
• Versatile Trigger and Memory Options: Offers Edge/Video triggers, single-shot capture, and up to 10 kpts memory depth for waveform recording.

Applications:

• Circuit Design and Troubleshooting: Ideal for analyzing and debugging analog and digital circuits.
• Educational and Training Labs: Perfect for learning waveform behavior, timing, and basic electronic principles.
• Embedded System Development: Monitors microcontroller outputs, communication interfaces, and power signals.
• Industrial Maintenance and Diagnostics: Used for testing control systems, machinery, and automation equipment.
• Hobbyist and DIY Electronics: Great for makers working on Arduino, Raspberry Pi, robotics, and IoT projects.
