Raspberry Pi Zero 2 W

The Raspberry Pi Zero 2 W is a small but powerful single-board computer (SBC) that is ideal for DIY electronics, IoT projects, and smart home projects. This upgraded version of the Raspberry Pi Zero W computer performs 5 times faster processing capability than its predecessor, due to its quad-core 64-bit ARM Cortex-A53 CPU running at 1GHz and 512MB SDRAM.

The Raspberry Pi Zero 2 W can easily perform activities such as running Python scripts, controlling IoT devices, and even working as a little server. RasPi zero 2 w draws about 3.5W of electricity, which makes it energy-efficient for long-term use.  This board includes built-in WiFi (2.4GHz 802.11 b/g/n) and Bluetooth 4.2 with BLE for easy wireless networking.

The tiny form factor and amazing power of RPi Zero 2 W make it an excellent pick for a home automation system, a security camera, or a Bluetooth speaker project. It is also compatible with the majority of Raspberry Pi Zero accessories and cases.

Now the question is Is Raspberry Pi Zero 2 W Worth It? Absolutely, If you’re searching for a low-cost, energy-efficient, and powerful SBC for IoT applications, Python learning, or Linux experimentation, then the Raspberry Pi Zero 2 W is a great option.

Check Out : ALUMINUM HEATSINK FOR RASPBERRY PI ZERO 2W

Also, check out our collection of Raspberry Pi Kits!

Features

• Raspberry Pi-designed System-in-Package, which integrates the BCM2710A1 die used in Raspberry Pi 3 with 512MB of RAM.
• HAT-compatible 40-pin header
• Composite video and reset pins via solder test points
• CSI camera connector
• VideoCore IV GPU
• Best Raspberry Pi for small projects

Check out : RASPBERRY PI ZERO 2W WITH ALUMINIUM HEATSINK AND 20X2 HEADER

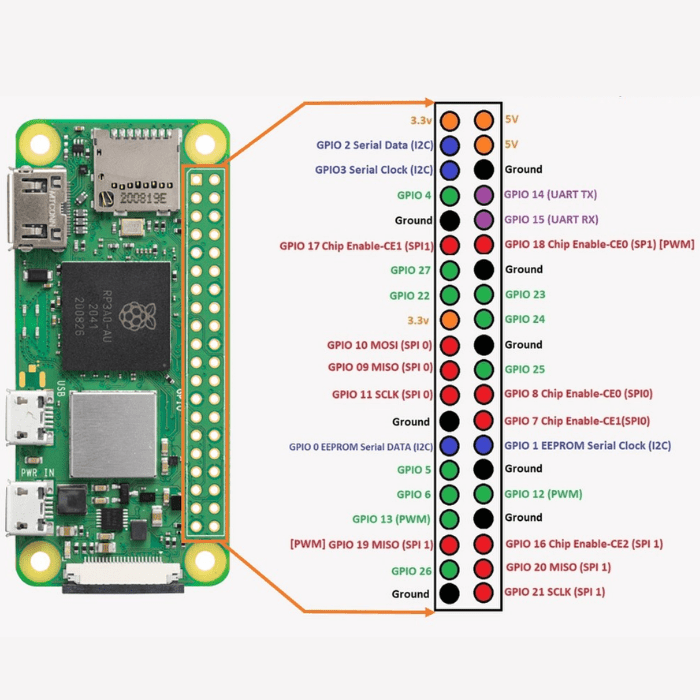

Raspberry Pi Zero 2 W Pinout:

check out : Raspberry Pi Zero Kit

Comparison

Raspberry Pi Zero 2 W vs Raspberry Pi Zero W vs Raspberry Pi Zero

Specification	Raspberry Pi Zero 2 W	Raspberry Pi Zero W	Raspberry Pi Zero
Price (INR)	₹1,646	₹1534 VIEW	₹1259 VIEW
Processor	1GHz Quad-Core ARM Cortex-A53	1GHz Single-Core ARM11	1GHz Single-Core ARM11
RAM	512MB LPDDR2	512MB LPDDR2	512MB LPDDR2
Wi-Fi	802.11b/g/n	802.11b/g/n	Not Available
Bluetooth	4.2	4.1	Not Available
USB Ports	1× Micro USB (OTG)	1× Micro USB (OTG)	1× Micro USB (OTG)
HDMI	Mini HDMI	Mini HDMI	Mini HDMI
GPIO Pins	40 (unpopulated)	40 (unpopulated)	40 (unpopulated)
Camera Interface (CSI)	Yes	Yes	No
Display Interface (DSI)	No	No	No
Storage	MicroSD	MicroSD	MicroSD
Power Supply	5V via Micro USB	5V via Micro USB	5V via Micro USB
Dimensions	65mm × 30mm	65mm × 30mm	65mm × 30mm

Applications

• IoT (Internet of Things) Projects
• Portable Media Centers
• Retro Gaming Consoles
• DIY Smart Cameras
• Robotics Projects
• Network Monitoring Tools
• Portable Servers
• Edge AI Applications
• Educational Kits
• Home Automation Systems

Project Ideas Using Raspberry Pi Zero 2 W

• Smart Home Temperature & Humidity Monitor
• Portable Retro Gaming Console
• DIY Security Camera with Motion Detection
• Mini Web Server or Personal Cloud Storage
• Bluetooth Audio Streaming Device
• Robot Car with Obstacle Avoidance
• Smart Doorbell with Camera Integration
• WiFi-Controlled LED Lighting System
• Weather Station with Real-Time Dashboard
• Network Ad Blocker using Pi-hole

The Raspberry Pi Zero 2 W Review
