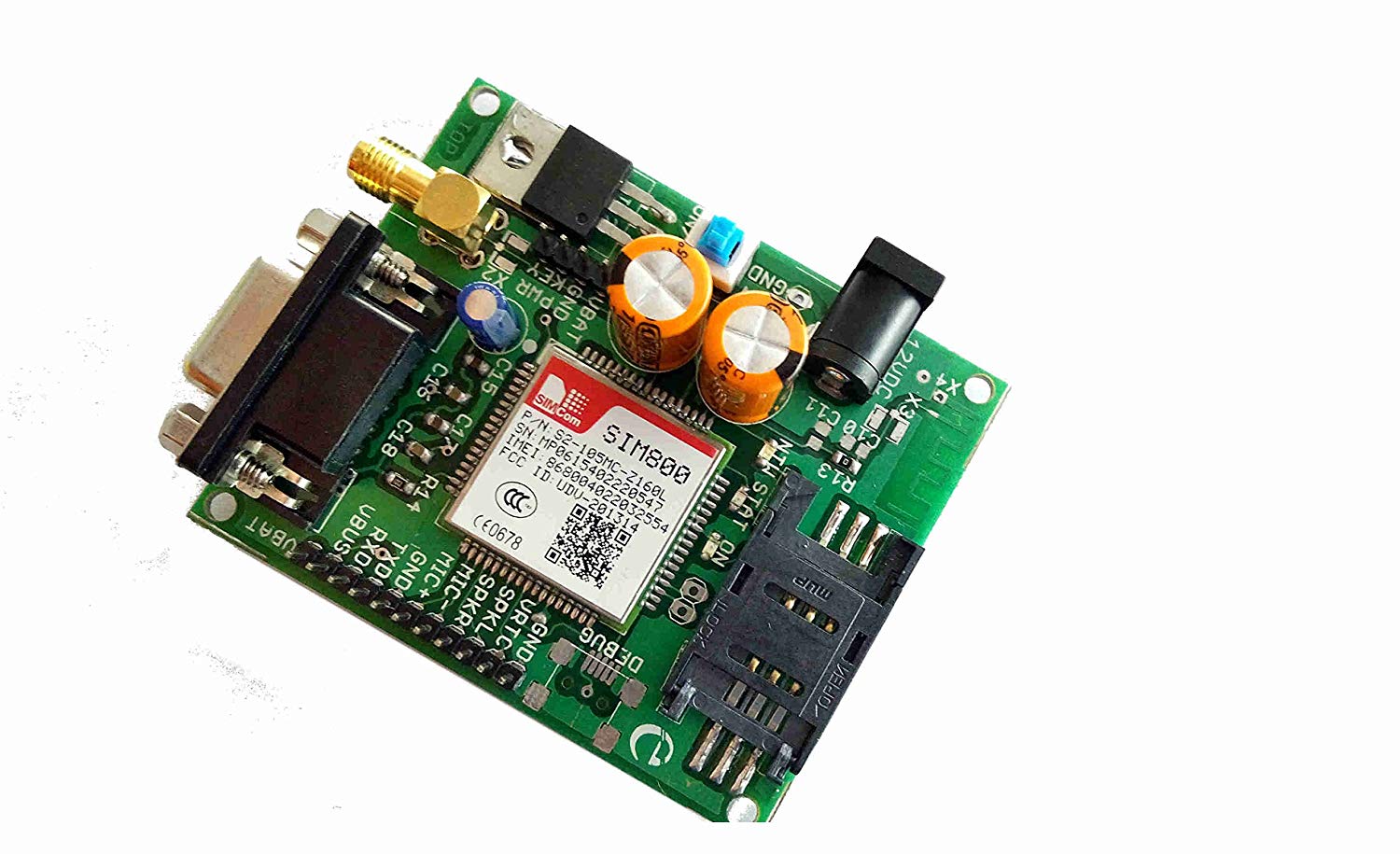

SIM800 GSM Modem module board with SMA Antenna

The SIM800 GSM Modem Module Board with SMA Antenna is a quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. SIM800 features GPRS multi-slot class 12/ class 10 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4.

Features:

• Quad-band GSM/GPRS module
• Works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz
• GPRS multi-slot class 12/ class 10 (optional)
• Supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4
• Support Bluetooth function
• Programmable general purpose input and output
• Power supply voltage of board: 12V
• TTL connector for Arduino and Raspberry Pi board interface
• AT command support
• PPP internet mode support

Applications:

• IoT devices
• Smart home devices
• Industrial automation
• Asset tracking
• Vehicle telematics
• Security systems
• And more!

The SIM800 GSM Modem Module Board with SMA Antenna is a versatile and powerful tool that can be used in a wide variety of applications. With its quad-band GSM/GPRS capabilities and support for Bluetooth, it is ideal for a variety of IoT and M2M applications. The module is also easy to use and can be interfaced with a variety of microcontrollers and development boards.
