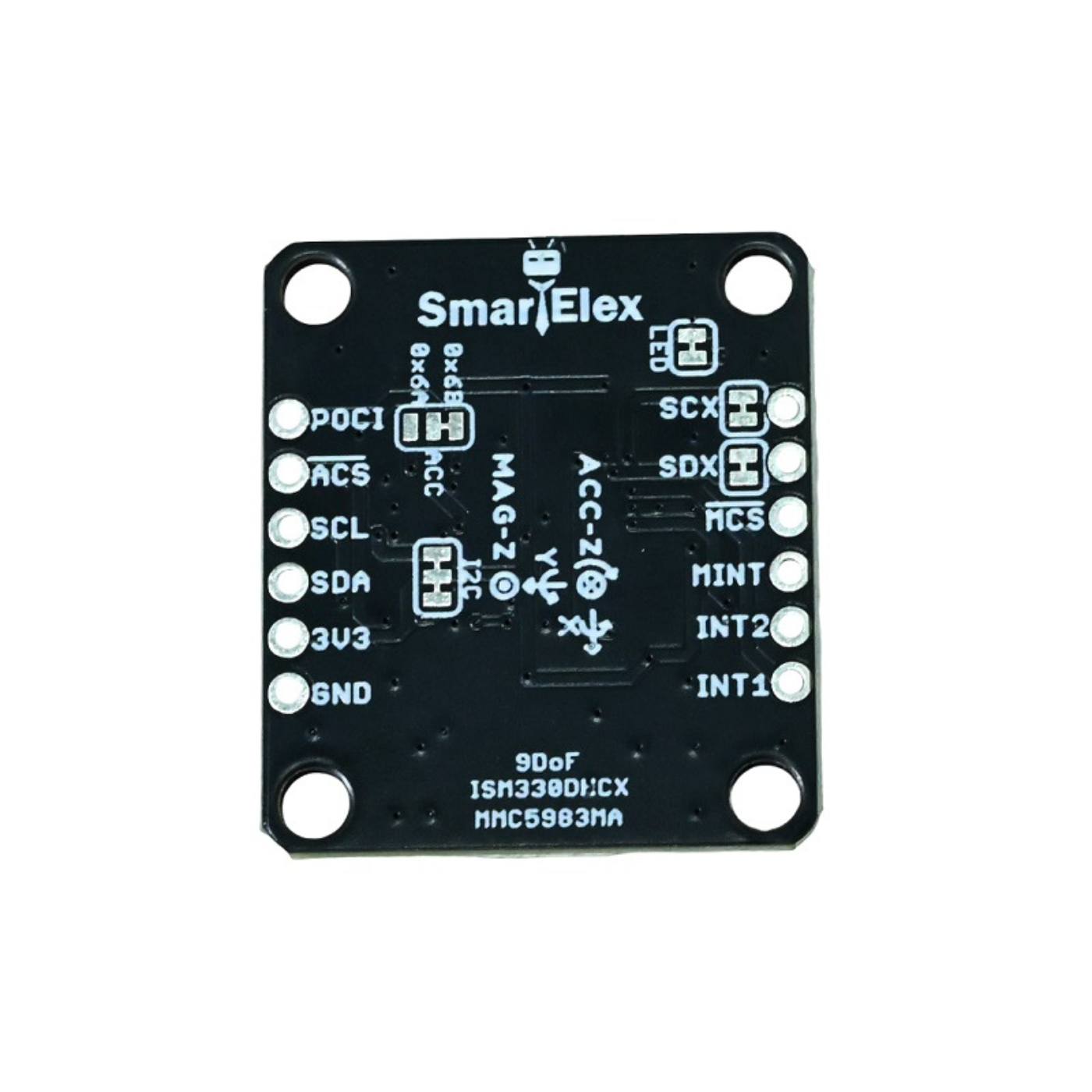

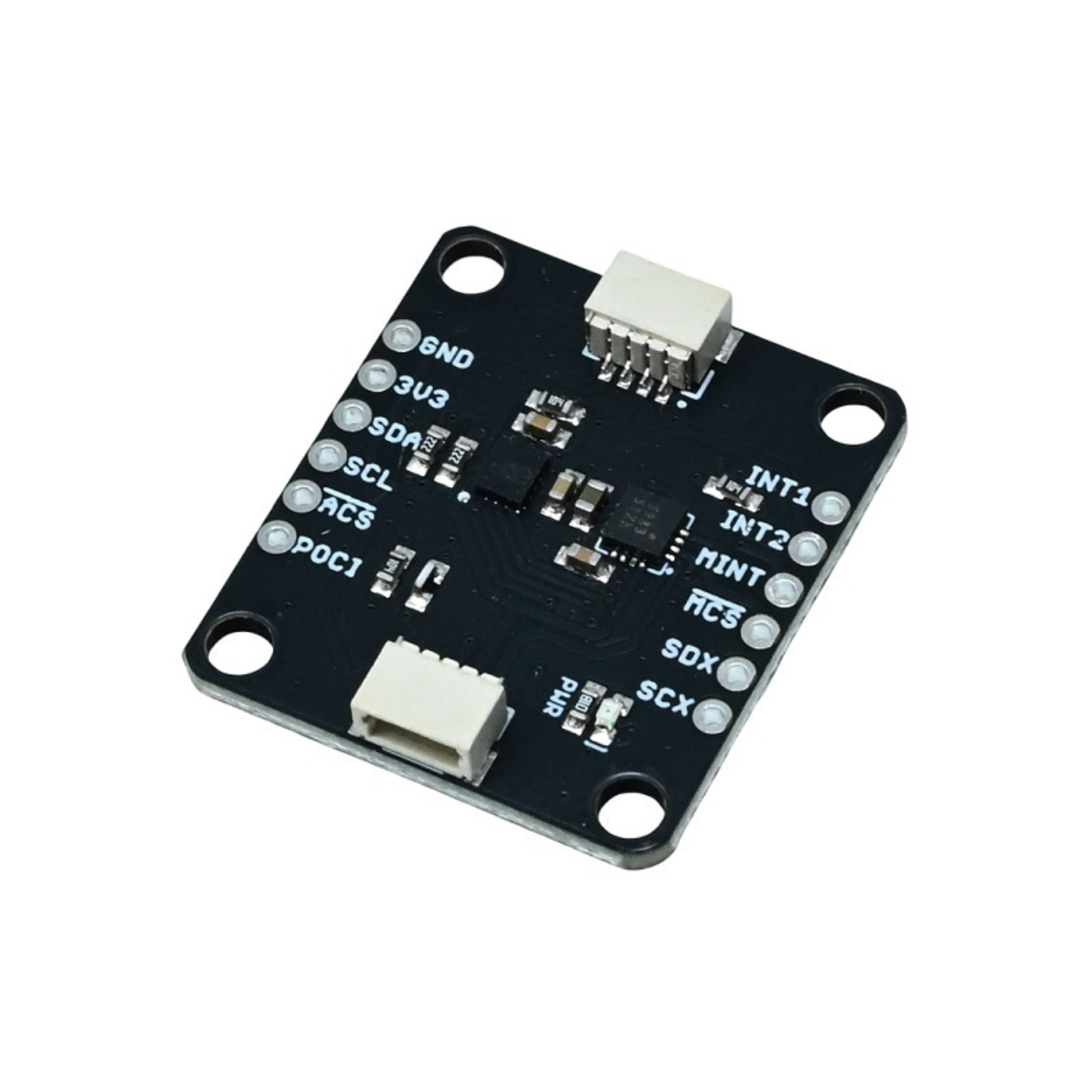

SmartElex 9DoF IMU Breakout Board with 3-Axis ISM330DHCX Accelerometer

The SmartElex 9DoF IMU Breakout is a compact, high-performance sensor board designed for precise motion and orientation detection.

It combines the ISM330DHCX 3D accelerometer and gyroscope with the MMC5983MA magnetometer, giving you accurate readings across nine degrees of freedom. This breakout board helps in tracking motion, direction, and tilt with excellent stability and low power consumption.

It supports Molex PicoBlade connectors for solder-free connections, while 0.1” pins are available for breadboard use.

Ideal for robotics projects and motion-sensing applications, this IMU breakout delivers smooth and reliable sensor performance for advanced embedded systems.

Features:

• Combines ISM330DHCX accelerometer and gyroscope with MMC5983MA magnetometer for 9-axis motion sensing.
• Provides full-scale acceleration range of ±2/4/8/16g and angular rate up to 4000 dps.
• Magnetometer detects magnetic fields up to ±8 Gauss with high sensitivity and low noise.
• Features built-in Machine Learning Core, FIFO buffer, and event detection functions.
• Compatible with both Molex PicoBlade connectors and standard 0.1″ headers for easy setup.
• Offers precise motion tracking while maintaining very low power consumption.
• Compact and durable design ideal for robotics, drones, and navigation systems.
