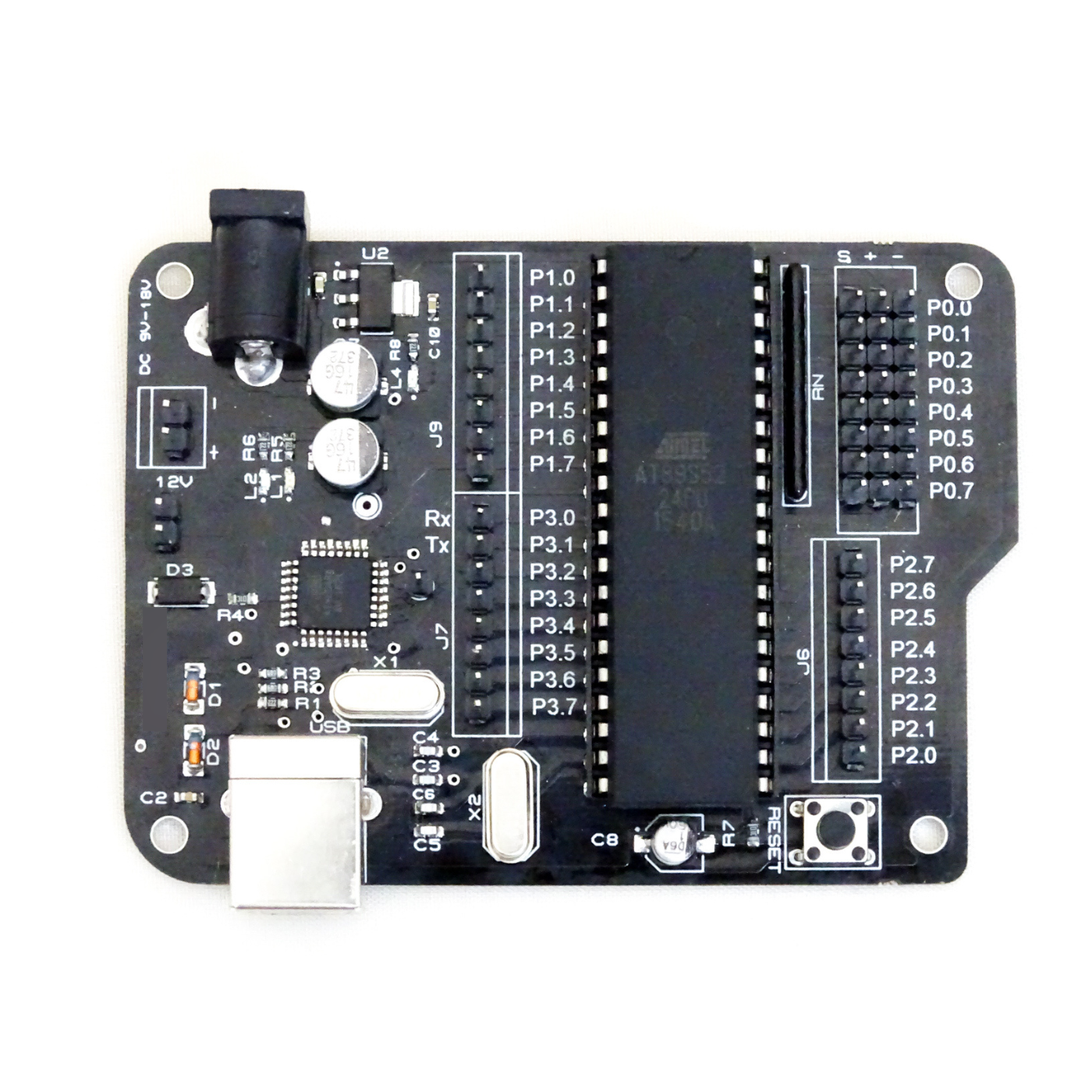

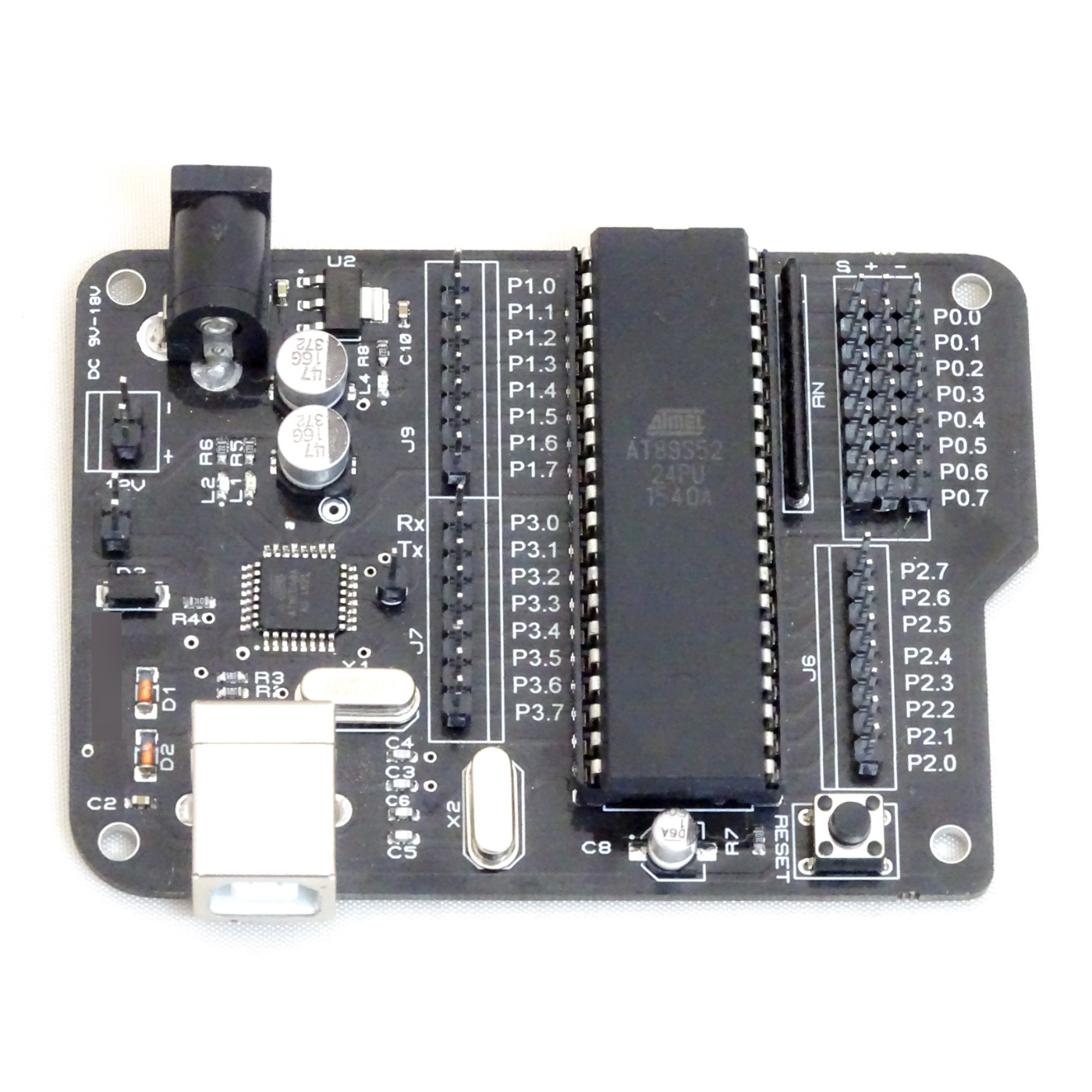

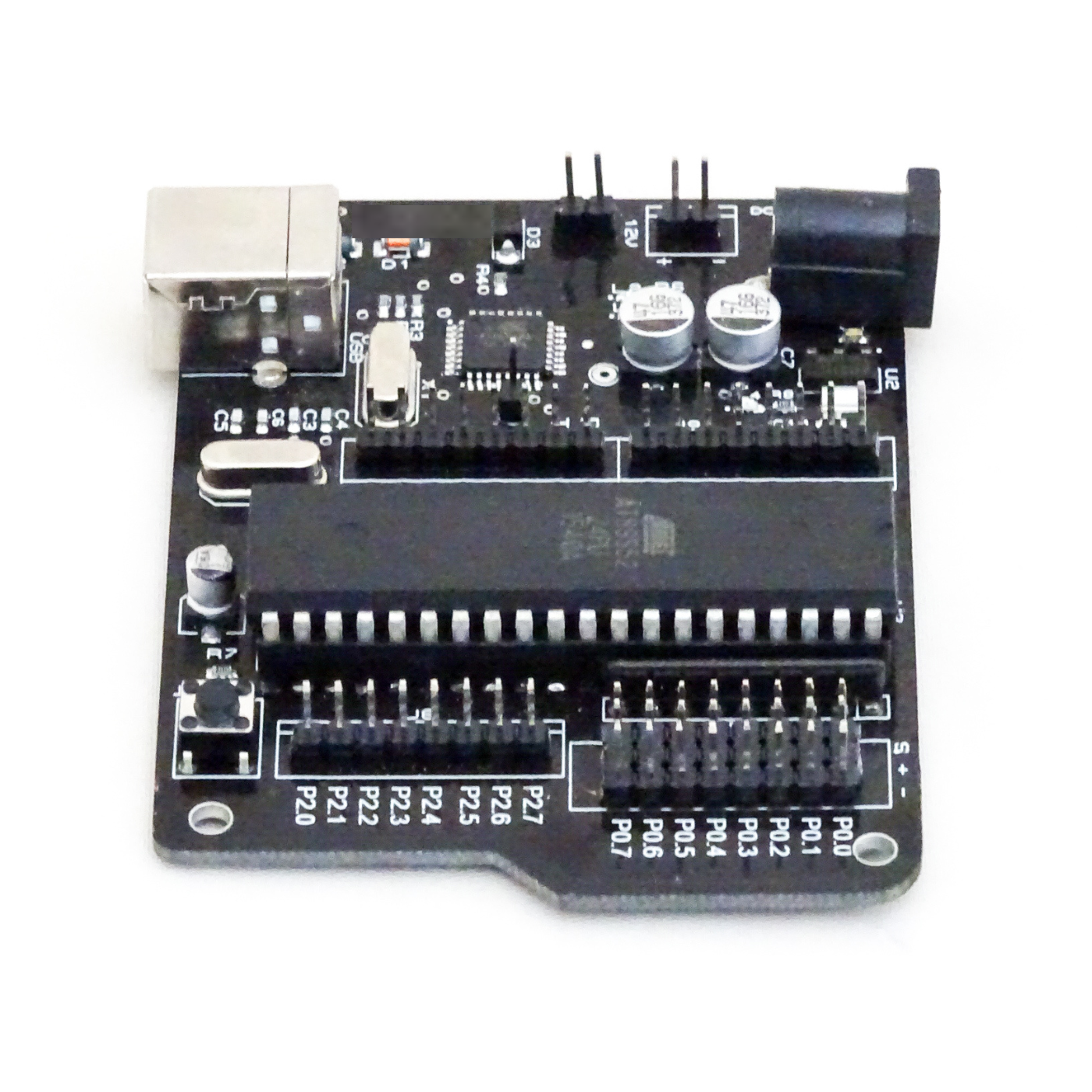

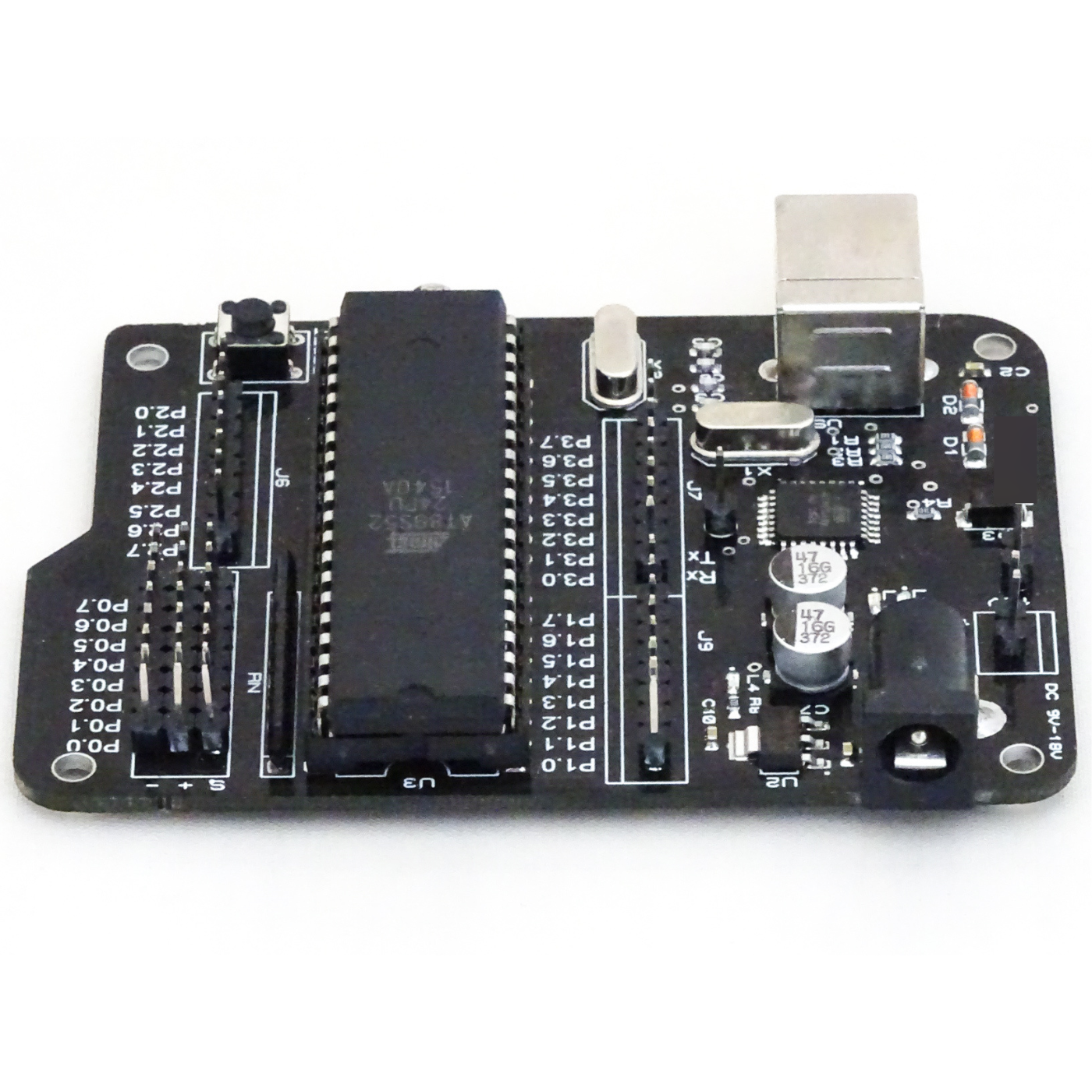

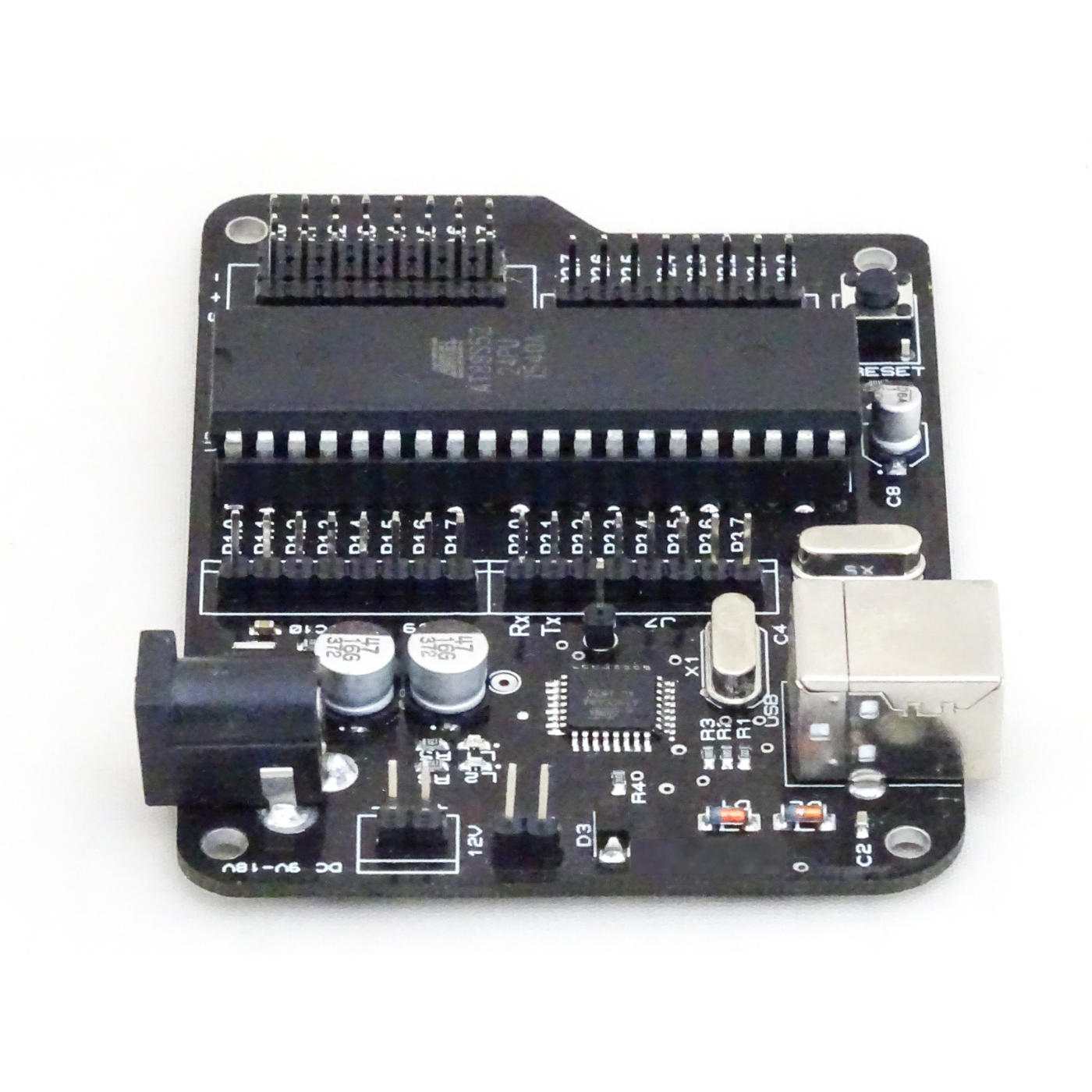

SmartElex Aryabhatta 8051 Microcontroller AT89S52 Development Board with Onboard USB Programmer

The SmartElex Aryabhatta 8051 microcontroller development board is designed to make embedded system learning simple, affordable, and effective. Equipped with an onboard USB programmer, this board supports AT89S52 and 89S51 40-pin microcontrollers, allowing users to easily connect to a PC and start programming without additional hardware. Its plug-and-play design, reliable power regulation, and well-labeled ports make it perfect for electronics students, hobbyists, and engineers exploring 8051-based systems.

This microcontroller development board provides everything required to quickly develop, test, and prototype embedded applications. With built-in 5V and 12V regulated outputs, quartz crystal oscillator, and onboard reset functionality, it ensures stable performance and smooth operation. The high-quality FR4 PCB design and comprehensive port accessibility make it a dependable tool for mastering microcontroller fundamentals and creating innovative projects.

Features:

• Supported Microcontrollers: AT89S series (including AT89S52 and 89S51)
• Operating Voltage: 9V to 15V DC
• Onboard USB Programmer for direct PC interface
• Quartz Crystal: 11.0592 MHz for stable clock operation
• Reset Button for easy program restart
• Built-in Power Supply: Regulated 5V, 12V, and GND outputs
• Power Indicating LED for quick status check
• High-Quality FR4 PCB for durability and performance
• External Pull-Up Resistors for Port 0
• Port Extensions available for all I/O ports
• GND and VCC Bus Lines for easy prototyping connections
