SmartElex L298N Dual Channel Motor Driver with Onboard Arduino Uno

The SmartElex L298N Motor Driver with Onboard Arduino Uno is an all-in-one motor control solution designed for robotics and mechatronics enthusiasts. It combines the power of the L298N dual-channel motor driver with the versatility of the Arduino Uno microcontroller, allowing you to control two DC motors simultaneously with ease.

With its onboard 5V 3A buck converter and wide voltage range, this board ensures stable performance even under high current loads. Perfect for DIY robotics projects like combat robots, line-following bots, and racing robots, it provides everything you need on a single compact board.

This motor driver board simplifies prototyping and wiring by including labeled ports for all Arduino pins and a built-in USB interface for programming. It also supports external connections like servo motors and line sensors, making it a flexible choice for educational, hobby, and industrial automation applications.

Whether you’re building your first robot or a professional prototype, the SmartElex L298N Motor Driver makes motor control efficient, reliable, and beginner-friendly.

Pinout Diagram:

Features:

• Integrated L298N dual motor driver with onboard Arduino Uno.
• Supports two DC motors with continuous current up to 1.2A per channel (peak 4A total).
• Built-in 5V 3A SMPS buck converter for stable power supply.
• Clearly labeled I/O ports for easy sensor and servo motor connections.
• Includes USB port for direct Arduino programming and debugging.
• Onboard power switch and status LED indicators for convenience.

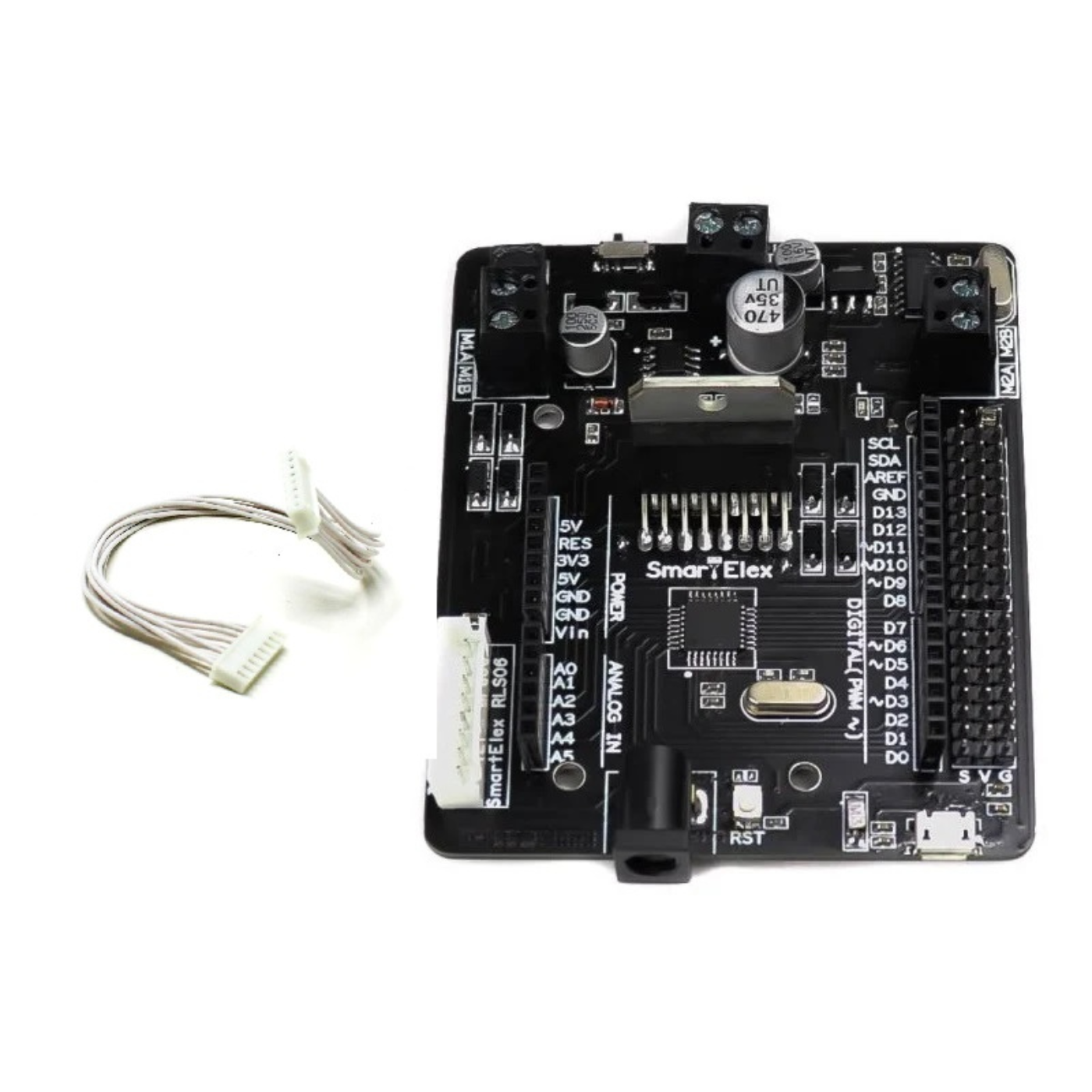

• Compatible with SmartElex RLS-06 Line Sensor via 8-pin JST interface.
