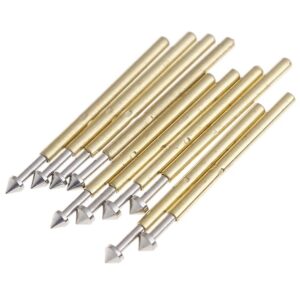

Pogo Pins

Specifications:

• Spring: music wire, gold plated
• P160-E2 needle diameter: 1.3 mm;
• Needle tube diameter: 1.36 mm;
• Needle rod diameter: 0.66 mm;
• Needle total length: approx. 24.5 mm
• Pin sets sold separately, the needle sheath diameter of 1.32mm
• Drill size: approx. 1.7 mm
• Minimum test distance: approx. 1.91mm
• Full Stroke: 2.50mm
• Current rating: 3A
• Current resistance: 50mΩ
• Plunger: heat treated beryllium copper
