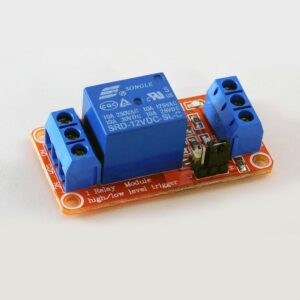

1 channel 12V 30A Relay Control Board Module with Optocoupler
Specifications :
- Channel: 1 channel
- Relay Voltage: 12V
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
SKU: RDNA-B602.2 -
Uncategorized
1 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse
Uncategorized1 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse
Specifications:
- Part Number: G3MB-202P
- Power supply:12VDC/160mA
- Switching Voltage (VAC):240@2A
- Isolation: Phototriac
- Zero Cross: Yes
- Length (mm): 34
- Width (mm): 26
- Height (mm): 22
- Weight (gm): 10
SKU: RDNA-E47.3 -
-
Uncategorized
1 Channel 24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Uncategorized1 Channel 24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Specification:
- Operating Voltage (VDC): 24
- Supply Current (A): 2mA
- Switching Voltage (VAC):50@2A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% 85%
- Storage condition (): 65 to 125
- Length (mm): 34
- Width (mm): 26
- Height (mm): 22
- Weight (gm): 10
SKU: RDNA-B281.2 -
Uncategorized
1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Uncategorized1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Specifications:
- Operating Voltage (VDC) : 3-24V
- Supply Current (A) : 2mA
- Switching Voltage (VAC) : 50Hz 2A
- Operating Temperature (°C) : -40 to 85
- Opt. Relative Humidity(RH) : 20% ～ 85%
- Storage condition (℃) : – 65 to 125
SKU: RDNA-359.10 -
Uncategorized

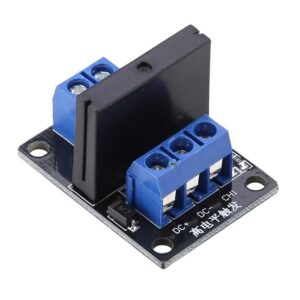

1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
Uncategorized1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
Specifications:
- Operating Voltage (VDC) : 3-24V
- Supply Current (A) : 2mA
- Switching Voltage (VAC) : 50Hz 2A
- Operating Temperature (°C) : -40 to 85
- Opt. Relative Humidity(RH) : 20% ～ 85%
- Storage condition (℃) : – 65 to 125
SKU: RDNA-B533.1 -
Uncategorized

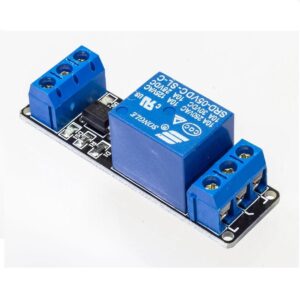

1 channel 5V 10A Relay Control Board Module with Optocoupler
Specifications:
- Channel: 1 channel
- Relay Voltage: 5V
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
SKU: RDNA-E459 -
Uncategorized

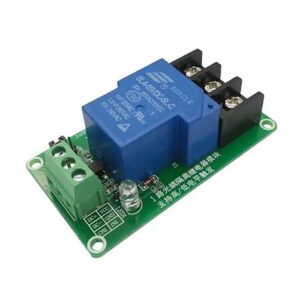

1 Channel 5V 30A Relay Module with Optocoupler Isolation Supports High and Low Triger
Specifications:
- Voltage version: 5V
- The static current: 5mA
- Working current: 190mA
- Trigger current: 2-4mA
- The module can be set high level or low-level trigger by the jumper
- Rated current of the interface is 16A
SKU: RDNA-B752.2 -
-
Uncategorized

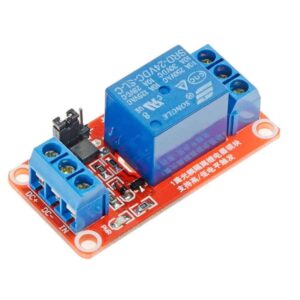

1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger
Specifications :
- Channel: 1 channel
- Relay Voltage: 24V
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
SKU: RDNA-B522.2 -
Uncategorized

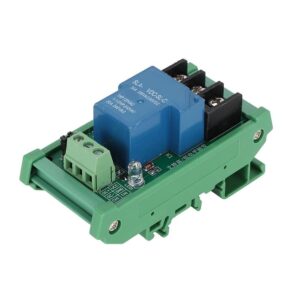

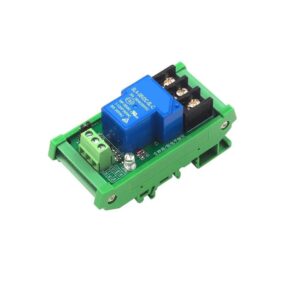

1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail
Uncategorized1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail
Specifications:
- The module uses a high-quality 30A relay, normally open interface maximum load: AC 250V/30A, DC 30V/30A.
- Module operating voltage is available in 24V.
- Adopting paster OptoCoupler isolation, strong driving capability, stable performance; trigger current 5mA.
- The module can be triggered by a jumper to set a high or low level.
- User-friendly interface design, all interfaces can be directly connected through the terminal block, which is very convenient.
SKU: RDNA-C494.2
