XGZP6857D 0 to 100 KPa Digital Output 5V – CF SENSOR ORIGINAL

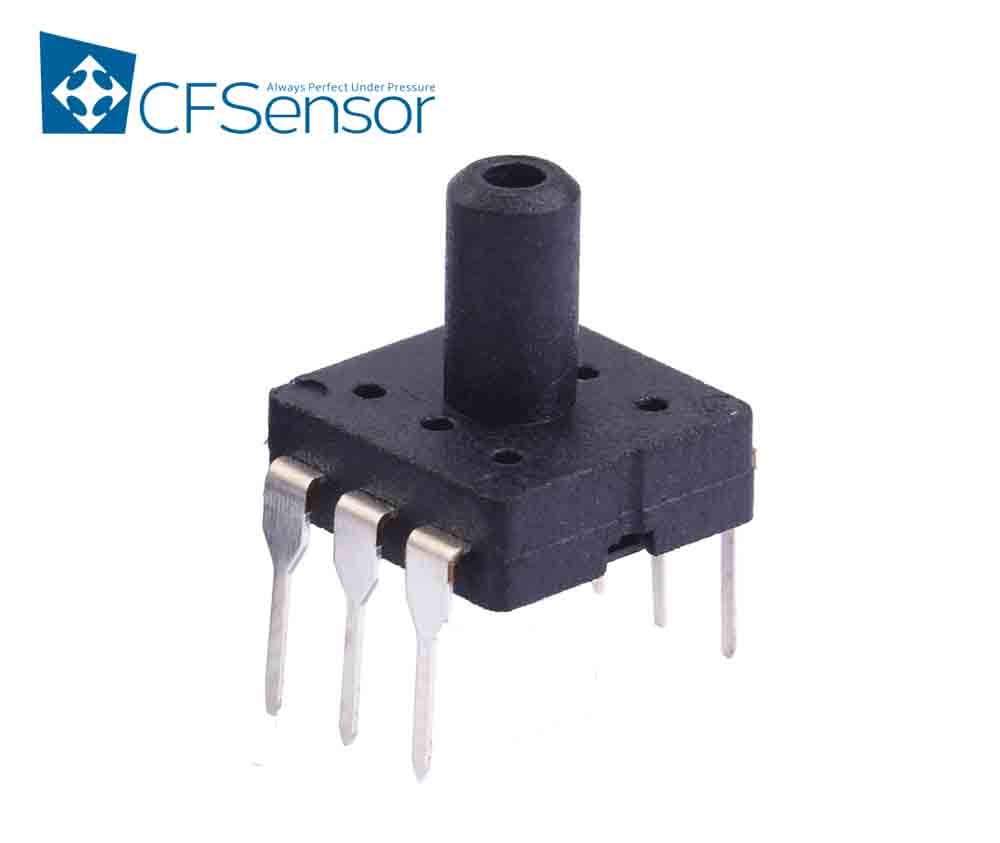

XGZP6857D is a prefect silicon pressure sensor module offering a I2C digital interface for reading pressure over the specified full scale pressure span and temp.range. It incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC).

The XGZP6857D is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity, so XGZP6857D pressure sensor module satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine, home electronics, and other pneumatic devices etc.

XGZP6857D pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibrations(excitation voltage and pressure range) are available.

Download Datasheet Click Here

Applications:

• For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.
• For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Fire safety, Sport Equipment etc.
• For Other fields, such as air pump, dust collector, vacuum system, HVAC and pneumatic device, automotive application, ioT etc.

Package Includes:

1x 0 to 100 KPa Digital Output 5V – CF SENSOR ORIGINAL
