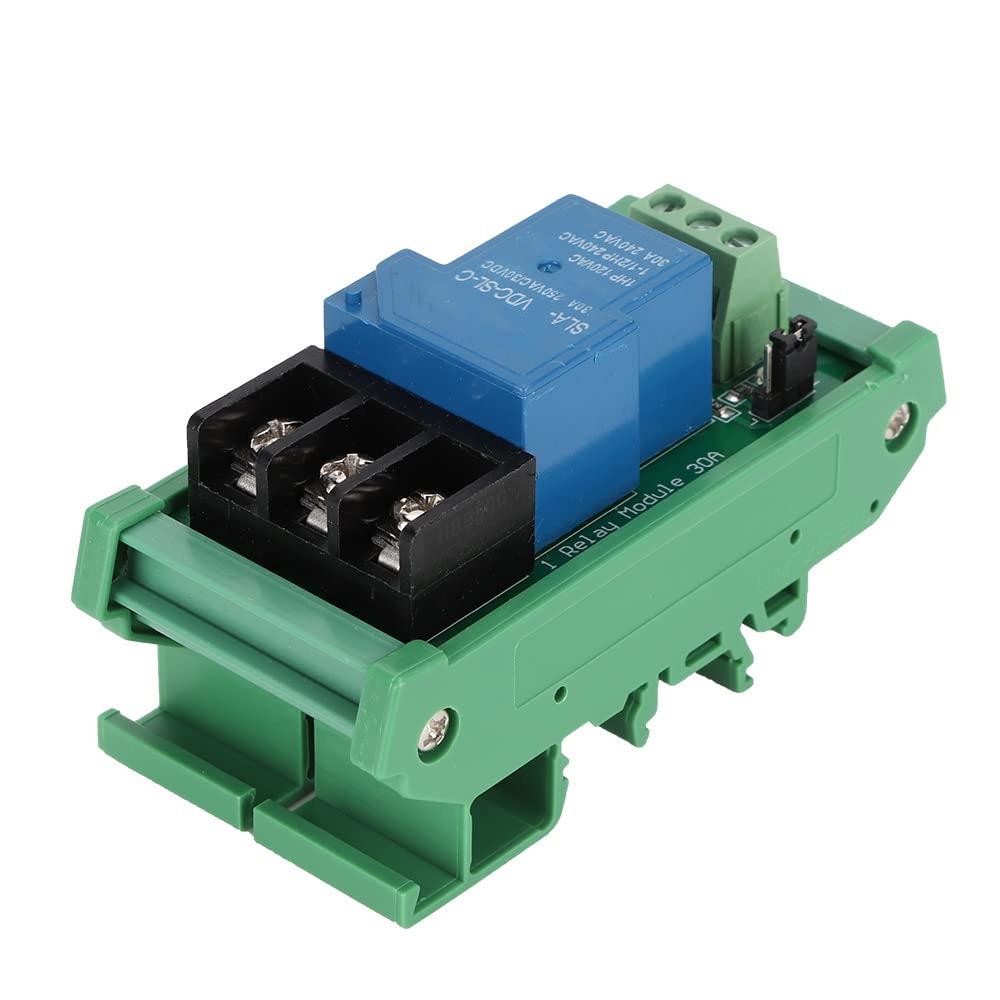

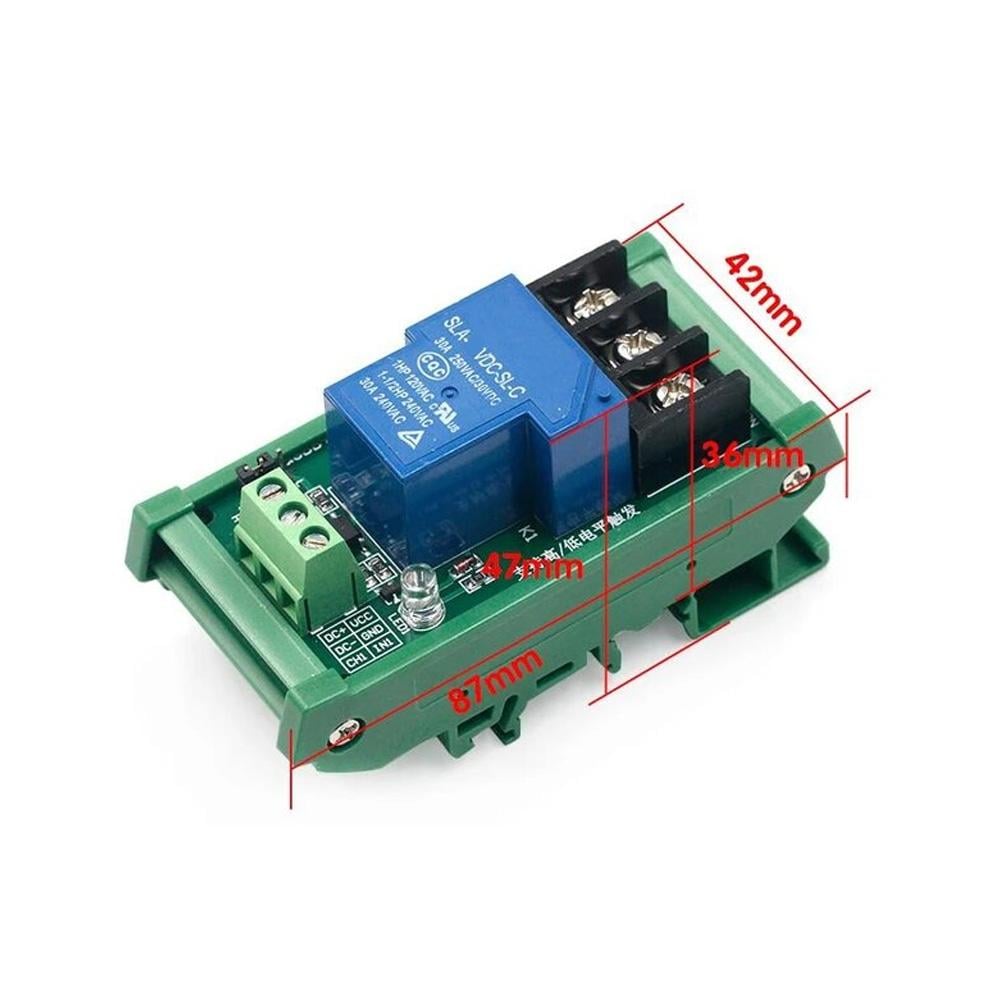

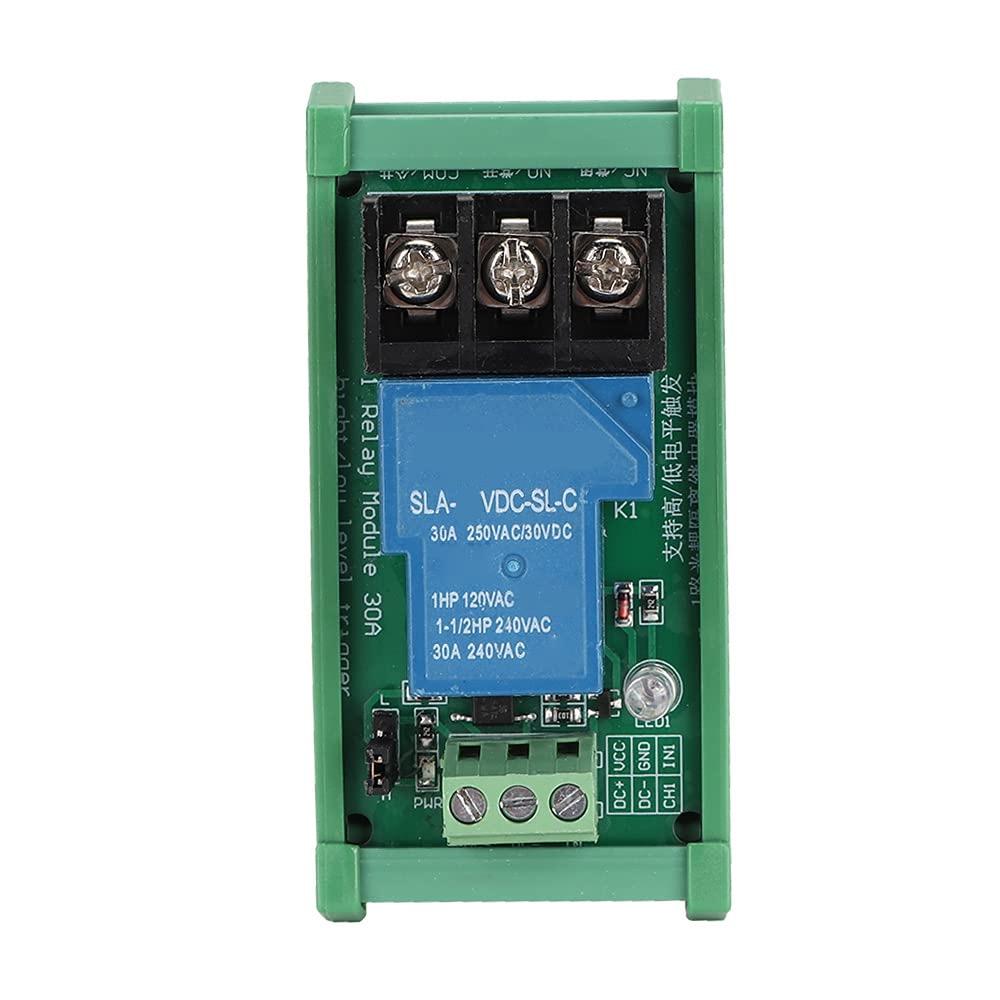

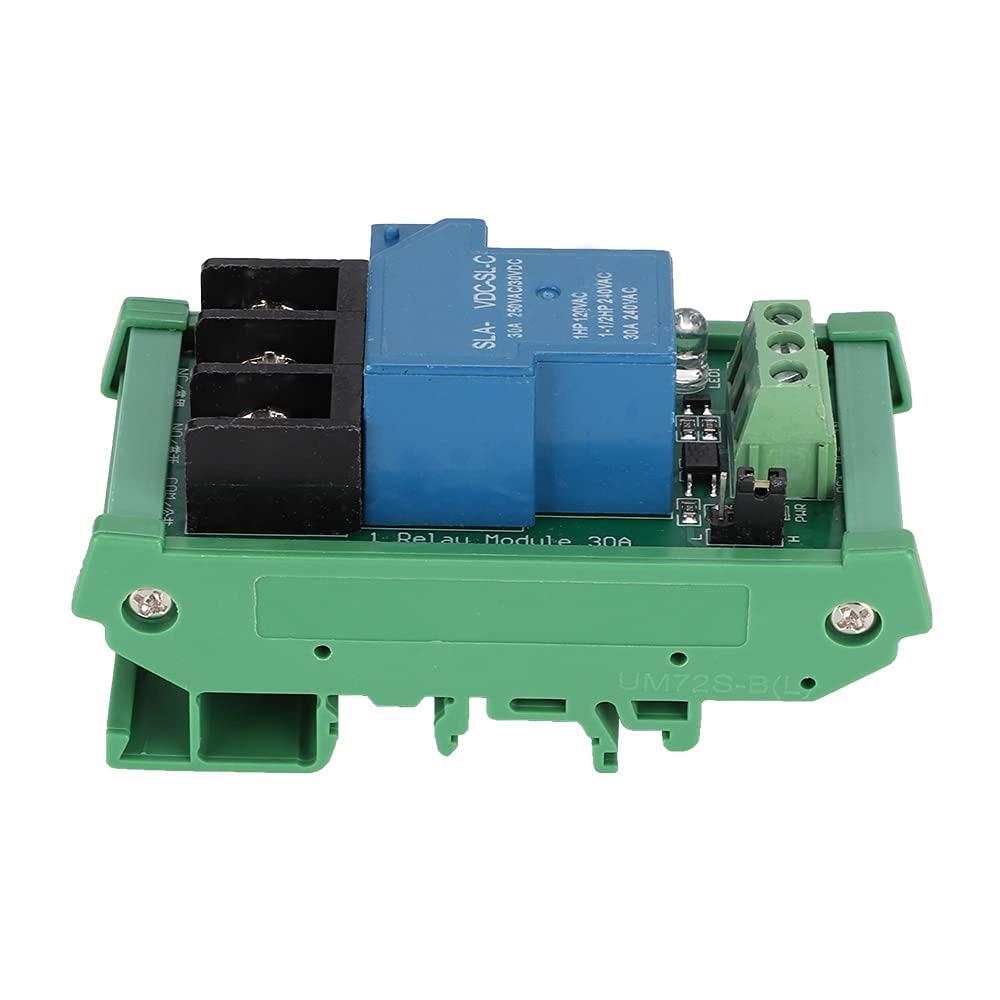

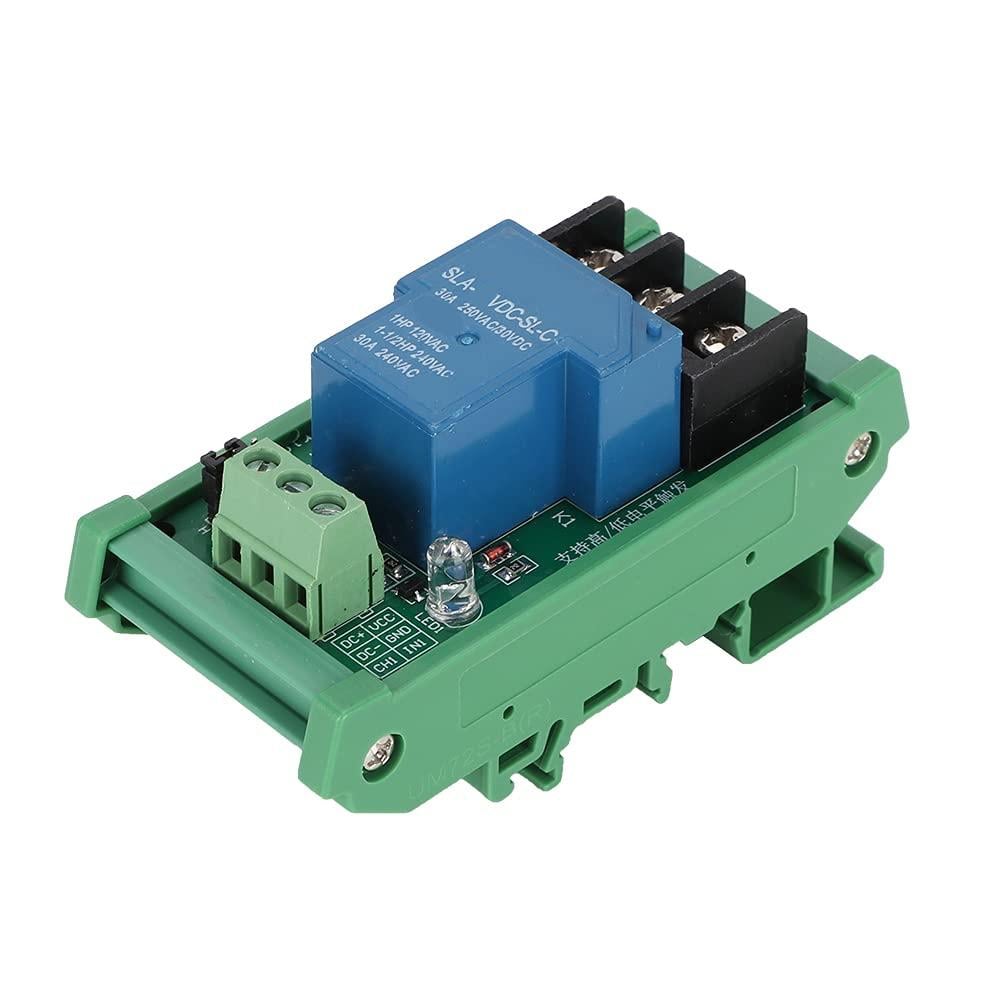

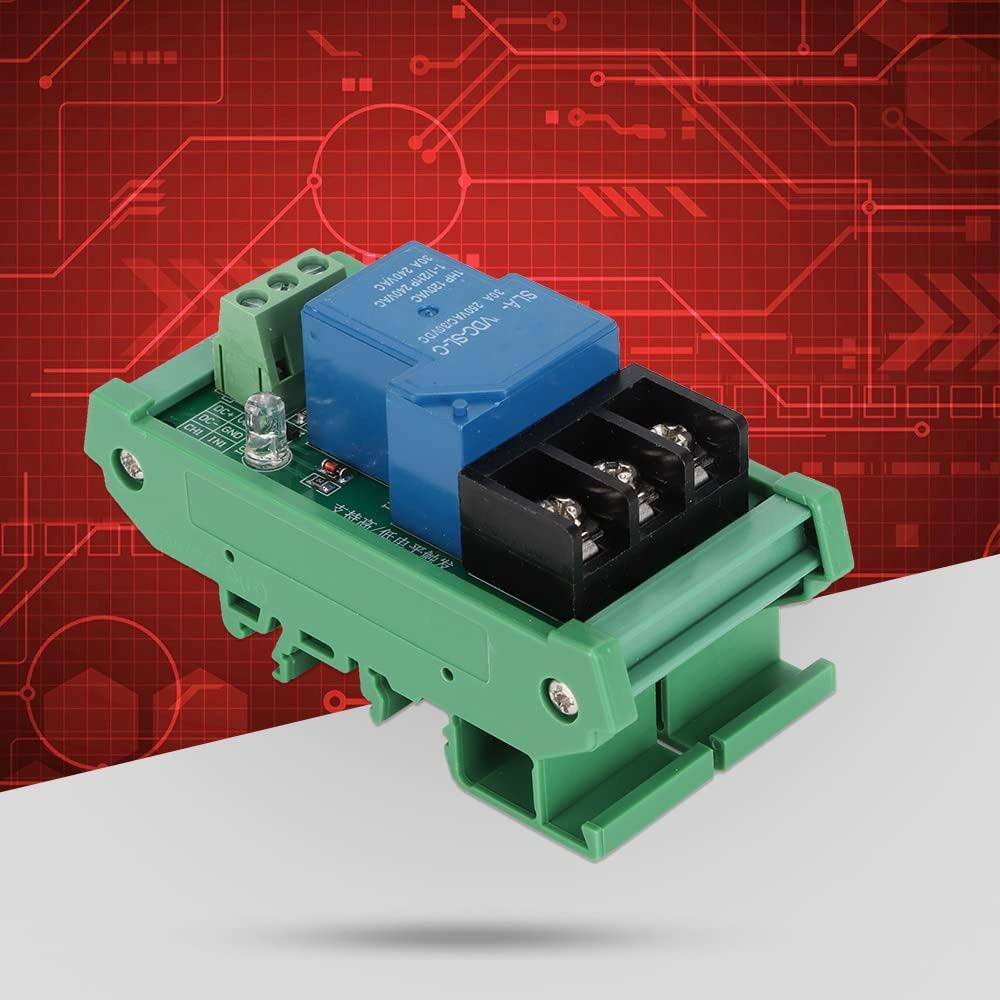

1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail

Compare

Specifications:

  • The module uses a high-quality 30A relay, normally open interface maximum load: AC 250V/30A, DC 30V/30A.

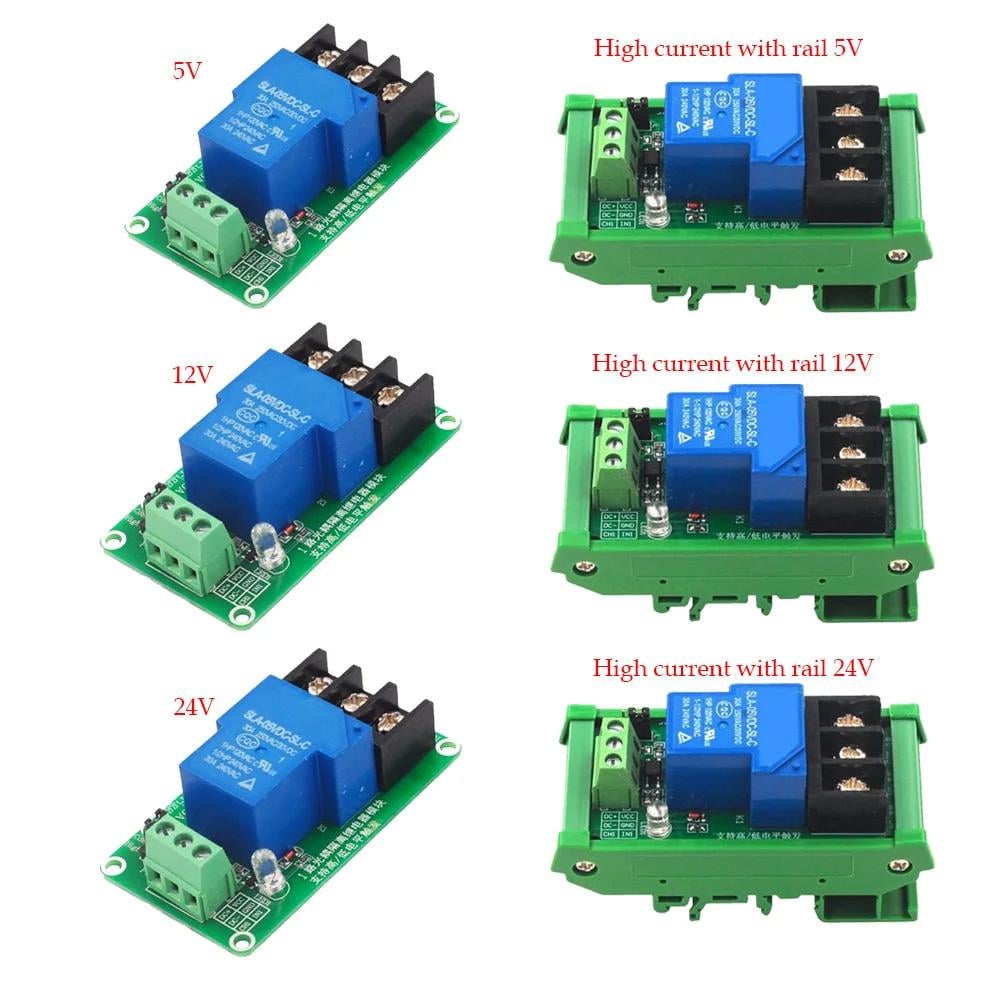

  • Module operating voltage is available in 24V.
  • Adopting paster OptoCoupler isolation, strong driving capability, stable performance; trigger current 5mA.
  • The module can be triggered by a jumper to set a high or low level.
  • User-friendly interface design, all interfaces can be directly connected through the terminal block, which is very convenient.

₹33,399.00

Compare

This 1-channel 24V 30A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine. The inputs of 1 Channel 24V 30A Relay Module are isolated to protect any delicate control circuitry.

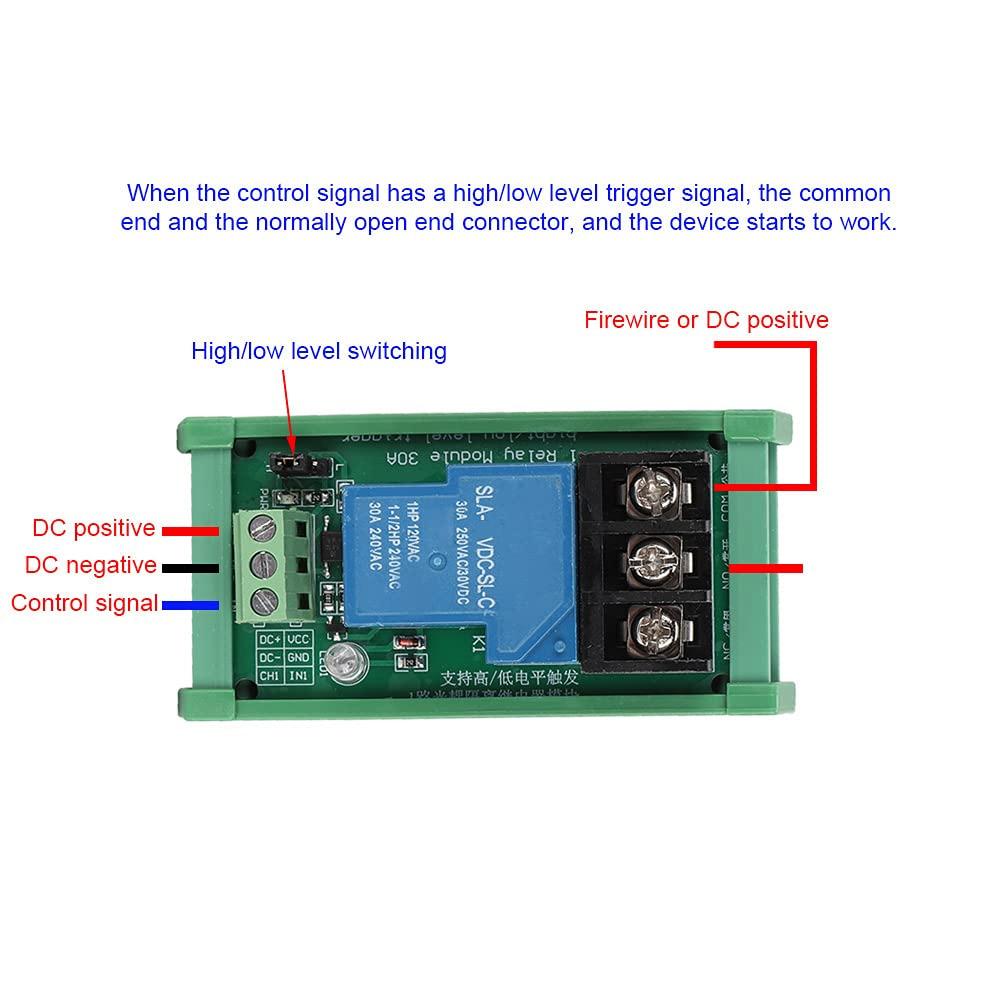

Operational Guide:

  • High-level trigger refers to the signal voltage between input and trigger, and can be understood as a signal input with VCC cathode short-circuit triggered away;
  • Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, which can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way  1-channel relay module connection.

Packing List:

1 x 1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail
