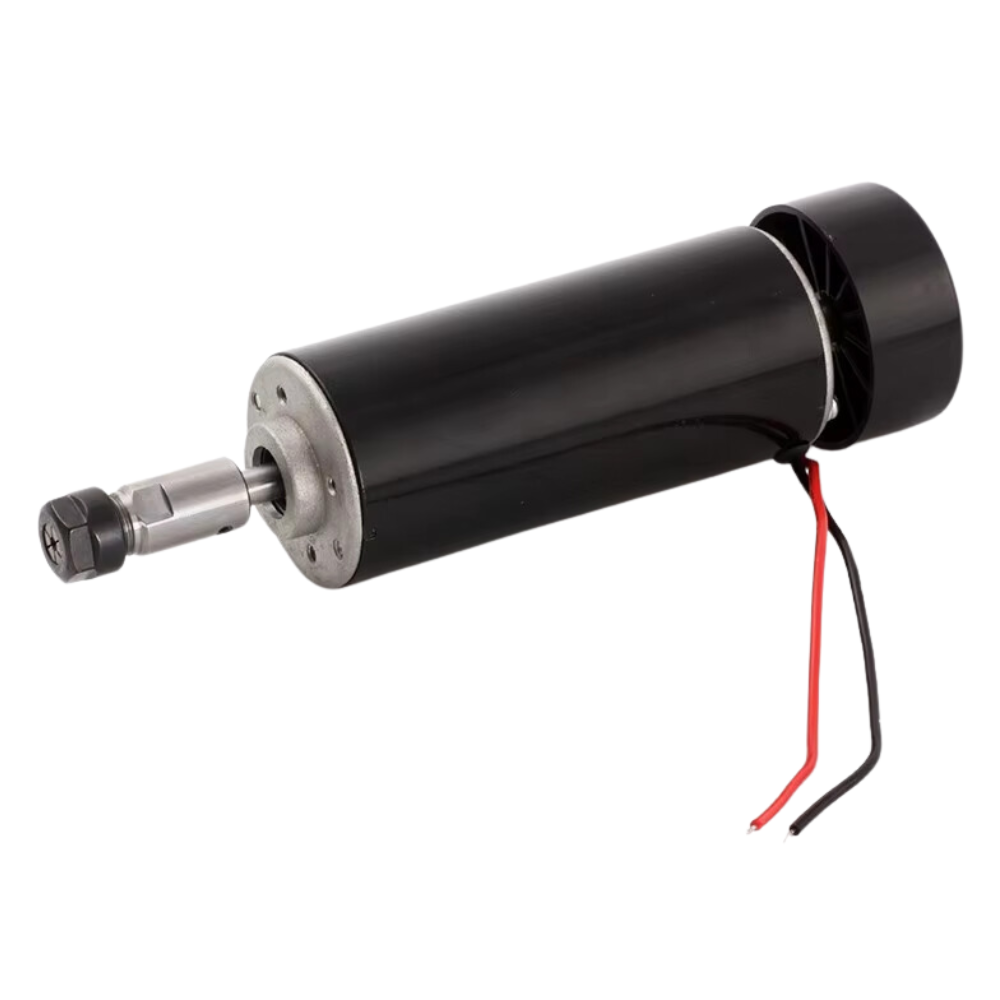

Air Cooled Spindle CNC 500W Spindle Motor

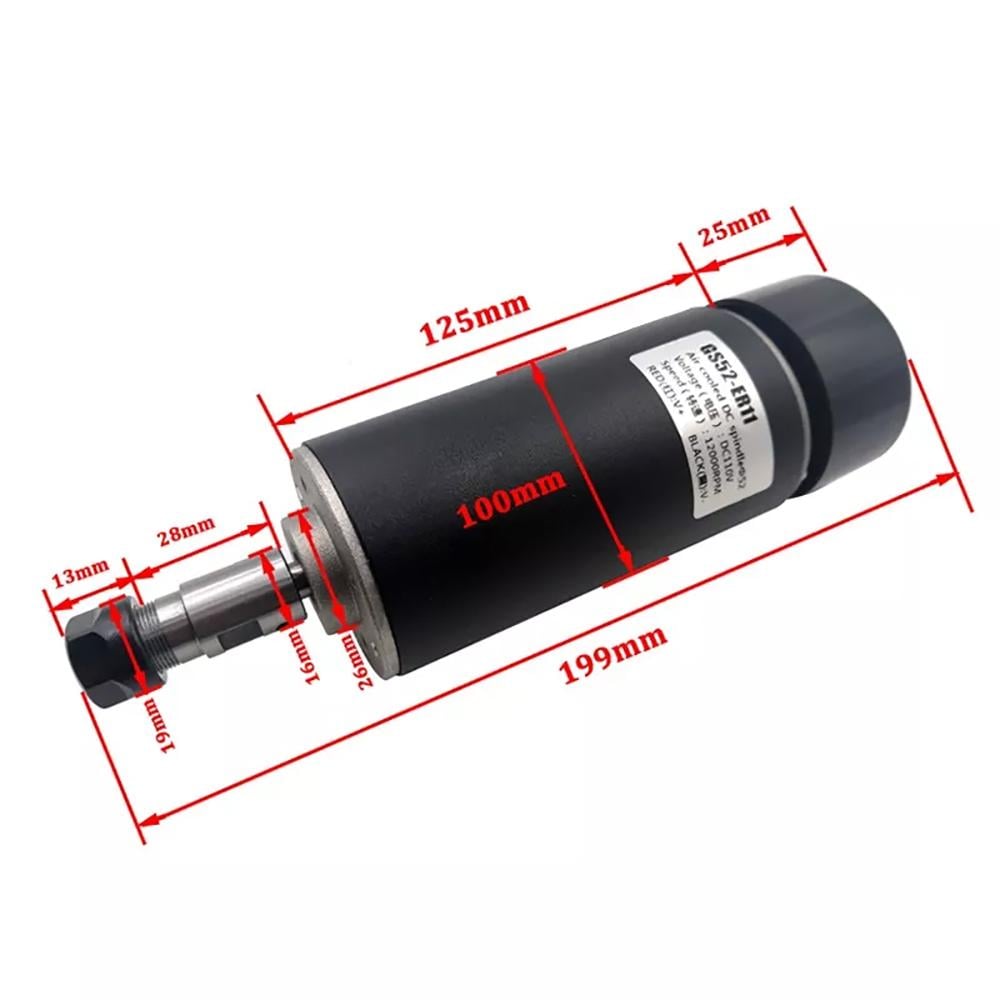

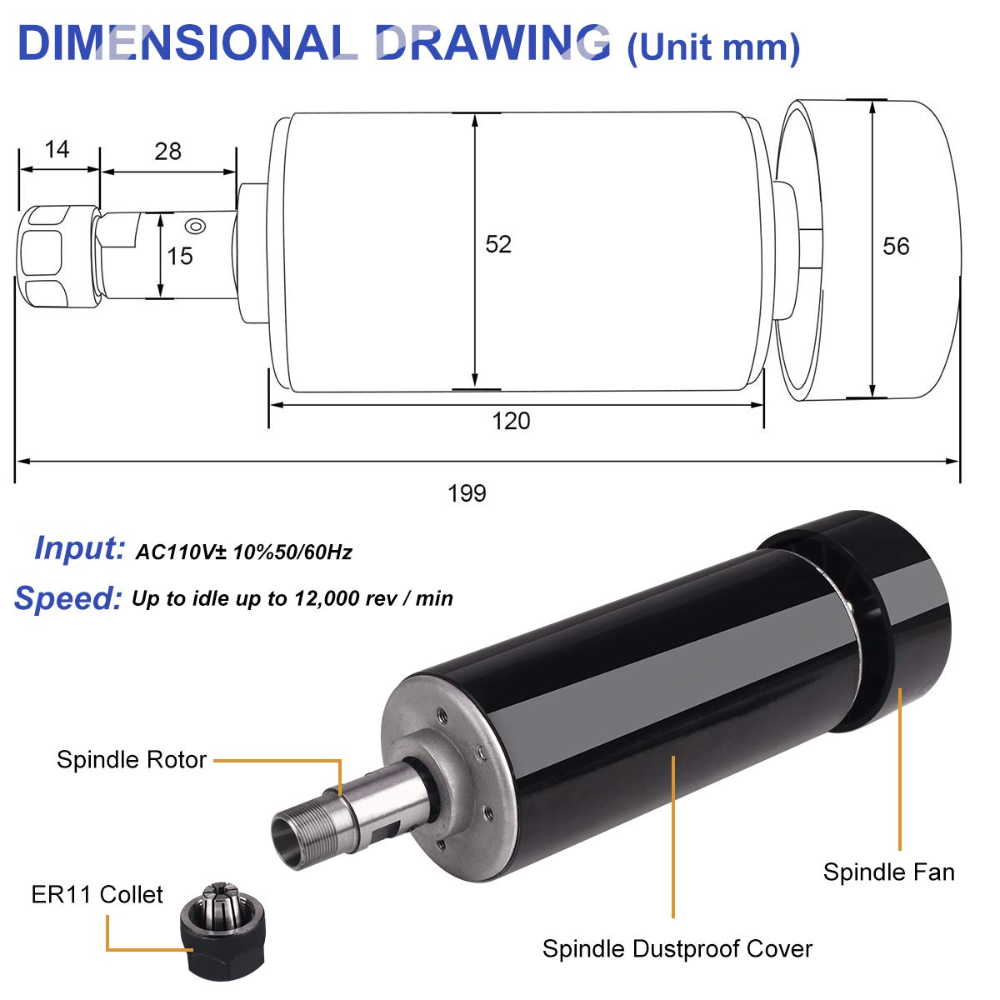

This Motor works on 12-110VDC with Idle speed of approximately 1000-12000 rpm and the Peak power is about 500W and the Peak torque is about 0.59NM with Insulation resistance > 2 megaohms & Motor Diameter is nearby 52mm  and the Length of the collet part is 45MM. The diameter of the chuck part is 16mm & the total length of the motor is about 200MM Spindle radial runout 0.01-0.03 with high accuracy Can be used for solid wood PCB carving and drilling, etc. This motor is ideal for DIY CNC projects, providing efficient and reliable performance for various machining tasks. The air-cooled design ensures consistent operation without overheating, making it a practical choice for hobbyists and professionals.

Package Includes:

1 x 500W Spindle Motor
