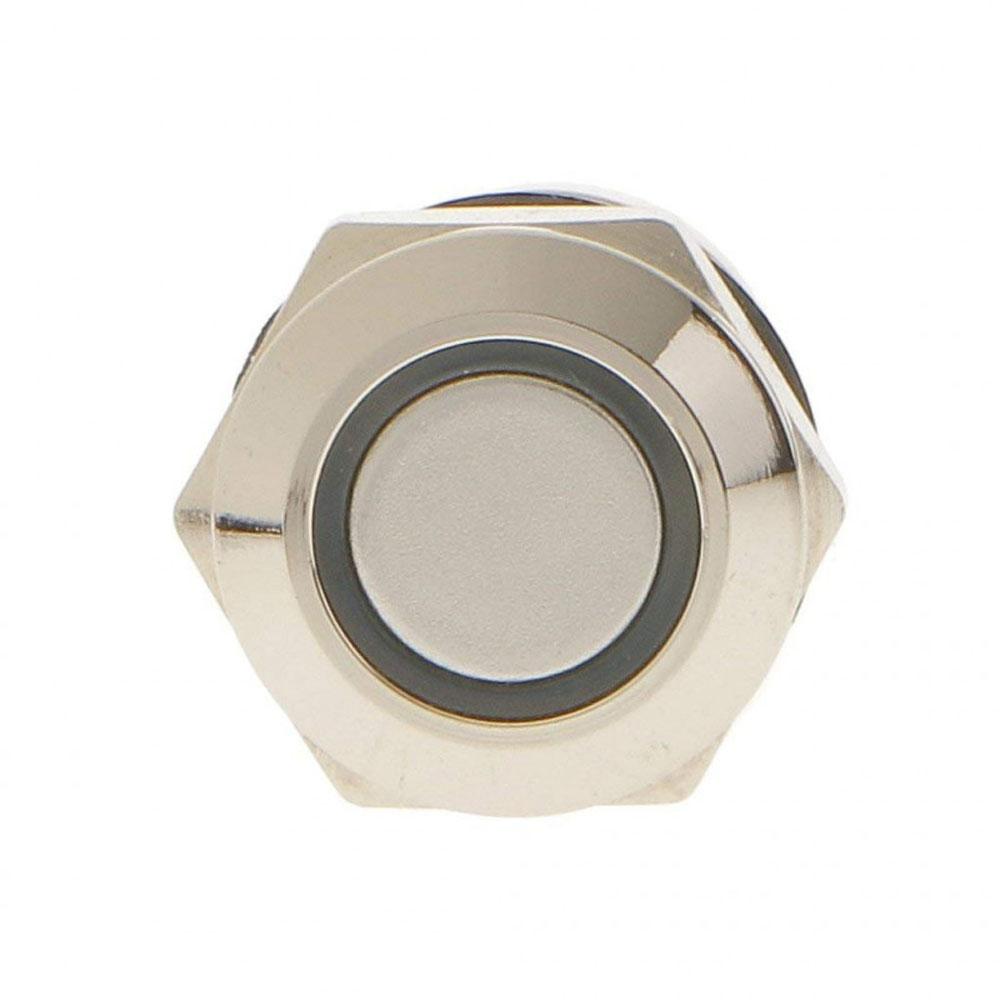

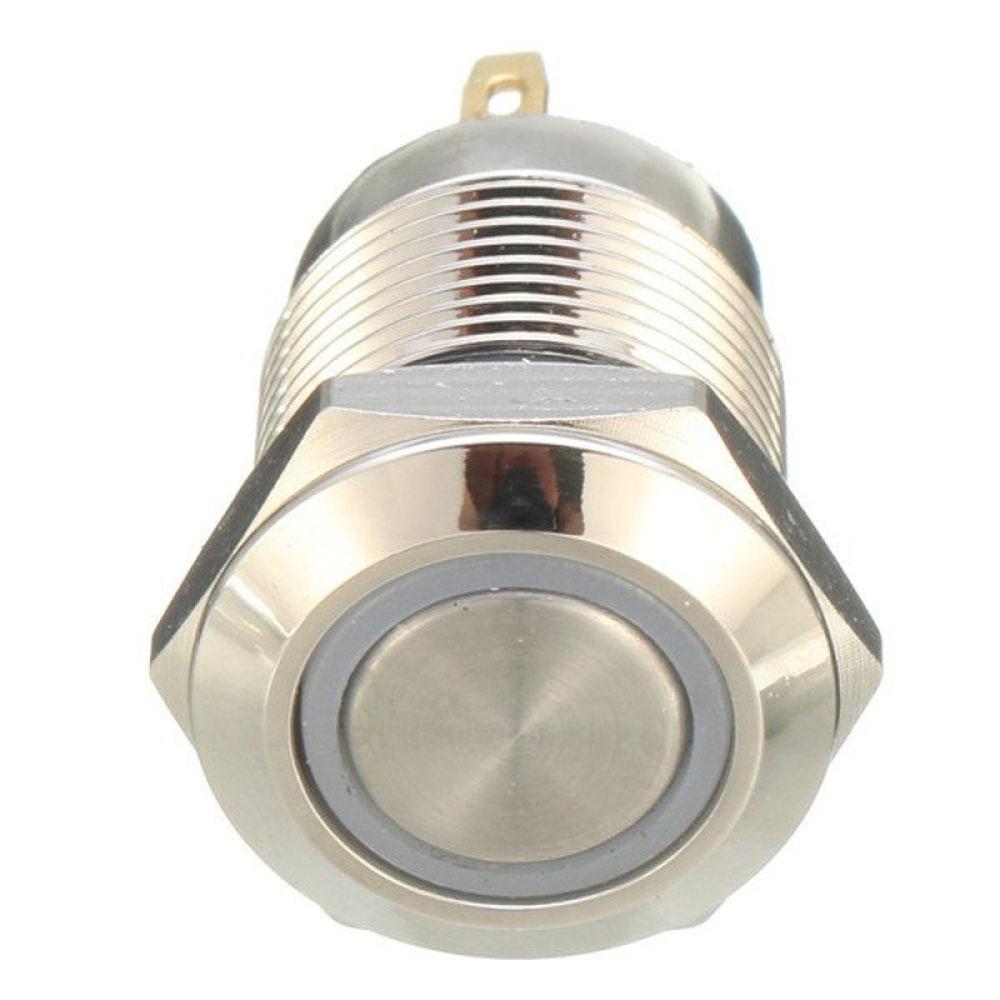

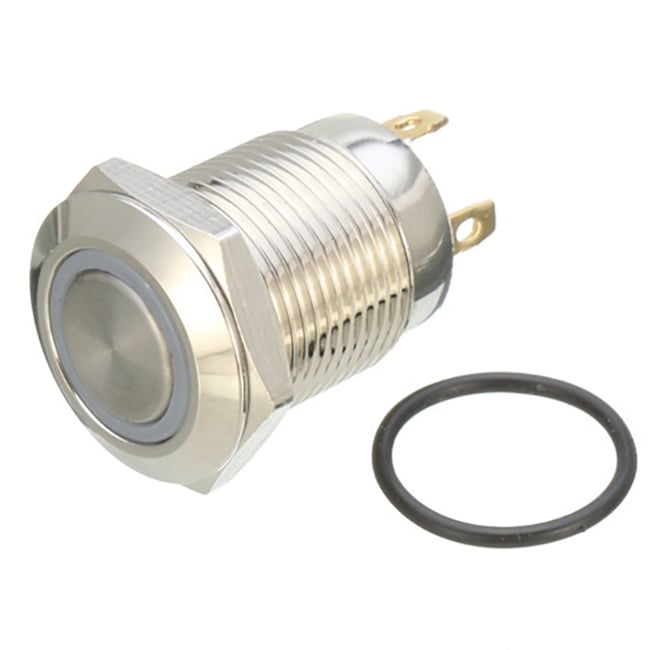

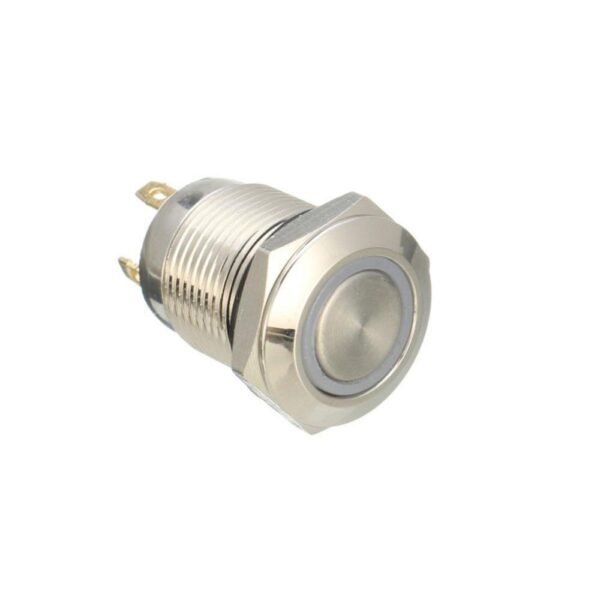

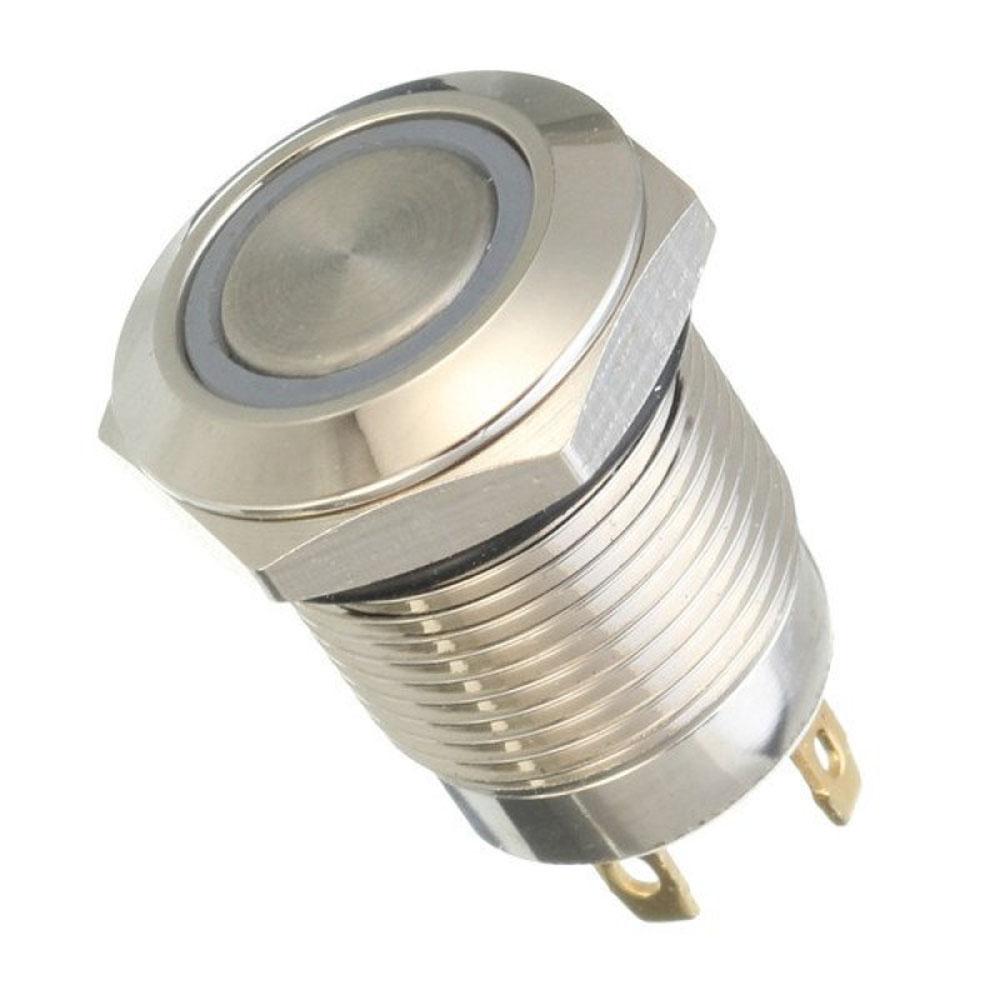

12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light
12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light - Image 2
12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light - Image 3
12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light - Image 4
12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light - Image 5

12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light

Availability:

Out of stock
Compare

Specifications:

  1. Light Color: Green
  2. Operating Voltage: 12-24V DC
  3. Operating Current: 2A MAX
  4. On/Off Function: Push to ON and Push to OFF
  5. Switch Type: Momentary
  6. Installation Hole Diameter: 12 mm
  7. Contact Type: Solder Type
  8. Contact Material: Silver Alloy
  9. Contact Resistance: ≤50 MΩ
  10. Insulation Resistance: ≥1000 MΩ
  11. Operating Temperature Range: -20º to +55ºC
  12. Operation Force: About 3-5N
  13. Operation Stroke: 2-5mm
  14. Body Material: Stainless Steel and Plastic
  15. & Electrical Life: ≥50000 Life Cycle
  16. Protection Grade: IP66
  17. Dimensions in mm (LxWxH): 26 x 14 (Length x Head Dia)
  18. Weight (gm):6

₹10,030.00

Out of stock

Compare

This Self-Reset Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around the push area of the switch. These switches are available in various LED light Colours, you can choose for your application purpose

Package Includes:

1 x 12mm 12-24V Ring Light Non-Latching Momentary Metal Switch-Green Light
