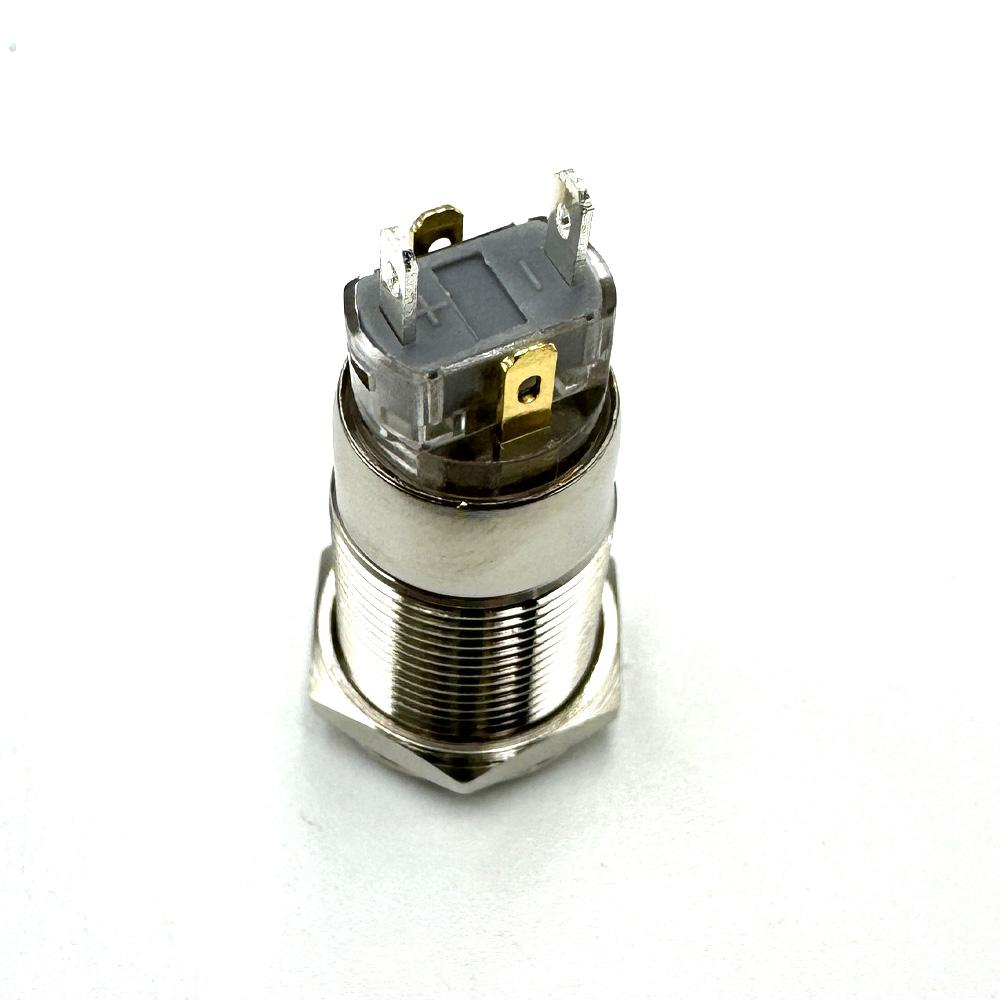

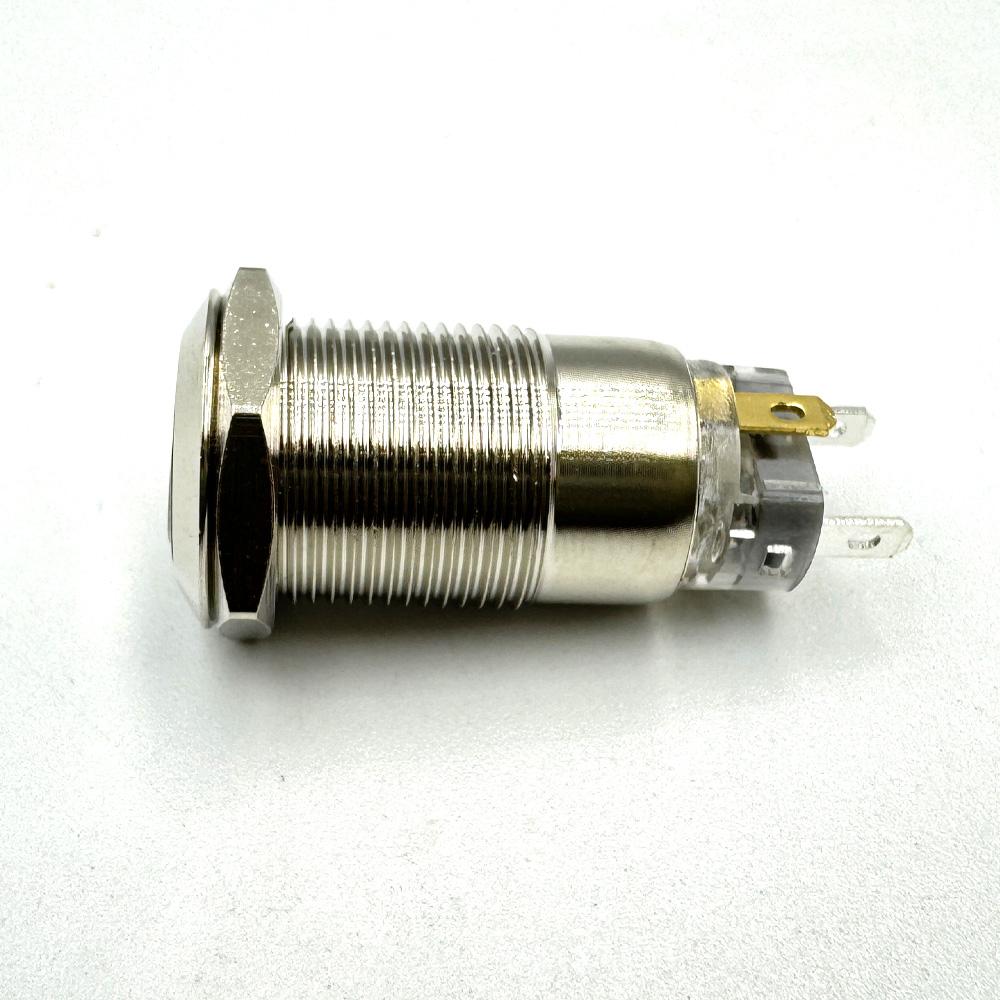

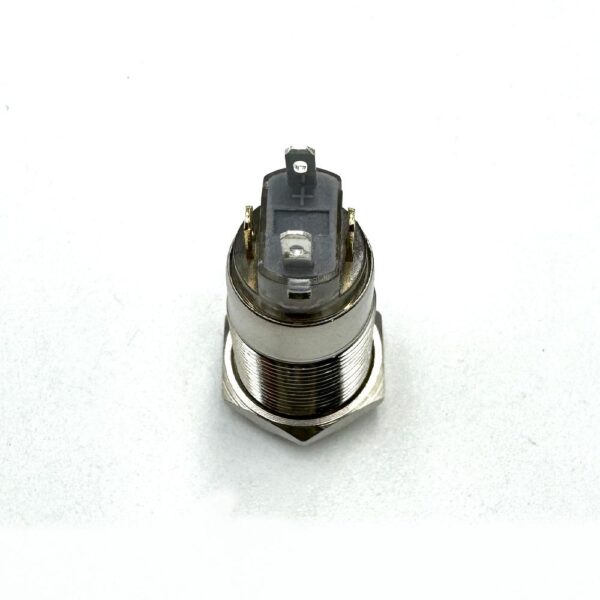

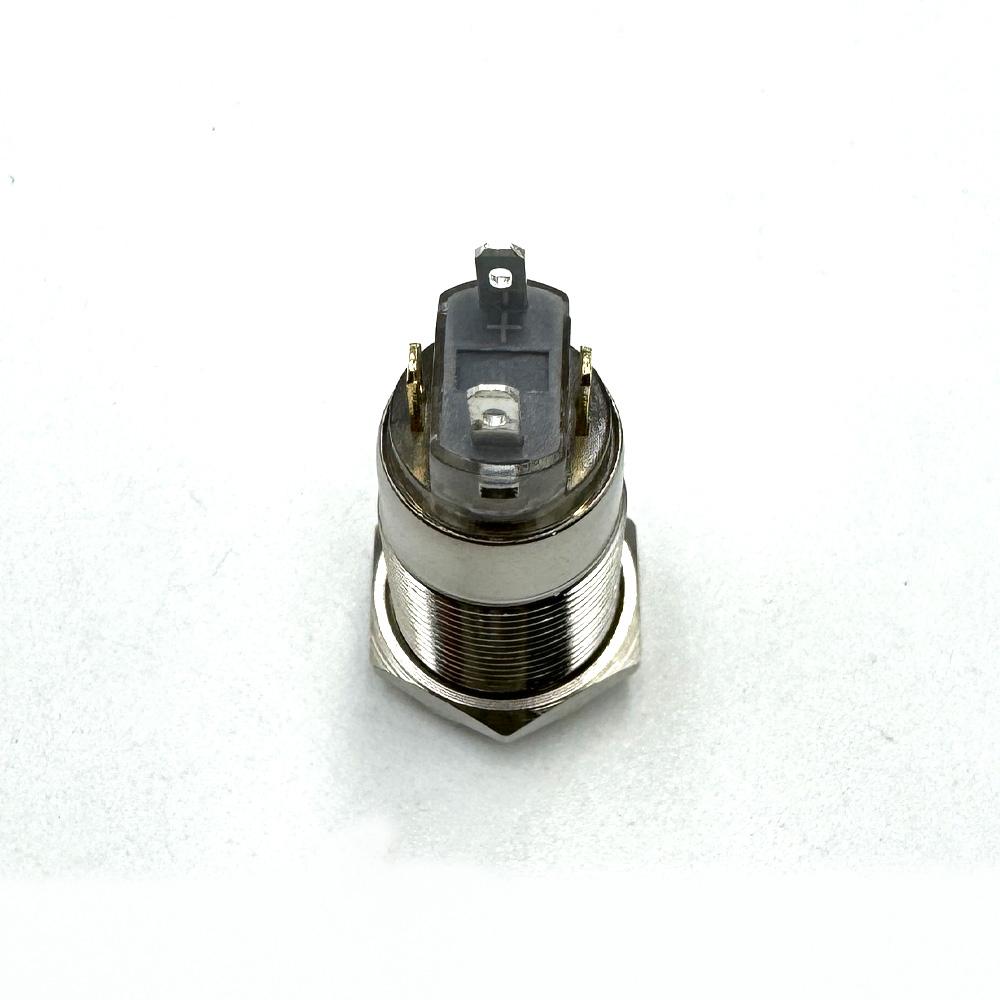

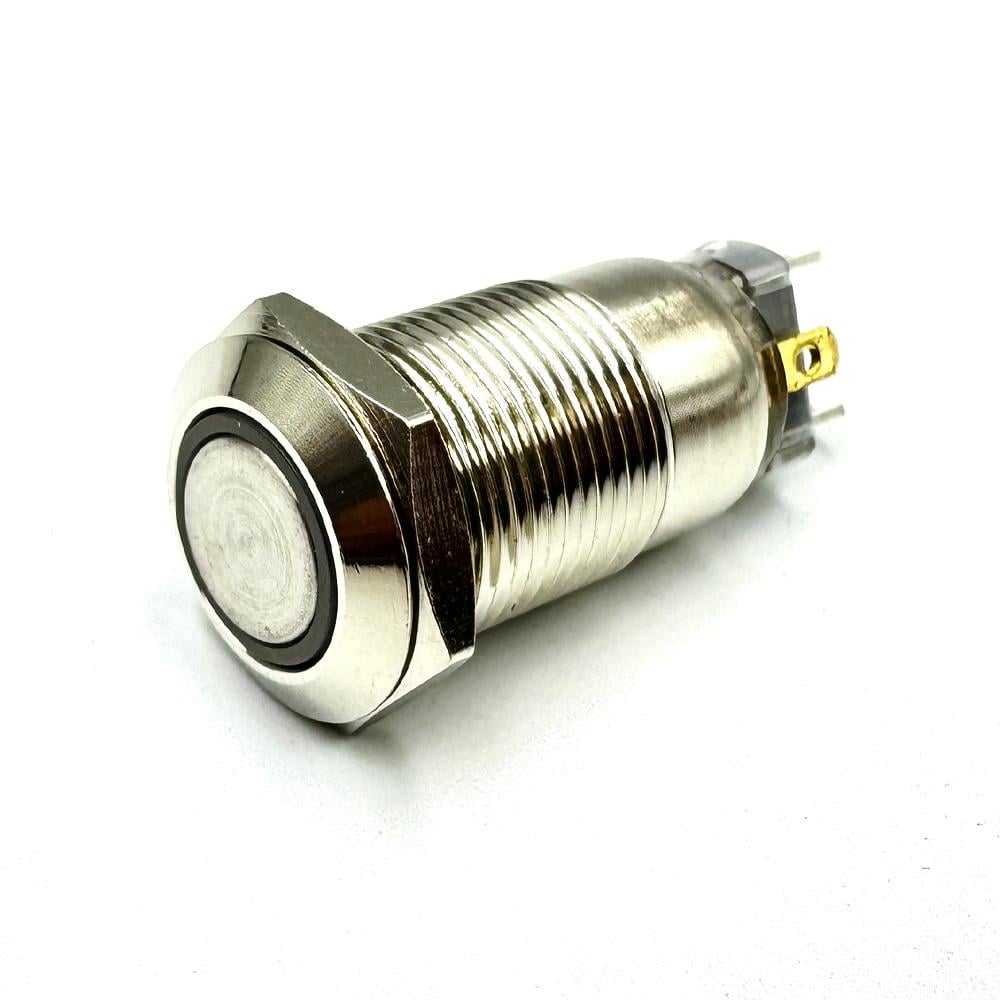

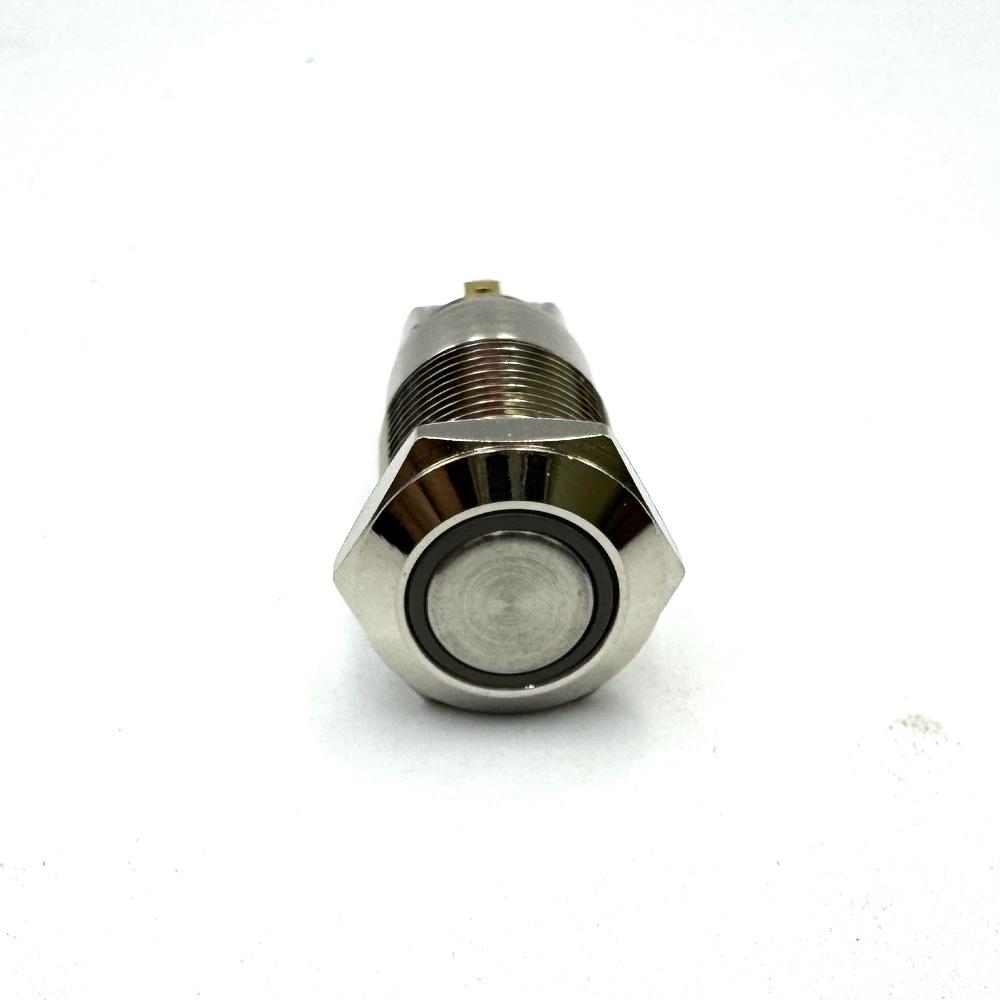

Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch
Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch - Image 2
Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch - Image 3
Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch - Image 4
Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch - Image 5

Short Flat Head 12mm 12V-24V Red Latching Ring Metal Switch

Availability:

Out of stock
Compare

Specifications:

  • Light Color: Red
  • Operating Voltage: 12 V-24V DC
  • Operating Current: 2A MAX
  • On/Off Function: Push to ON and Push to OFF
  • Switch Type: Momentary/Latching
  • Installation Hole Diameter: 12 mm
  • Contact Type: Solder Type
  • Contact Material: Silver Alloy
  • Contact Resistance: ≤50 MΩ
  • Insulation Resistance: ≥1000 MΩ
  • Operating Temperature Range: -20º to +55ºC
  • Operation Force: About 3-5N
  • Operation Stroke: 2-5mm
  • Body Material: Stainless Steel and Plastic
  • & Electrical Life: ≥50000 Life Cycle
  • Protection Grade: IP66
  • Dimensions in mm (LxWxH): 26 x 14 (Length x Head Dia)
  • Weight (gm):6

₹10,500.00

Out of stock

Compare

This Self-lock Non-Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose

Package Includes:

1 x 12mm 12V-24V Ring Light Momentary Metal Pushbutton Switch-Red Light
