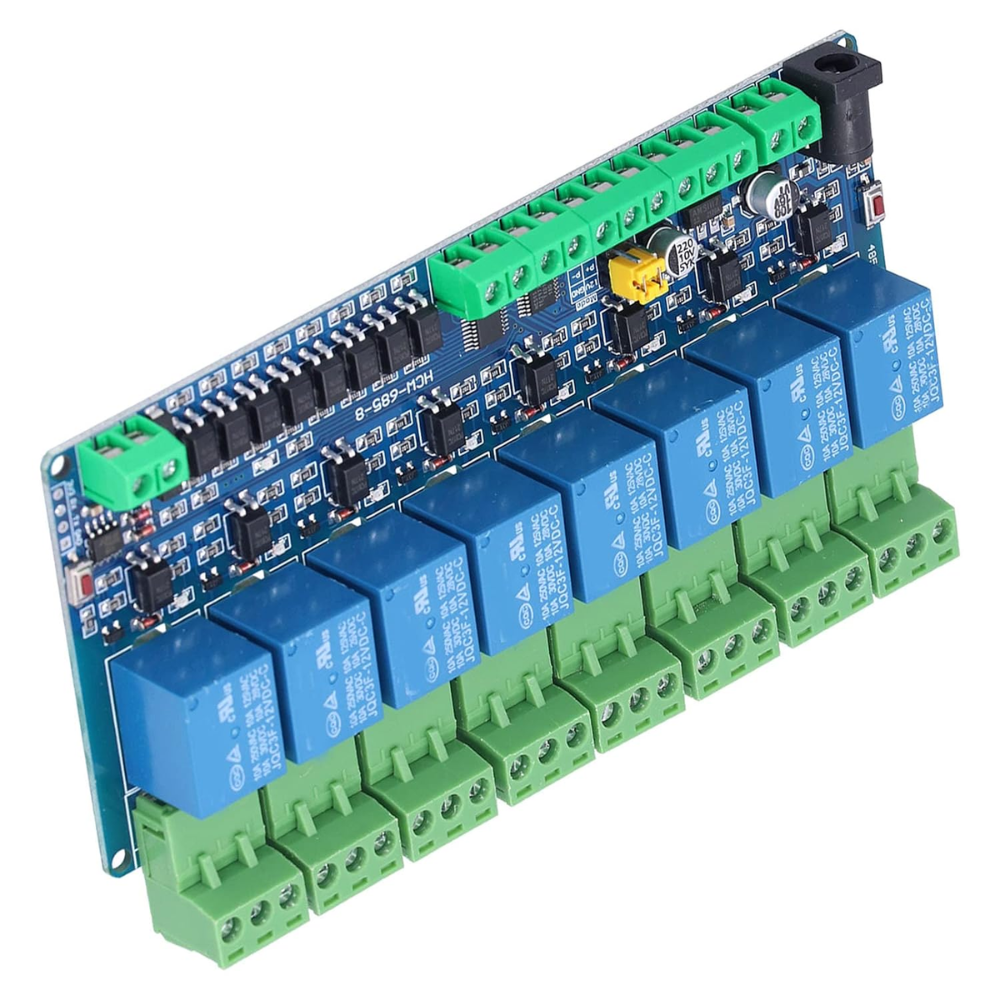

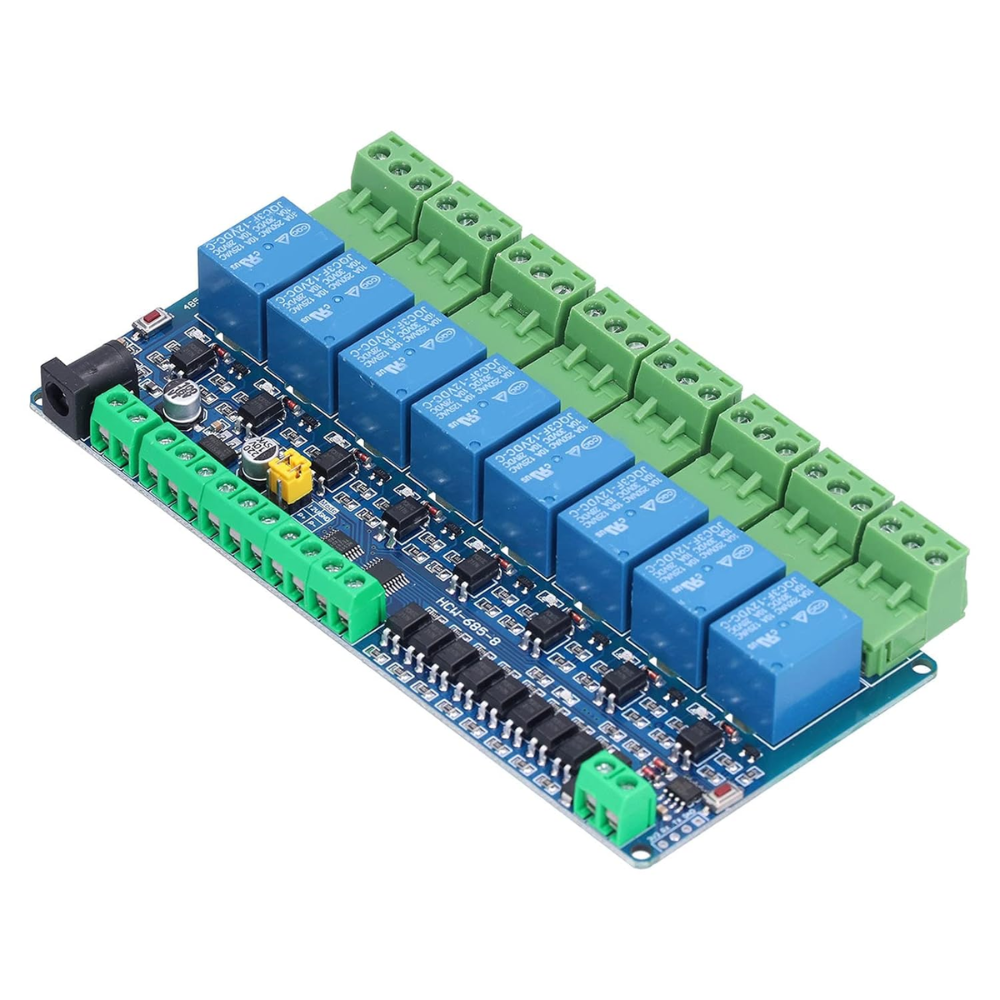

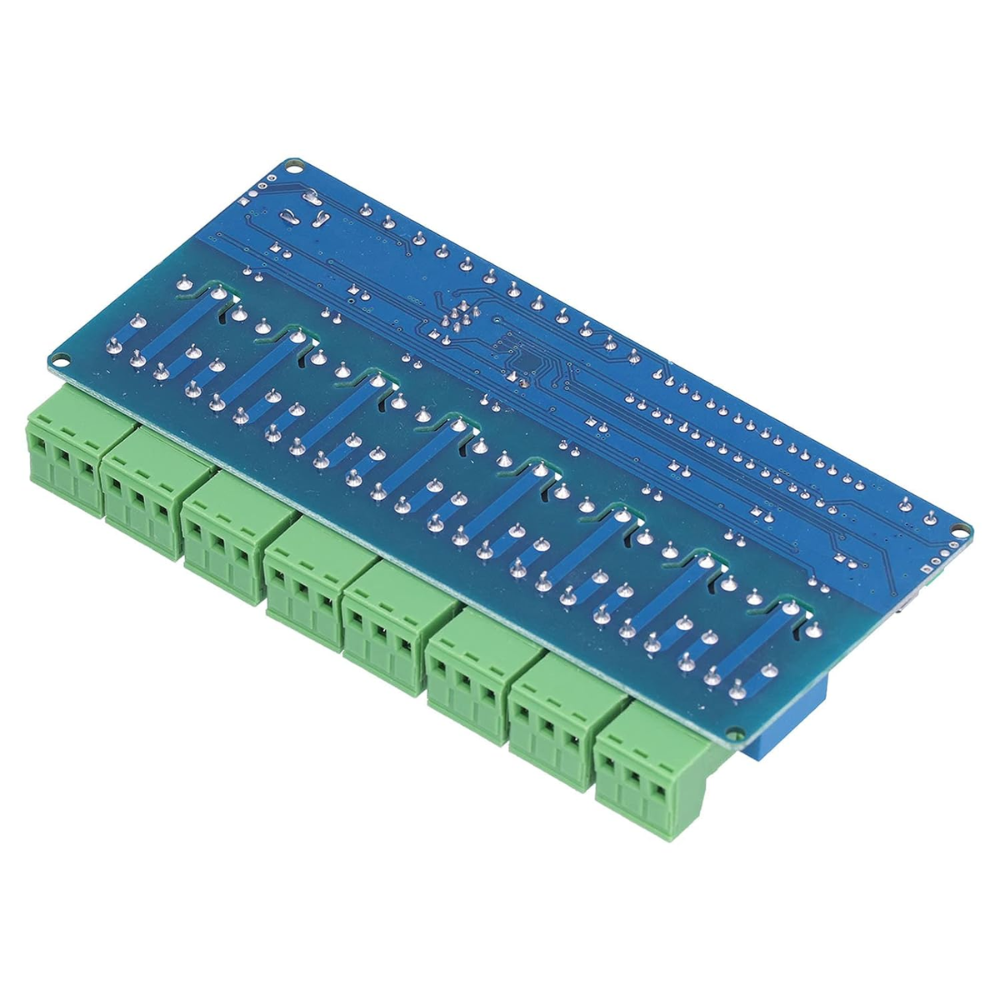

12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU
12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU - Image 2
12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU - Image 3
12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU - Image 4

12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU

Availability:

Out of stock
Compare

Specifications:

  • Product Name:8 Bit ModbusRTU Relay Module
  • MCU: One STM8S103K
  • Working Voltage: DC 12 V
  • Work Temperature:-25℃~85℃
  • Work Humidity:5%~95%RH



₹133,812.00

Out of stock

Compare

This is a 12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU. It is used to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). 12V 8-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.

Application:

  1. Supports all MCU control.
  2. The industrial field.
  3. PLC control.
  4. Smart home control.

Features:

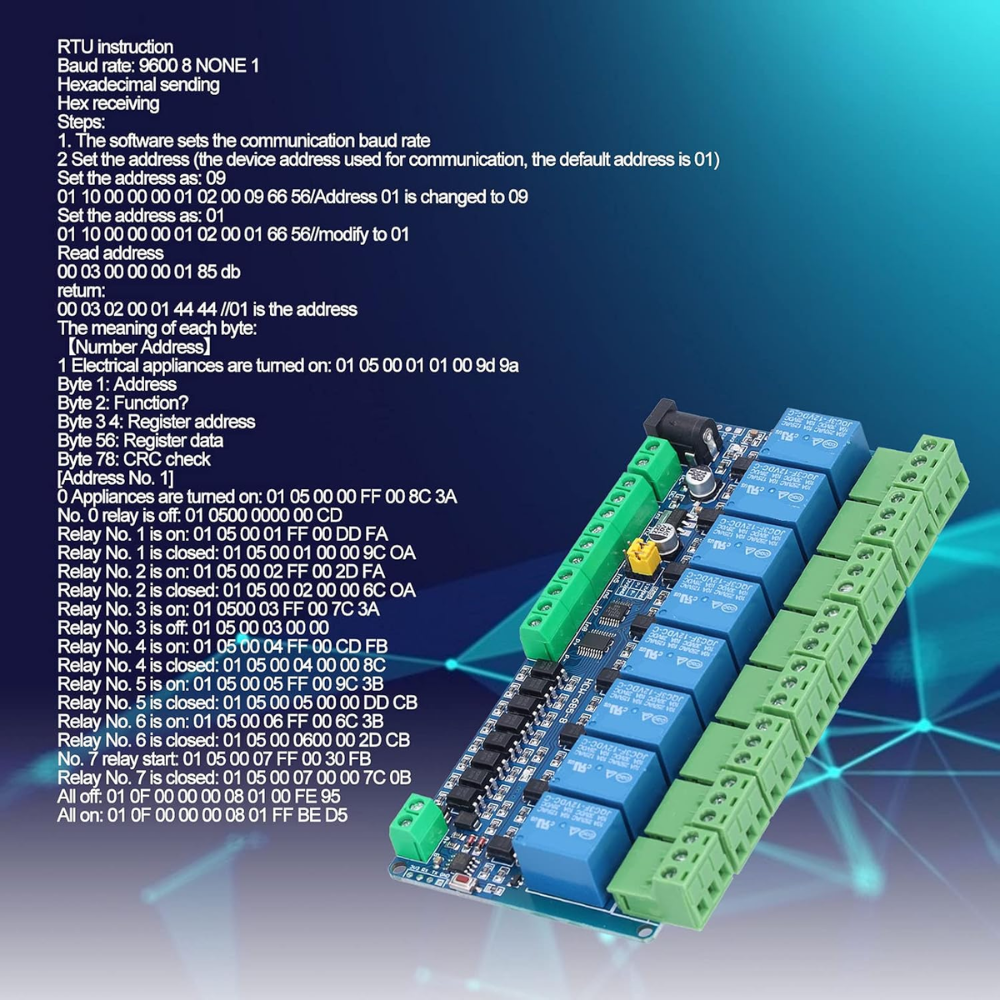

  1. .Modbus serial communication
  2. Relay switching output
  3. Convenient AT command control

Note: Photo only for illusion purposes. The actual product may be different.

Package Includes:

1 x 12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU
