12x12 Tact Switch and Caps

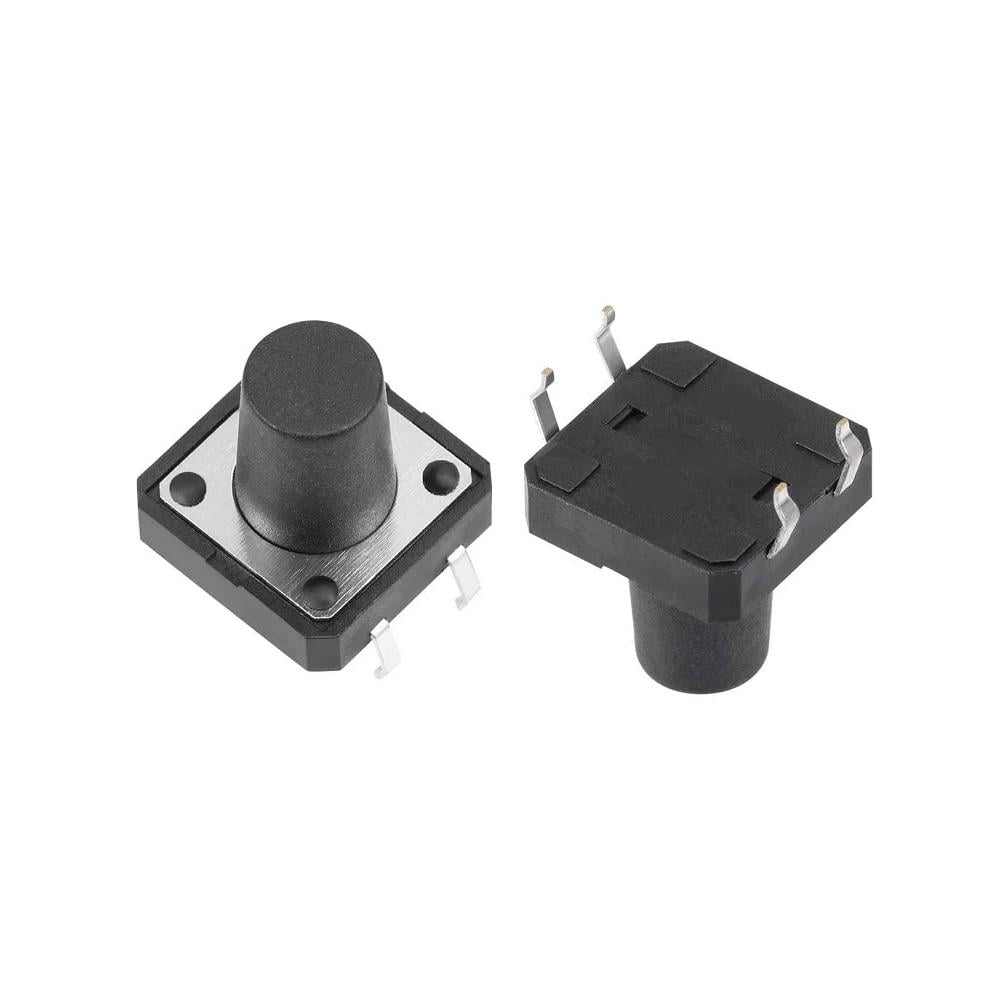

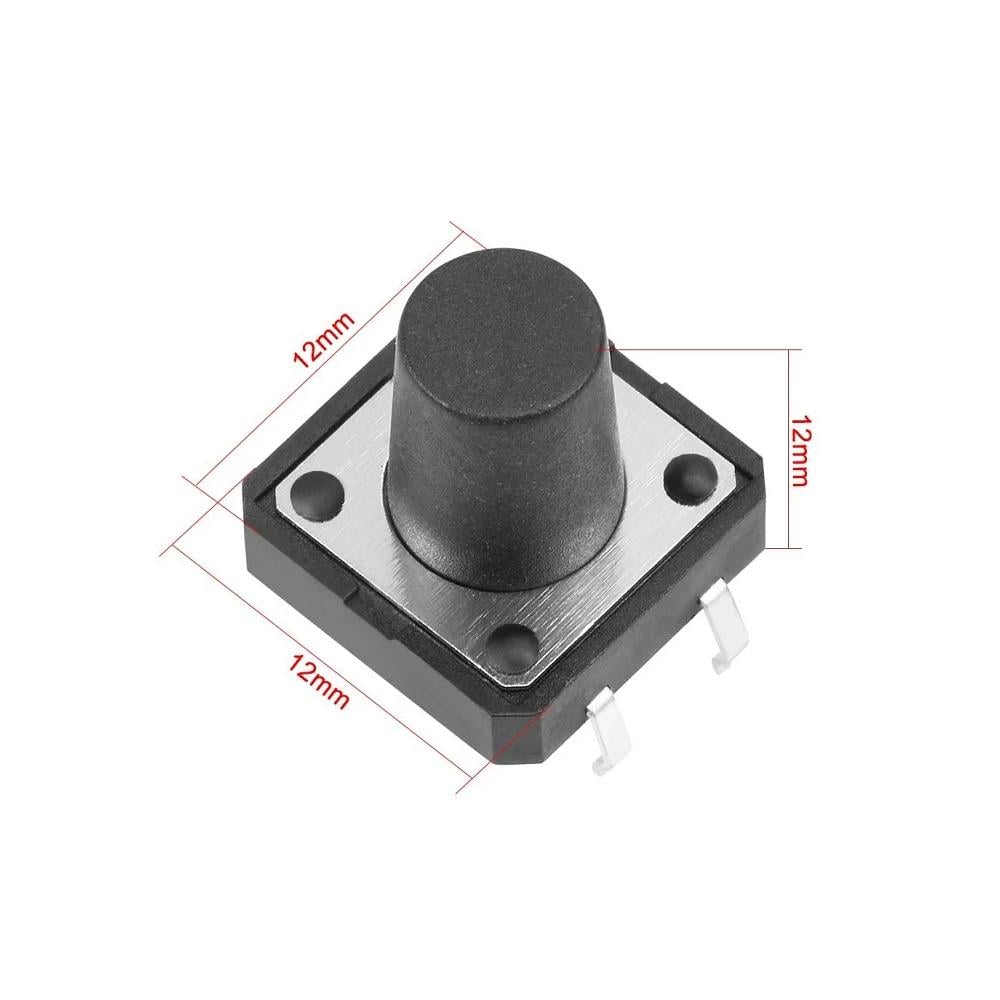

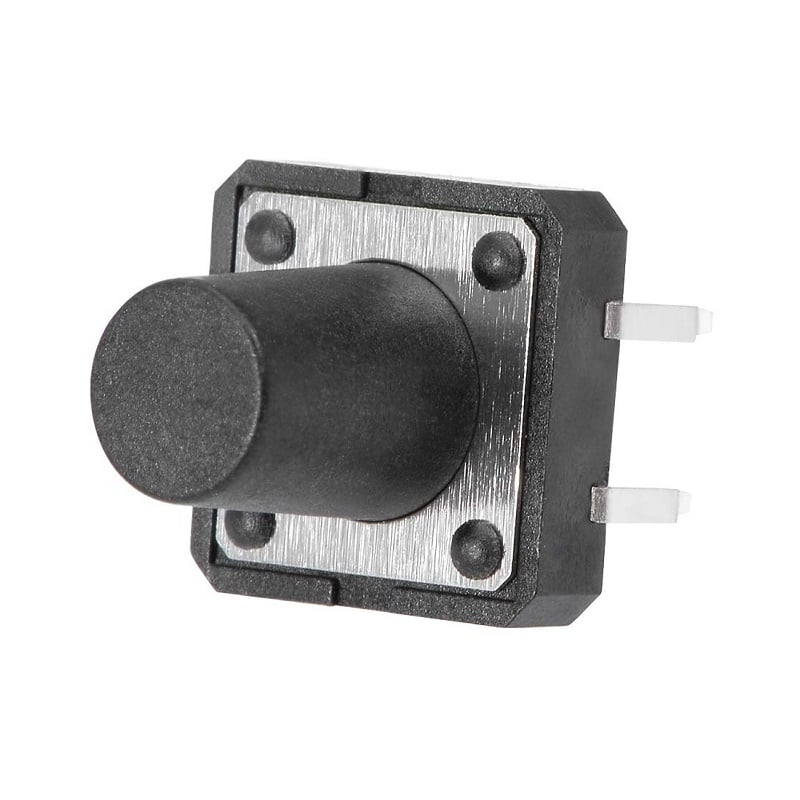

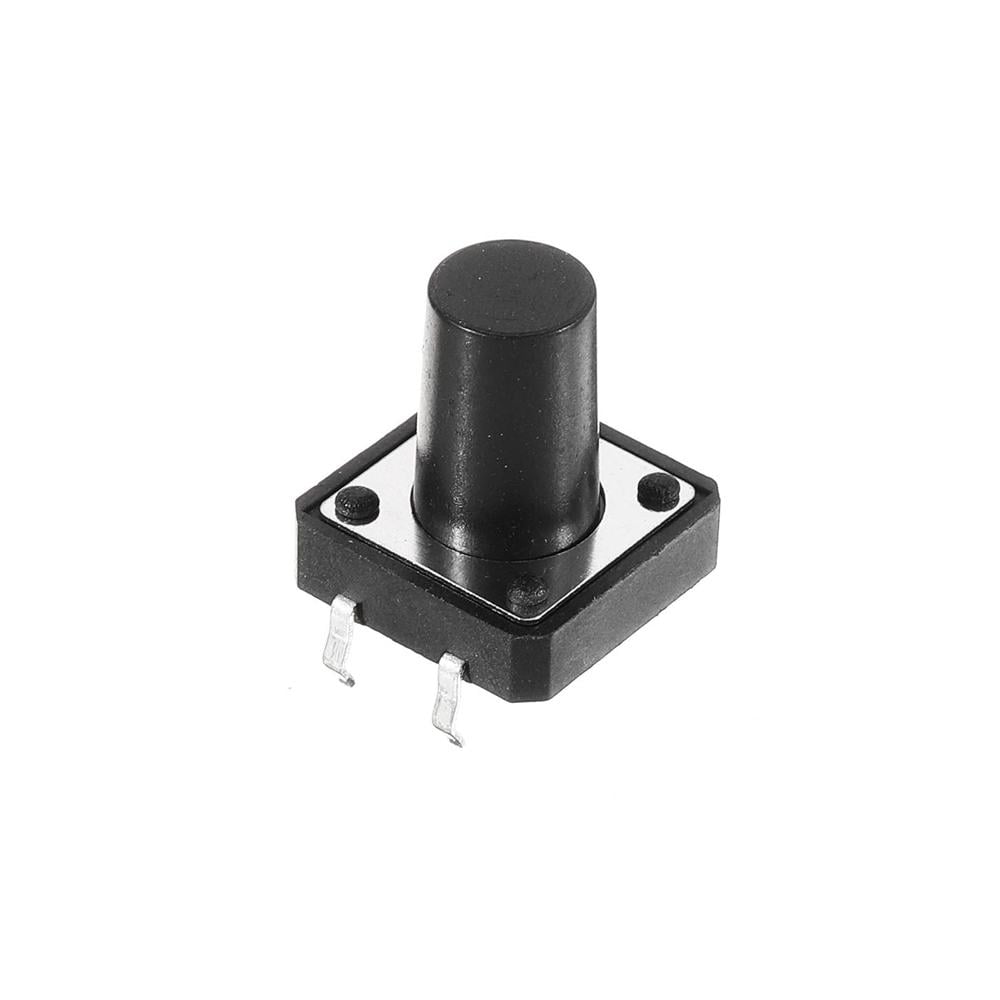

12x12x13mm DIP Tactile Push Button Switch-5PCS
Specifications:
- Operating Voltage: 12V DC
- Operating Current: 50mA
- Switch Type: Momentary
- Operating Temperature Range: -20°C to +70°C
- Through-hole design.
- Shaft Shape: Round
- Function: Push to ON
- High operating force (3.0N or 3.6N) suited to automotive equipment requirements
- The long life of 300,000 cycles realized despite the high operating force
- Middle stroke (1.05mm)
₹1,575.00
Compare12x12x12 mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Package Includes :
10 x 12x12x13mm DIP Tactile Push Button Switch
