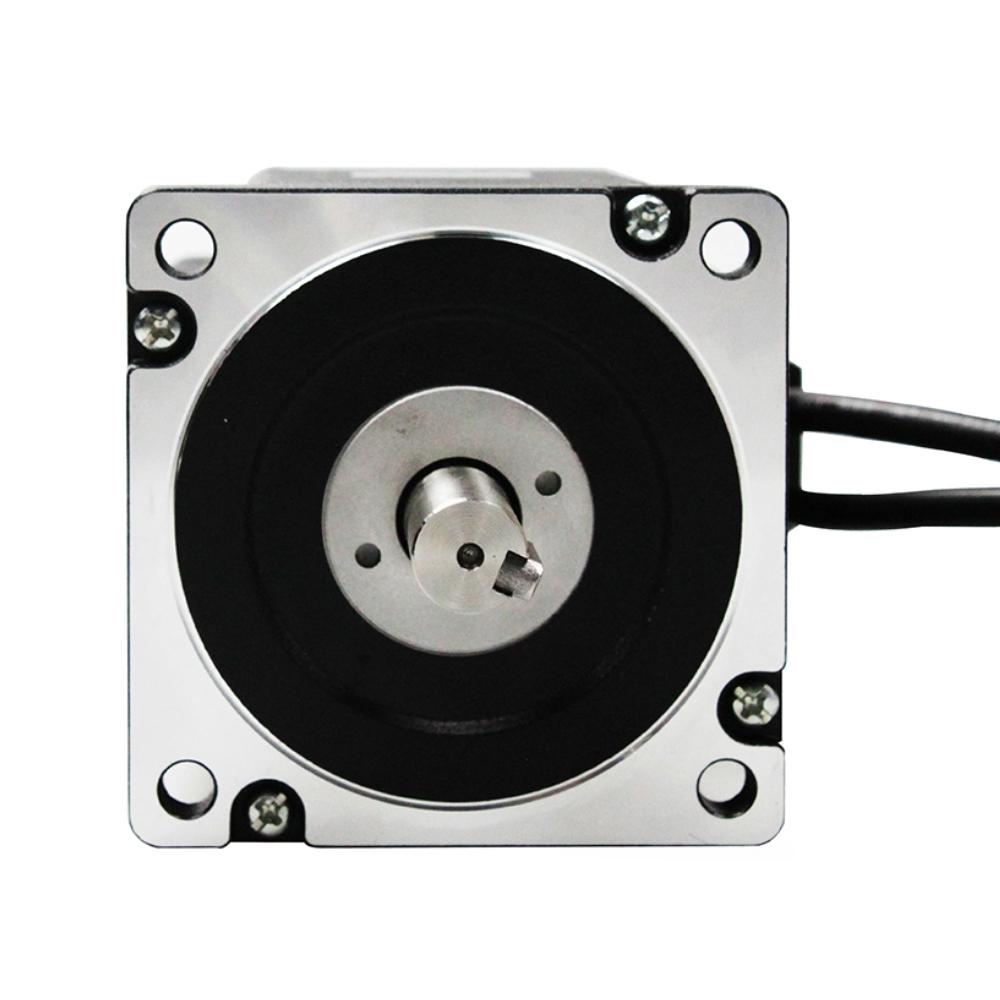

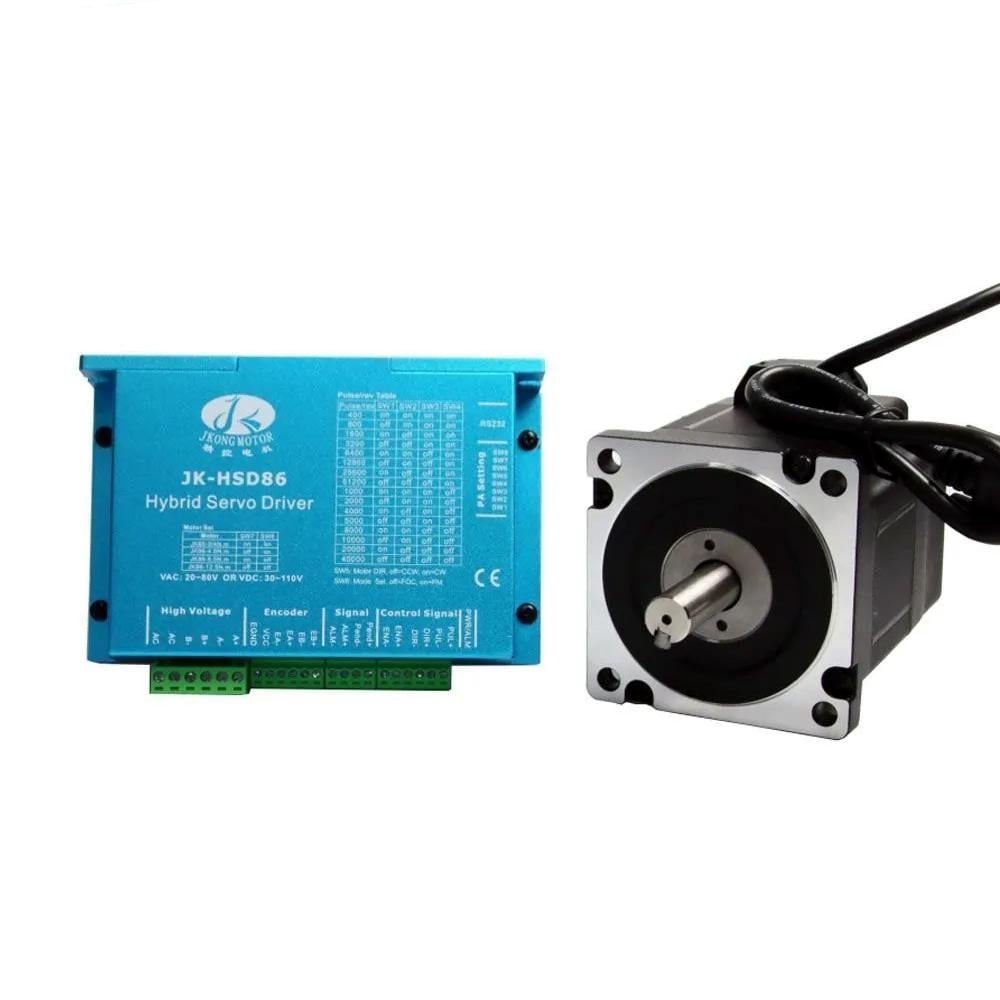

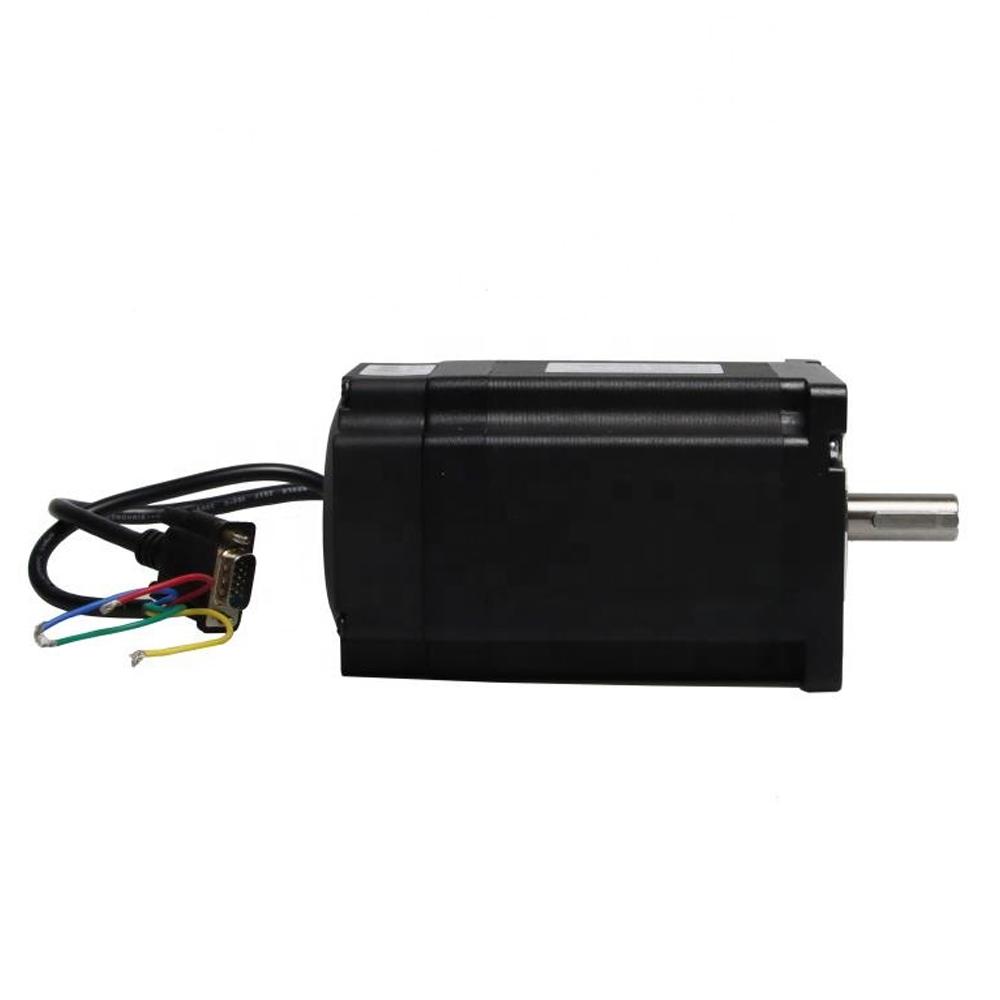

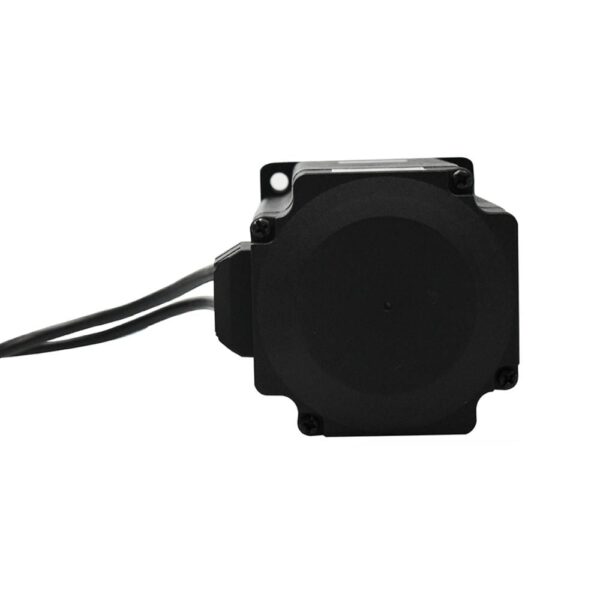

2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver
2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver - Image 2
2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver - Image 3
2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver - Image 4

2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver

Availability:

Out of stock
Compare

Specifications:

  • Motor Type: 2-phase hybrid stepper motor with built-in encoder
  • Holding Torque: 4.5 Nm (Newton-meters)
  • Step Angle: 1.8 degrees per step
  • Phase: 2-phase (bipolar)
  • Rated Voltage: Typically 3.36 VDC
  • Rated Current: Varies based on application and voltage
  • Shaft Diameter: Standard size compatible with various coupling mechanisms
  • Encoder Resolution: Typically a high-resolution encoder for accurate position feedback
  • Frame Size: Standard NEMA frame size, e.g., NEMA 34
  • Mounting: Typically includes standard mounting holes for easy integration
  • Insulation Class: Generally designed for Class B or higher insulation
  • Operating Temperature: Suitable for various operating environments
  • Construction: Rugged construction for durability and reliable performance
  • Connector: Equipped with a compatible connector for wiring

₹1,298,000.00

Out of stock

Compare

HSD86 Hybrid Servo Driver:

  1. Driver Type: Hybrid servo driver
  2. Control Mode: Closed-loop position control
  3. Power Supply Voltage: Typically 24-80 VDC
  4. Output Current: Adjustable based on motor requirements
  5. Microstepping: Typically supports microstepping for smoother motion
  6. Feedback: Compatible with encoder feedback for accurate position control
  7. Protection: Includes over-current, over-voltage, and other protection features
  8. Communication: May support various communication interfaces for configuration
  9. Cooling: Equipped with a cooling mechanism to prevent overheating
  10. Size: Compact size for easy integration into control cabinets or enclosures
  11. Status LEDs: Includes LEDs for indicating various operating statuses

The 2 Phase 4.5Nm JK86HSN45 Easy Servo Motor with HSD86 Hybrid Servo Driver is commonly used in CNC machining, packaging machinery, automated manufacturing, and other applications requiring precise and controlled motion. The combination of the servo motor and driver offers a balance between torque, speed, and accuracy, making it suitable for a wide range of motion control tasks.

Package Includes:

1 x 2 Phase 4Nm JK60HSN40 Easy Servo Motor

1 x HSD57 Hybrid Servo Driver

1 x Extension wire

SKU: 178592 Category:
