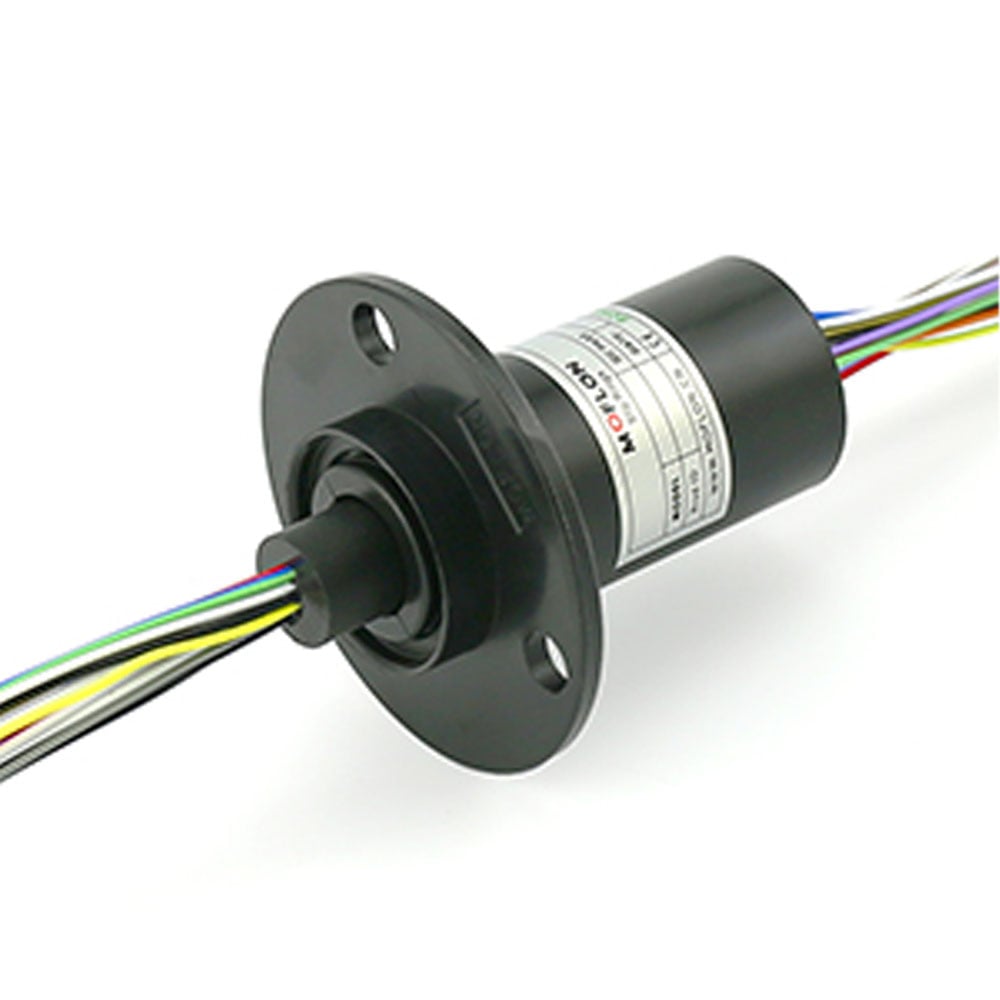

24 Wires 2A Circuits 250Rpm Capsule Slip Ring
Out of stock
Specification
- Make: MOFLON
- Model: MC400
- Working Temp : -30℃~80℃
- Operating Humidity : 0~85% RH
- Torque : 0.05N.m˙+0.01/1ring
- Protection grade : IP51
- Dielectric Strength : 500VAC@50Hz,60s
- Rated Voltage Power : 0~220VAC/VDC
- Rated Voltage Signal : 0~120VAC/VDC
- Lead Length : Standard 300mm
- Lead Wires : AWG28
- Working life : >5 million Revs
- Torque : 0.02 N·m
- Electrical noise①@10Rpm : 10mΩ
- Max speed : 250RPM
*Product Images are shown for illustrative purposes only and may differ from the actual product.
₹200,000.00
Out of stock

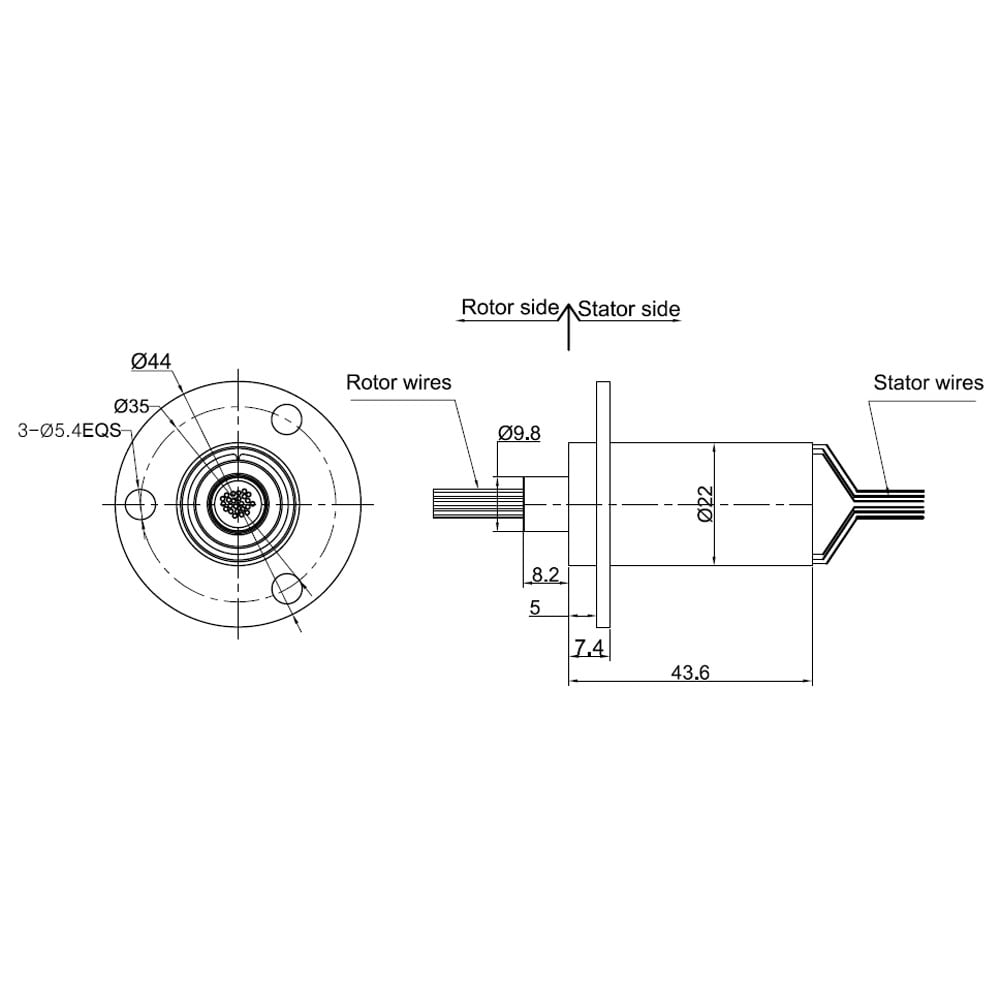

CompareMC400 is economical 24 wires slip ring with compact OD 22mm, signal(2A)/ring, with gold-gold contacts,which ensured the stability of the signal transmission and working life, mainly used for civilian, commercial areas.
slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. Miniature slip ring capsule assemblies economically address both critical space and weight limitations. Each assembly includes the rotor, brush blocks, frame, ball bearings and dust cover. Existing designs are available or we can custom design slip rings to meet your specific requirement.
MC4009 is the high-end version corresponding to MC400, ultra-thick gold-plated,imported bearings, rare metal alloy brushes, mainly used for military, defense and other non-civilian areas.
View how to install for slip rings
Packing List:
1 x 24 Wires 2A Circuits 250Rpm Capsule Slip Ring
