XGZP6897D (-5) to 5 KPa Digital Output 5V – CF SENSOR ORIGINAL

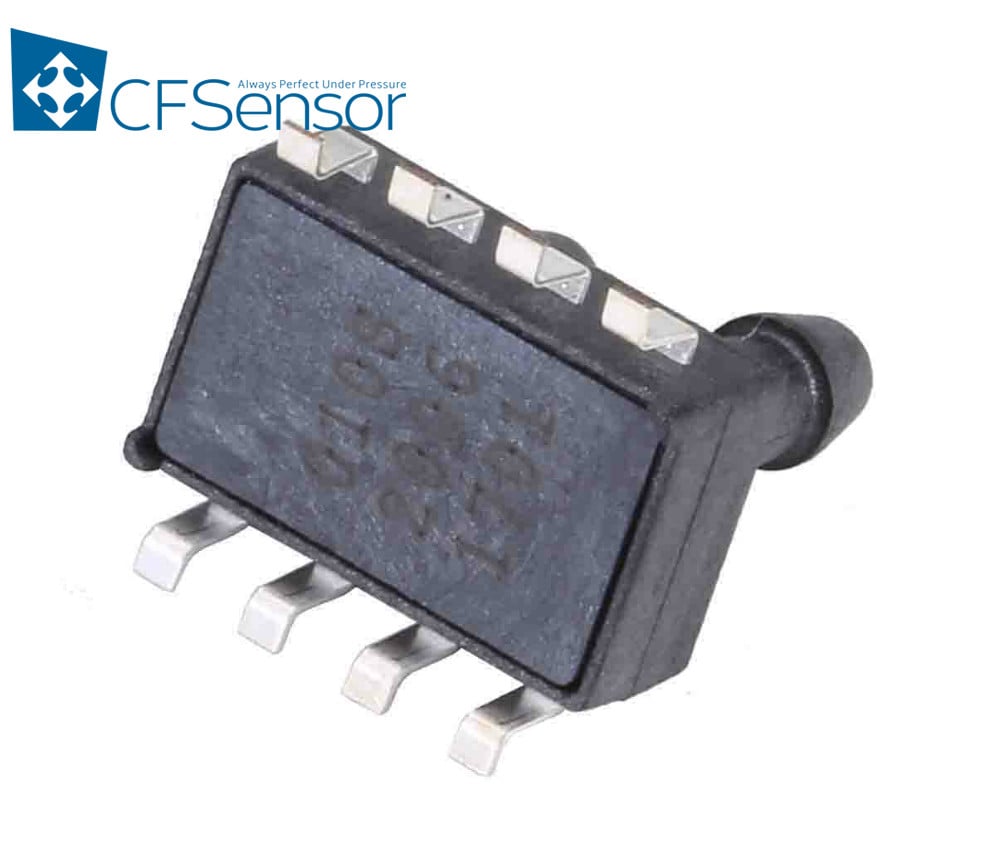

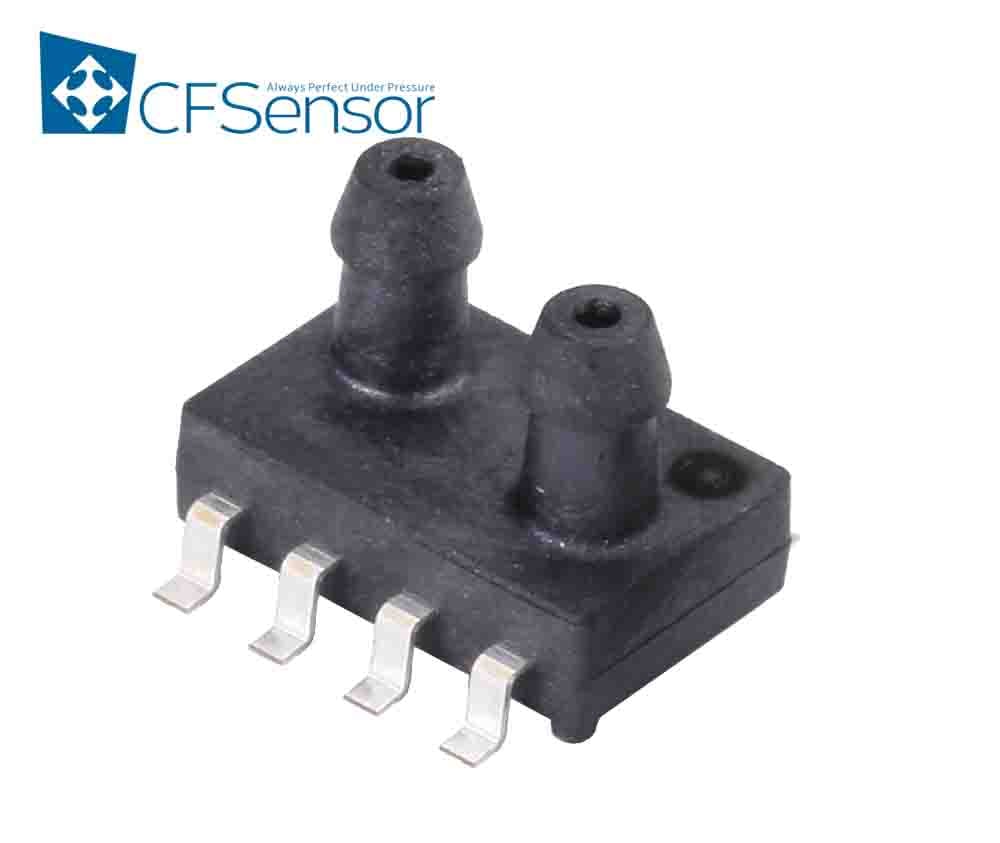

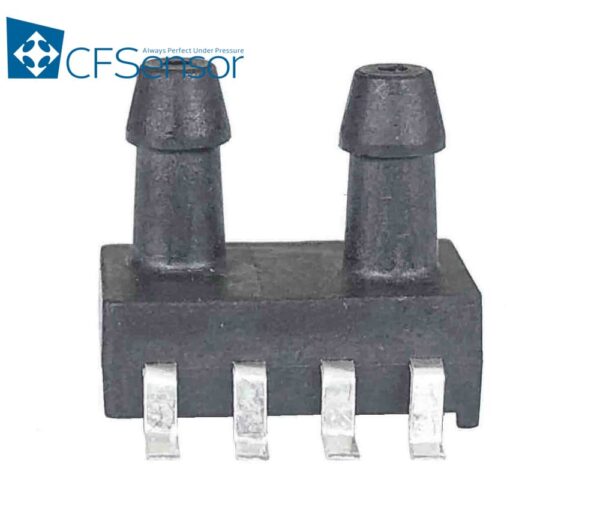

XGZP6897D is a prefect silicon pressure sensor module offering a digital IIC interface for reading differential pressure over the specified full scale pressure span and temp range. It incorporates a silicon piezo resistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SOP8 package with two air vents, which can be mounted directly on a standard PCB.

The XGZP6897D is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity, so XGZP6897D pressure sensor module satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine, home electronics and other pneumatic devices etc.

XGZP6897D pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibrations(excitation voltage and pressure range) are available.

Download Datasheet Click Here

Applications:

• For Medical and healthy equipment field, such as Ventilators/ breathing machine/ respiration, CPAP(Continuous Positive Airway Pressure), Sleep Apnea, Spiro meters, Gas flow instruction, Air flow monitor, hospital bed etc.
• For Industrial field, such as Airflow measurement, HVAC and Pneumatic gauges, Gas flow instrumentation, Exhaust system, Pressure switches, Liquid level measurement, etc.
• For Other fields, such as sport equipment, Fire protection, Biological Science, Consumer appliances, IoT application etc.

You may also want to explore :

1 . CF sensor

Package Includes:

• 1x (-5) to 5 KPa Digital Output 5V – CF SENSOR ORIGINAL
