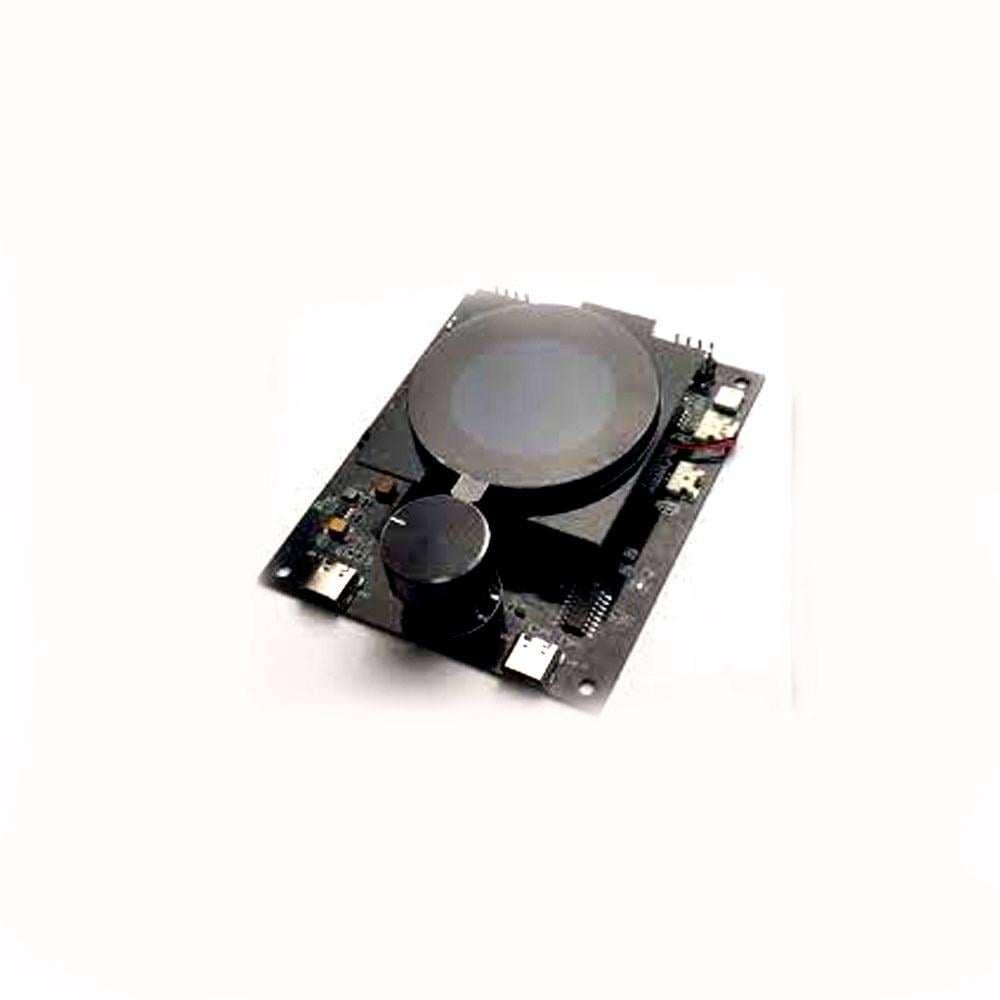

Ai Thinker AiPi-Knob with BL618(Ai-M61-32S module)

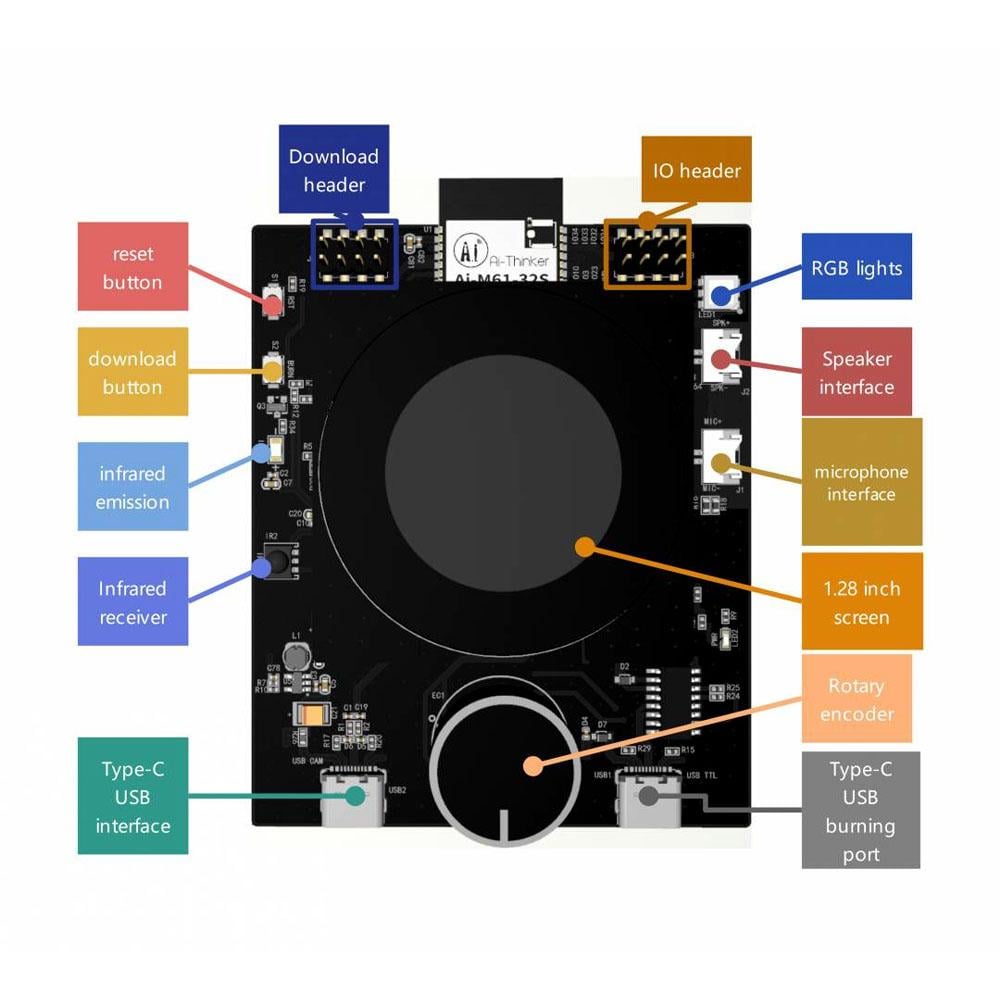

AiPi-Knob is a rotary encoder driver board (referred to as Knob) designed by the Ai-Thinker open source team, which integrates 1.28 circular screen, pin interface, rotary encoder, RGB light, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial port download USB interface, and USB interface. AiPi-Knob factory has burned the firmware, and made four demonstration interfaces:

• Washing machine interface
• RGB light interface
• TV control interface
• Air conditioning control interface

The Ai-M61-32S module is equipped with a wealth of peripheral interfaces, specifically including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO. AiPi-SCP-Knob integrates a screen pin interface, knobs, RGB lights, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial download USB interface, and an outgoing USB interface.

Features:

1. Built-in audio
2. Infrared emission and infrared reception
3. serial download a USB interface
4. Outgoing USB interface.
5. AiPi-SCP-Knob integrates a screen pin interface

Package Includes:

1x Ai Thinker AiPi-Knob with BL618(Ai-M61-32S module)
