GRBL Controller with CNC 11000RPM 500W Spindle Motor Kit

Compare

Specifications:

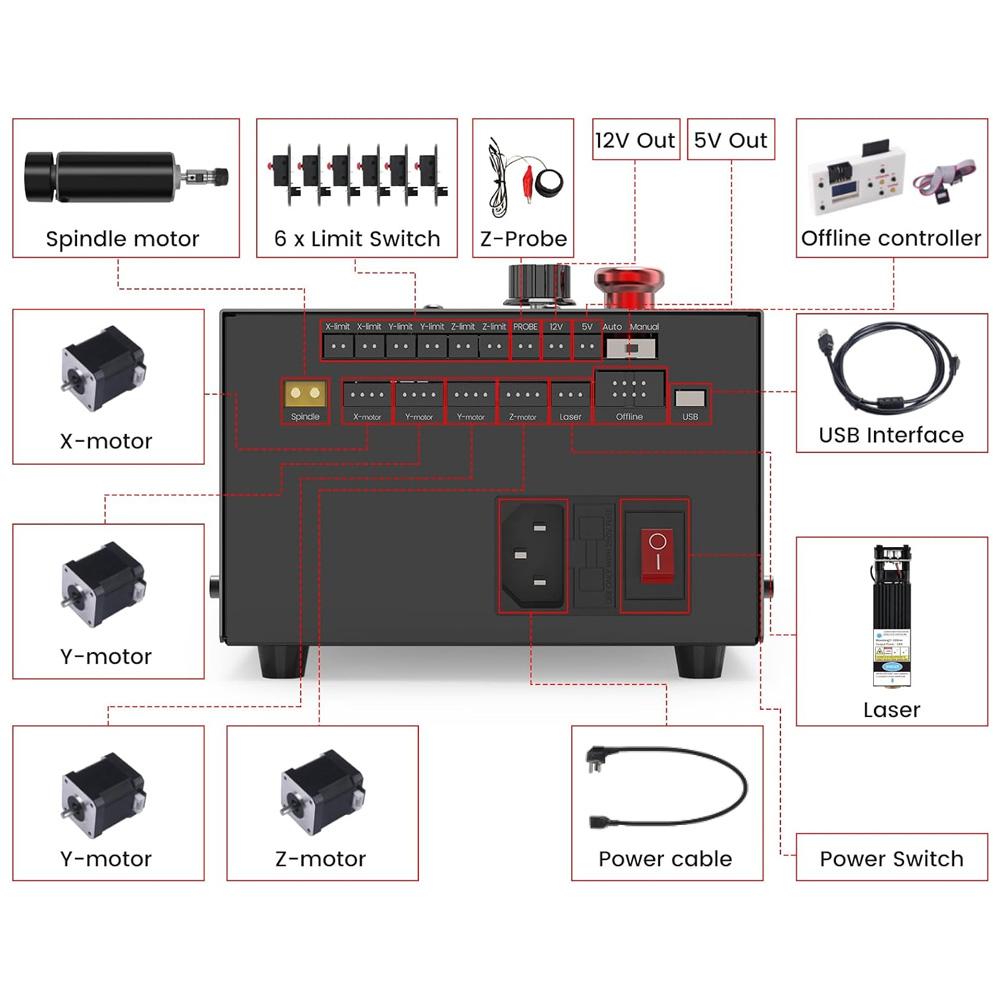

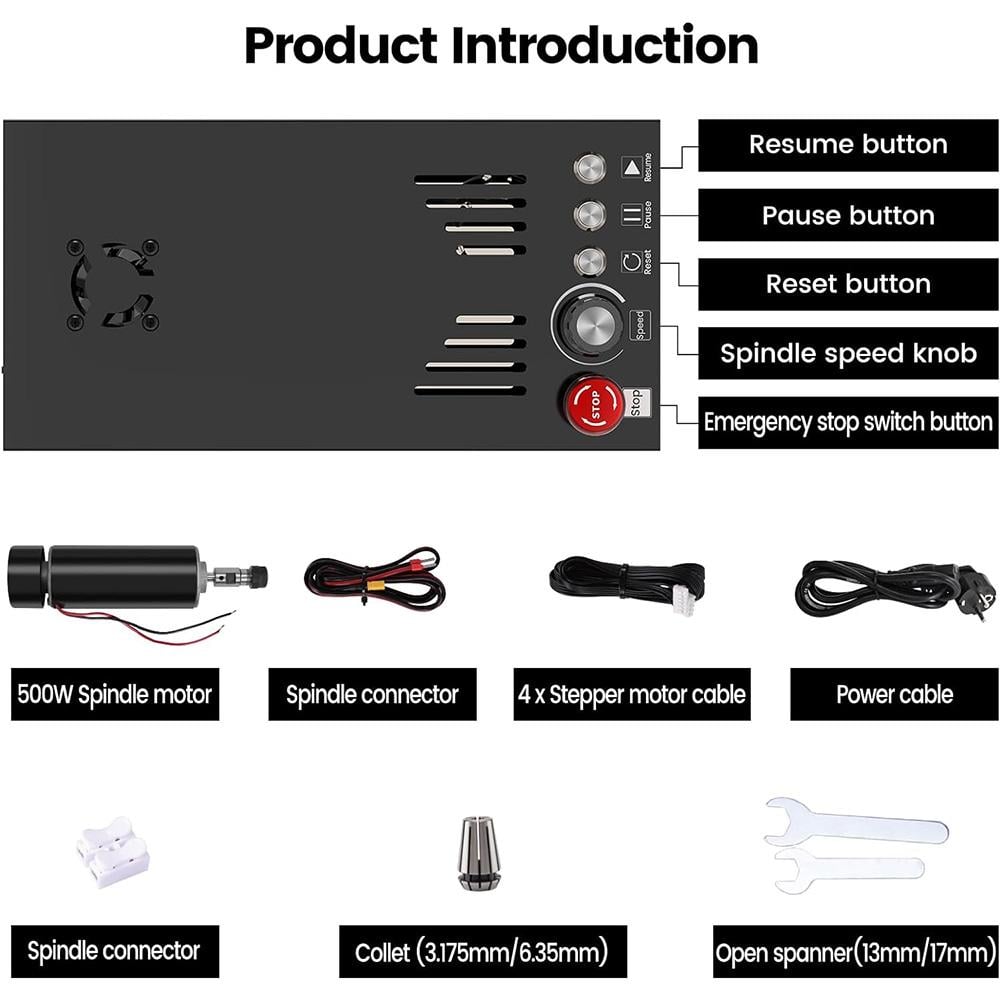

  • Enhance Safety: The control box supports emergency stop, pause running, continue running, reset, and manual adjustment of spindle speed function, can be adapted to 3020PLUS, 4540, 3018MAX

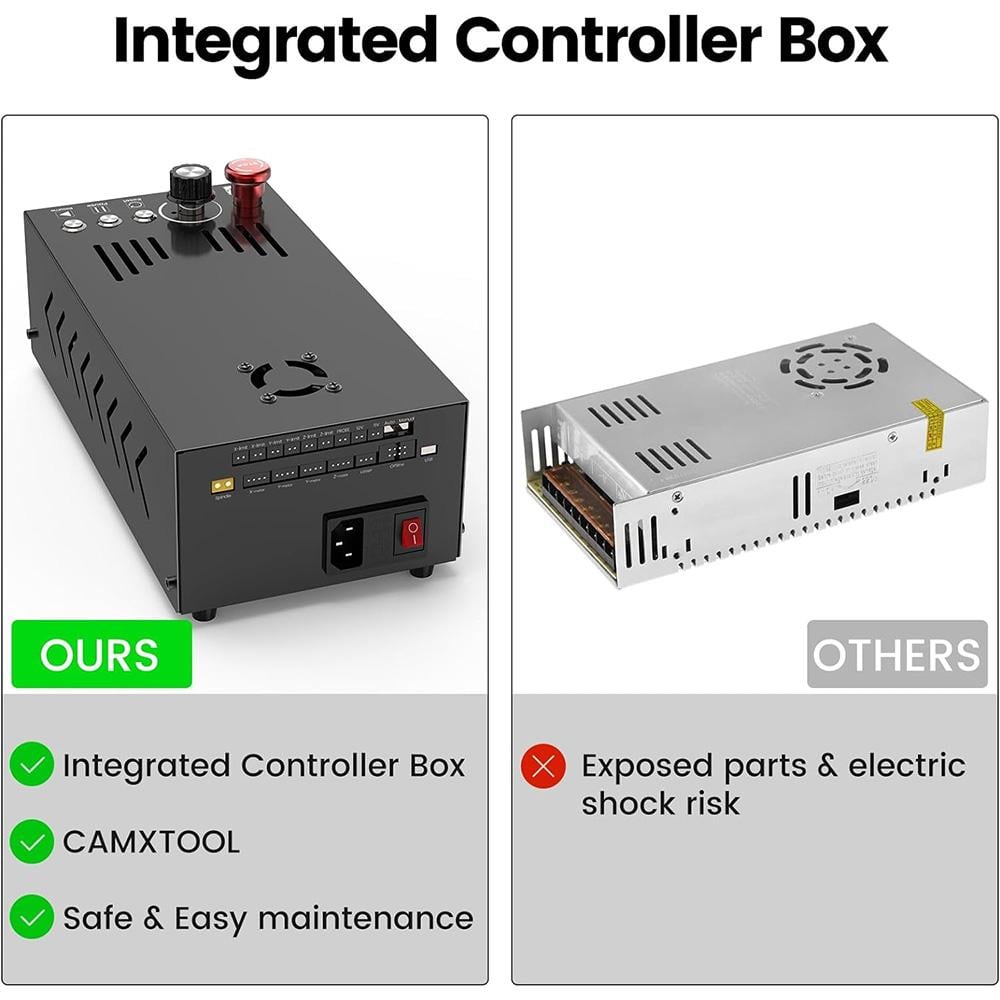

  • Meeting Your Needs: The spindle integrated control box motor features low noise and low electromagnetic interference, It is Compatible with GRBL, and CANDLE-control software and is ideal for CNC machining

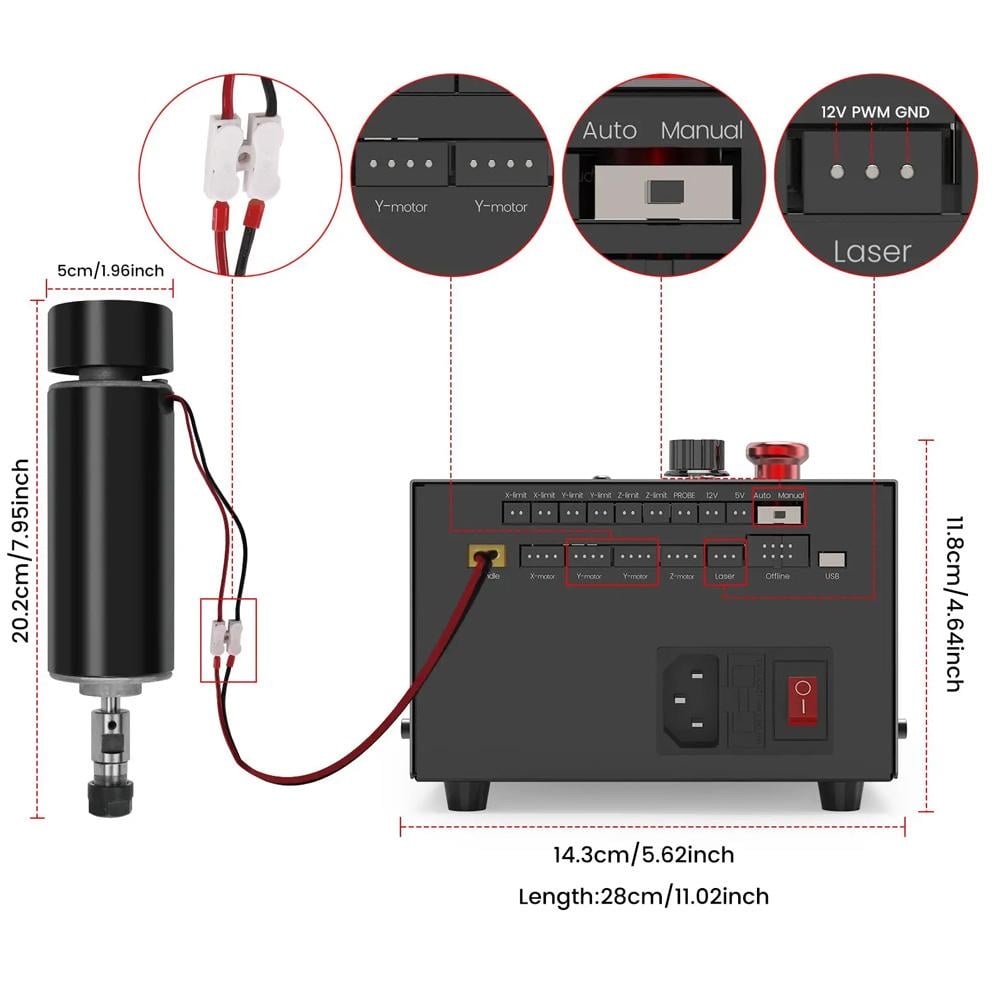

  • CNC Spindle kit: This spindle comes equipped with an air-cooled function, which can work for a long time. Air-cooled spindle: Power: 500W; Voltage: 110V; Idling Speed: 11000r/min; Diameter: 52mm
  • Spindle Motor Driver: This power regulator can adjust 110 or 220v according to customers’ needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low-speed

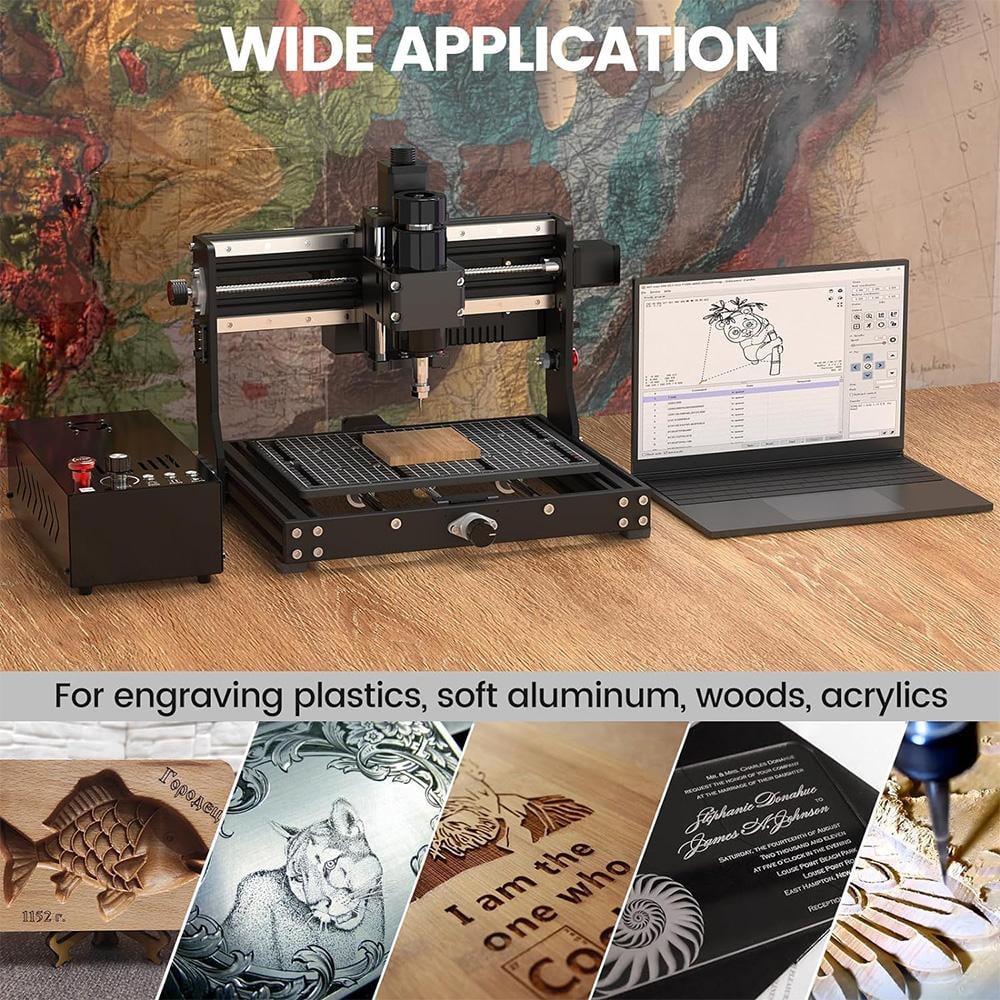

  • Wide Application: Kinds of drilling and engraving materials, such as plastics, soft aluminium, brass, acrylics, PVC, PCB, wood, plywood, nylon

₹1,829,000.00

Compare
The control box supports emergency stop, pause running, continue running, reset, and manual adjustment of spindle speed function, and can be adapted to 3020PLUS, 4540, 3018MAX. Meeting Your Needs: The spindle-integrated control box motor features low noise and low electromagnetic interference. Compatible with GRBL, CANDLE-control software, ideal for CNC machining. CNC Spindle kit: This spindle comes equipped with an air-cooled function, which can work for a long time. Air-cooled spindle: Power: 500W; Voltage: 110V; Idling Speed: 11000r/min; Diameter: 52mm. Spindle Motor Driver: This power regulator can adjust 110 or 220v according to customers’ needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low speed. Wide Application: Kinds of drilling and engraving materials, such as plastics, soft aluminium, acrylics, PVC, PCB, wood, plywood, and nylon.

Specifications:

  • Number of Axes: 3
  • No. of Spindles: Single
  • CNC or Not CNC
  • Place of Origin: China
  • Weight (KG): 3
  • Key Selling Points: High Safety Level
  • Applicable Industries Other
  • Range of Spindle Speed(r.p.m): 1 – 11000 rpm
  • Positioning Accuracy (mm): 0.1 mm
  • Travel (X-Axis)(mm): 430 mm
  • Travel (Y-Axis)(mm): 380 mm
  • Repeatability (X/Y/Z) (mm): 0.1 mm
  • Spindle Motor Power(kW): 0.5
  • Product name: CNC Machine Integrated Control Box
  • Product material: Metal Sheet
  • Application: For CNC machine
  • Keywords: High Safety Level

FAQ

1. Q: Can this carve Bronze or Aluminium blocks, or it can just engrave Stainless Steel?

A: Yes, it can carve metals, Depth per pass and feed rate will need to be adjusted for different metals. We recommend a depth per pass of 0.1mm and a feed rate of 120mm/min for stainless steel, a depth per pass of 1mm and a feed rate of 300mm/min for wood. The lower the speed, the more stable the work. Note: When engraving metals, the temperature of the metal will be extremely high due to the huge friction between the milling cutter and the metal, so please keep adding lubricating oil during the engraving process.

2. Q: I am a New to CNC, what should I do to start an engraving project with this router machine?

A: We provide a free control software Candle grbl which is fine to start and get it going. It’s then a personal choice afterwards what you go to, Easel is fairly simple but loads of options. Fusion 360 is good but is expensive. Please note that the Candle is just a control software, can only read G-code files, and does not support design pictures. So, we need to use other software to design images and make G-code files, Most of our customers use Easel to design G-code file and then use Candle or UGS to control the machine.

3. Q: Once I create Gcode in Easel, do I transfer them to the controller with a usb drive/sd card?

A: Yes, you can run the file in Candle, or transfer the file to a usb drive/sd card and run it in the controller.

4. Q: Is this product good for a total beginner?

A: We recommend professionals to buy this machine, the new starter is not recommended. The CNC itself is not a problem, it’s the software part that’s the difficulty. You can go to YouTube to learn a lot of the basics. It takes more patience, but worth it.

Packing List:

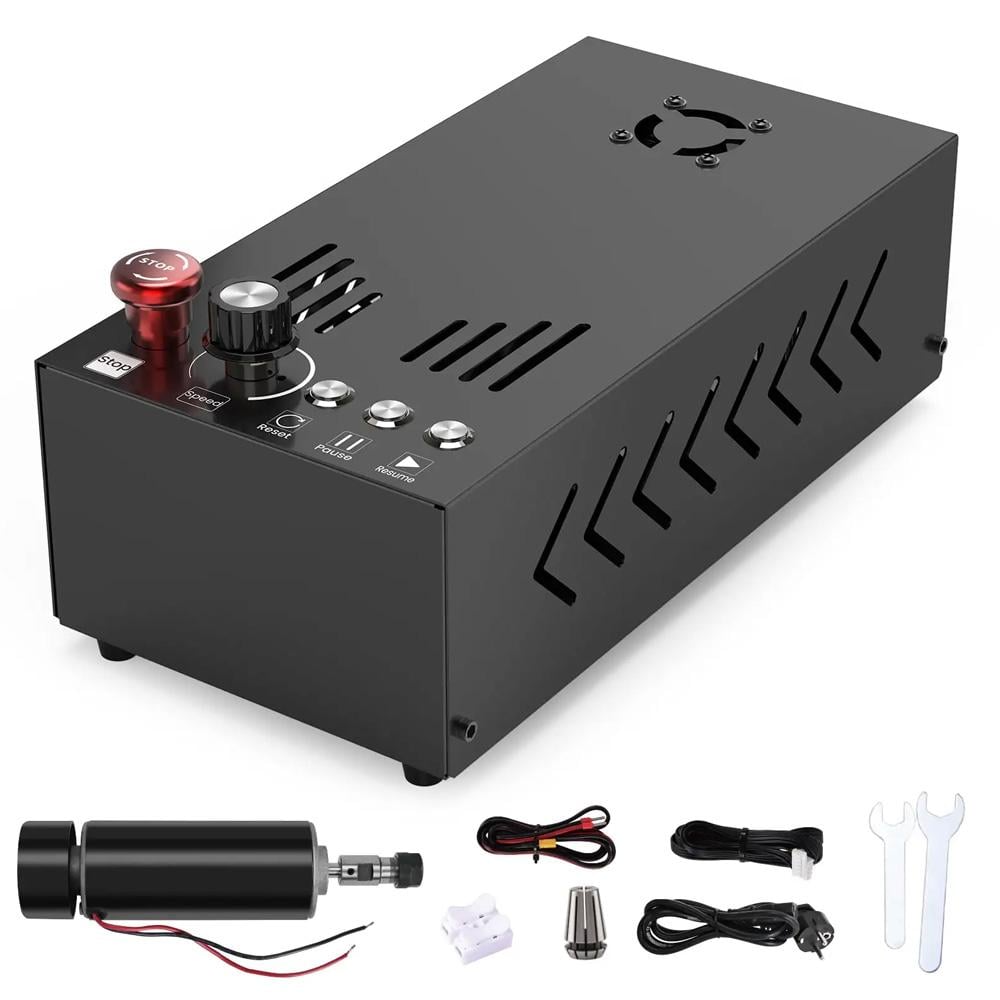

1 x CNC 500W Spindle Motor Kit 11000RPM Spindle Integrated Control Box For 500W Spindle Router CNC Engraving Machine
