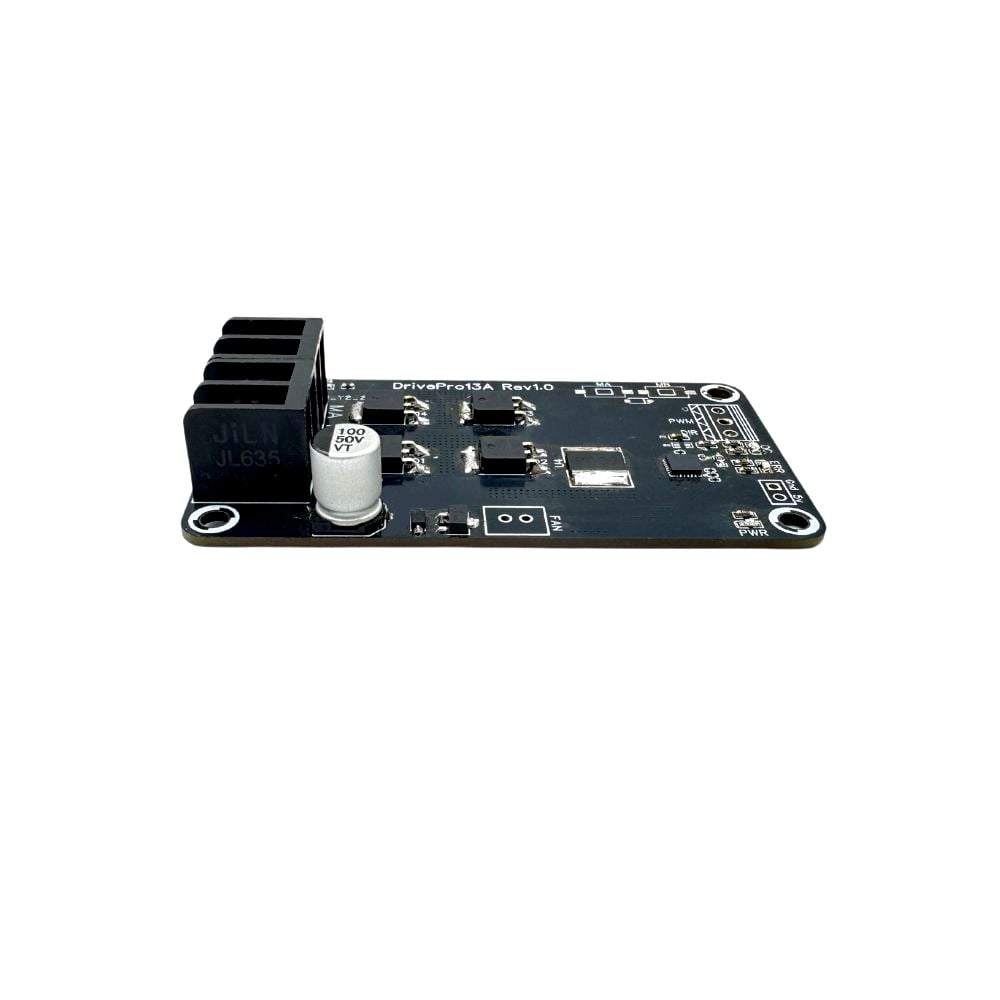

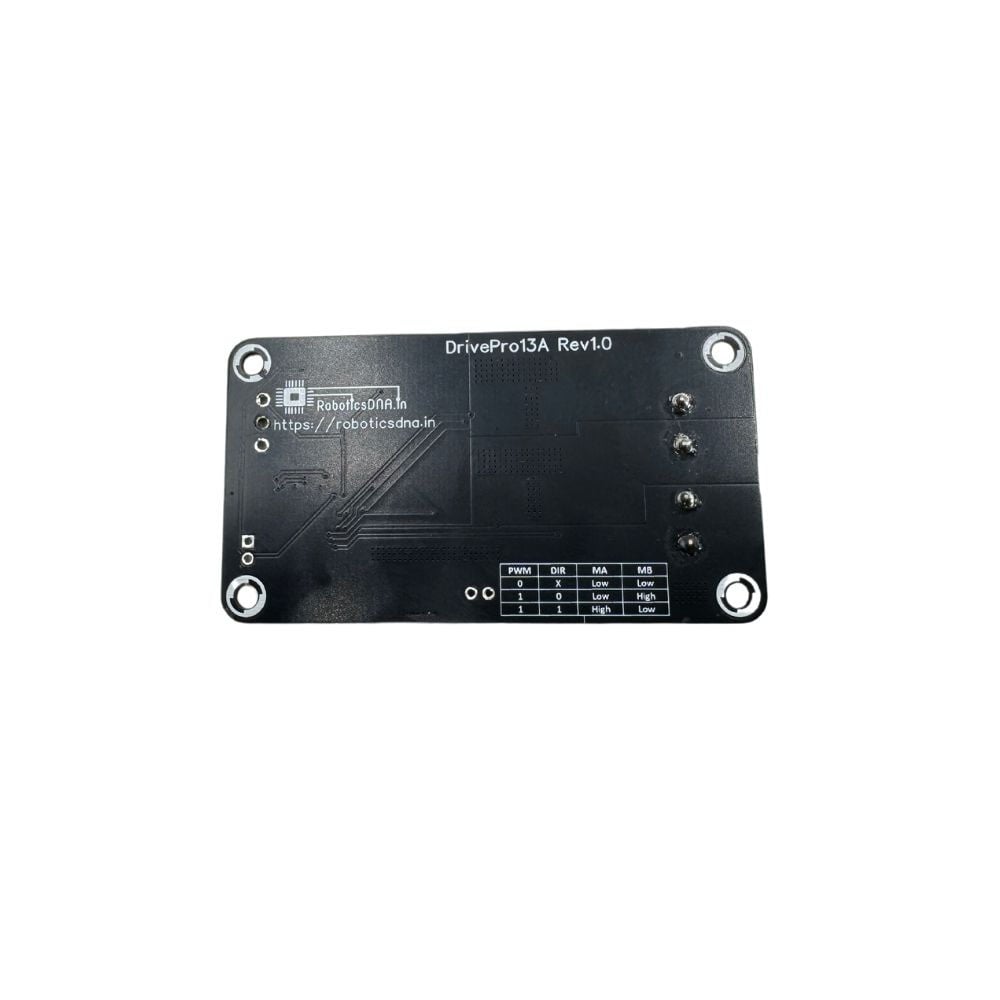

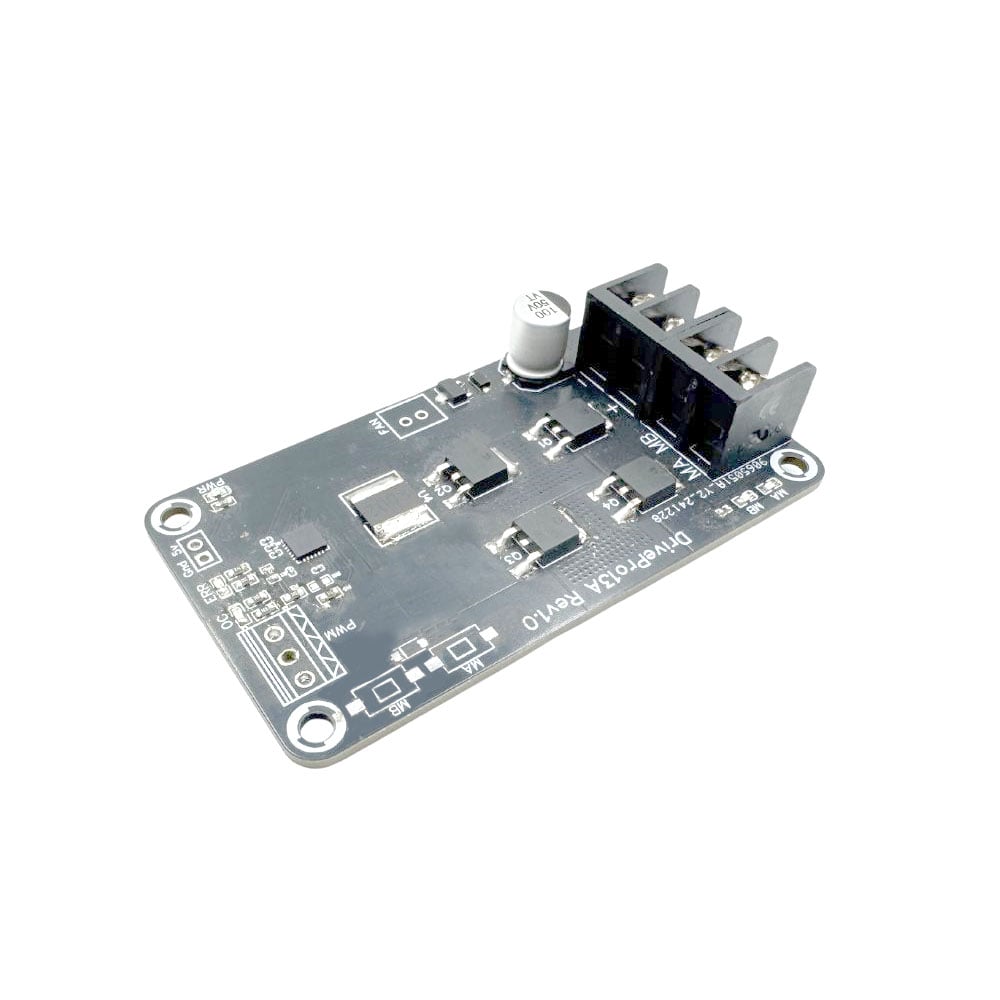

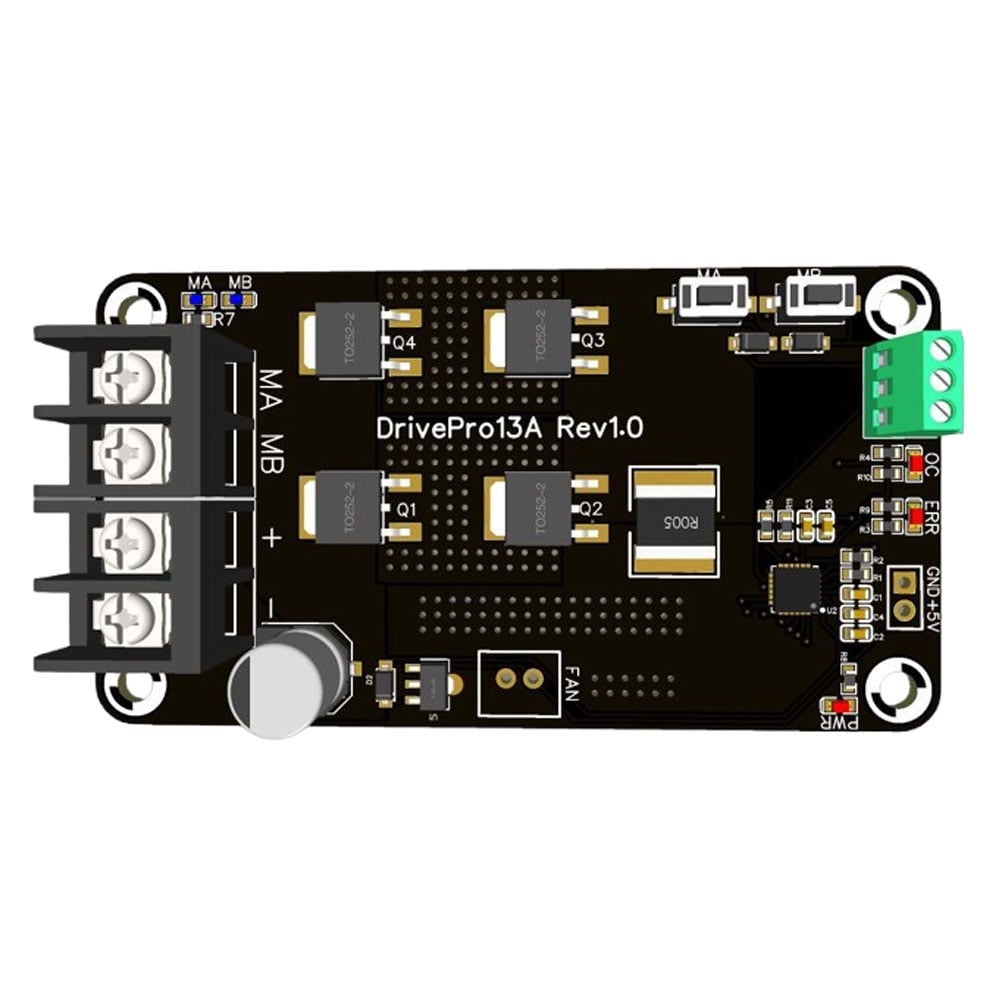

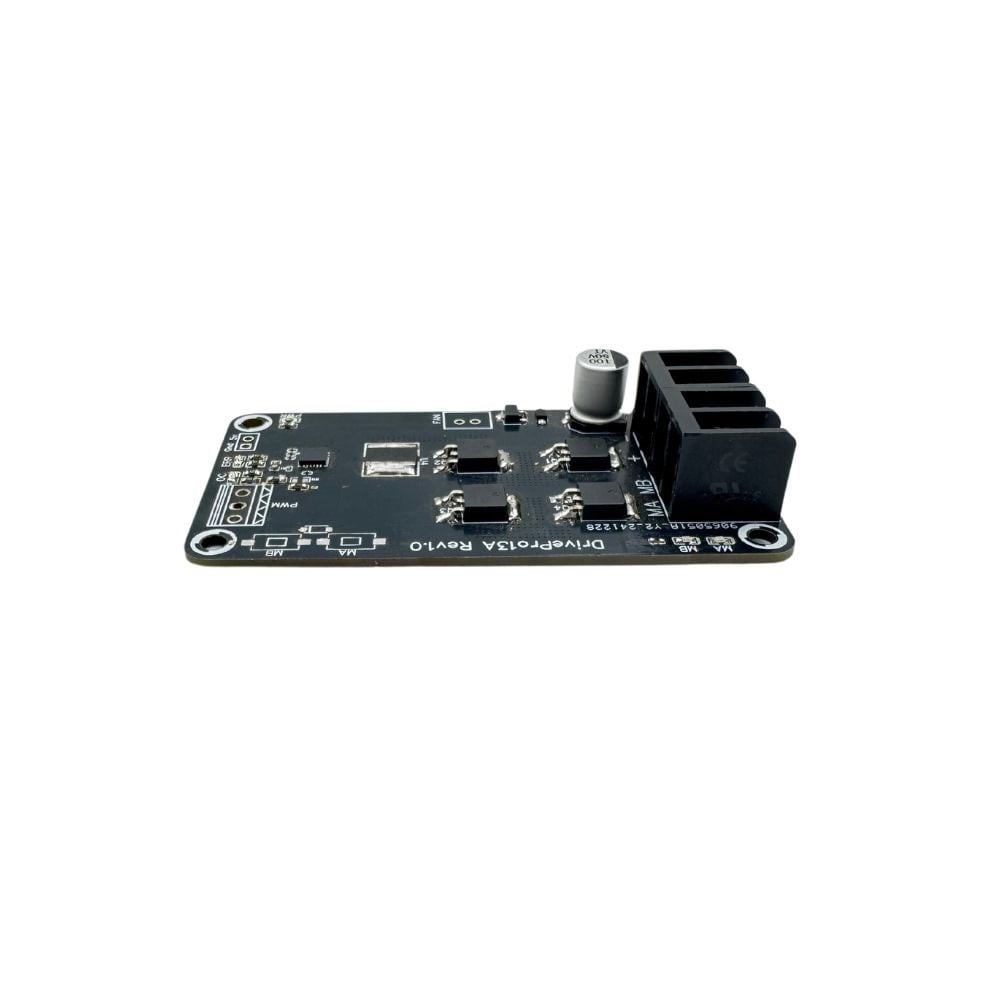

DrivePro13A 13Amp DC Motor Driver Rev1.0

The DrivePro13A is a high-performance 13A DC motor driver, designed for reliable and efficient control of high-current brushed DC motors. It supports bi-directional control, operates within a 7V–30V range, and handles up to 30A peak current for short durations. Featuring a full NMOS H-Bridge, it ensures low heat dissipation, fast response times, and high efficiency without requiring an external heat sink. Compatible with 3.3V and 5V logic signals, it seamlessly integrates with Arduino, Raspberry Pi, and other microcontrollers.

Application:

• Robotics: Controlling motors in robotic arms, mobile robots, and industrial automation.
• Automated Systems: Suitable for conveyor belts, actuators, and smart machinery.
• DIY Projects & Prototyping: Ideal for hobbyists and engineers developing motorized projects.
• Electric Vehicles & Mobility Solutions: Used in small electric vehicles and motorized platforms.

Features:

• Supports Bi-Directional Control of brushed DC motors
• Handles 13A continuous & 30A peak current (10 sec max)
• Accepts 3.3V & 5V logic levels, compatible with microcontrollers
• PWM frequency up to 100kHz for smooth motor control
• Built-in safety features: Overcurrent, Over-temperature, and Short-circuit protection

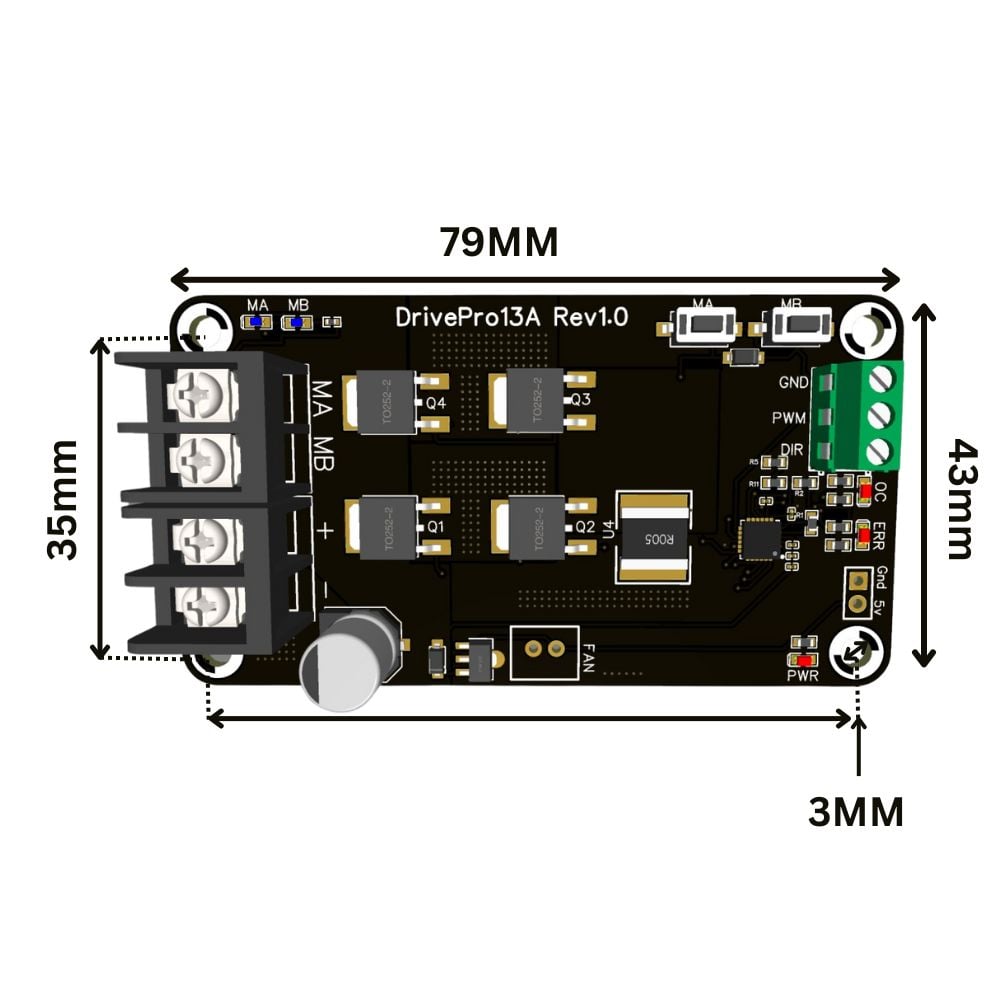

• Compact design (79mm x 43mm) for easy integration

Datasheet of the Drivepro13A

*Note : MA and MB buttons are not working for this version*

Package Includes:
1 x DrivePro13A 13A DC Motor Driver
