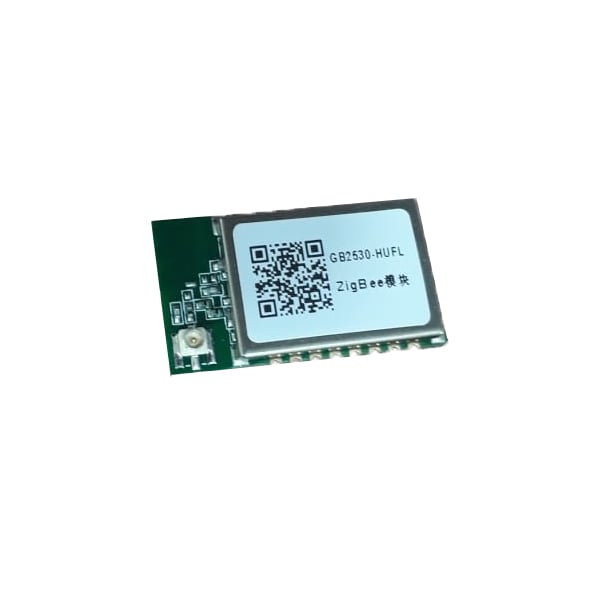

GB2530-HUFL Zigbee

• Adapt 2.4GHz IEEE 802.15.4 transceiver l
•  High receiver sensitivity and robustness l
• Programmable output power up to 4.5dBm  l
•  Suitable system configuration meets worldwide radio frequency regulations：
• ETSI EN 300 328 and  EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US),
• ARIB STD-T66 (Japan) l
• Supports accurate digitization RSSI/LQI l Data rates up 250kBaud l Modulation：O-QPSK  l
•  Snake board has integrated PCB antenna
•  Active Mode RX (CPU idle)：24mA l Active Mode TX at 1dBm (CPU idle)：29mA l
•  Power Mode 1 (4us wake)：0.2mA l
• Power Mode 2 (Sleep Timer run)：1uA l
• Power mode 3 (external interrupt)：0.4uA l
• Wide supply voltage range（2V-3.6V）

Package Includes:

1 x GB2530-HUFL Zigbee
