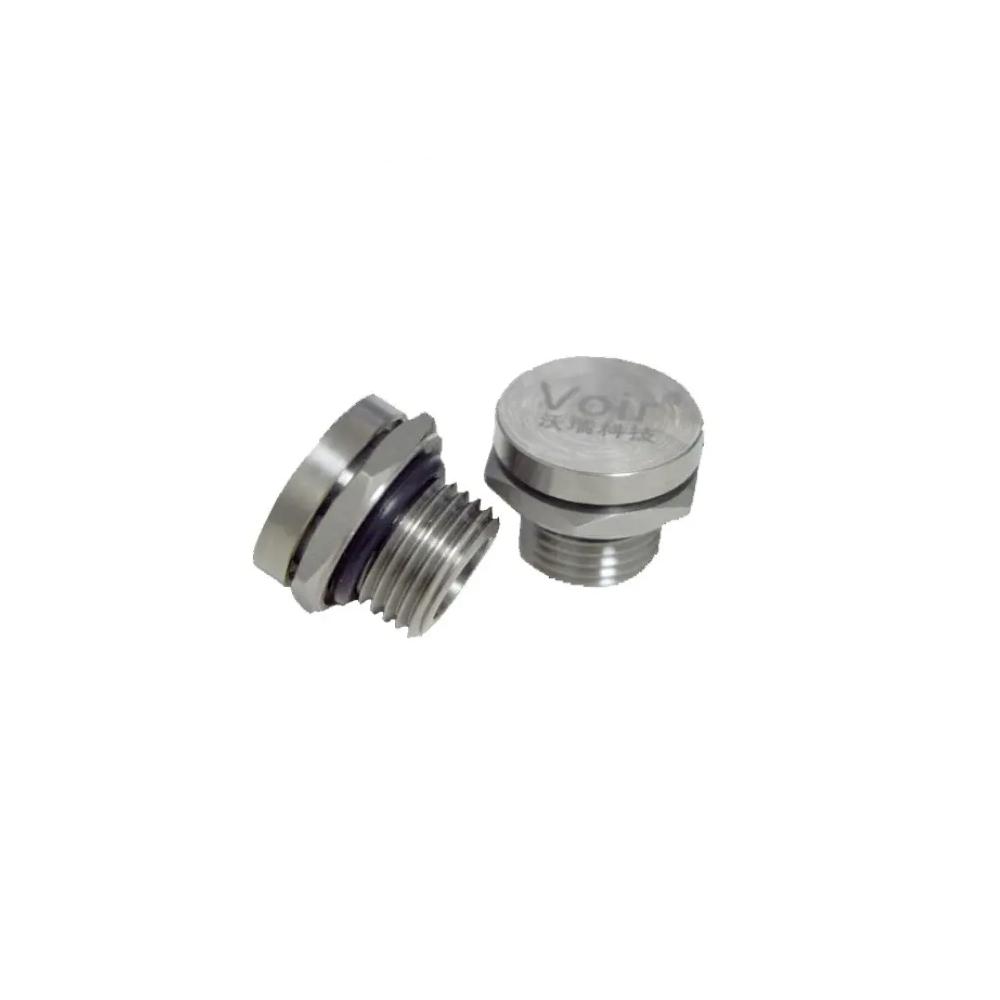

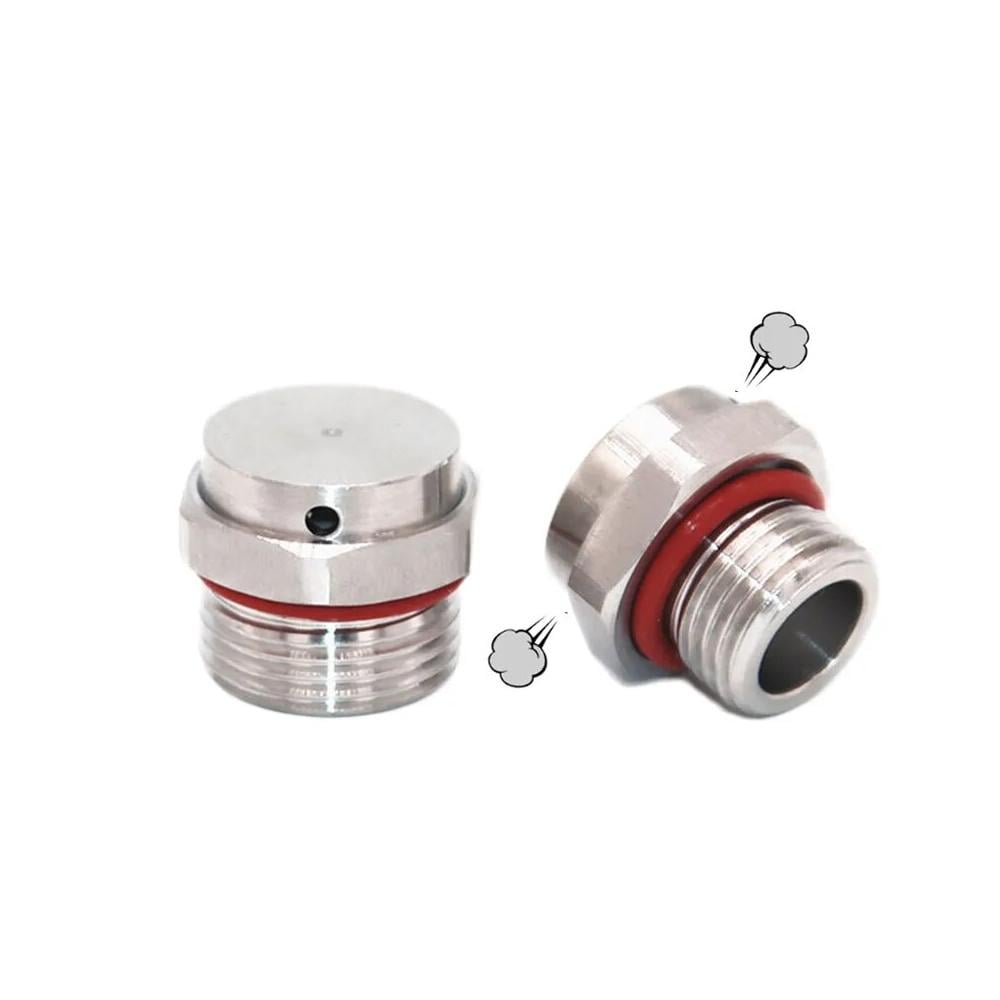

VOIR IP67 M16 e-PTFE Membrane Explosion Proof Protective Waterproof Breathable Air Pressure Balance Screw In Vent Plug

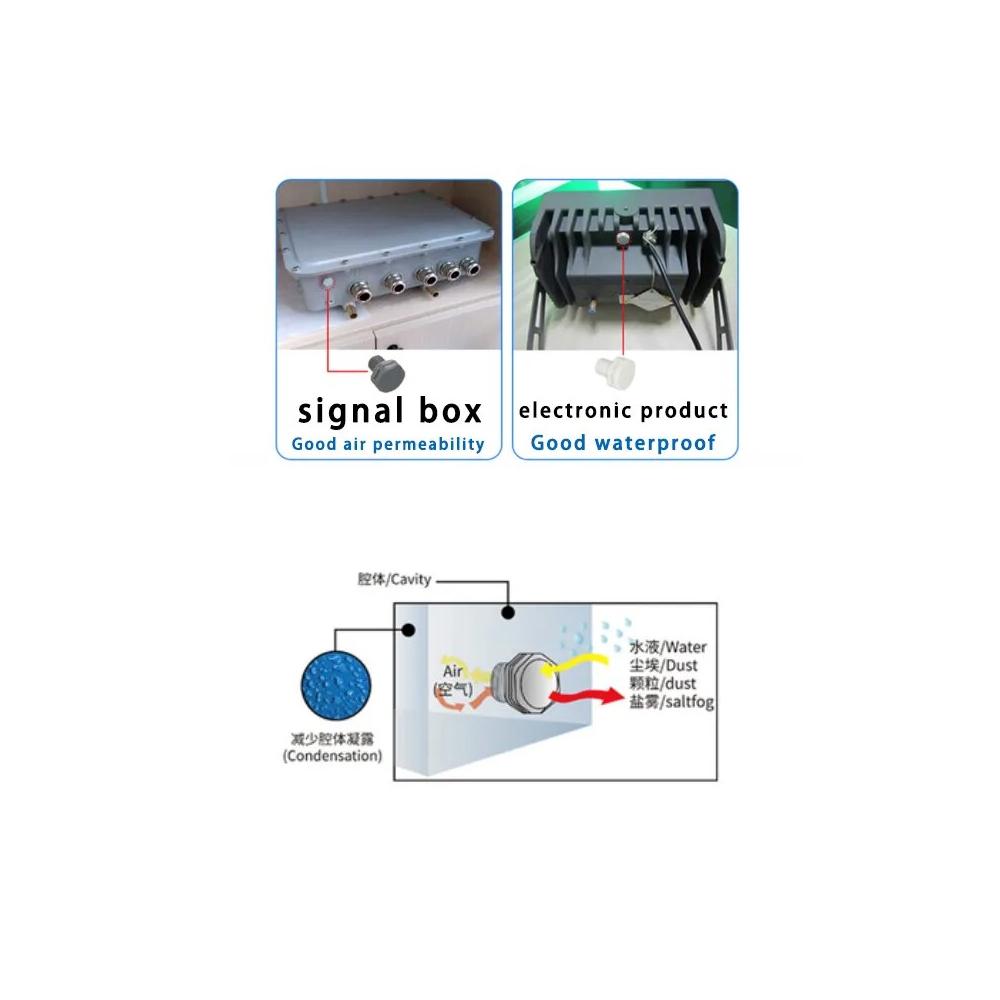

It can be applied to outdoor cabinets, chassis shells, heavy industries and all kinds of outdoor sealed components for protective waterproof purposes. It is for industrial use only, not for food, medicine, cosmetic or medical facilities etc.

Benefits:

1. High air permeability membrane can balance the pressure and lower down tension for sealing the stripe;
2. With the hydrophobic and oleophobic membrane inserted inside the body, the vent becomes chemically inner and UV- UV-UV-resistant;
3. It can greatly reduce the fog and condensation. Fault-free and maintenance-free working under harsh environments with a long service life. EPTFE film can prevent salt crystal moisture and moisture permeability.

Installation:

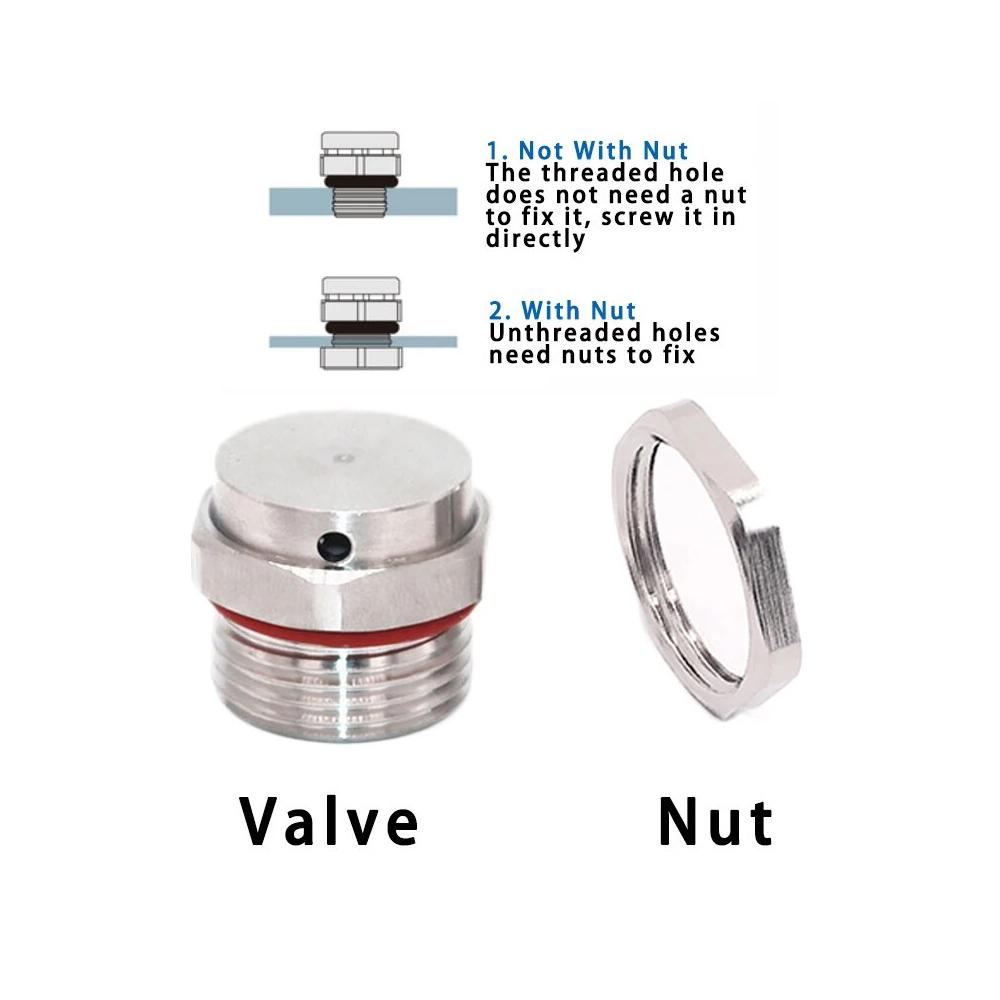

1. When the housing thickness is >3mm, suggest drilling M16*1.5mm threaded hole and use silicone O-ring to seal the entrance.
2. When the housing thickness is ≤3mm, suggest drilling ø16.2 ± 0.1mm straight hole and lock with nut. Seal the entrance with Flat silicone ring.

Packing List:

1 x Hotsale VOIR IP67 M16 e-PTFE Membrane Explosion Proof Protective Waterproof Breathable Air Pressure Balance Screw In Vent Plug
