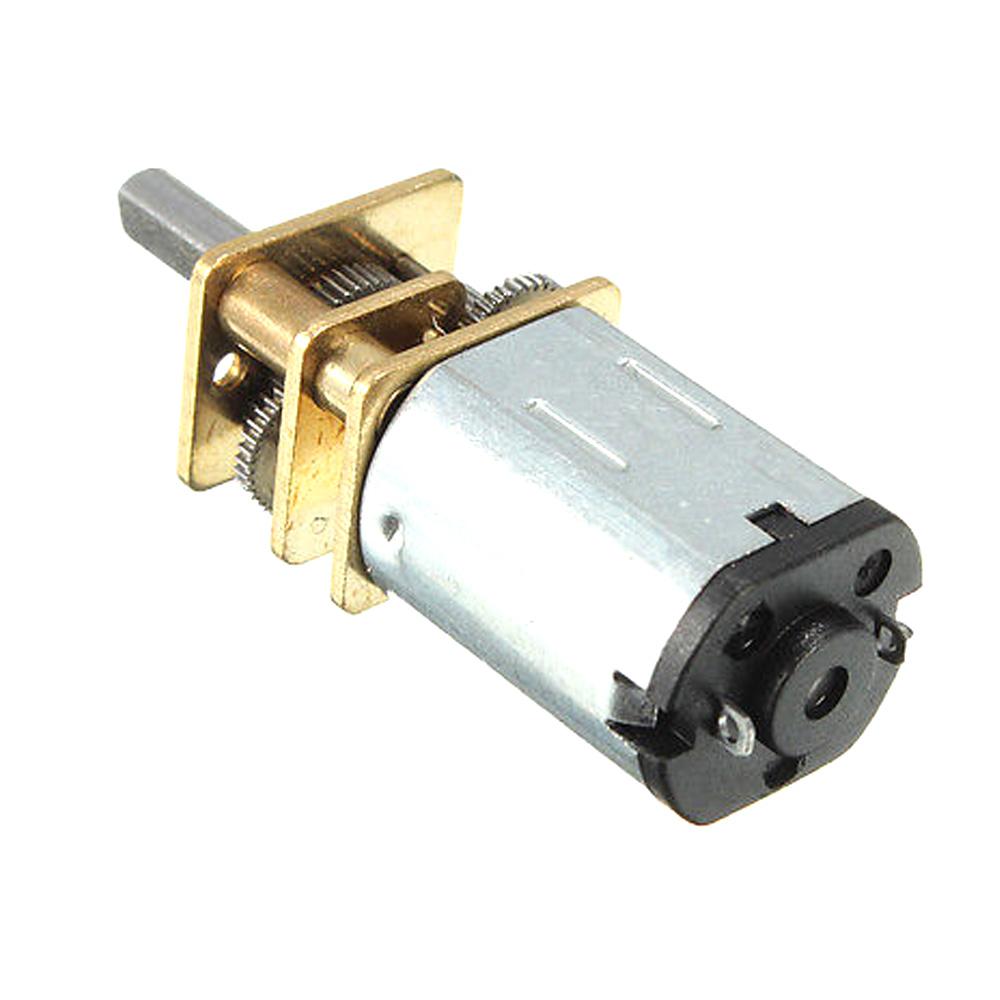

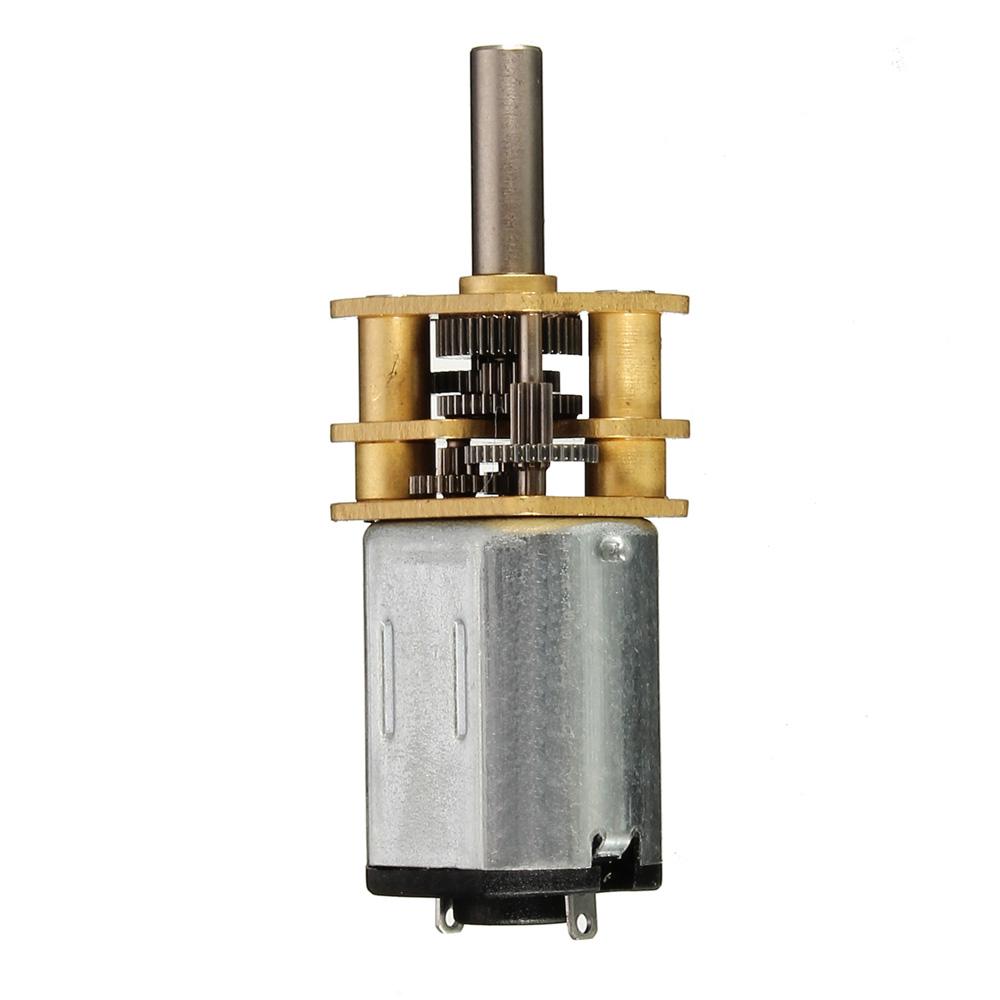

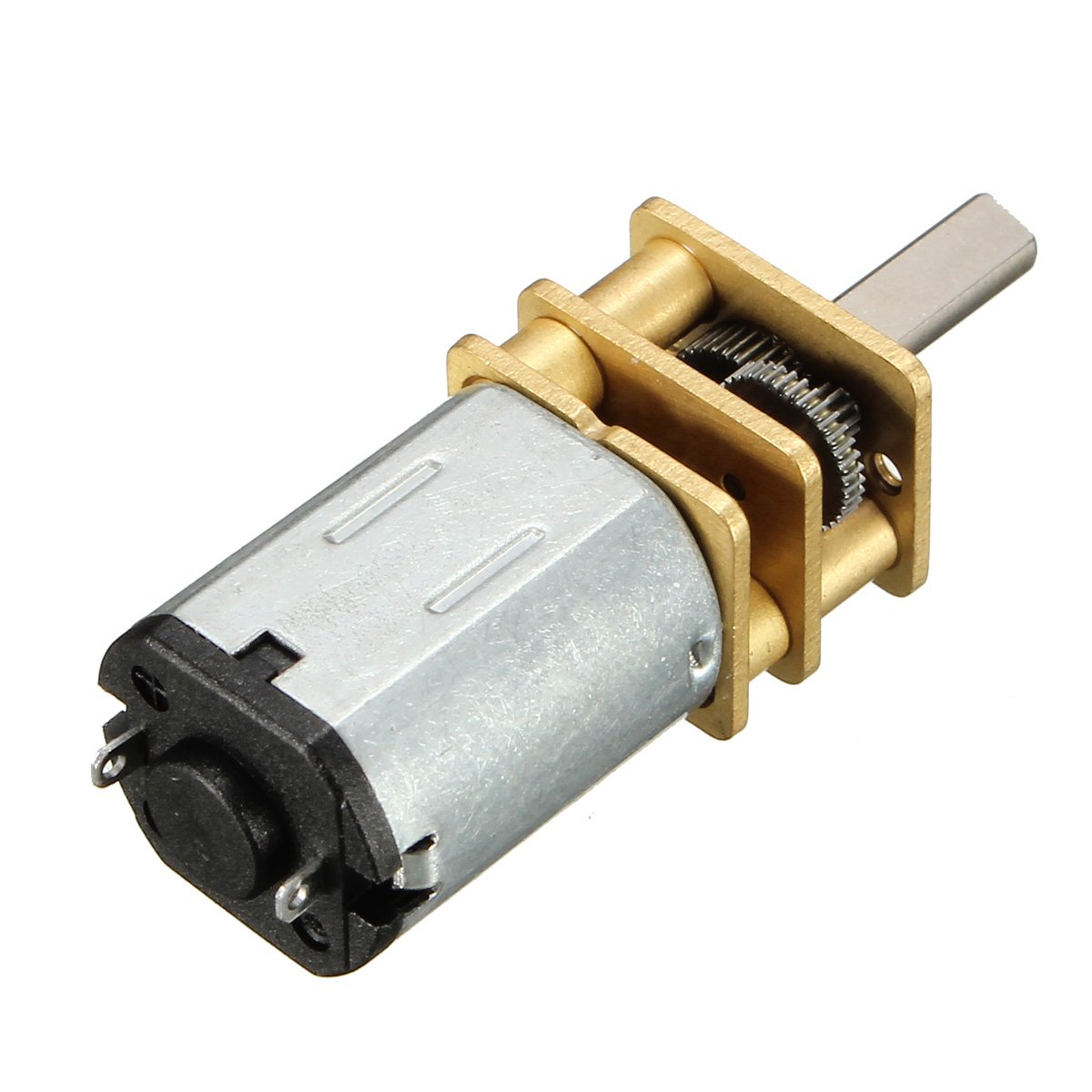

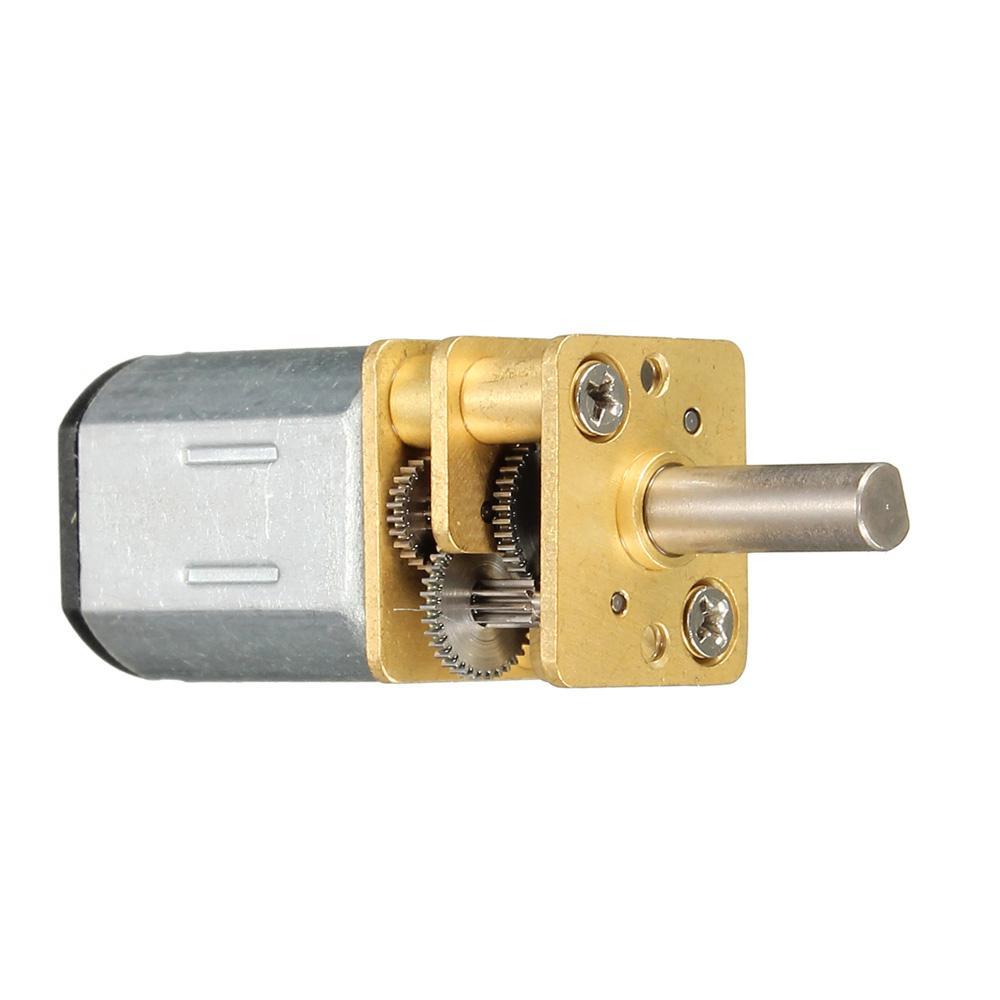

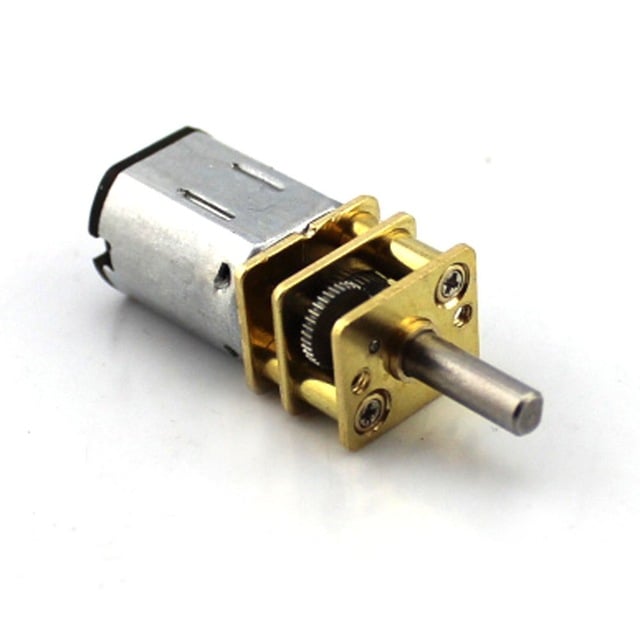

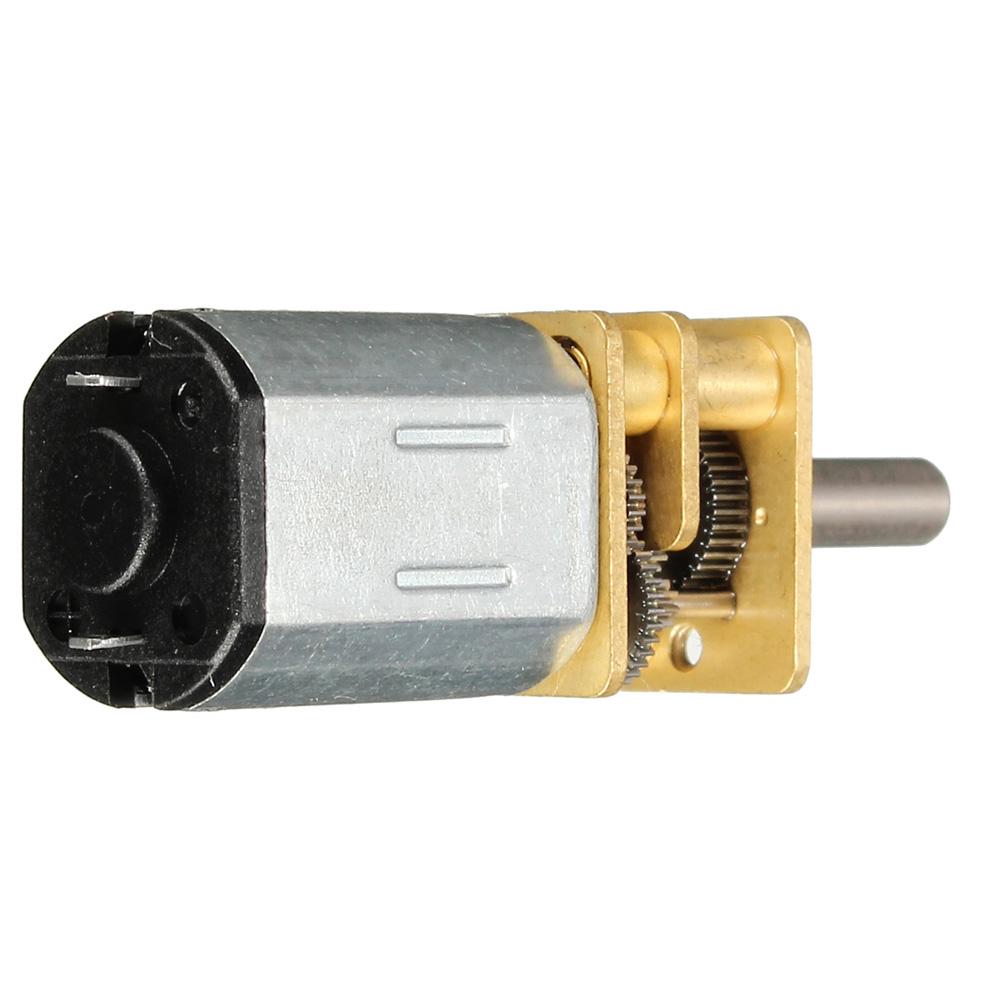

N20 12V 200 RPM Micro-Gear DC Motor
N20 12V 200 RPM Micro-Gear DC Motor - Image 2
N20 12V 200 RPM Micro-Gear DC Motor - Image 3
N20 12V 200 RPM Micro-Gear DC Motor - Image 4
N20 12V 200 RPM Micro-Gear DC Motor - Image 5
N20 12V 200 RPM Micro-Gear DC Motor - Image 6
N20 12V 200 RPM Micro-Gear DC Motor - Image 7

N20 12V 200 RPM Micro-Gear DC Motor

Compare

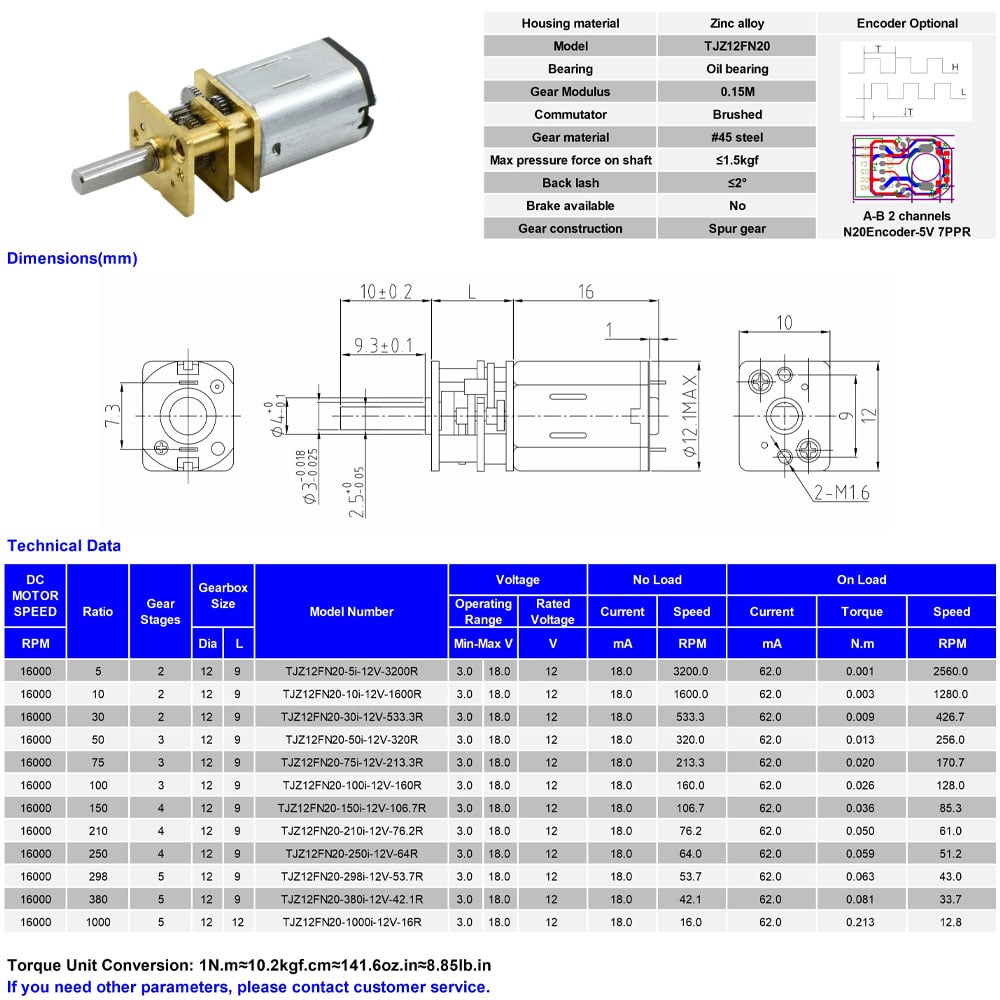

Specifications:

  • Model No. :N20-12V-200
  • No Load Current (mA) : 0.06 A
  • Stall Current (A) :0.75
  • Rated Torque(kg-cm) :0.4
  • Stall Torque(Kg-Cm) :1.2
  • Motor Body Size (Diameter) (mm) :12
  • Operating Voltage (VDC) :6 ~ 12
  • Rated Operating Voltage (VDC) : 12
  • Rated Speed (RPM) :200
  • Shaft Type :D-type
  • Shaft Diameter (mm) :3
  • Weight (gm) :12
  • Output Axial Length (mm) :10
  • Fuselage w/o Shaft Length :26
  • Screw Size : M3
  • Motor Type : Single Shaft

₹26,901.00

Compare

This N20-12V-200 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

The N20 Micro Gear 12V 200 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

This N20 Micro Gear 200RPM 12 V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

Package Includes:

1 x N20-12V-200 Rpm Micro Metal Gear Motor
