Pogo Pins
P160-E2 Spring Test Probe Pogo Pin – 5 Pcs
Availability:
Out of stock
Specifications:
- Spring: music wire, gold plated
- P160-E2 needle diameter: 1.3 mm;
- Needle tube diameter: 1.36 mm;
- Needle rod diameter: 0.66 mm;
- Needle total length: approx. 24.5 mm
- Pin sets sold separately, the needle sheath diameter of 1.32mm
- Drill size: approx. 1.7 mm
- Minimum test distance: approx. 1.91mm
- Full Stroke: 2.50mm
- Current rating: 3A
- Current resistance: 50mΩ
- Plunger: heat treated beryllium copper
₹6,608.00
Out of stock

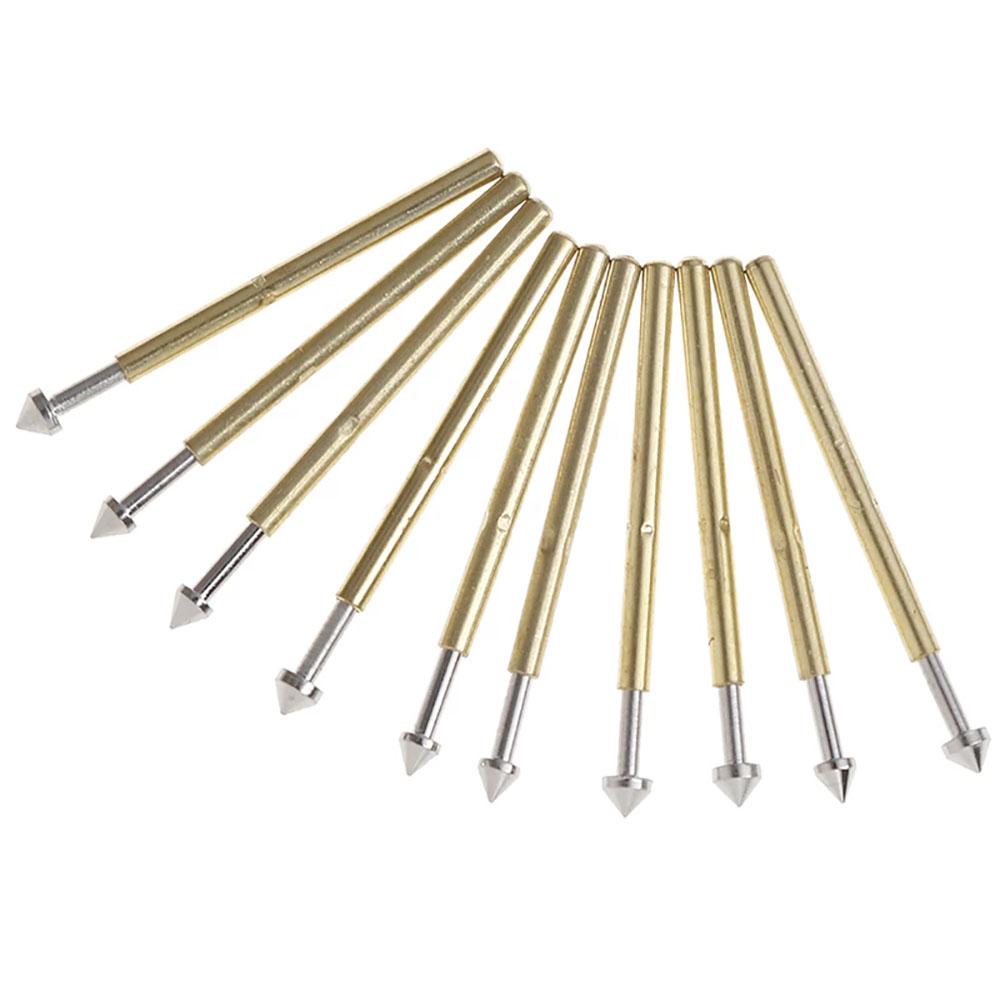

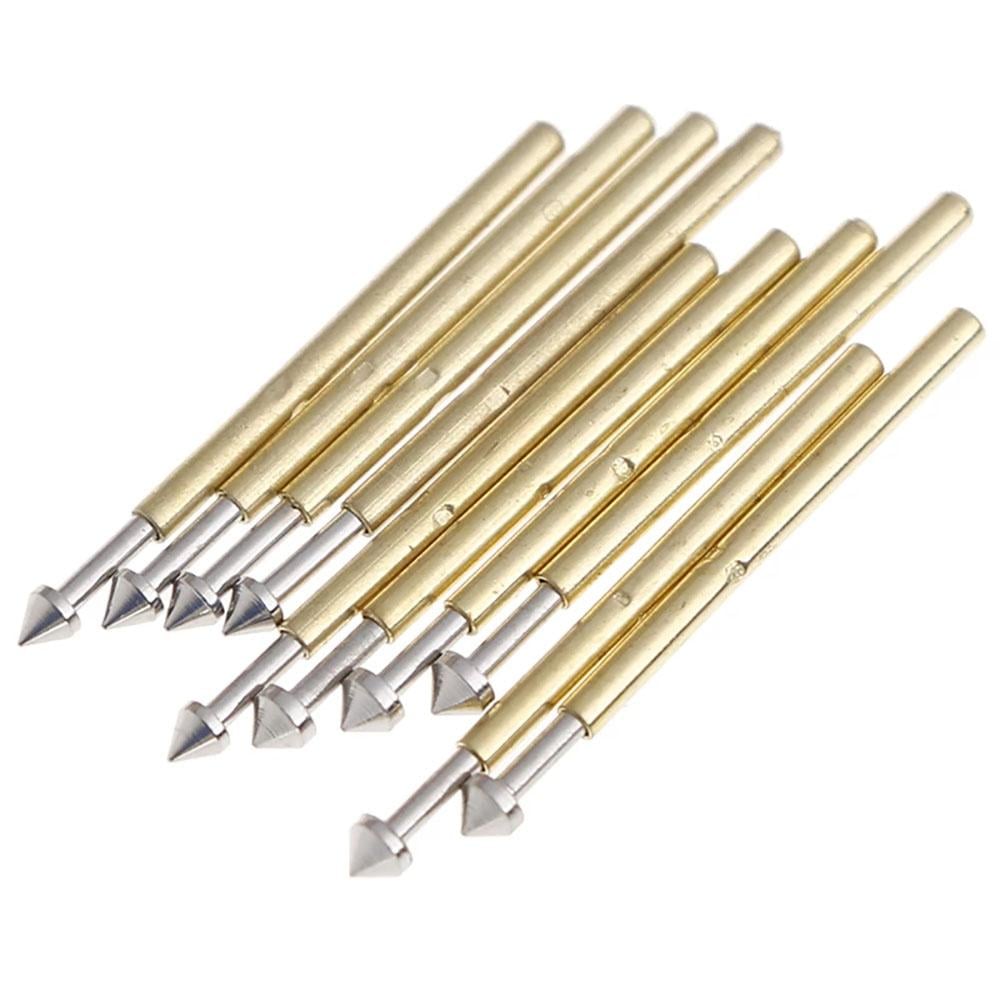

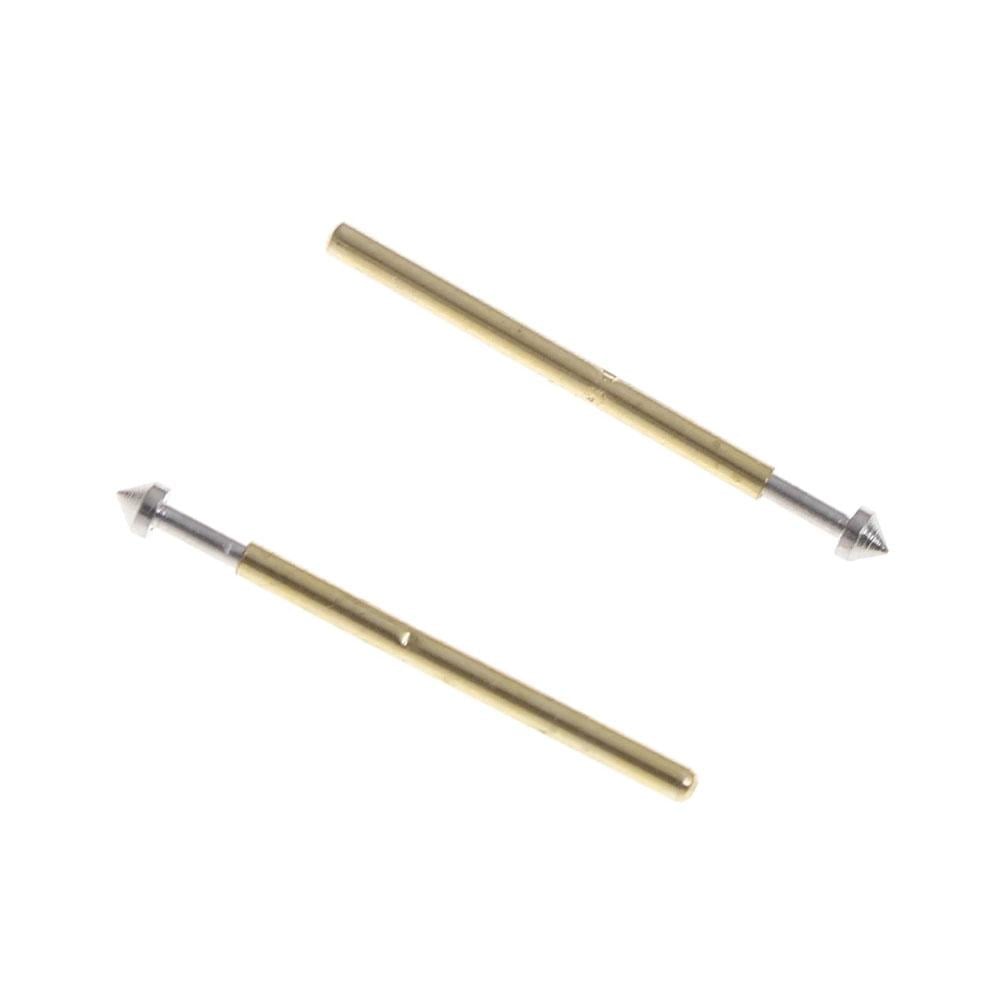

ComparePogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. We use them by the dozen for making programming and testing jigs but they’re handy also if say you want to JTAG program a board that you cant solder headers to – just shove these thin contacts into a 0.1″ pitch IDC programming cable and press it onto the contacts. The Pogo Pins come in different Tip styles – flat, conical, rounded, crown, etc. This pin comes with crown tip. This tip is great for making connections to PCB Test Points and Wires specially for wire wrap posts, even if the contacts are bent or twisted.
Packing List:
5 xP160-E2 Spring Test Probe Pogo Pin
