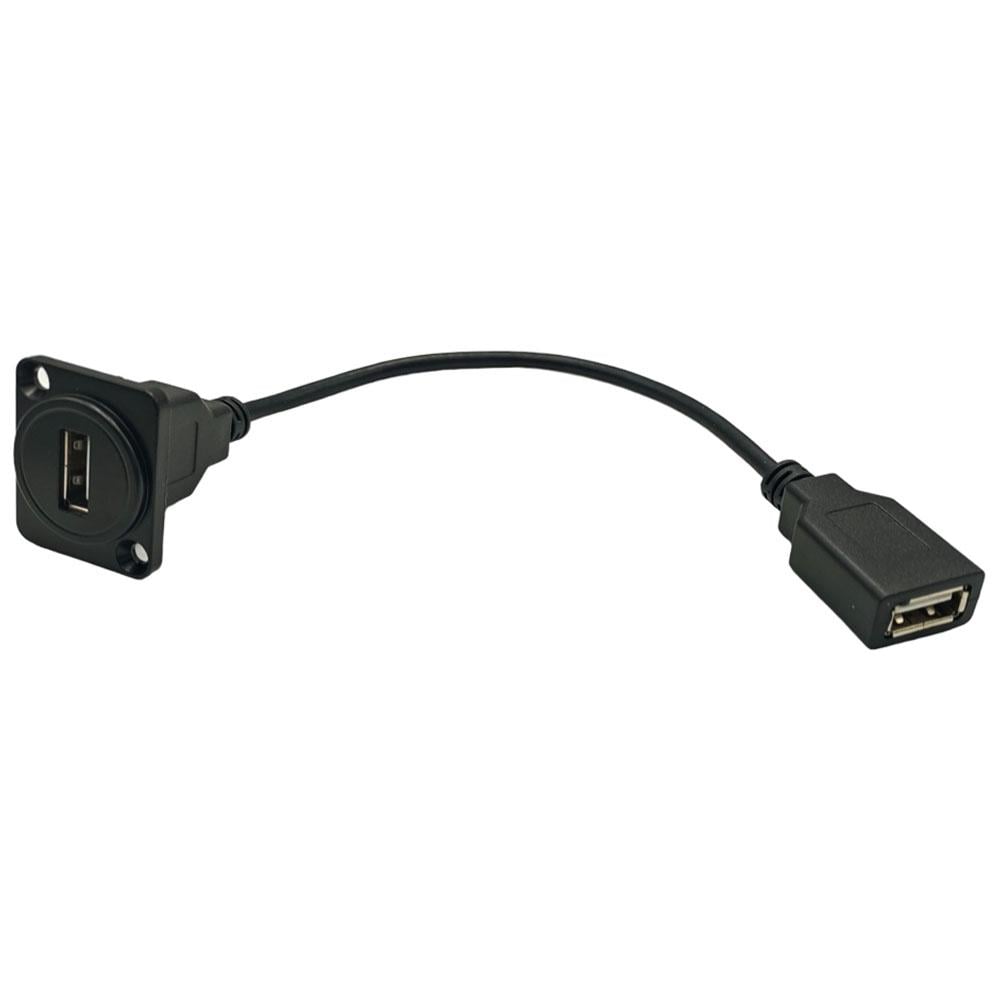

Panel Mount Female USB 2.0 to Cable Female USB 2.0 Connector
Specifications:
- Connector Type:
- Panel Side: Female USB 2.0

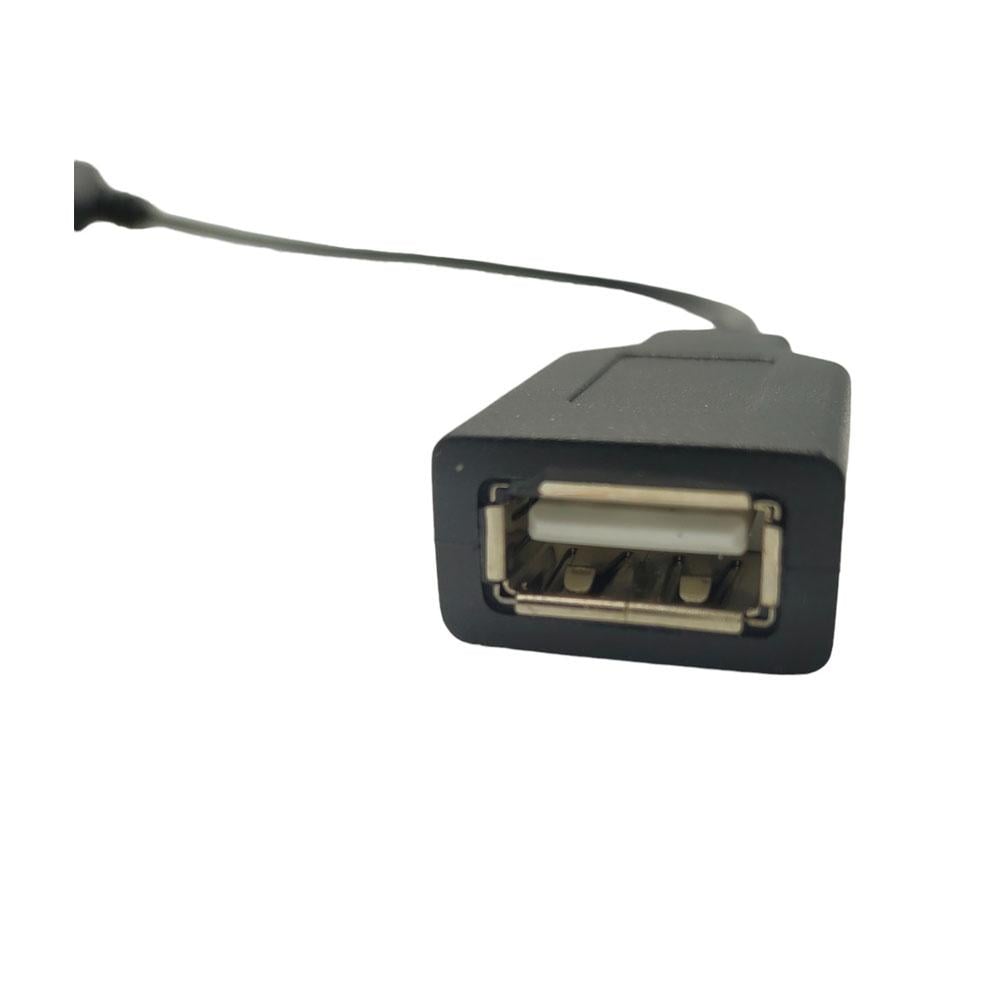

- Cable Side: Female USB 2.0
- Mounting:

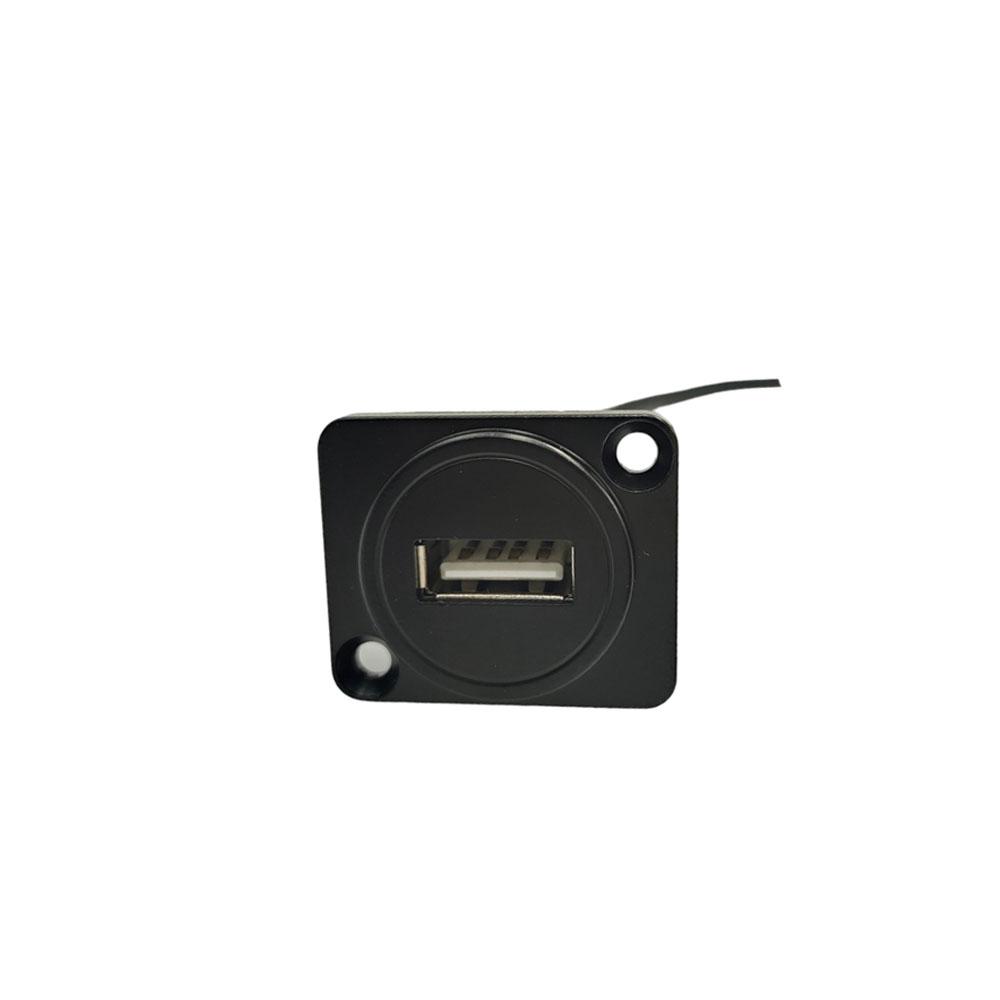

- Mounting Type: Panel mount with flanges
- Mounting Flanges: Two flanges with screw holes for secure attachment to a panel or enclosure
- Material:
- Body: Durable plastic or metal housing for the connectors
- Contacts: Gold-plated or nickel-plated for enhanced conductivity and corrosion resistance
- Cable:
- Length: Varies; commonly available in lengths from 0.5 to 2 meters
- Type: USB 2.0 compliant cable
- Color: Typically black
- Shielding: EMI/RFI shielding for signal integrity
- USB 2.0 Specifications:
- Data Transfer Rate: Up to 480 Mbps
- Compatibility: Backward compatible with USB 1.1
- Physical Dimensions:
- Panel Cutout Dimensions: Typically around 15mm x 12mm, varies by manufacturer
- Connector Size: Standard USB 2.0 dimensions
- Electrical Characteristics:
- Voltage: 5V DC
- Current Rating: Up to 500mA (standard for USB 2.0)
₹32,500.00
CompareA Panel Mount Female USB 2.0 to Cable Female USB 2.0 Connector is designed to provide a secure and stable USB connection point on a panel or enclosure while extending the connection through a cable. This setup is commonly used in custom installations where a fixed USB port is needed.
Use Cases:
- Applications: Suitable for use in custom-built PCs, industrial machinery, automotive dashboards, and any other application requiring a fixed USB port.
- Installation: The connector can be easily installed by securing the female USB connector to a panel with screws and connecting another USB device through the female cable end.
Package Includes:
1 x Panel Mount Female USB 2.0 to Cable Female USB 2.0 Connector
