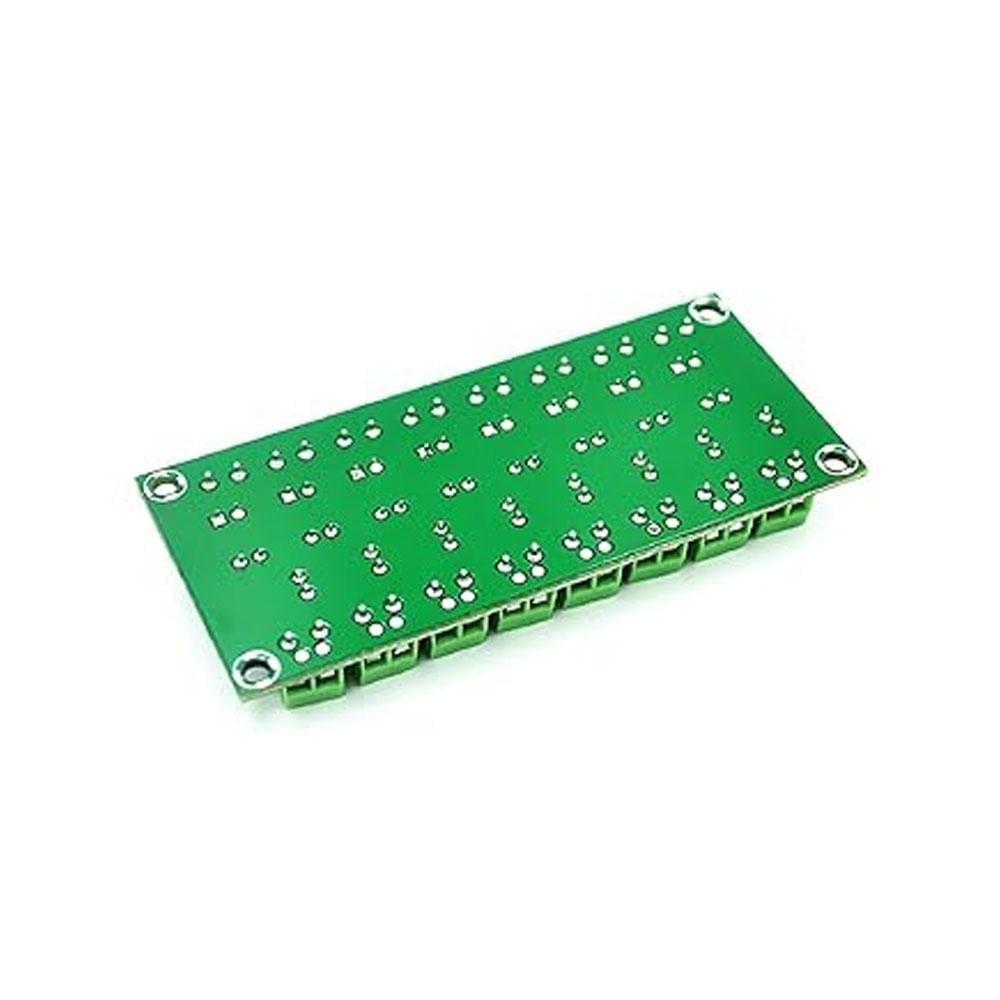

PC817 8 Channel Optocoupler Isolation Board DC
Specifications:
- Optocouplers:
- Type: PC817
- Channels: 8
- Isolation Voltage: 5000 Vrms
- Input LED Forward Voltage: 1.2V (typical), 1.4V (max)
- Input LED Forward Current: 20 mA (typical)
- Input Specifications:
- Input Voltage: 3.3V to 24V DC (varies based on design, often adjustable)
- Input Current: Depends on the input voltage and the series resistor used with the optocoupler’s LED
- Output Specifications:
- Output Type: Transistor (open collector)
- Collector-Emitter Voltage: 80V (max)
- Collector Current: 50 mA (max)
- Board Specifications:
- Dimensions: Varies by manufacturer, typically around 60mm x 100mm
- PCB Material: FR4
- Mounting Holes: Typically 4, one in each corner
- Terminal Blocks: Screw type, 5mm pitch
- Power Supply: Varies, typically 5V DC or separate power for input and output sides
- Performance:
- Response Time: 4 µs (typical)
- Temperature Range: -30°C to 100°C (storage), -30°C to 85°C (operating)
₹30,000.00

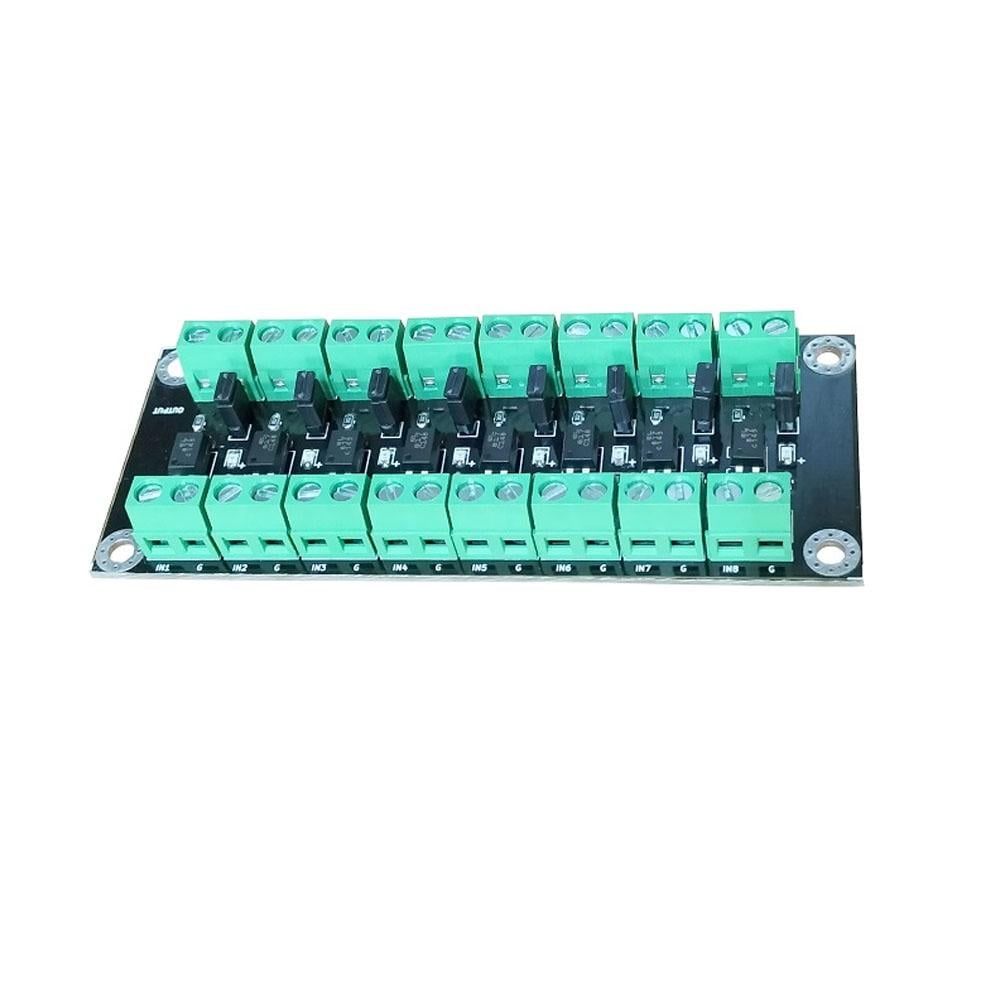

CompareThe image you provided appears to be an 8-channel optocoupler isolation board, specifically using PC817 optocouplers. These boards are commonly used in electronics projects to provide electrical isolation between different parts of a circuit.
Applications:
- Microcontroller Interfacing: Protects microcontrollers from high voltages by isolating the input signals.
- Signal Isolation: Used to isolate different parts of a circuit to prevent noise or interference.
- Industrial Automation: Commonly used in industrial control systems to interface different voltage levels safely.
- Relay Control: This can be used to control relays without directly connecting the control signal to the high-voltage side.
Example Connections:
- Inputs: Connect the input signals (e.g., from sensors or other low-voltage devices) to the IN1 to IN8 terminals.
- Outputs: The outputs can be connected to relays, microcontroller pins, or other control circuitry that requires isolation from the input signals.
- Power Supply: Ensure the board is powered appropriately, following the specifications for voltage and current.
Package Include:
1 x PC817 8-Channel Optocoupler Isolation Board DC.
