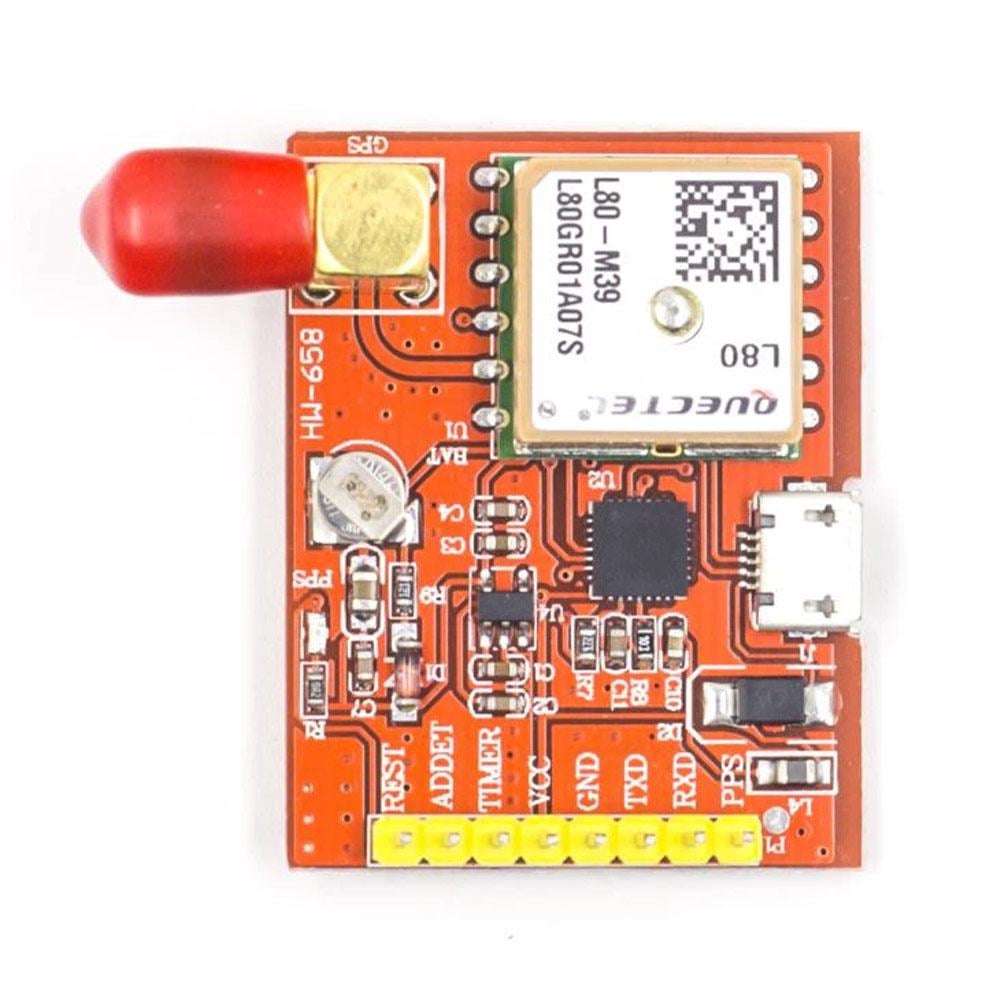

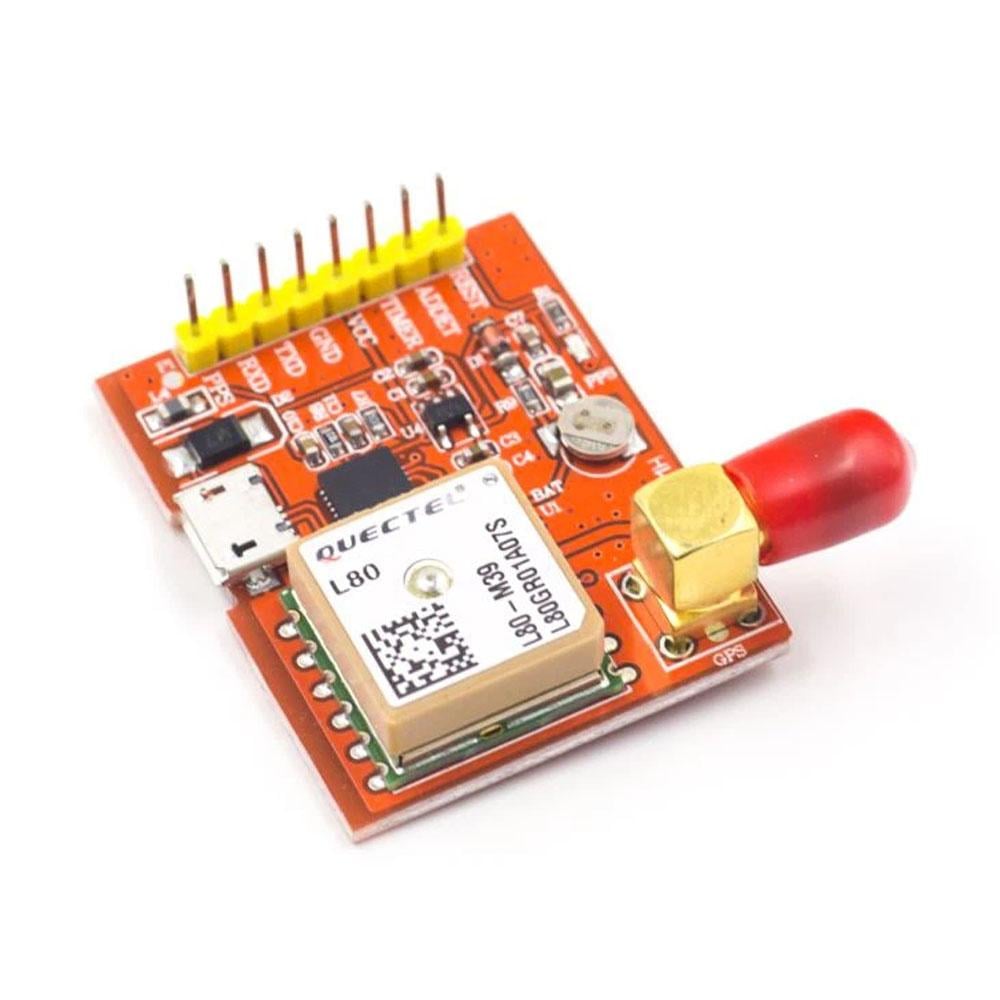

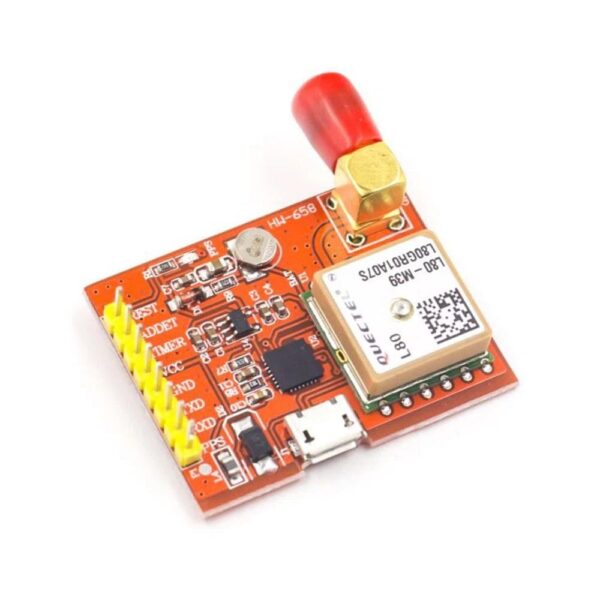

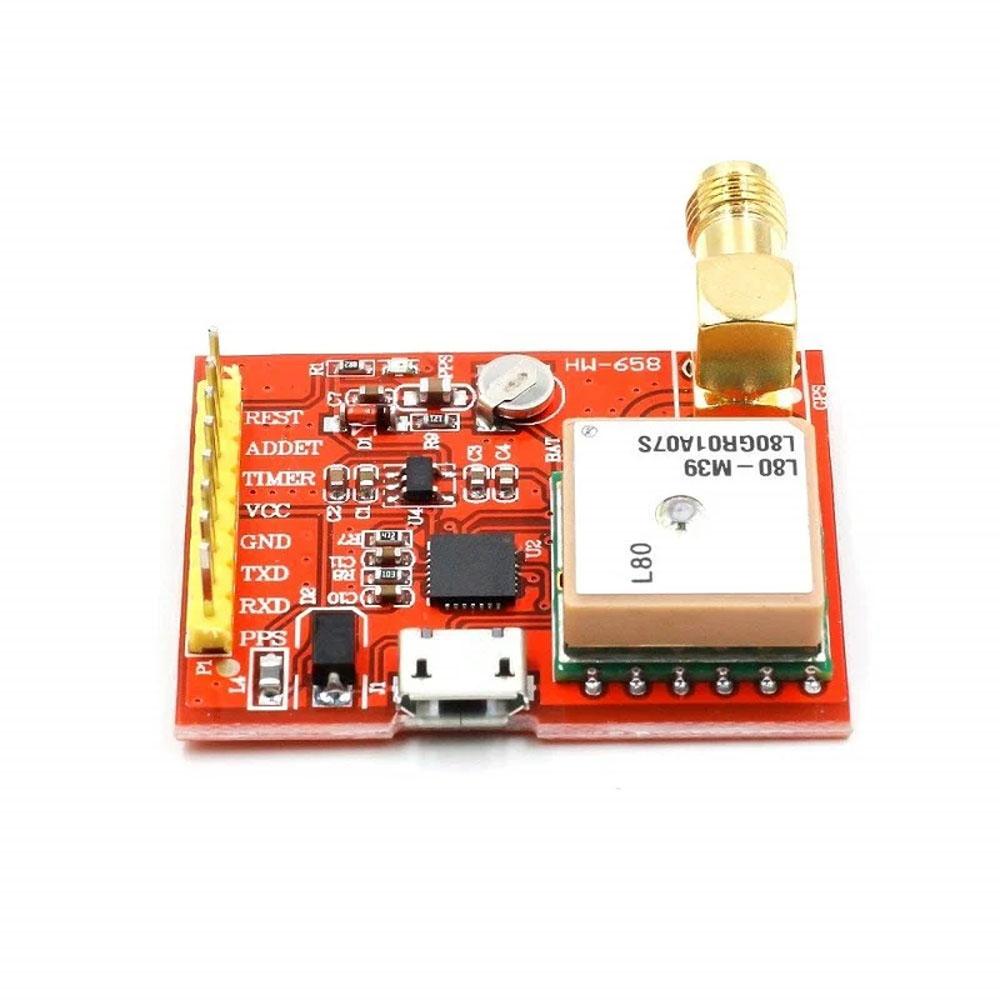

Raspberry Pi GPS Module USB Port
Raspberry Pi GPS Module USB Port - Image 2
Raspberry Pi GPS Module USB Port - Image 3
Raspberry Pi GPS Module USB Port - Image 4

Raspberry Pi GPS Module USB Port

Availability:

Out of stock
Compare

Specifications:

  • Data format: NMEA0183 protocol
  • Channel: 22 (tracking) / 66 (capturing)
  • Voltage: 3.3-5V
  • Working current: Max 100mA
  • GPS mode: L80-39
  • Channel : 22 (tracking) / 66 (capturing)
  • Input Voltage Range : 3.3 ~ 5
  • Working Current : Max 100mA
  • GPS Mode : L80-39
  • Location Precision : <2.5m CEP
  • Speed Precision : <0.1 m/s
  • Capturing Sensitivity Tracking Sensitivity : -165dm
  • Data Format : NMEA0183 protocol
  • Working Temperature Range (°CAerial Size : 15 x 15 x 4 mm
  • Material : Plastic
  • Color : Red
  • Length (mm) : 39
  • Width (mm) : 29
  • Height (mm) : 15
    Weight (g) : 15

₹159,101.00

Out of stock

Compare

Support the Raspberry Pi models A, B, A +, B +, Zero, 2. USB Port – GPS module contains T CP202USB serial interface chip, through a serial Port or USB and Raspberry Pi to communicate.
L80 is integrated with the Patch antenna (5.0 * 5.0 * 5.0 mm) of compact modules, with ultra-low power consumption, the advantages of the fast positioning, in capturing and tracking, makes the USB Port – GPS has a very good performance.

Features:

  1. Suitable For Raspberry Pi A B A+ B+ Zero 2 3.
  2. Connect via 1*8 2.54 separation distance pin header or USB micro data cable.
  3. Adopting L80-39 mold project, with 15 x 15 x 4mm Patch aerial.
  4. Super low power consumption, quick location.
  5. Support Short-circuit Protection and Aerial Detection.
  6. Support self-auxiliary AGPS (EASY technology), no need for external memory.
  7. Support  LOCUS, DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN).

You may also look for:

Package Includes:

1 x Raspberry Pi GPS Module USB Port
