RS37 Metal Gear Motors

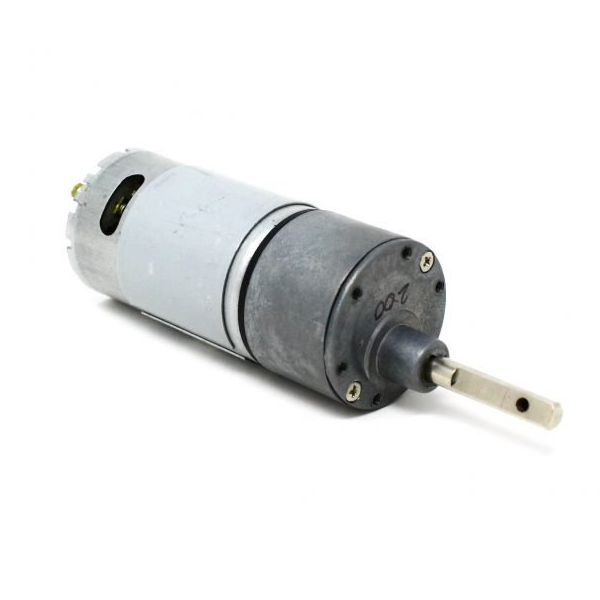

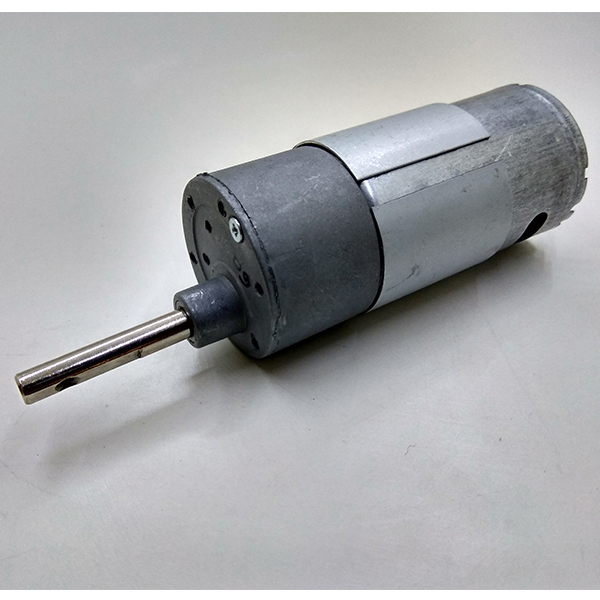

RS-37 30 RPM High Torque Side Shaft DC Geared Motor
Specifications:
- Shaft Diameter – 6mm (with internal hole)
- Shaft Length – 30mm
- Dimensions : Gearbox diameter – 37; Length – 80mm
- Weight – 300 gms
- Torque Rated – 7kgcm to 30 kgcm (depending on RPM)
- Voltage – 9 to 18 (Nominal Voltage – 12v)
- No-load current = 500 mA(Max), Load current = 3 A(Max)
₹70,800.00
Compare
Available in following RPM (at 12v):
10, 30, 60, 100, 150, 200, 300, 500
RPM Vs Torque
5 – 1000 N-cm
10 – 750 N-cm
20 – 600 N-cm
30 – 400 N-cm
60 – 230 N-cm
100 – 130 N-cm
200 – 70 N-cm
300 – 39 N-cm
600 – 20 N-cm
