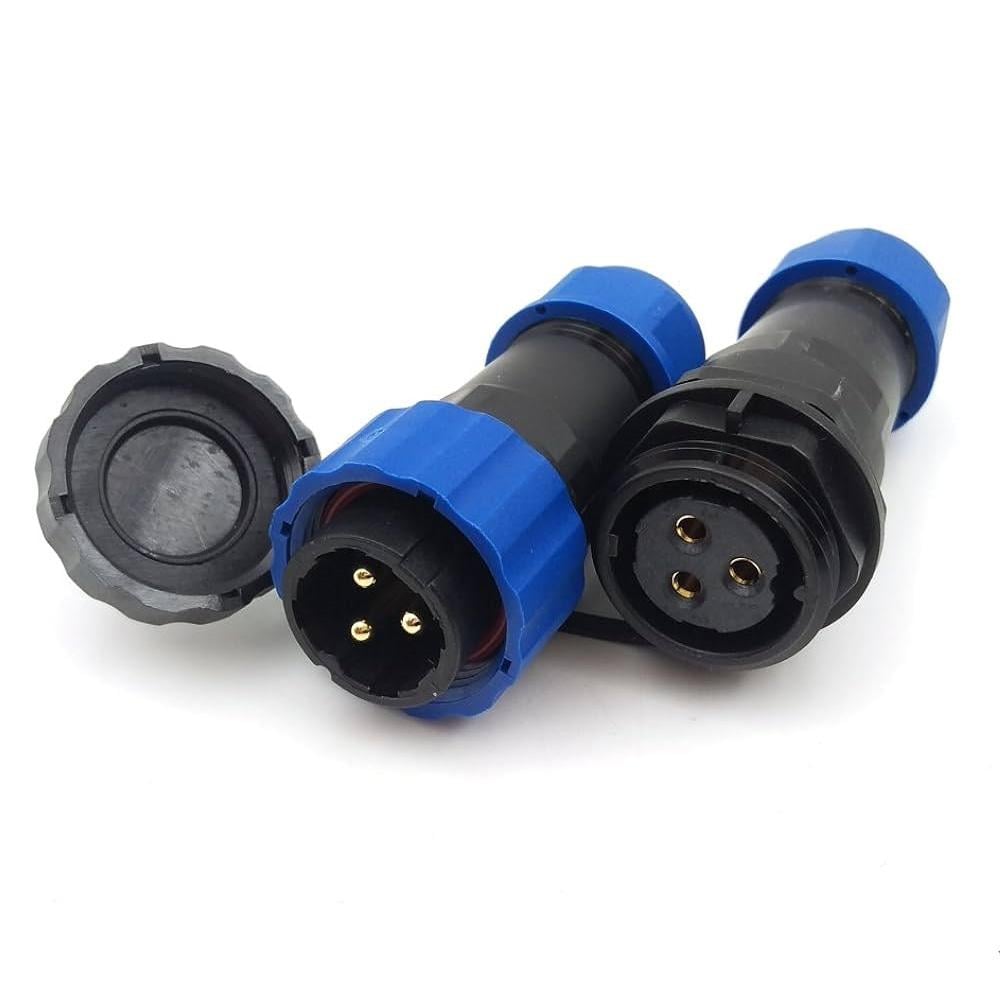

SD20 3 Pin 25a IP68 Waterproof Cable Mount Aviation Connector Male Plug+Female Socket
Specifications:
- Docking Diameter: 20mm
- Cable Insert Diameter: 11mm
- No of Contact Pins: 2
- Contact Pin Diameter: 2.8mm
- Rated Current: 25A
- Rated Voltage: 250 (DC/AC/RMS)
- Contact Resistance: 1MΩ
- Insulation Resistance: 2000MΩ
- Temperature Range: -25 – 85°C
- Protection Degree: IP68
- Coupling: Threaded Coupling
- Shell Material: PA66/Polyamide 66
- Insert Material: PPS
- Contact Material: Brass(Gold-plated)
- Termination: Solder
- Mating Cycle: 500 Times
₹50,740.00
CompareAviation connectors are primarily used in the fields of power transmission and signal transmission and contain many different types of connectors, such as SD connectors. Therefore, the aviation plug and socket does not refer to a plug and socket of one model. The SD series has different classifications depending on the size of the opening. The number behind the SD represents the size of the hole in the chassis, which is the thread diameter of the socket.
SD connectors can be used for electrical connections between instrumentation and electronic devices or interconnections between wires and cables. SD connectors are threaded, stable in electrical conductivity, and have a waterproof function.
Application:
- CCTV Security System
- Rear View Camera
- Vision System
- Communications
- Mechanical equipment
- Automotive
Packing List:
1 x Sd20 3pin 25a Waterproof Cable Mount Aviation Connector Male Plug+Female Socket Ip68
