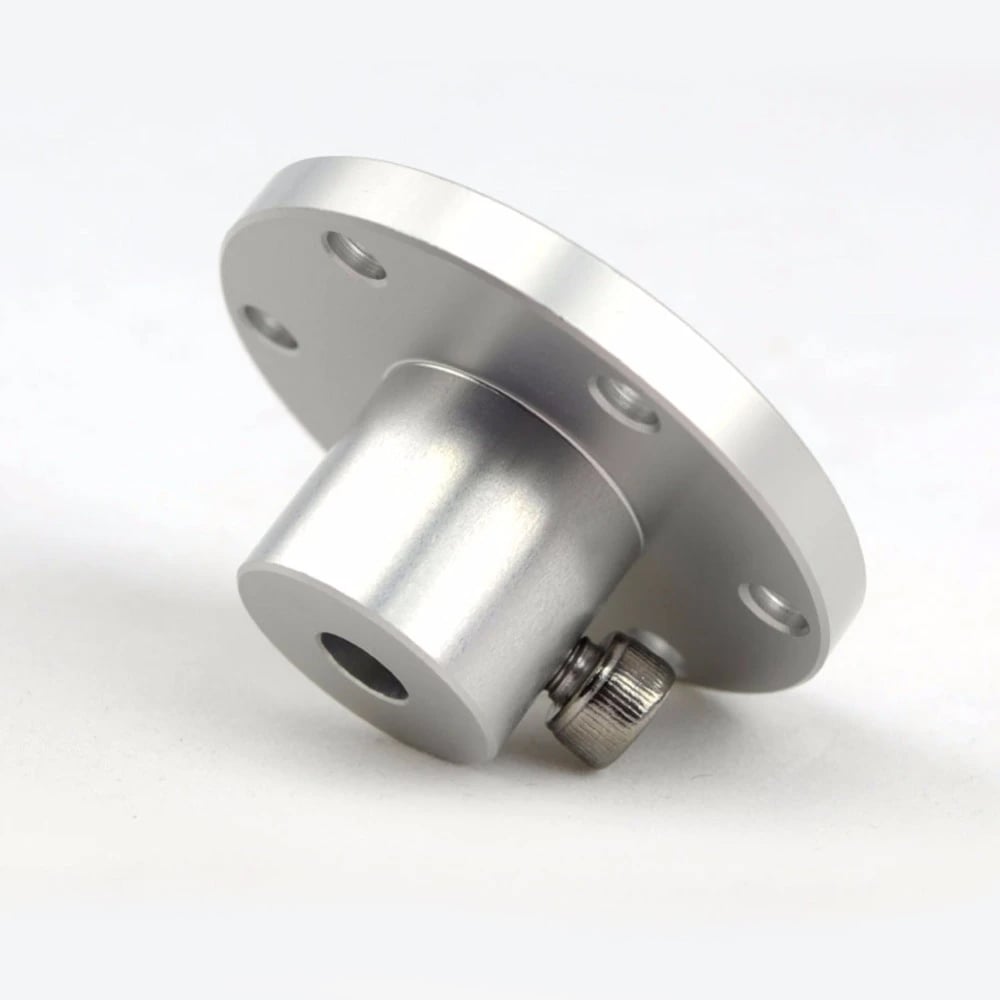

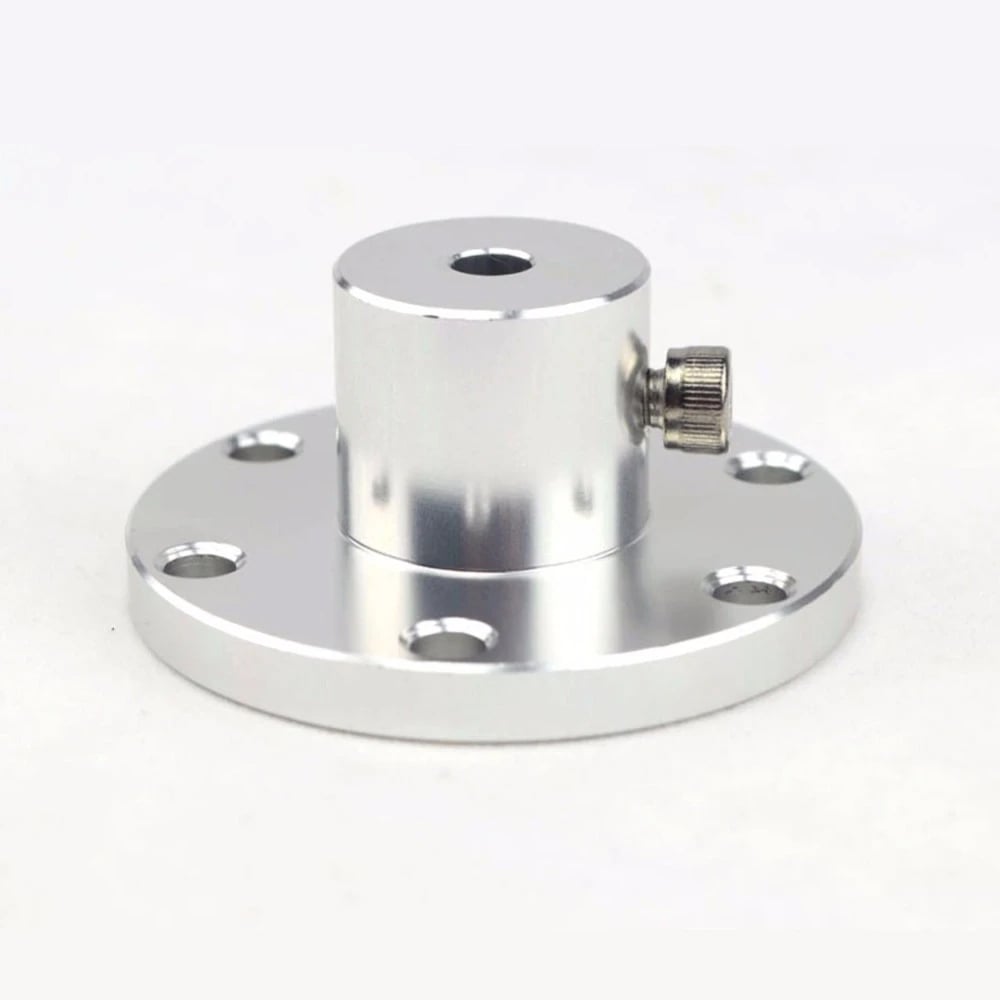

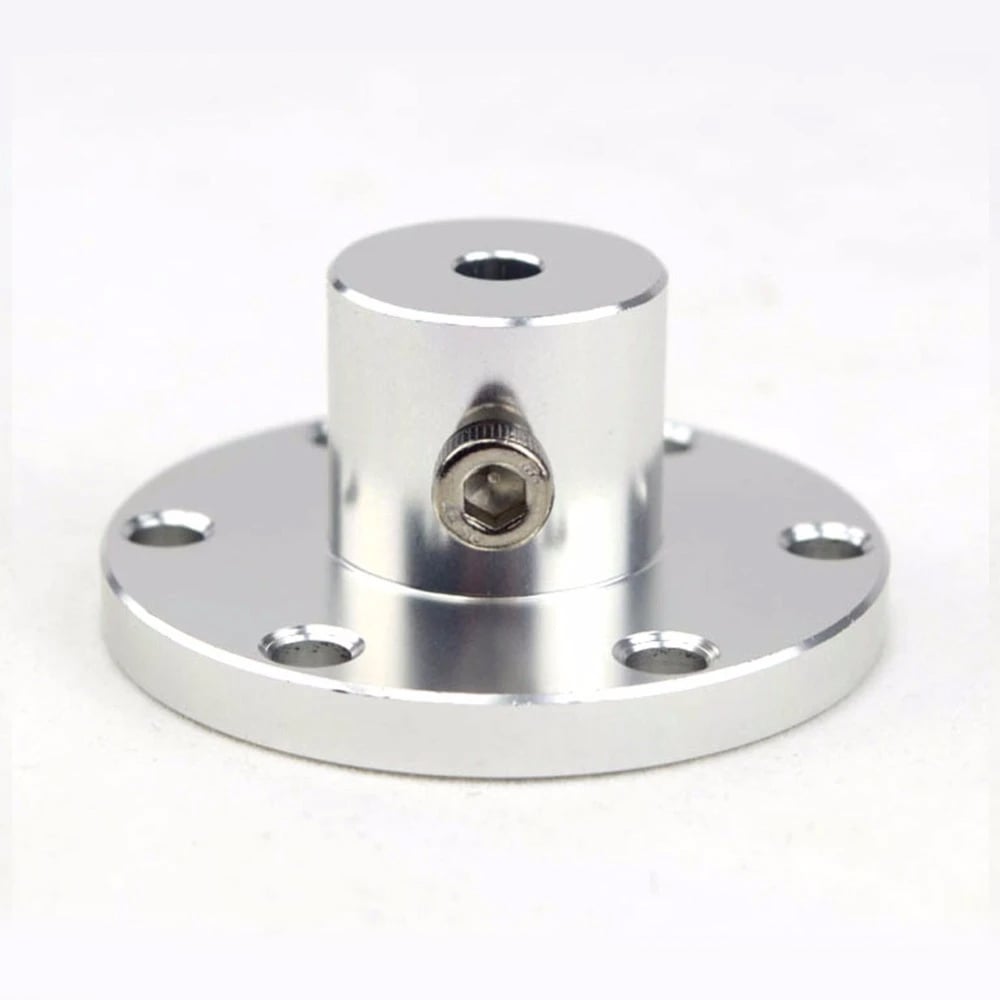

Universal Hub Coupling ID 6mm OD 20mm Extra Heavy Duty Aluminium Alloy

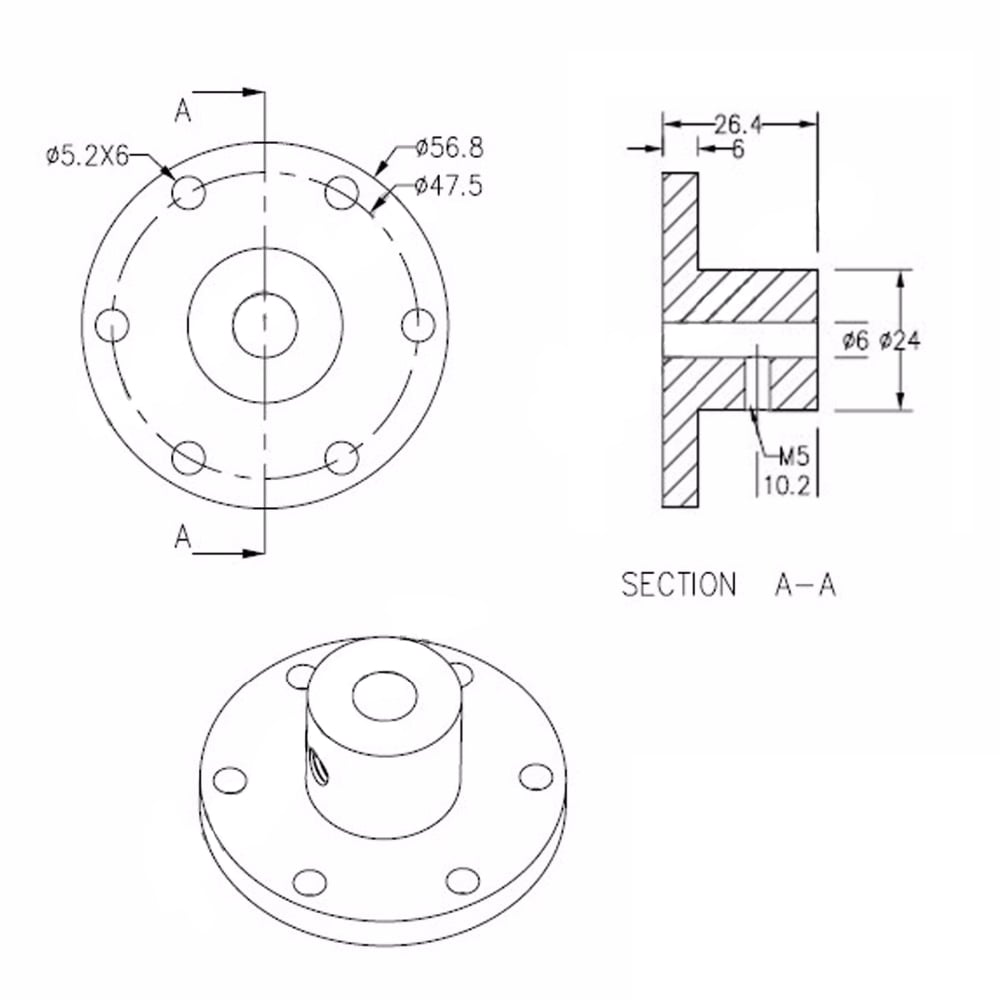

Specifications :

  • Material: High-Grade Aluminum-Alloy ( same high-strength alloy as used in meccanum wheels)
  • Bore size ID: 6mm hole for the shaft of the Motor
  • Flange OD: 32mm
  • Flange mounting holes: 6 holes x PCD 47.6 ( compatible to meccanum wheels)
  • Total thickness: 26.4mm
  • Suitable for A Set of 32mm Aluminium Bush Type Mecanum Wheels- (4 Pcs Set)

26,500.00

Compare
The Universal Hub Coupling is made with extreme precision using high-grade aluminium alloy material for high-accuracy motor and wheel joints. The Universal Hub Coupling is designed for mounting of various robot wheels on our websites like Meccanum wheels, Omni Wheels and heavy-duty industrial PU Wheels. They are extremely light in weight (almost 60% less than the MS coupling) and with high strength due to the special aluminium alloy used which is the same as used in meccanum wheels. Hence they do not increase the weight of the motor and wheel assembly while providing an extremely perfect joint.
These precision hub couplings have been made with extreme care for dimensional accuracy to make a complete and Coaxial joint to the meccanum wheels and omni wheels. The other couplings available in the market made with MS material are of heavy weight and do not have the correct dimensional accuracy. Hence they often give an offset in the motor and wheel assembly and add weight to the assembly which increases the load on the motors, decreases the efficiency of the motor and wheel assembly and results in more power consumption.
Packing List:
1 x Universal Hub Coupling ID 6mm OD 20-mm Extra Heavy Duty Aluminium Alloy
