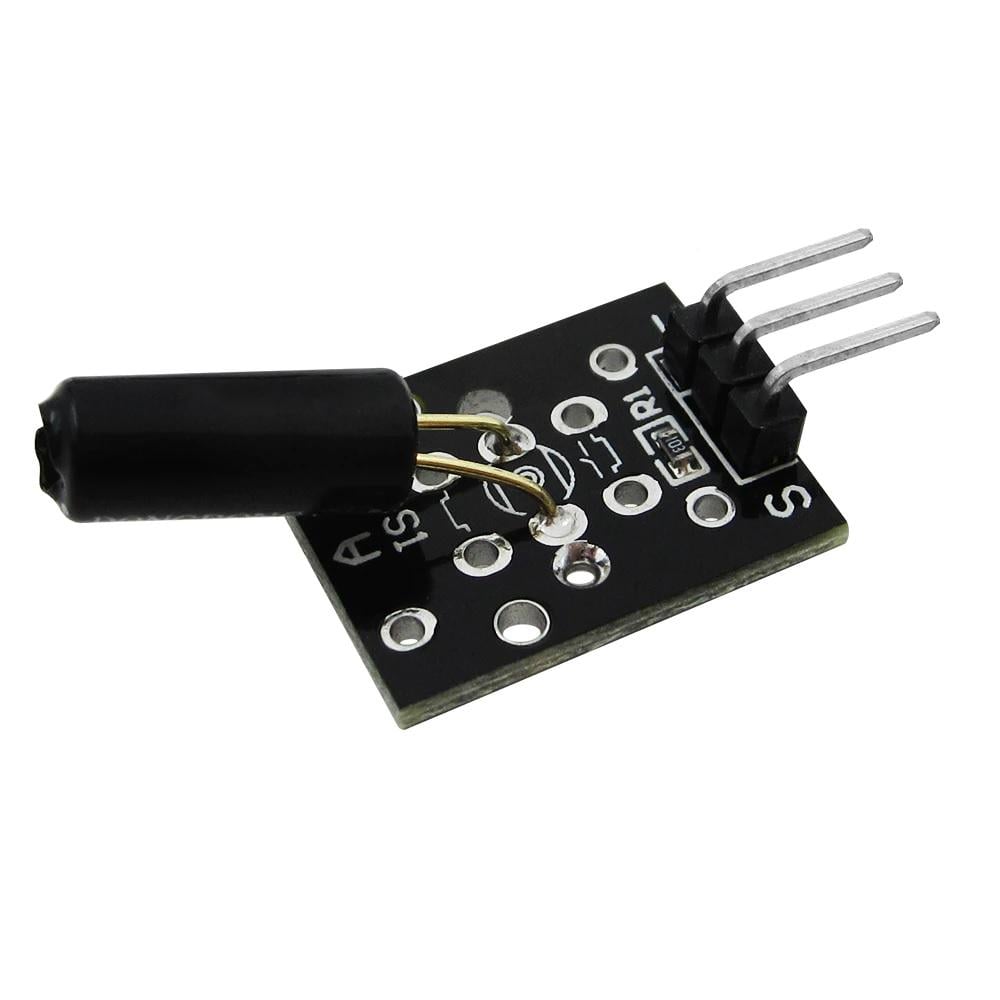

Vibration Switch Module

The switch primarily consists of a terminal that forms a center post and a second terminal that is a spring that surrounds the center post. When a sufficient force is transferred to the switch, the terminal consisting of the spring moves and shorts both terminals together.
The connection between the terminals is momentary and will require a little thought as you implement it in your Arduino project. The positioning of the switch is also important. Generally speaking, the switch should be physically located as close as possible to the area being monitored. Otherwise, the vibration is detected may be dampened by other structural components in your project.

Pin connection:

Pin – ⇔ GND, connect to GND of the Arduino
Middle Pin ⇔ +5 v, connect to Arduino +5
Pin S ⇔ signal, connect to Arduino pin 10

You may also look for :

• Arduino
• Raspberry pi
•  Jumper wire

ARDUINO CONNECTIONS WITH KY-002 VIBRATION SWITCH

Datasheet available here.

Package Includes:

• 1 x Vibration Switch Module
