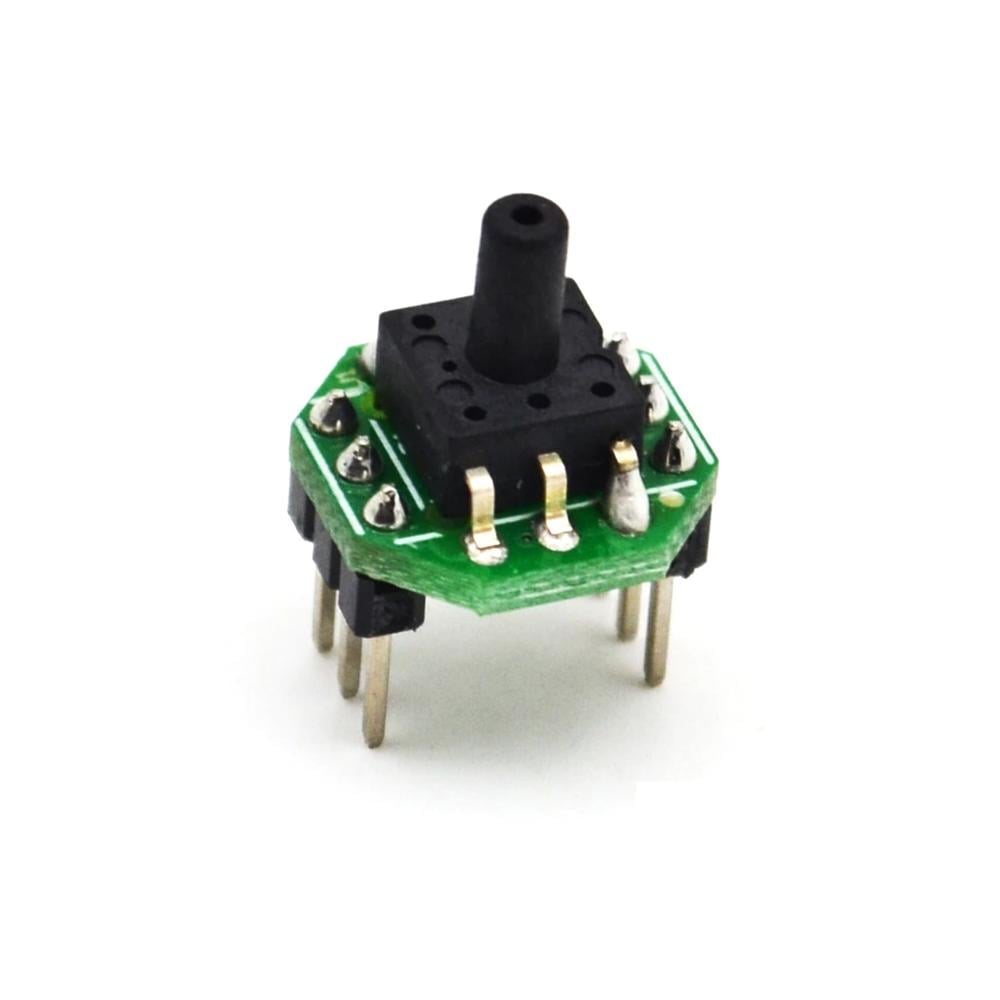

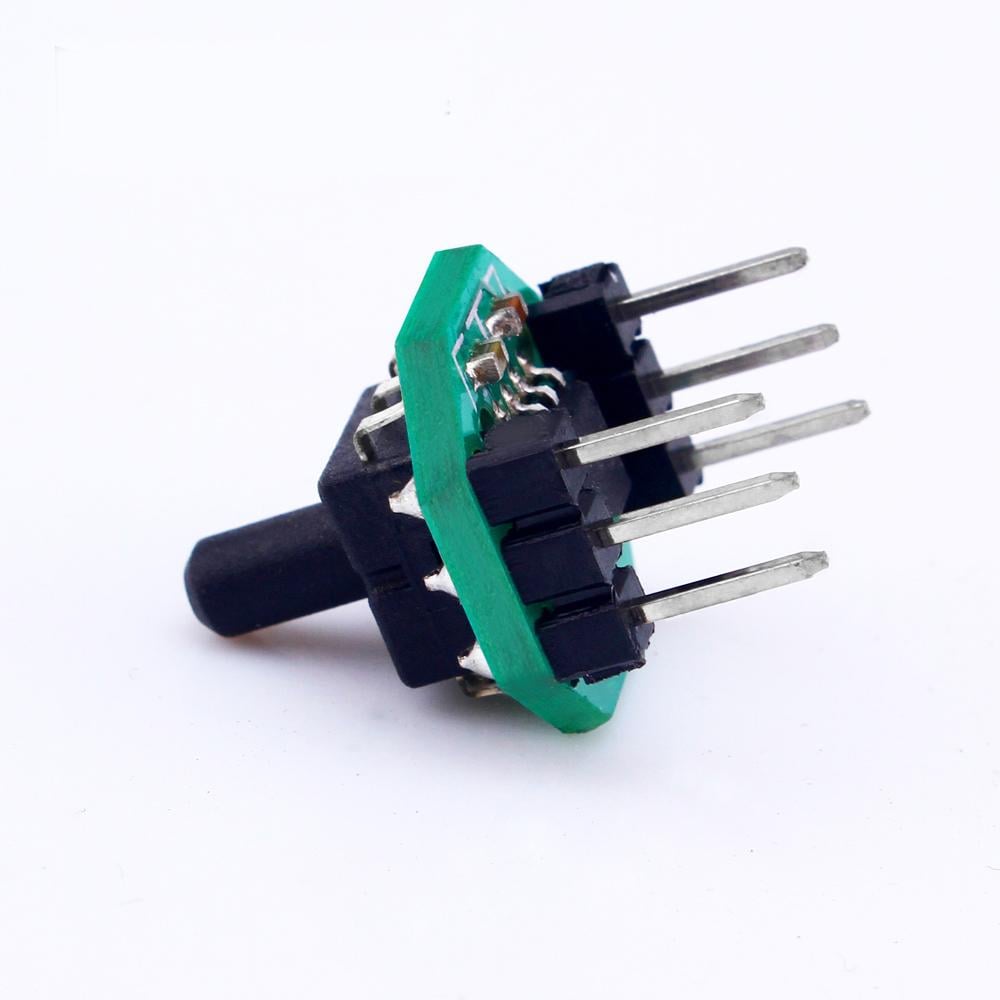

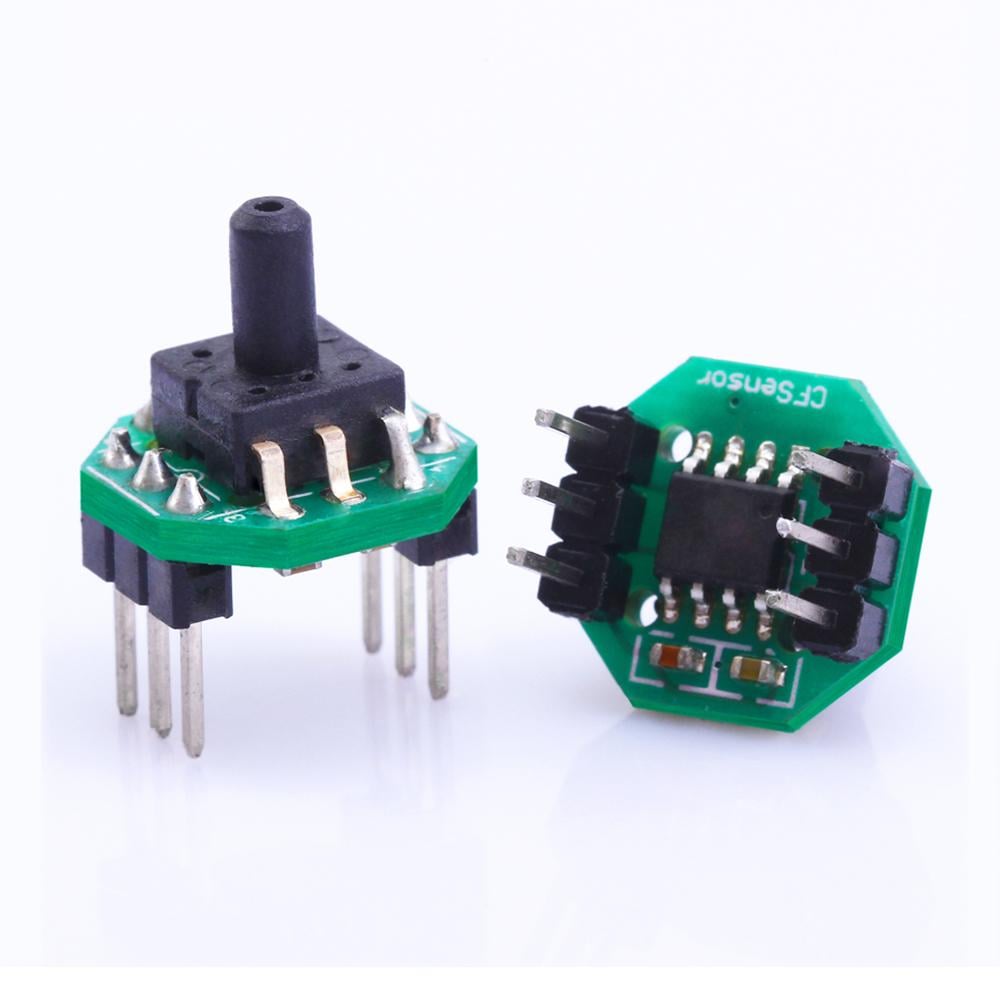

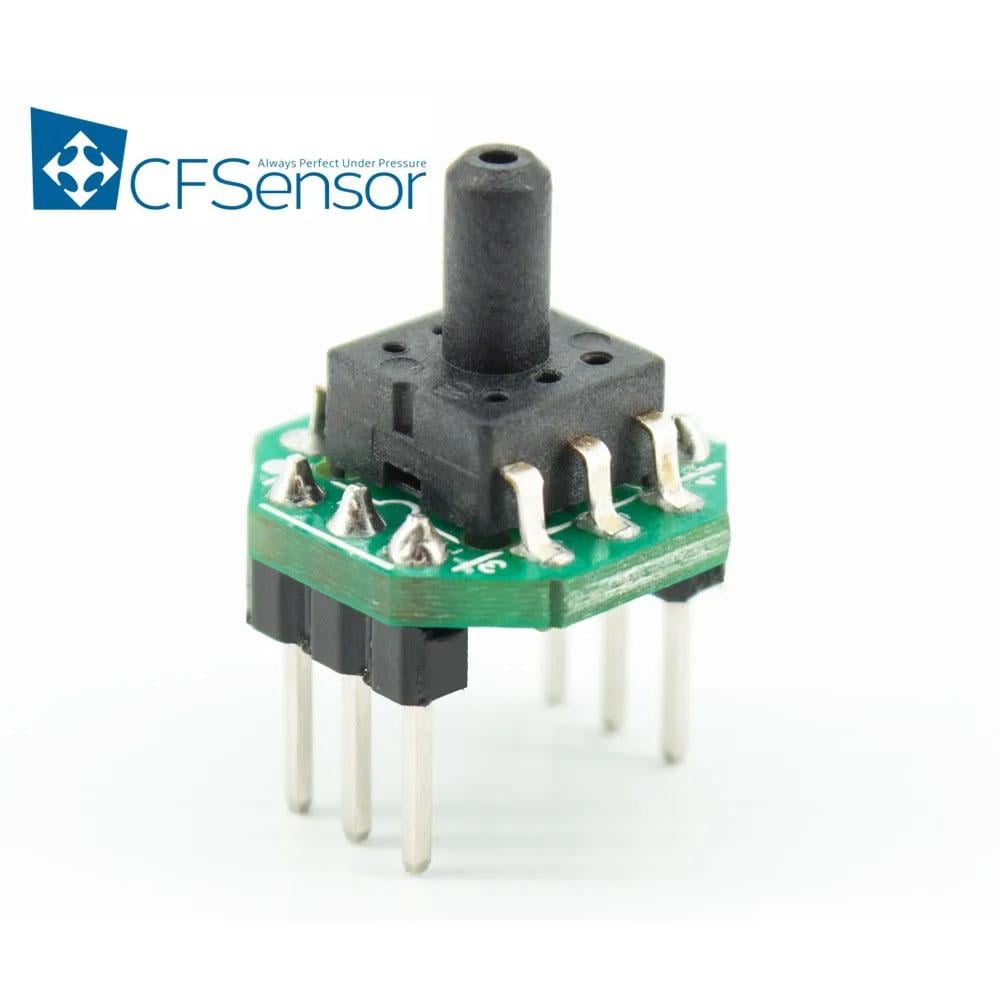

XGZP6847A 0 to 1000 KPa Analog Output 5V – CF SENSOR ORIGINAL

XGZP6847A is a perfect silicon pressure sensor module offering a ratiometric analogue interface for reading pressure over the specified full-scale pressure span and temp range. The XGZP6847A incorporates a silicon piezoresistive pressure sensor(XGZP SOP6) and an onboard Application Specific Integrated Circuit(ASIC) under PC board in a DIP6 package. The XGZP6847A is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity,so the XGZP6847A pressure sensor module satisfy the perfect repeatability, linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machines, home electronics,and other pneumatic devices etc. XGZP6847A pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage, output voltage, and pressure range) are available

Application:

• For Medical and health equipment field, such as Blood pressure tests and monitoring, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage devices.
• For the Home appliance field, such as refrigerators, Printers, Humidifiers, Washer/Dryer, coffee machines, Cleaner, Robotic, Emergency Lamp, Sports Equipment etc.
• For Other fields, such as air pumps, emergency lamps, dust collectors, HVAC and pneumatic devices, automotive applications etc.

Features :

•  Ranges: 0～1000KPA
•  Gage & Vacuum Type
•  For Non-corrosive gas or air
•  Calibrated Amplified: Analog signal
•  Temp. Compensated:0℃～+60℃(32℉～+140℉)
•  Direct application, Low Cost.

Download Datasheet Click Here

You may also want to explore :

1 . CF sensor

Package Includes:

1 x XGZP6847A 0 to 1000 KPa Analog Output 5V – CF SENSOR ORIGINAL
