XGZP6847A 0 to 5 KPa Analog Output 5V – CF SENSOR ORIGINAL

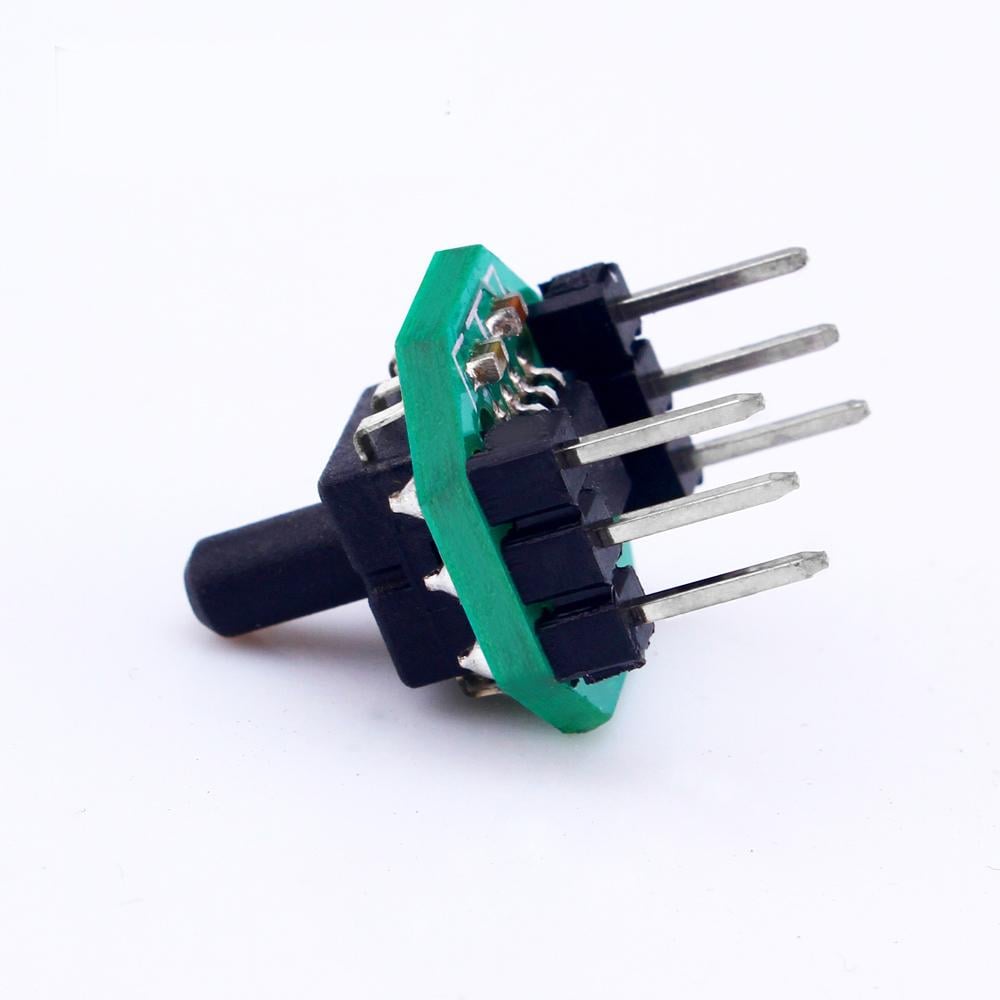

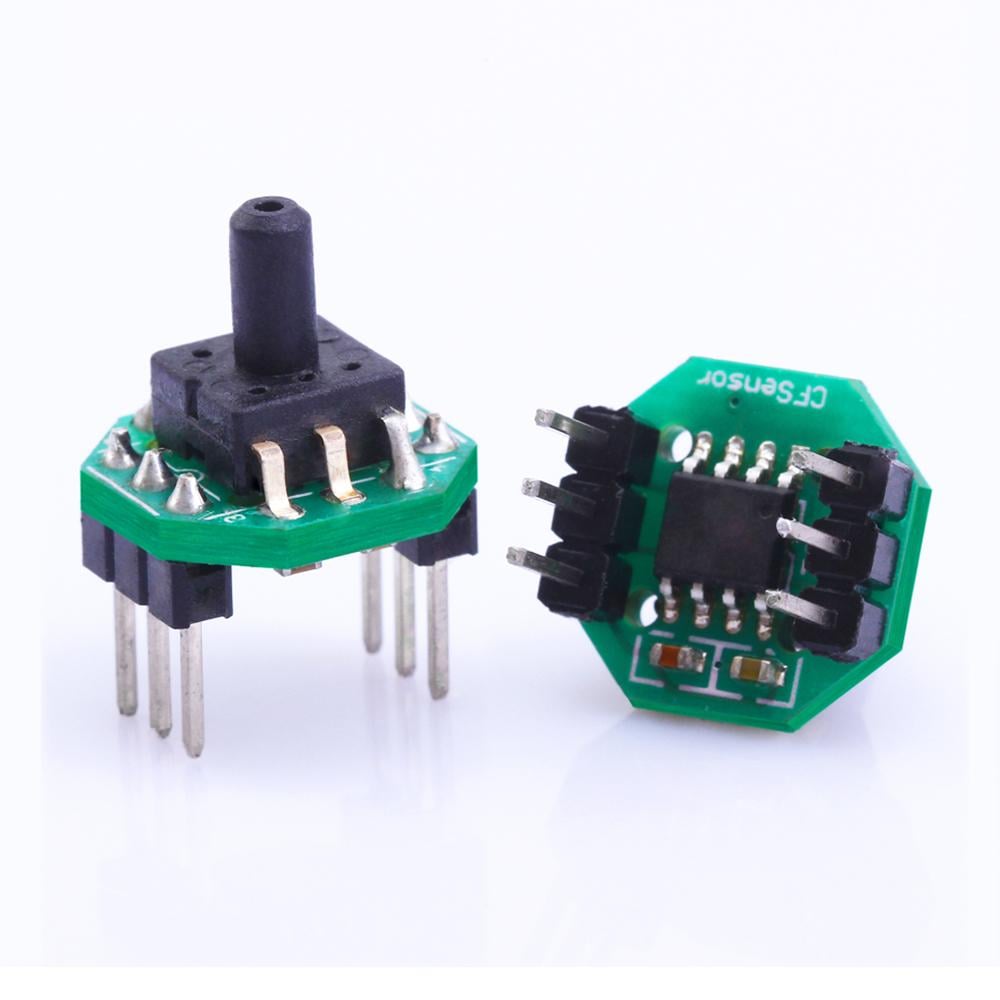

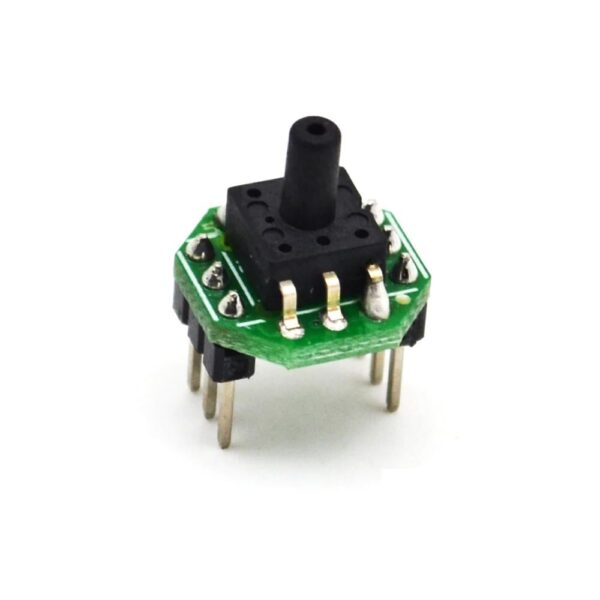

XGZP6847A is a perfect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full-scale pressure span and temp. range. The XGZP6847A incorporates a silicon piezoresistive pressure sensor(XGZP SOP6) and an onboard Application Specific Integrated Circuit(ASIC) under a PC board in a DIP6 package. The XGZP6847A is fully calibrated and temperature compensated for offset, sensitivity, temperature, and non-linearity, so the XGZP6847A pressure sensor module satisfies the perfect repeatability, linearity, stability, and sensibility, which can be applied directly in medical equipment,
fitness machine, home electronics, and other pneumatic devices, etc. XGZP6847A pressure sensor module is for high volume application at an affordable cost and perfect performance.

Applications:

• For Medical and healthy equipment fields, such as Blood pressure tests and monitoring Patients. Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device, etc.
• For the Home appliance fields, such as refrigerators, Printers, humidifiers, Washer/Dryer, coffee machines, Cleaner, Robotic, Emergency lamps, Sports Equipment etc.
• For Other fields, such as air pumps, emergency lamps, dust collectors, HVAC and pneumatic devices, automotive applications etc.

XGZP6847A 0 to 5 KPa Analog Output 5V – CF SENSOR ORIGINALDatasheet of

You may also want to explore :

1 . CF sensor

Packing List:

1 x XGZP6847A 0 to 5 KPa Analog Output 5V – CF SENSOR ORIGINAL
