Specifications:

  • Manufacturer: CFSensor
  • Product Category: Pressure Sensor
  • Series: XGZP6891D
  • Model Number: As per Order Guide
  • Pressure Range:
    • Negative Pressure: -100 kPa to -0.5 kPa
    • Positive Pressure: 0 kPa to 100 kPa
  • Pressure Type: Gauge / Differential
  • Power Supply: 2.5V to 5.5V
  • Output Type: I2C interface (digital)
  • Output Resolution: 24 bits
  • Accuracy: ±2.5% (customizable for specific requirements)
  • Measured Media: Dry Air or Non-corrosive Gas
  • Temperature Compensation Range: 0°C to 60°C
  • Operating Temperature: -30°C to 120°C
  • Package: Plastic Tube

₹165,001.00

Compare

Precision pressure sensor XGZP6891D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading differential pressure over the specified full scale pressure span.

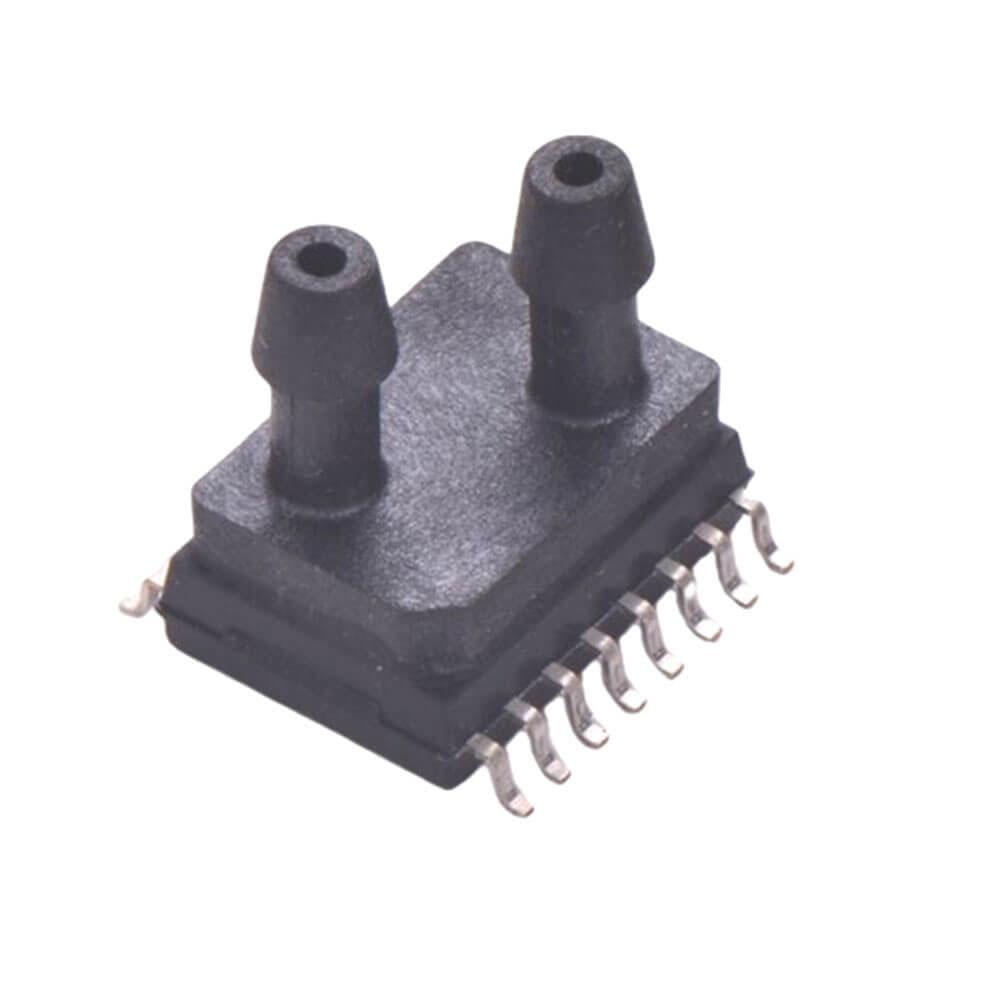

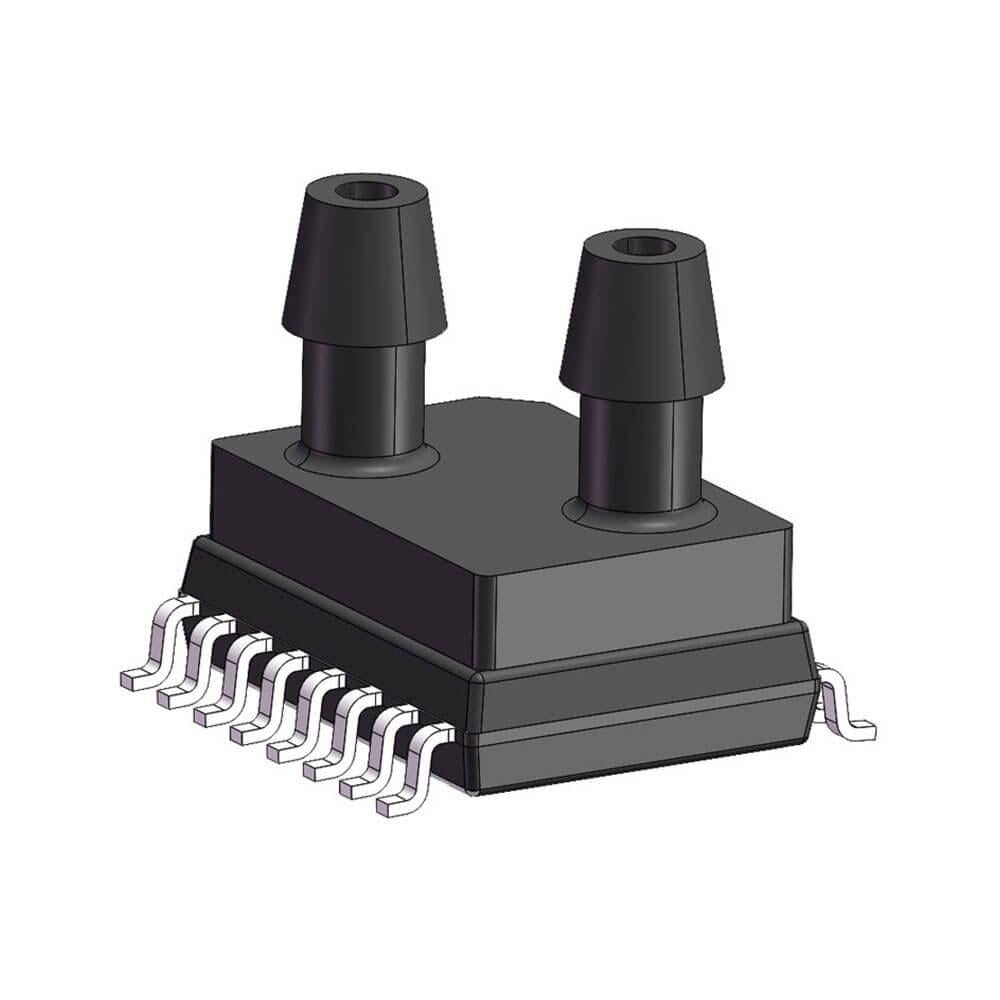

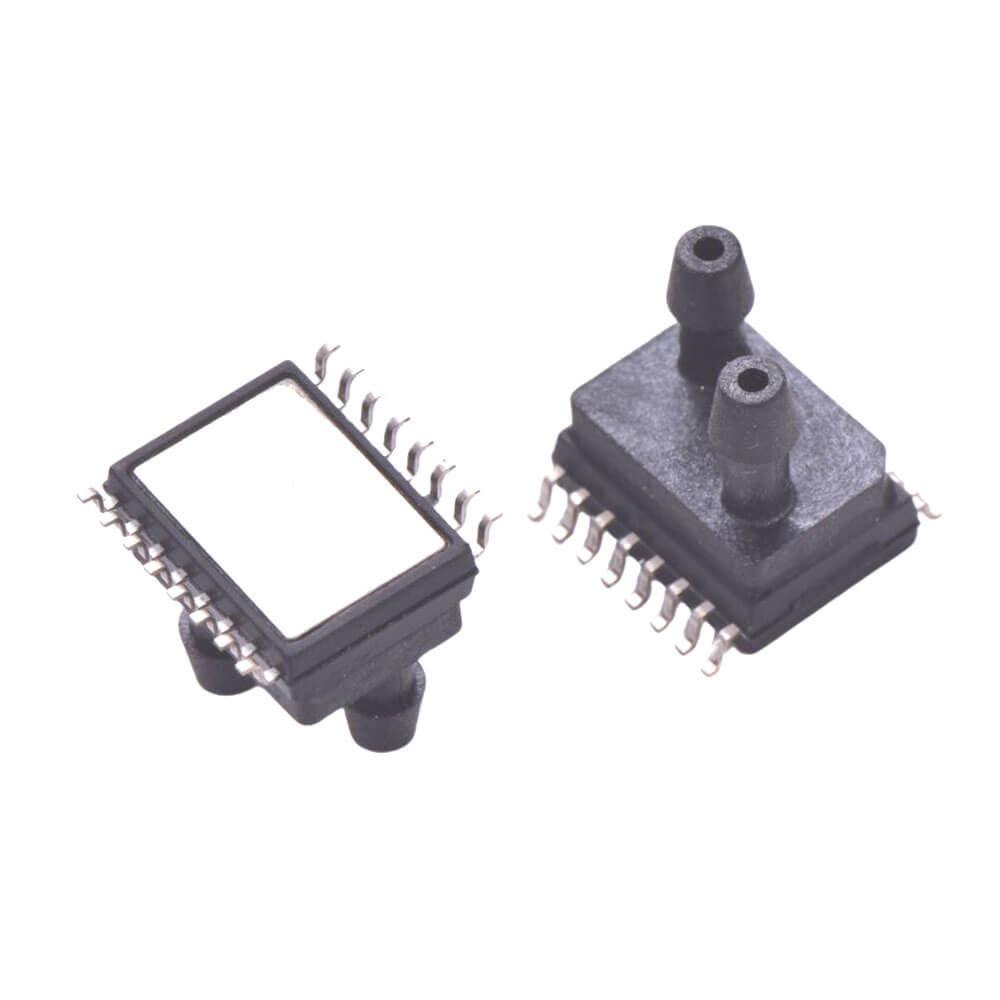

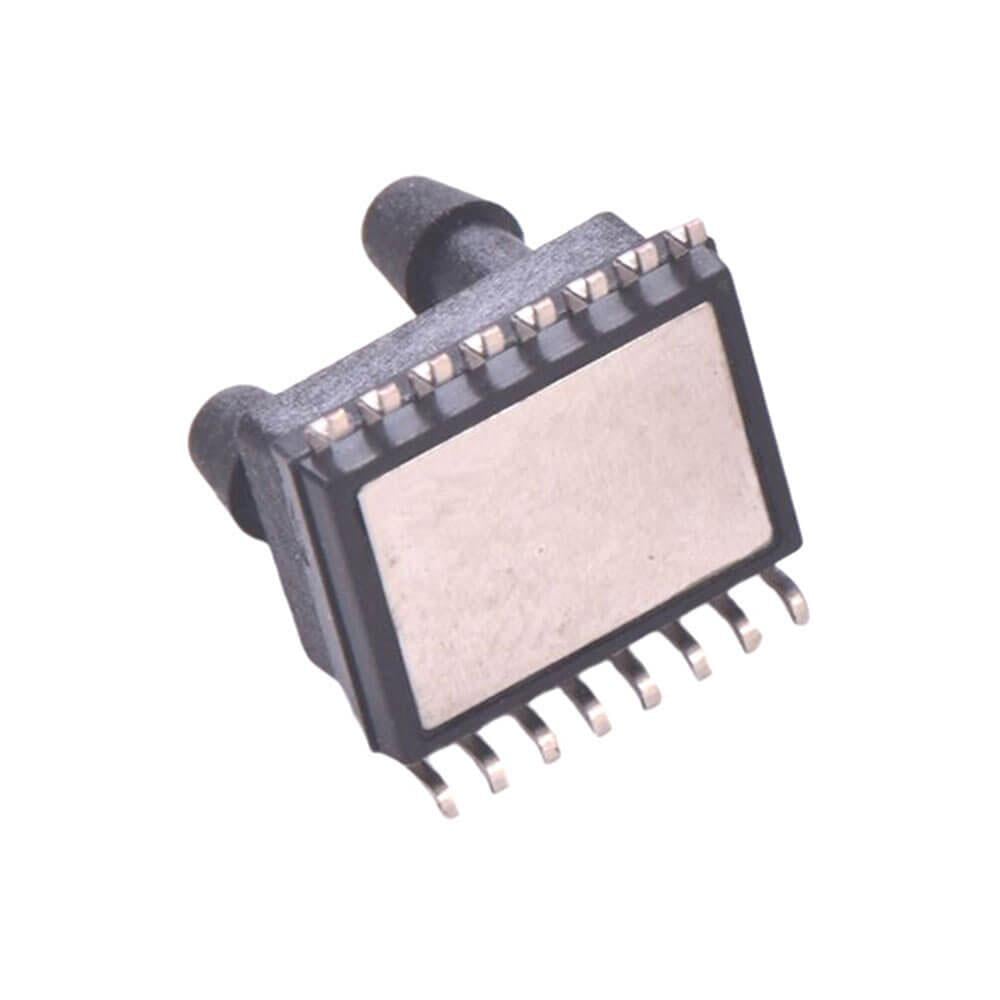

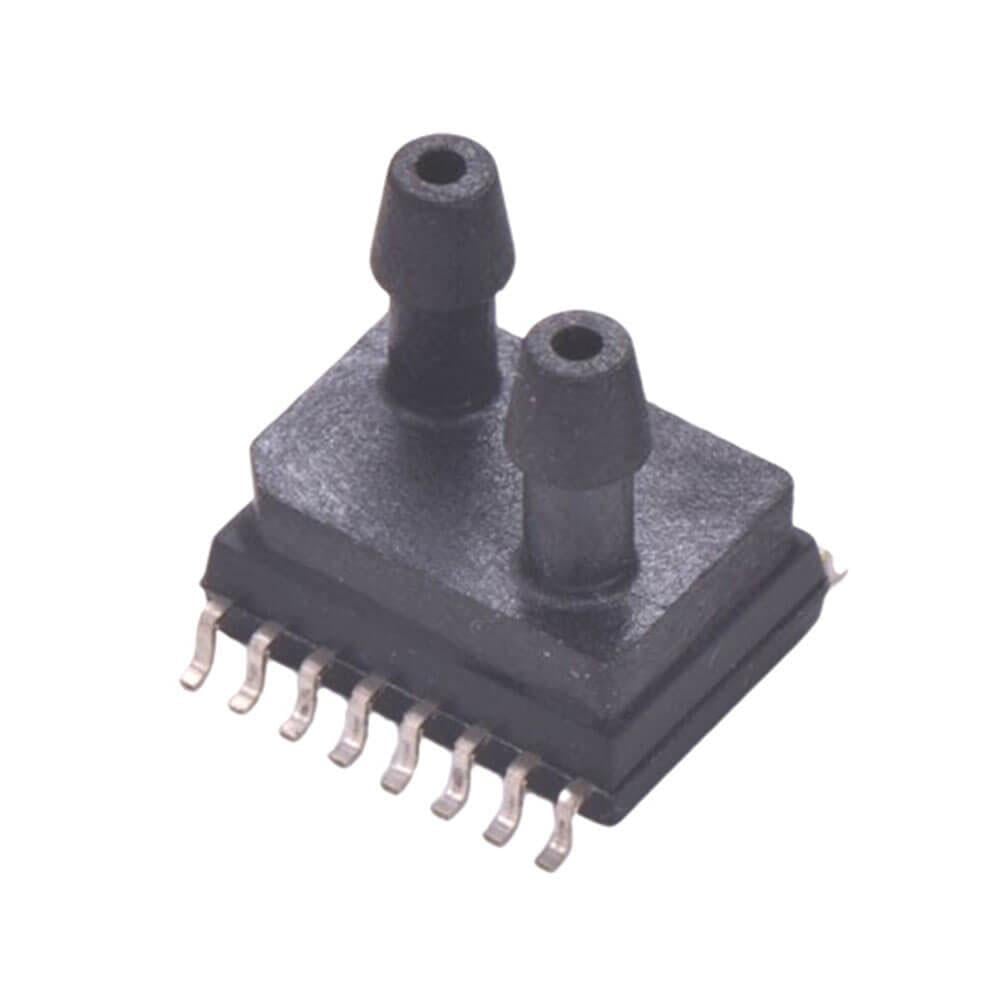

The XGZP6891D precision pressure sensor incorporates a silicon piezoresistive pressure sensor chip and an interior signal conditional Application Specific Integrated Circuit(ASIC) in a SOIC-16 package with two air vents, which can be mounted directly on a standard PCB.

The XGZP6891D precision pressure sensor is fully calibrated and temperature compensated for specified span, so XGZP6891D pressure sensor satisfy the perfect accuracy, which is designed for a wide range of application in medical care & health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with D/A inputs.



DIMENSION (Unit:mm)

precision pressure sensor xgzp6891d dimension



ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

precision pressure sensor xgzp6891d order guide

Datasheet

You may also want to explore :

1 . CF sensor

Package Includes:

1 x XGZP6891D010KPDPN -10~10KPa – CF SENSOR ORIGINAL
